Robotics Kit 4

Introduction

This is the fourth kit in the Robotics Series. In this kit you'll be adding a robot arm to your driving and drawing robot.

Objectives

  • Learning about robotics control systems.
  • Add grabbing and placement ability to your robot.
  • Have fun!
  • I've Never Used an Arduino

    Then this is a great place to start! If you're already familiar with setting up the Arduino and the IDE, you can skip to the next section.

    Terms

    When we talk about Arduino, the Arduino IDE, and coding, there are a lot of words being thrown around. This section will clear all of those up and get you ready to start building!

    Arduino

    The Arduino is a electronics prototyping platform. That means it's a flexible platform for building, testing, and, of course, prototyping electronics. That could be simple LEDs that light up at night, or advanced robots. When we talk about the Arduino we are talking about the physical board itself. The one that comes in this kit is red, but they come in many different shapes and colors. The Arduino brand and original board were created by arduino.cc and you can read more about the details of its history here.

    Arduino IDE

    The Arduino IDE, or Integrated Development Environment, is not hardware, but a piece of software. If you wanted to write an essay, you might use Microsoft Word or Google Docs. If you wanted to edit pictures, you'd probably use Photoshop or Paint.net. If you want to program code for the Arduino, you'd use the Arduino IDE. Its a computer program (tool) that let's you develop and test out code. Once written, the code can be upload to the physical Arduino where it will stay until you upload new code.

    Download

    Since it is a program, you'll need to install it.

    For Windows computers use this link Windows Installer

    For Mac computers use this link Mac Installer

    After following each link, press the Just Download button to begin downloading the Arduino IDE. The Mac version has a few more steps and we have a video just for that.

    Mac Installation
    For Mac users

    Installation

    Open the executeable file you downloaded. You'll see a screen asking you to agree to their license. You can press I Agree.

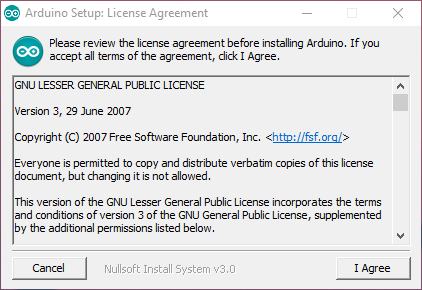

    LicenseLicense

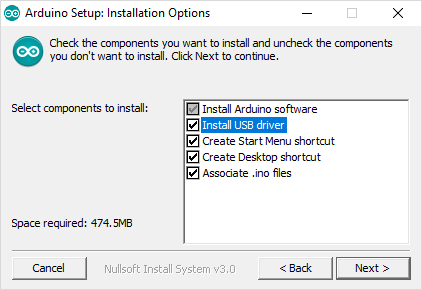

    Next up are the installation options. The Install USB Drivers lets the Arduino board communicate with the IDE. We definitely want this. The Associate .ino files makes any Arduino file on your computer open up to the Arduino IDE. Very helpful, so we'll keep that too. Press Next >.

    OptionsOptions

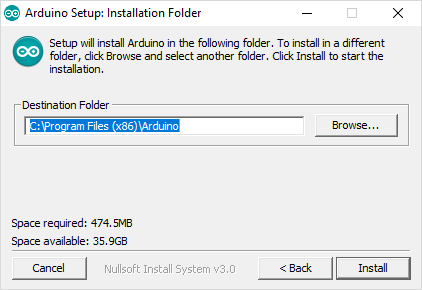

    Now you are being asked where you'd like the Arduino IDE program installed. I don't mind it in the standard Program Files so I just press Install. You can change where it will be installed, just remember what you chose. I recommend not changing it.

    FolderFolder

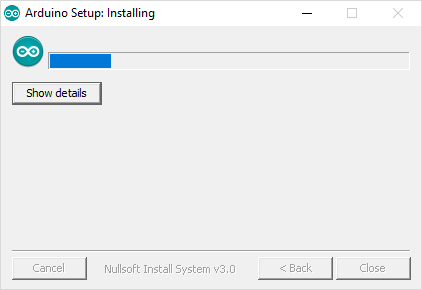

    Now the IDE is installing.

    InstallingInstalling

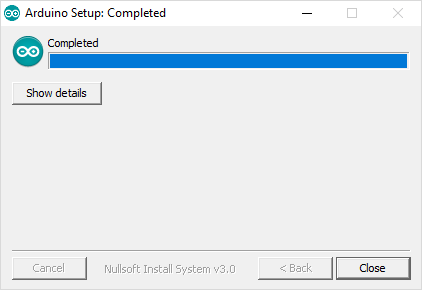

    Once completed proceed to the next section.

    CompletedCompleted

    Arduino IDE 101

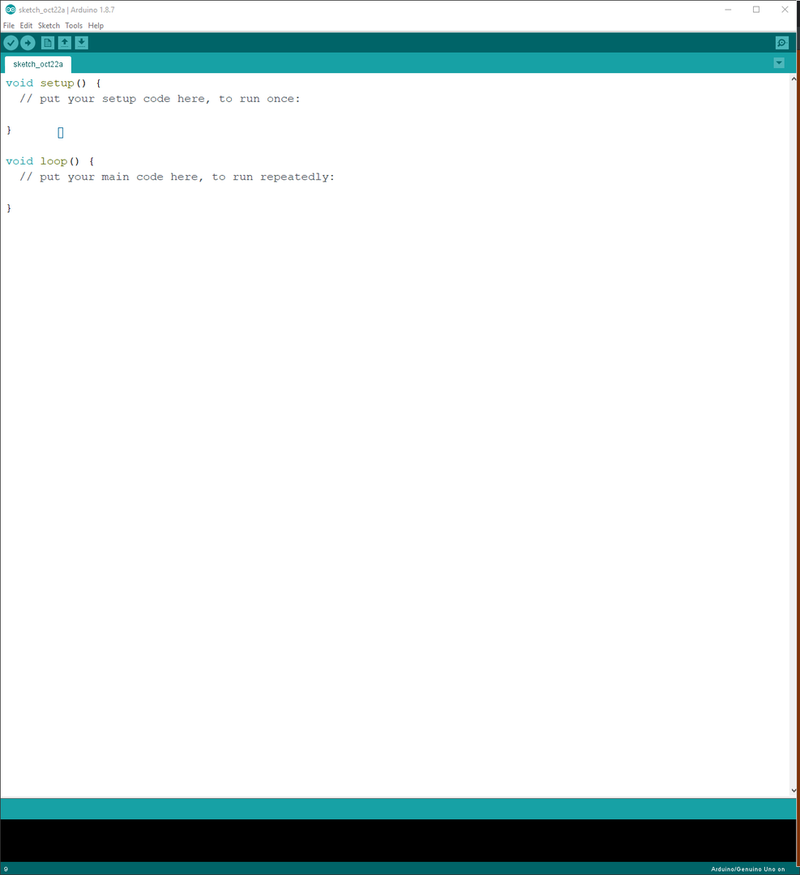

    Open up the Arduino IDE for the first time. So, let's figure out what's what.

    Arduino IDEArduino IDE

    There is a mostly empty space in the middle that has this text:

    Download file Copy to clipboard
    1
    2
    3
    4
    5
    6
    7
    8
    9
    void setup() {
      // put your setup code here, to run once:

    }

    void loop() {
      // put your main code here, to run repeatedly:

    }


    This is a simple Arduino Sketch. A Sketch is code you write that will later be uploaded to the Arduino board.

    There are few steps to go from code written in a sketch to code that runs on the Arduino board. Those are Verify > Compile > Upload.

    All of these you can get to by going under Sketch on the top bar of the program. Or using the Checkmark and Arrow icons right below that. The Checkmark verifies your code will compile, and the arrow button uploads the code to the Arduino.

    Sketch
    Icons

    Verify - looks at your code and makes sure it can actually run. It checks that there are no errors or things out of place. If your code will work, it goes to the Compile stage.

    Compile - The code you've written is great for human. It is readable and hopefully understandable. But this isn't great for a machine ie the Arduino. The Compile stage takes your written code and translates into something that the Arduino can understand and run, called machine code. It saves that compiled file and tried to Upload it to the board.

    Upload - This takes the compiled files and tries to send it to a plugged in Arduino. The IDE doesn't know where you've plugged in your Arduino or what kind it is. You have to tell it. I'll show you how to set that up in the next section.

    Arduino Board Setup

    For this section, make sure your Arduino Board that came with your kit is plugged in. Use the included micro USB cable to plug your Arduino into any free USB port on you computer.

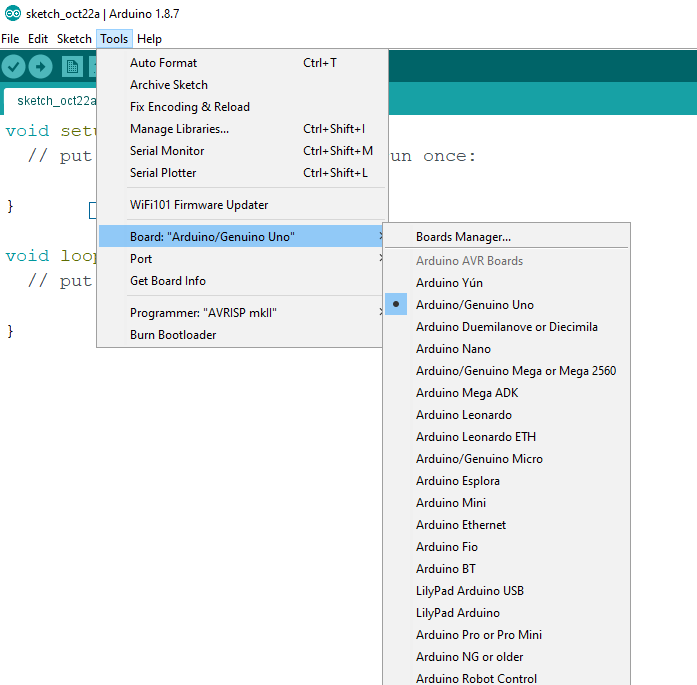

    Navigate to the Tools section at the top of the Arduino IDE.

    You'll be greeted with a scary drop down. To setup your Arduino to accept uploads, do the following: Go to Board: and make sure Arduino/Genuino Uno is selected.

    BoardBoard

    Next is the Port. For Mac users refer to the video for these instructions. With your Arduino plugged in, you'll see some options. Mine says COM 15. This is the channel that the IDE will use to communicate with your Arduino. If you have a lot of COM # devices and don't know which is your Arduino, unplug your Arduino and take note of that numbers are there. Then plug it back in. Whichever is the new one in the list is your Arduino. Select that port.

    PortPort

    With the board and port selected and ready to go, let's upload our first sketch.

    Sketches

    We are going to upload a simple sketch to make an LED on the board blink. Head to File > Examples > Basics > Blink . You should see this sketch.

    Download file Copy to clipboard
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    /*
      Blink

      Turns an LED on for one second, then off for one second, repeatedly.

      Most Arduinos have an on-board LED you can control. On the UNO, MEGA and ZERO
      it is attached to digital pin 13, on MKR1000 on pin 6. LED_BUILTIN is set to
      the correct LED pin independent of which board is used.
      If you want to know what pin the on-board LED is connected to on your Arduino
      model, check the Technical Specs of your board at:
      https://www.arduino.cc/en/Main/Products

      modified 8 May 2014
      by Scott Fitzgerald
      modified 2 Sep 2016
      by Arturo Guadalupi
      modified 8 Sep 2016
      by Colby Newman

      This example code is in the public domain.

      http://www.arduino.cc/en/Tutorial/Blink
    */

    // the setup function runs once when you press reset or power the board
    void setup() {
      // initialize digital pin LED_BUILTIN as an output.
      pinMode(LED_BUILTIN, OUTPUT);
    }

    // the loop function runs over and over again forever
    void loop() {
      digitalWrite(LED_BUILTIN, HIGH);   // turn the LED on (HIGH is the voltage level)
      delay(1000);                       // wait for a second
      digitalWrite(LED_BUILTIN, LOW);    // turn the LED off by making the voltage LOW
      delay(1000);                       // wait for a second
    }


    Don't worry about the coding for now. Let's upload this sketch. You can press the Arrow icon, go to Sketch then Upload, or you can use the shortcut Ctrl+U in order to upload the code. Your sketch will auto-verify, compile, then upload to your Arduino board.

    Upload the SketchUpload the Sketch

    You will see the message Done uploading and your board should now have a blinking light.

    Uploading Sketches and Code From Thimble

    We provide example code for all our projects. To use those you'll need to copy them from our website. Then, go into the Arduino IDE, File > New. It's best to then delete all the code already there in the sketch before you paste our code in, as that will avoid any errors from copying over the old code.

    Serial Plotter

    You'll be asked to use the Serial Plotter on some projects. This reads any information coming from the Arduino and displays it on a graph. It can only be accessed after you've uploaded your code. It is in the Tools menu. Once opened, make sure the Baud rate is set to 9600.

    Where to find the Serial Plotter
    Baud rate

    Troubleshooting

    The most common issues are solved by double checking your Board and Port settings.

    Libraries

    What are Libraries?

    Libraries are a collection of code that has already been written. We use them when we want to add functionality without have to write everything from scratch. The advantage of using a library is code re-use.

    Some of the projects in this set need libraries so this section will show you how to install those.

    Libraries to be downloaded

    No new libraries are required for this kit.

    Adding Them to the Arduino IDE

    Open up the Arduino IDE and go to Sketch > Include Library > Add .ZIP Library.... After that navigate to the zip files and add them one by one. And that's it!

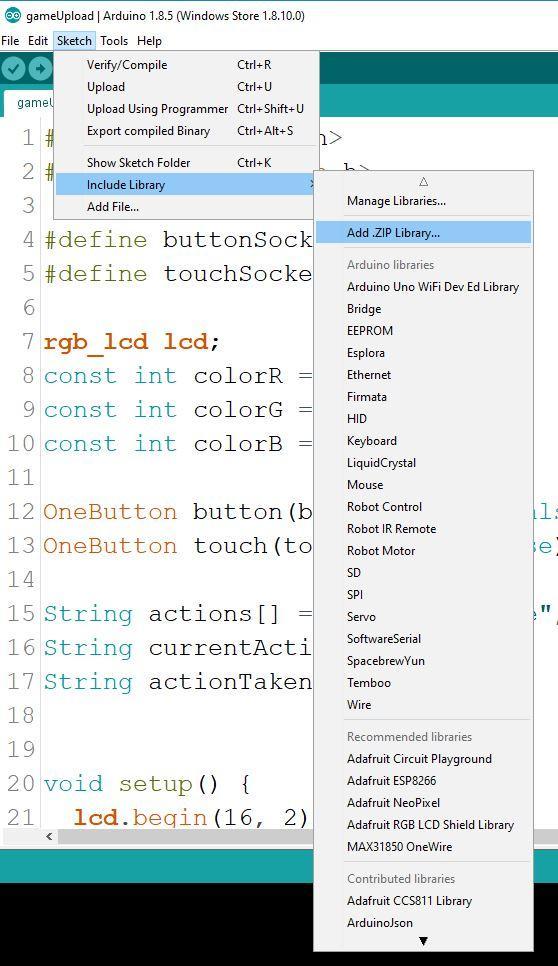

    Add a LibraryAdd a Library

    What Should I Have Received?

    What

    Here are all the parts that come with Robotics Kit 4

    Modules

    Gather the following parts to complete this project.

    Parts

    All Parts x Qty
    Taped Acrylic Sheet x 1

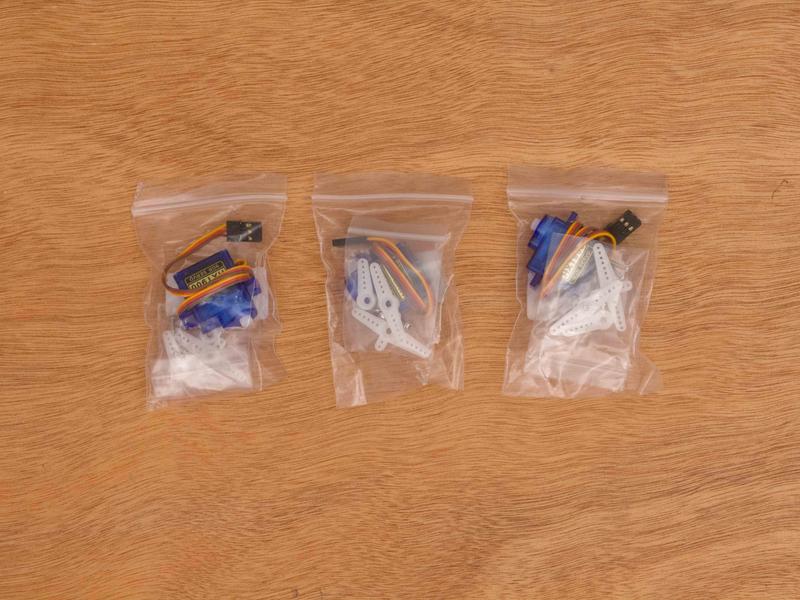

    Servos x 3

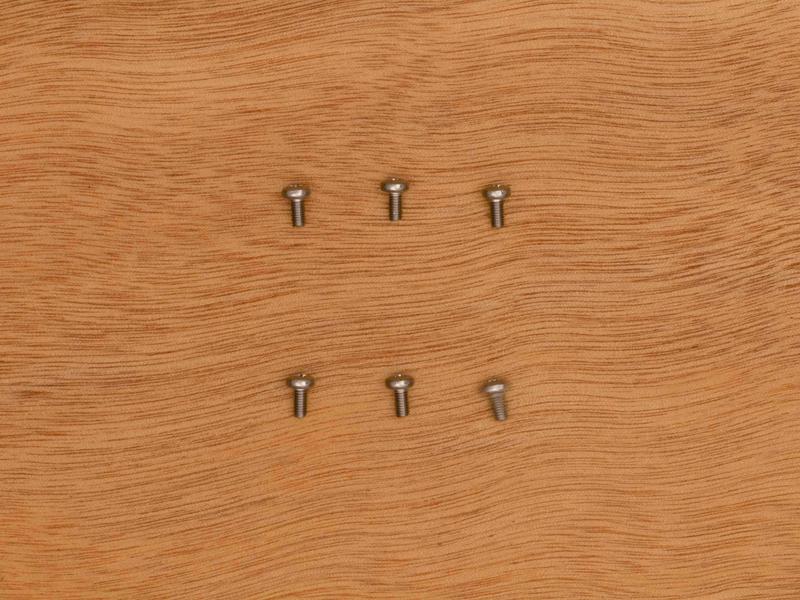

    M3 6mm Machine Screw x 6
    M3 8mm Machine Screw x 18

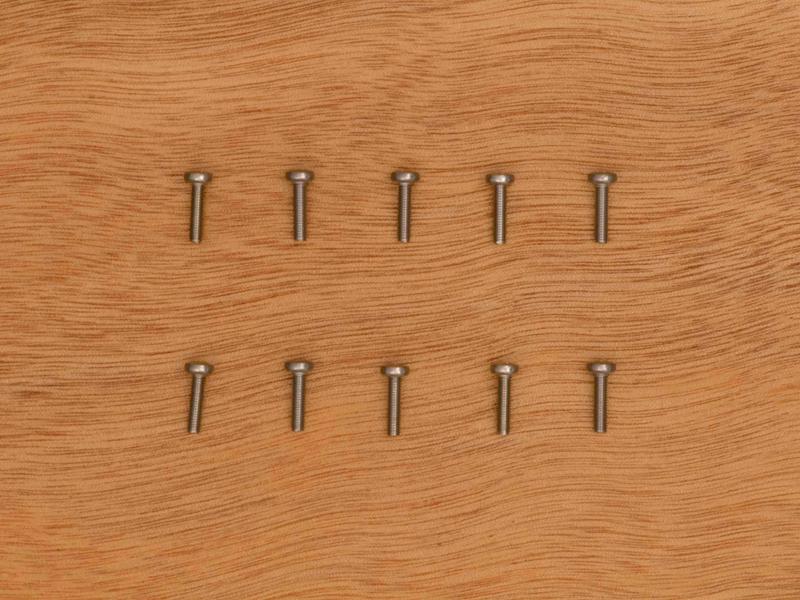

    M3 12mm Machine Screw x 10

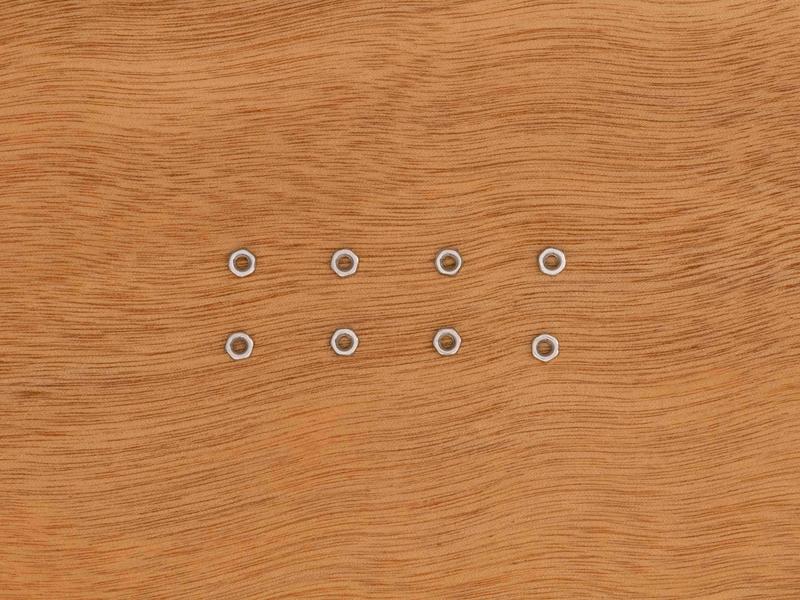

    M3 Hex Nuts x 8

    Additional parts

    You should also have received a sheet of 6 stickers and a postcard with instructions.

    Before Building

    Start

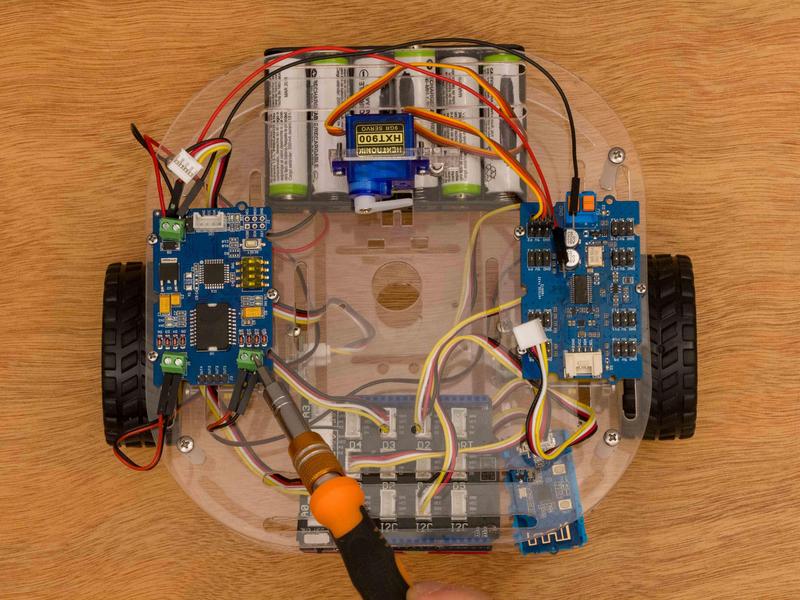

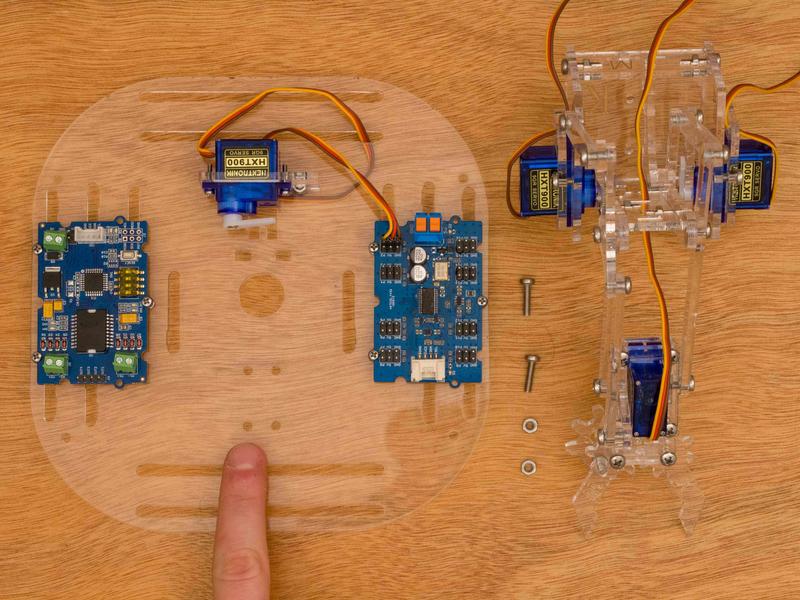

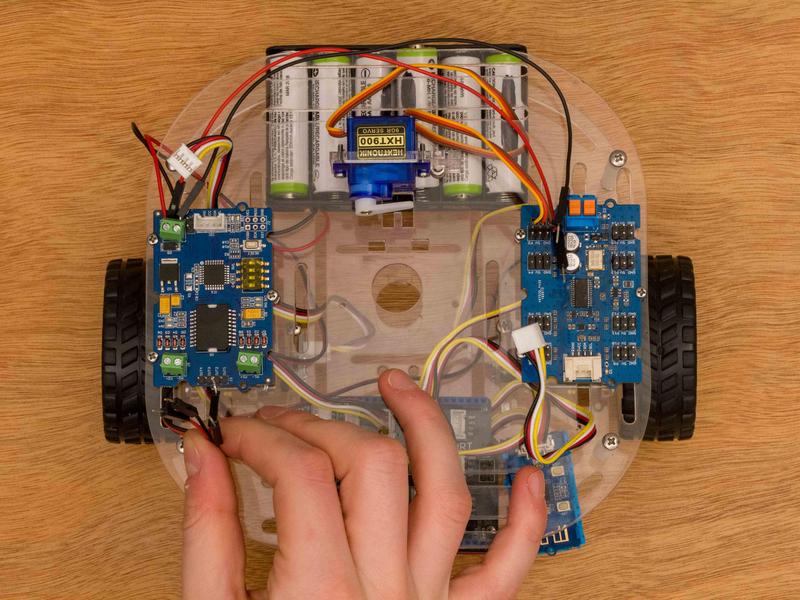

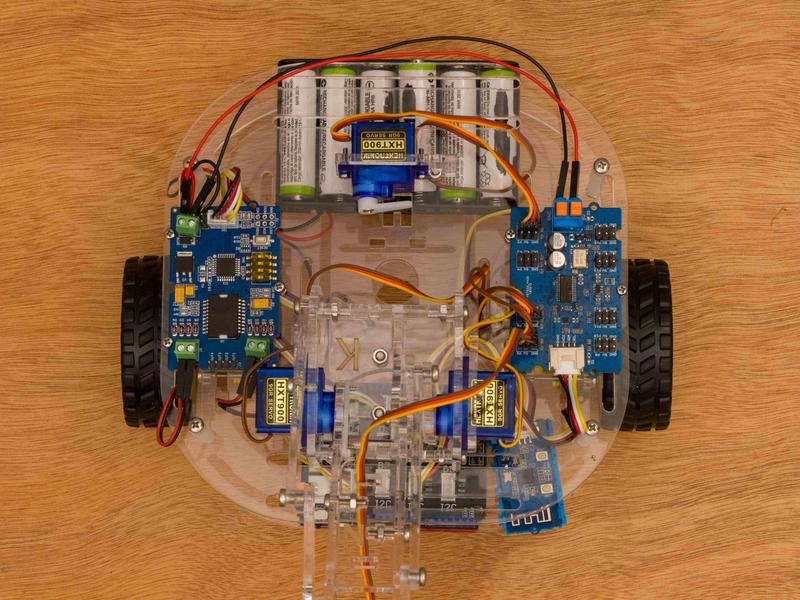

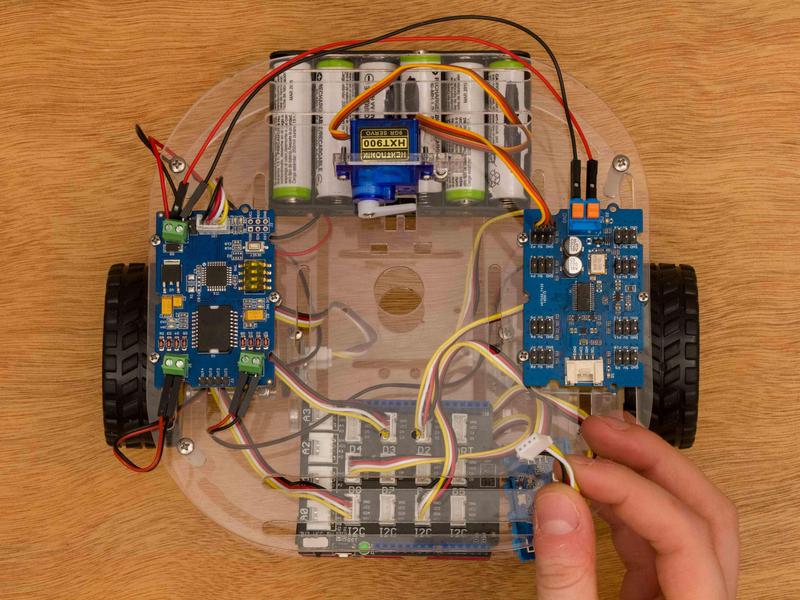

    You'll need everything in the kit plus a working drawing robot from RS3.

    Piece Identification

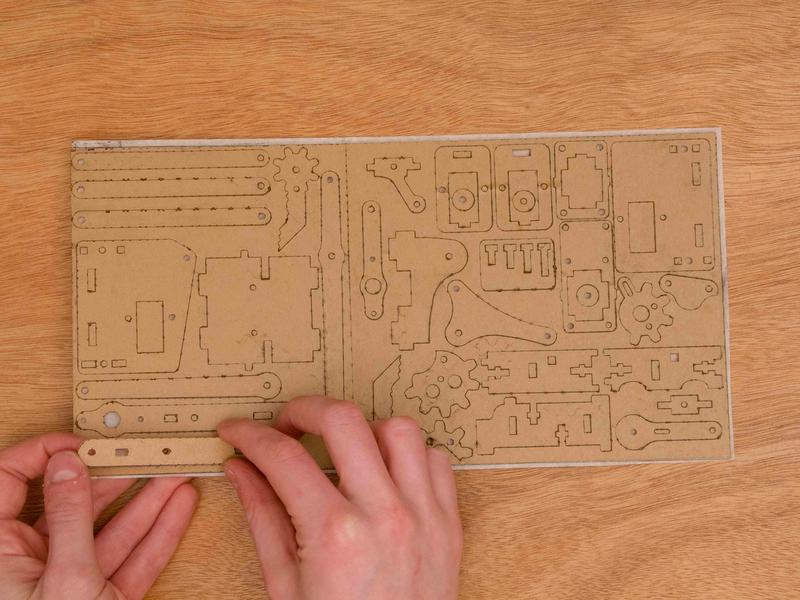

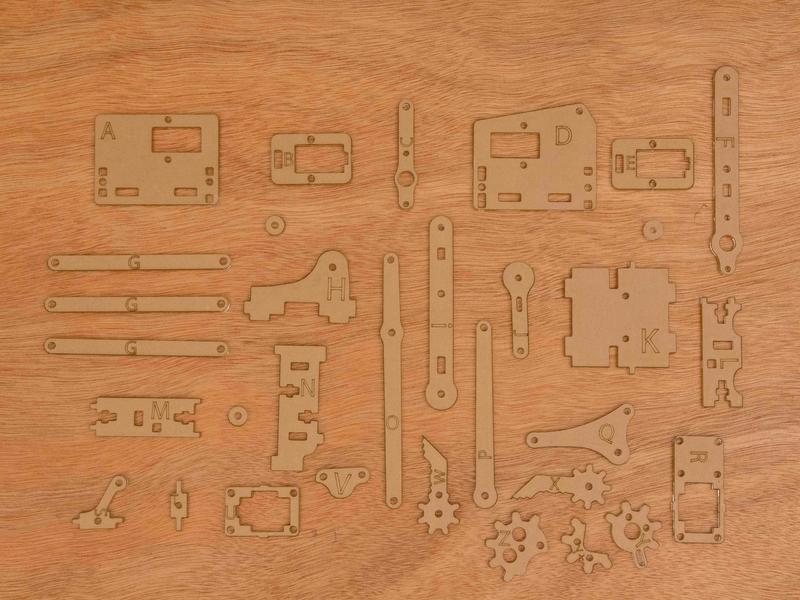

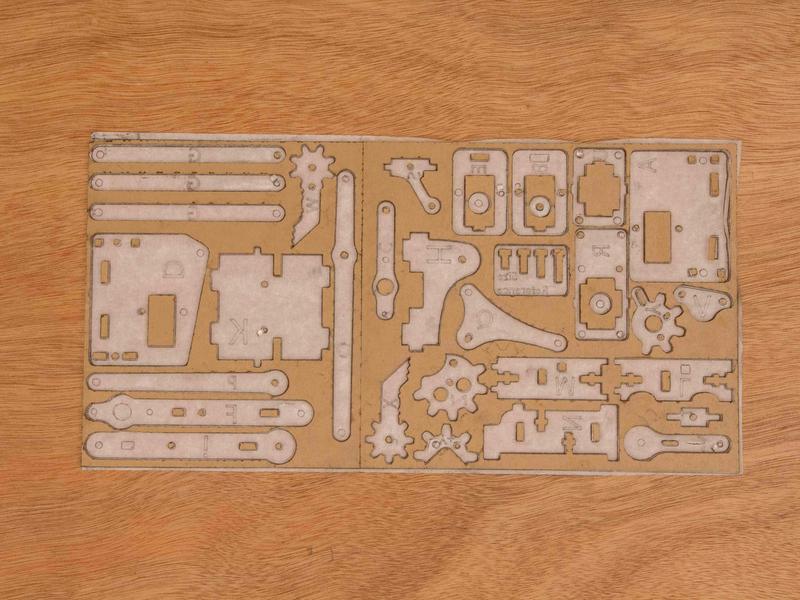

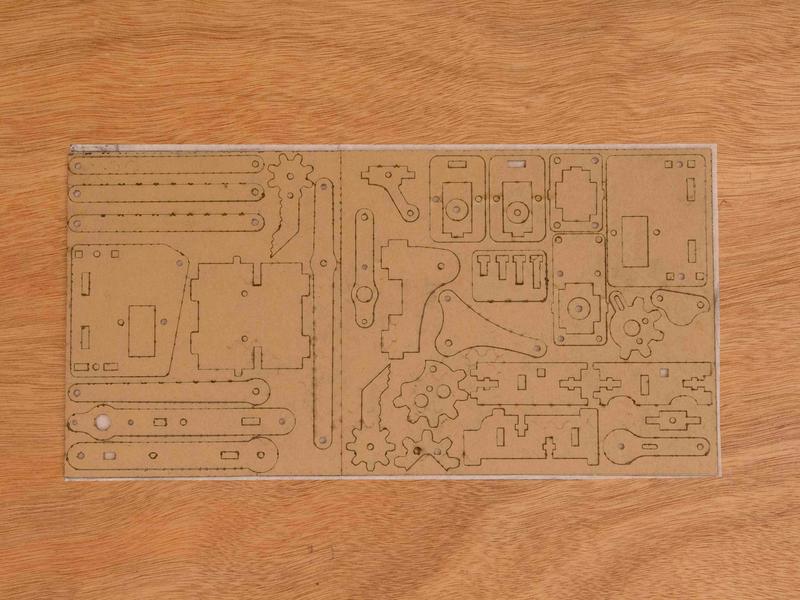

    Start by peeling off the acrylic pieces from the tape. Then take the paper backing off of each side. Each piece will have a letter etched into it, expect for the size reference card. Check out the sheet below to double check that you have every piece. It is recommended to place the pieces in alphabetical order.

    Identification Guide

    Parts sheet

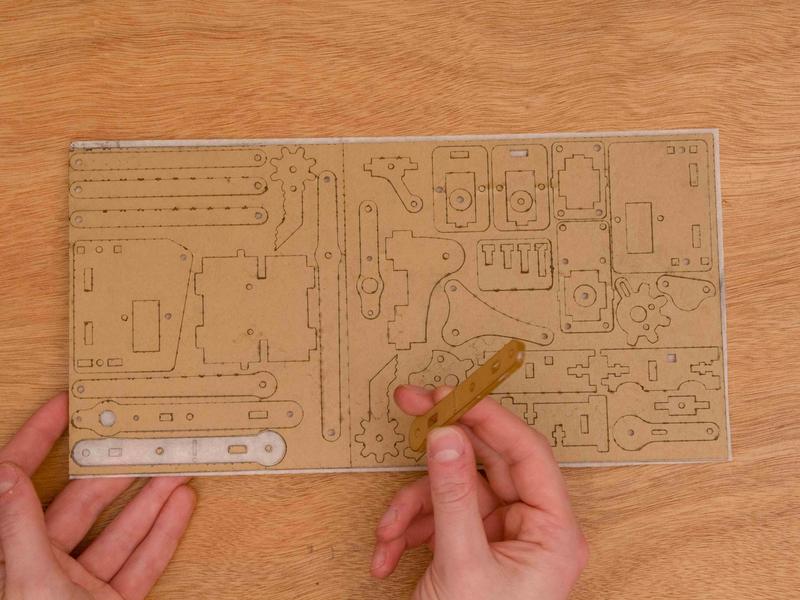

    Taking off parts
    First one off
    All off
    All parts

    Hardware Identification

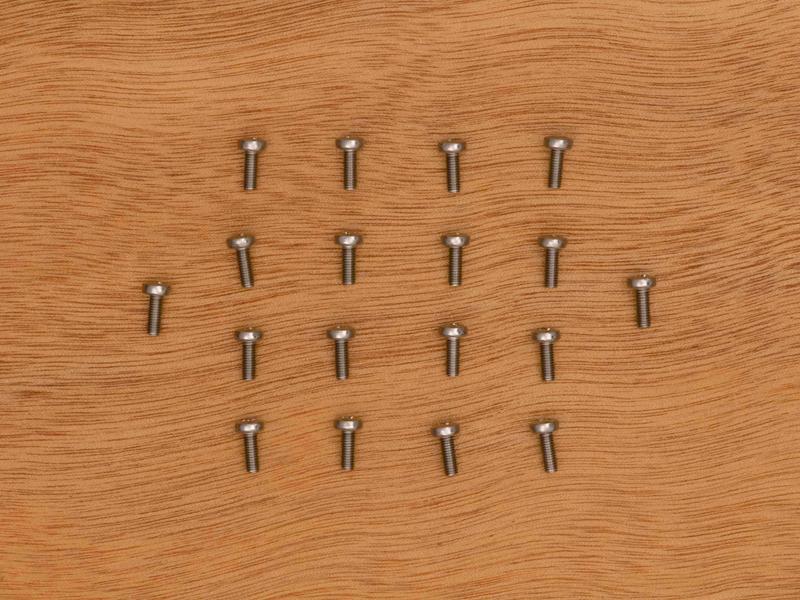

    Included is a acrylic piece with the name Size Reference etched into it. This is to be used to identify 6mm, 8mm, 10mm, and 12mm screws. There are no 10mm screws in this kit but they have been used in the past. It is recommended to keep this reference handy throughout your build and hey why not forever.

    Calibration Code

    There are three times in the build process where the servos much be set to a certain degree. Upload the following code to the completed drawing robot from Robotics Series 3.

    Upload

    Upload the following code.

    Download file Copy to clipboard
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    //Libraries needed
    #include "ServoDriver.h"
    #include <Wire.h>

    //Creating the servo driver object
    ServoDriver servoDriver;

    void setup() {
      //Open I2C communication
      Wire.begin();
      //Begin communication with driver
      servoDriver.init(0x7f);
    }

    void loop() {
      //Set Servos
      servoDriver.setAngle(7, 25);
      servoDriver.setAngle(8, 90);
    }


    Next Section

    You'll want to grab a screwdriver and then head over to the next section to start the build.

    Building the Arm

    Start

    You should have the acrylics pieces lined up, a screwdriver with a Philips bit, and Robotics Series 3

    Left Side

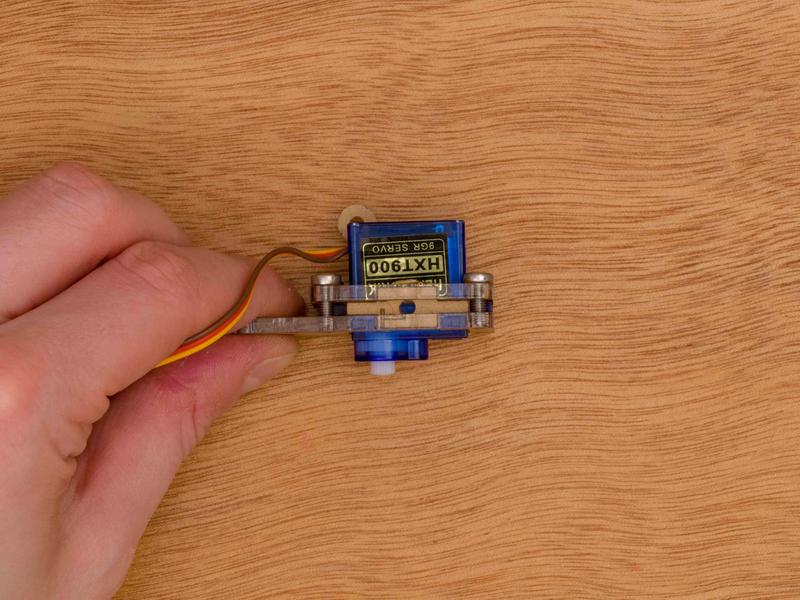

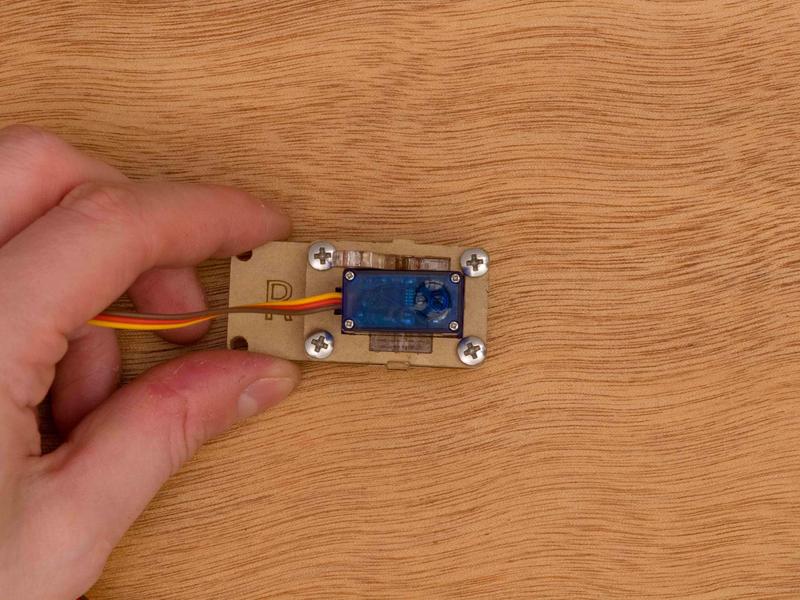

    Left Servo Mount

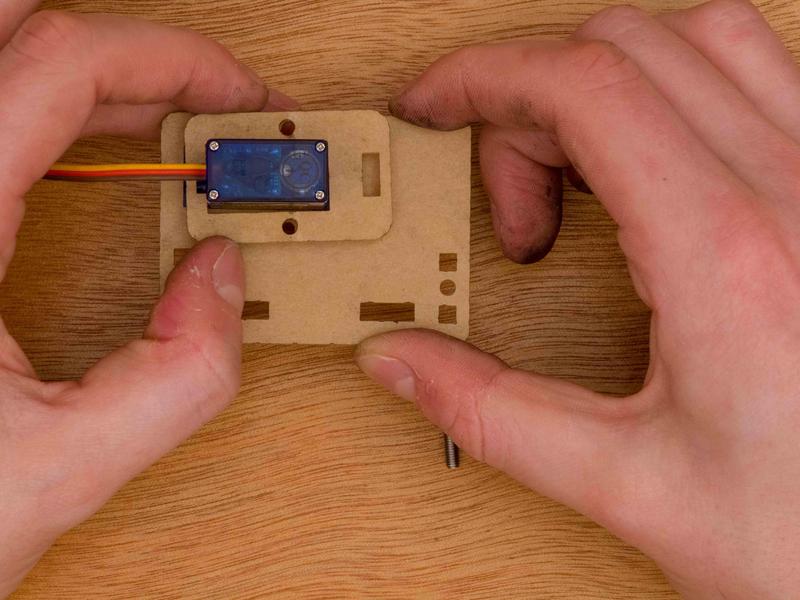

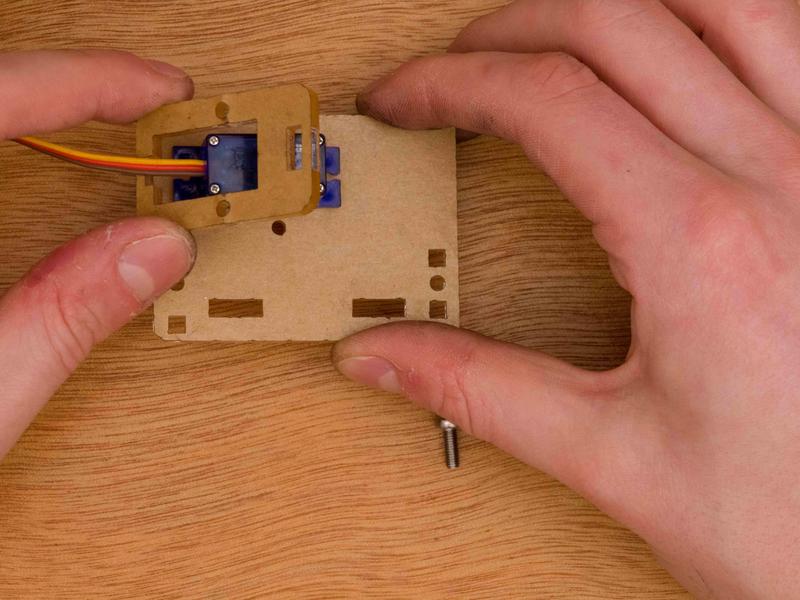

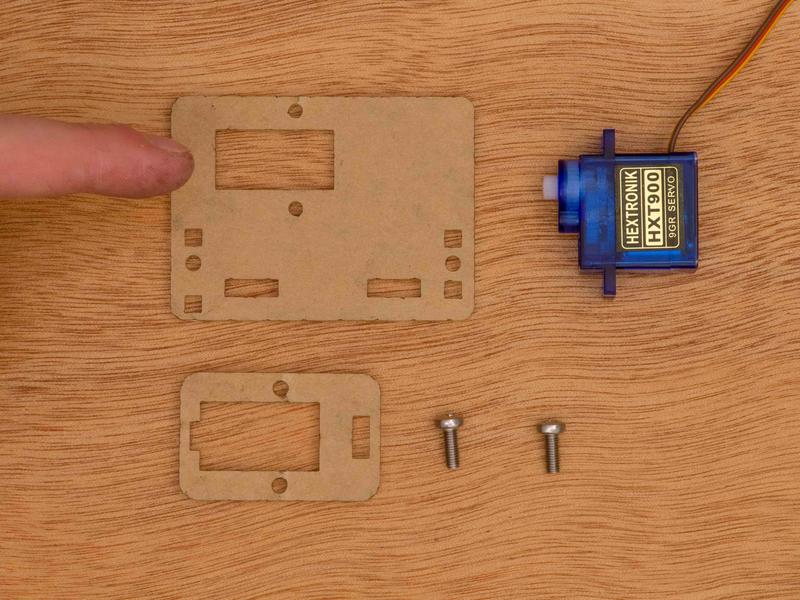

    You will need pieces A, B, one servo, and two M3 8mm screws. Place A with the largest rectangular cutout towards the top left. Take the blue servo out of its bag and place it down through that cutout. The cable coming out of the servo should be on the left. Thread the cable through the large cut out in B then place B over the servo. The smaller cutout should be towards the right. Before screwing this piece in place, take the servo cable and feed it through the small cut out in B. Push B flush against the servo. Place both screws in the holes in B then screw into A. Do not over tighten the screws. You will snap the acrylic.

    Parts needed

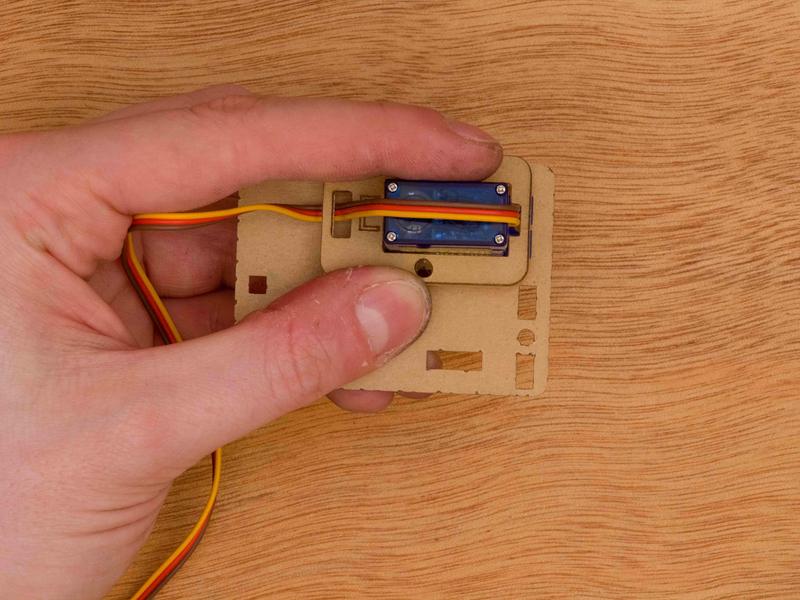

    Top left cutout

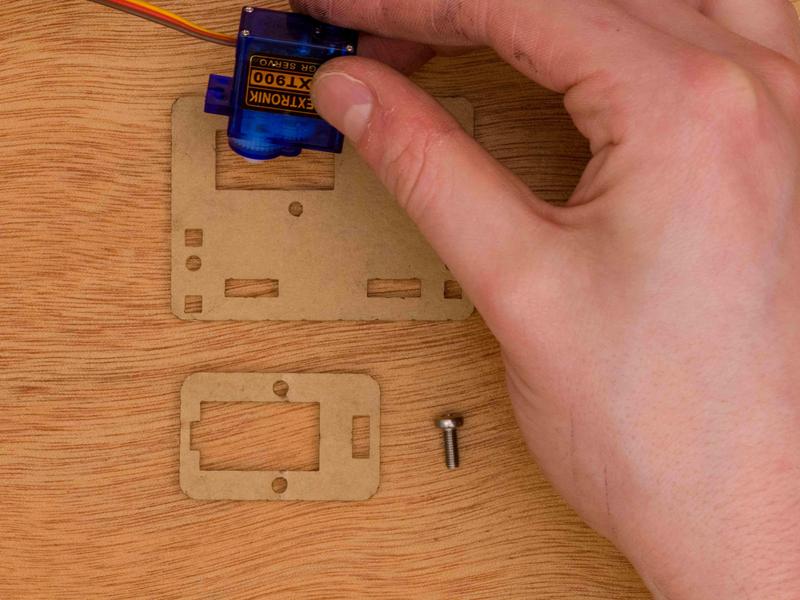

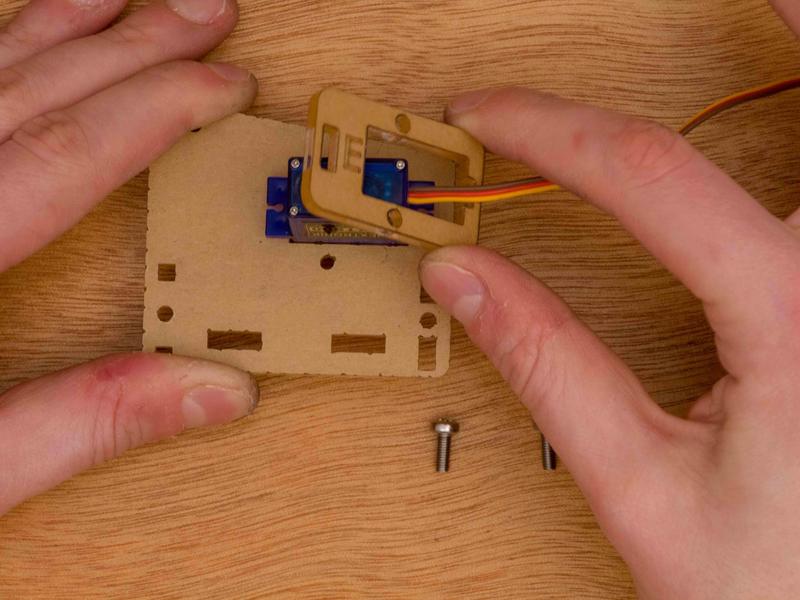

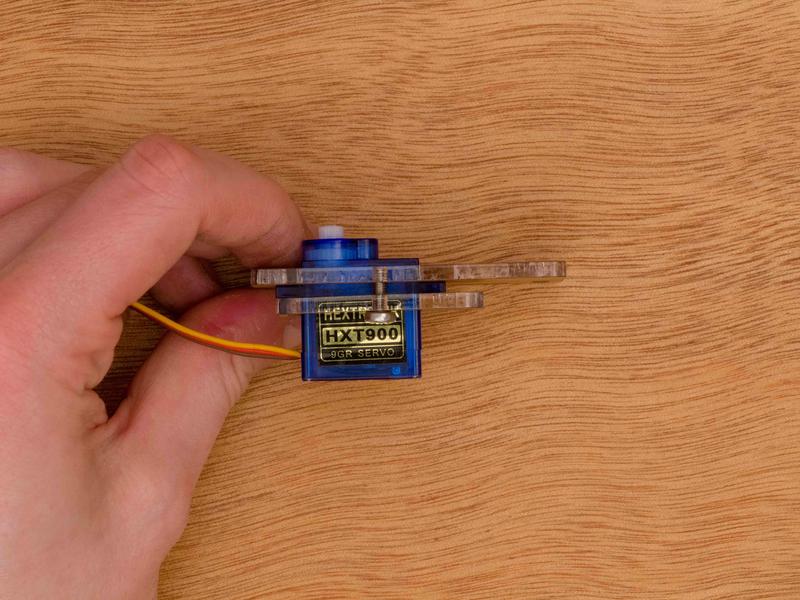

    Take the servo
    Insert down into cutout
    Flush with the part
    Cable coming out of the left

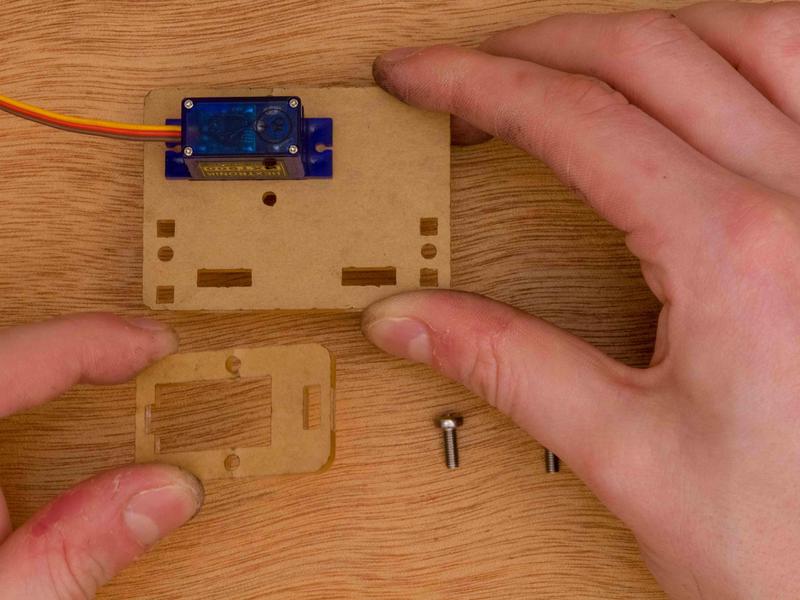

    Take B
    Slip through cable
    Slide out servo

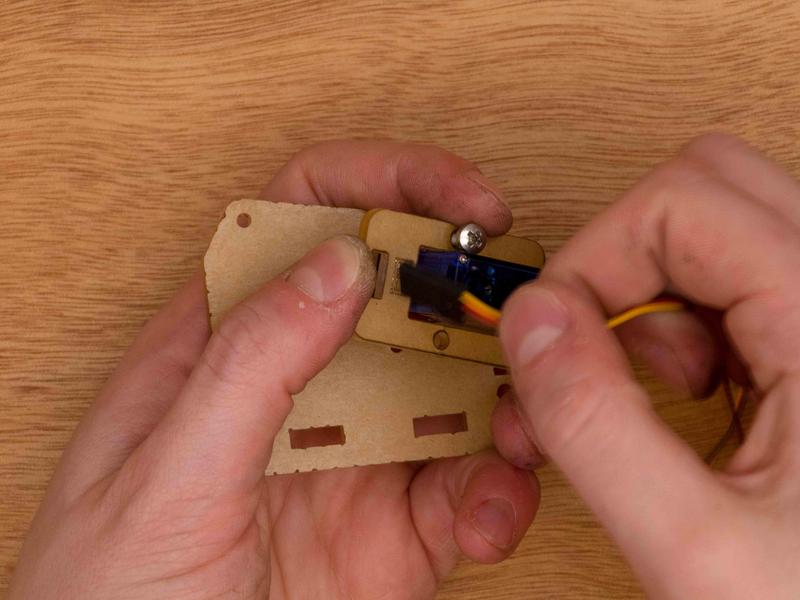

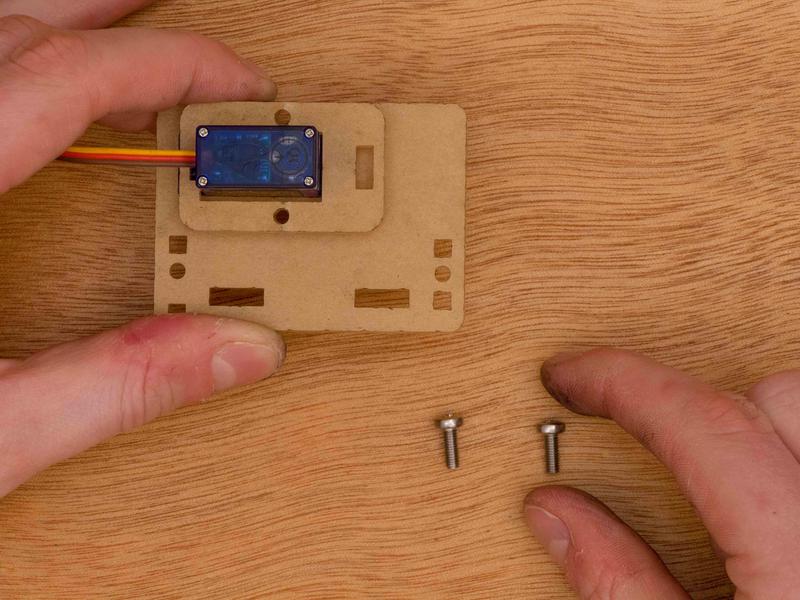

    Take a screw
    Place in top hole

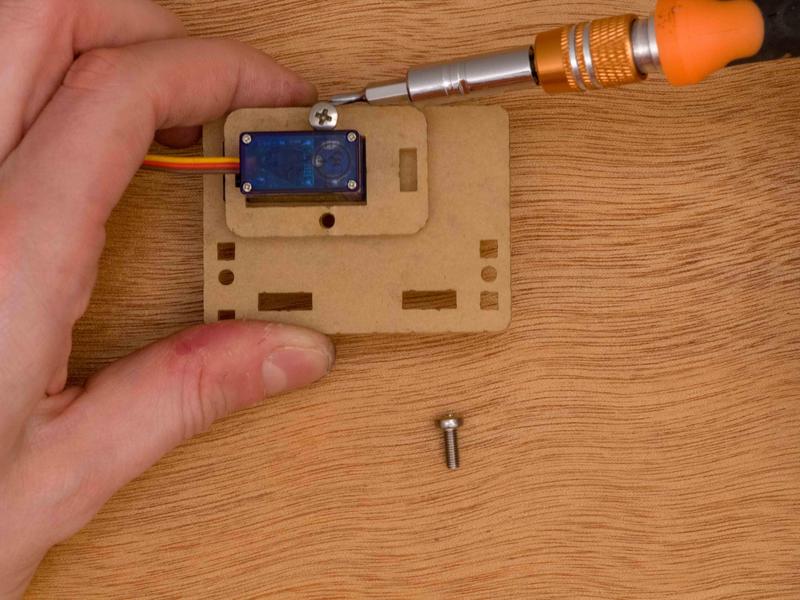

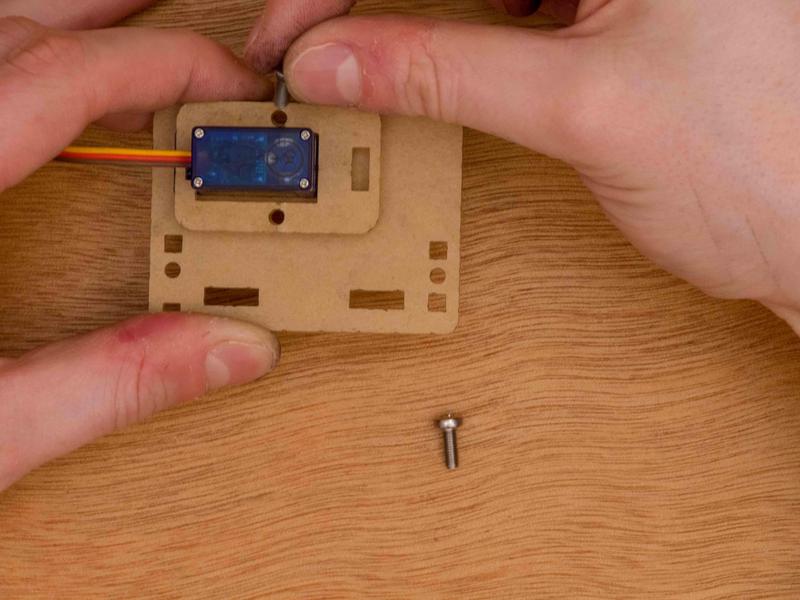

    Screw down
    Repeat with remaining screw
    Pieces should be parallel and not bent at all

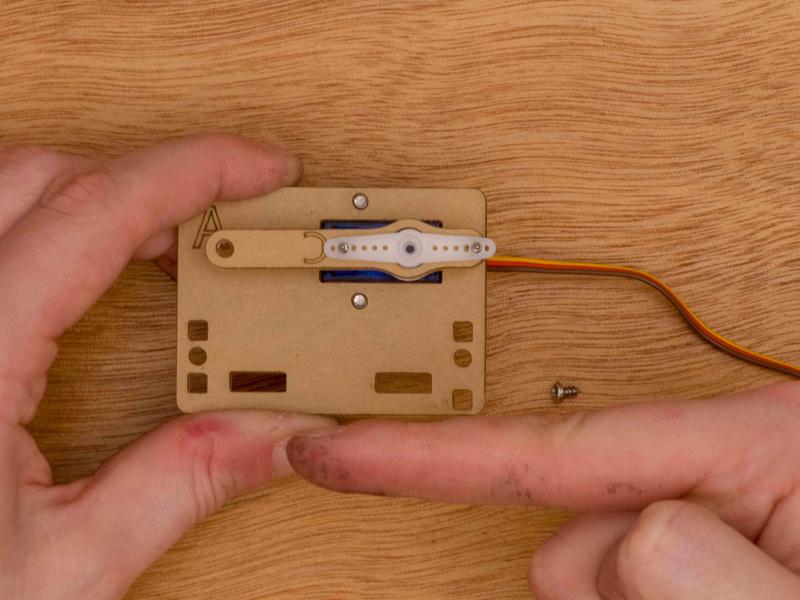

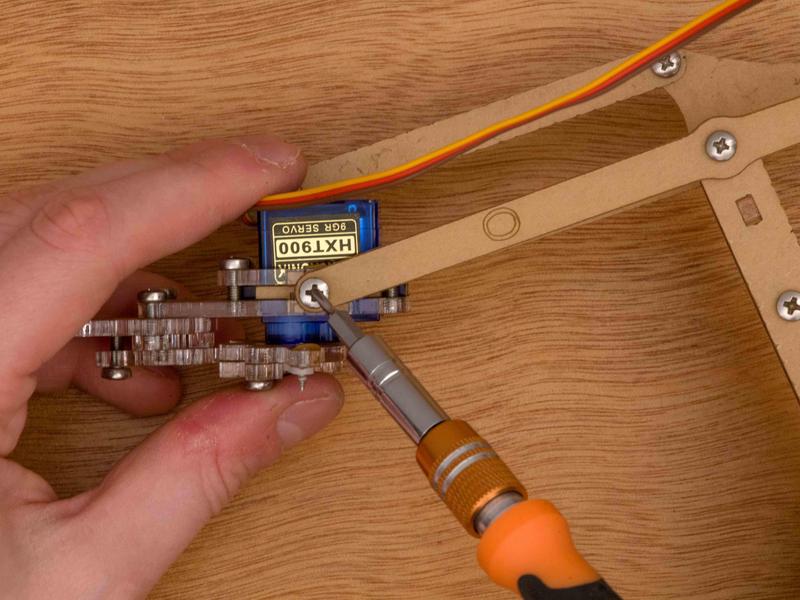

    Left Servo Arm

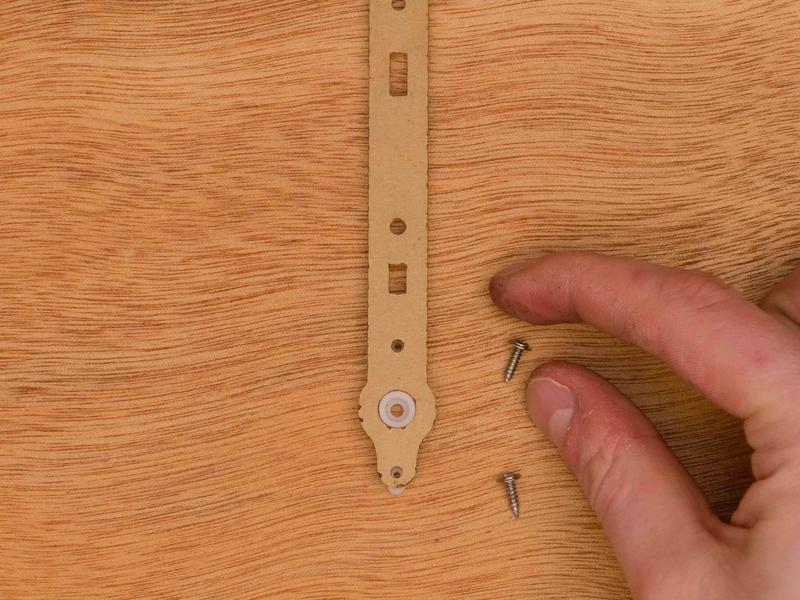

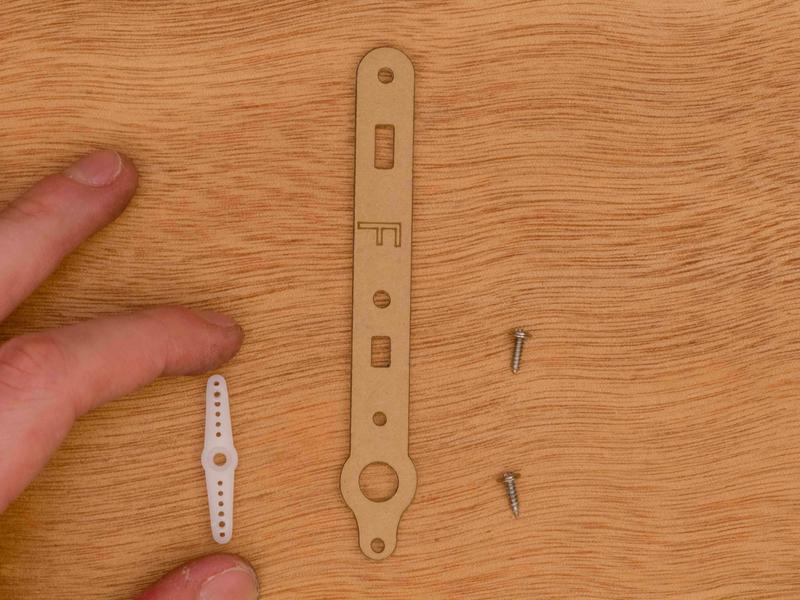

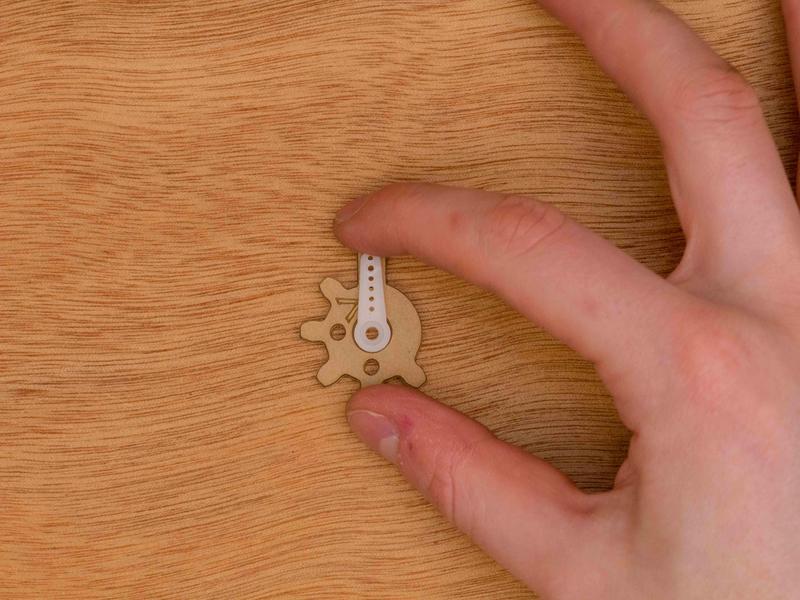

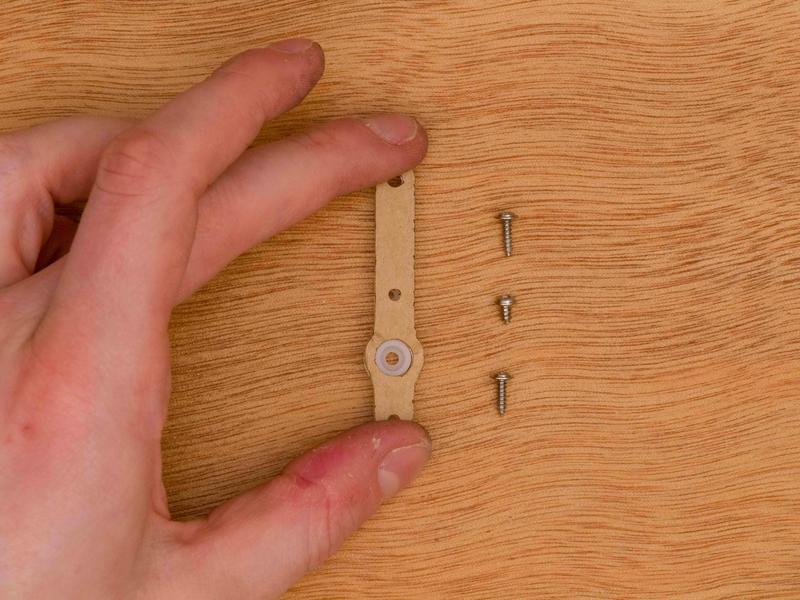

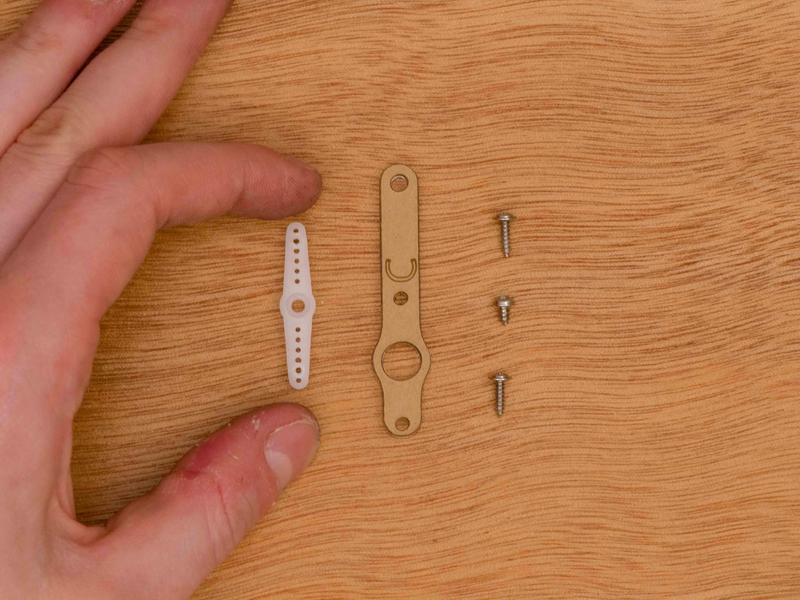

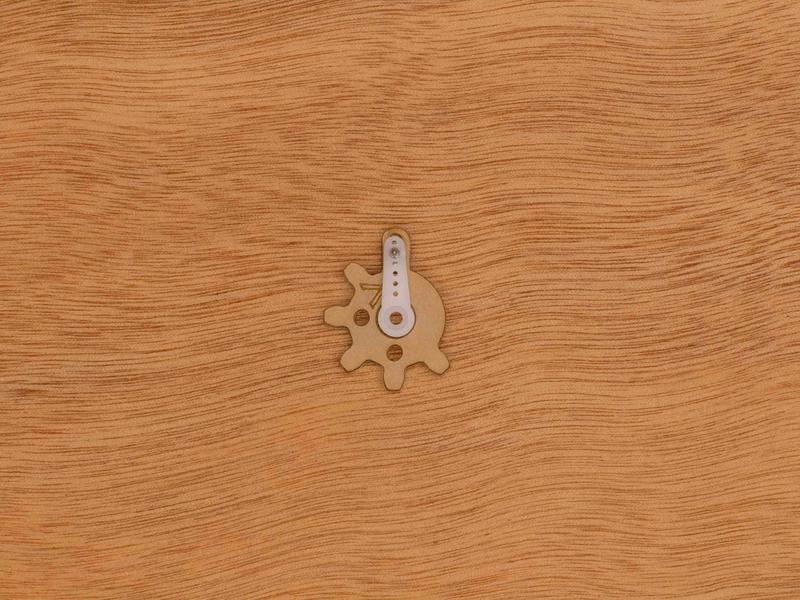

    You will need the smaller bag inside the servo bag, and C. Take out the servo horn shown below as well as all three screws. Place the center of the horn through the large hole at the end of C. From the opposite side as the horn arms, screw in the two longer screws through C and into the horn.

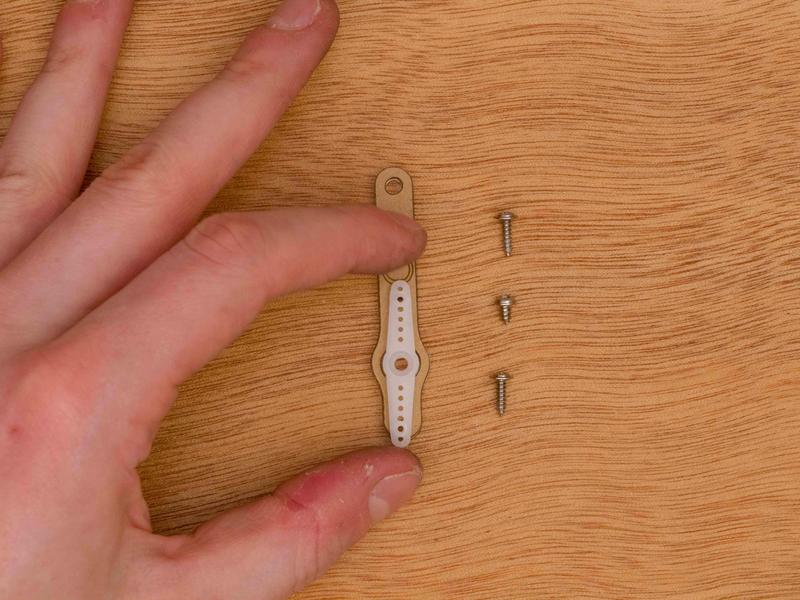

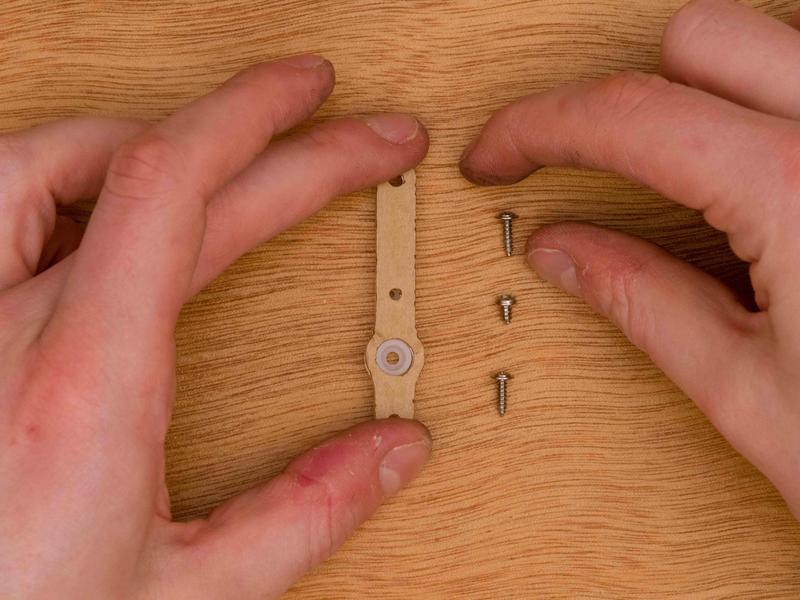

    Parts needed

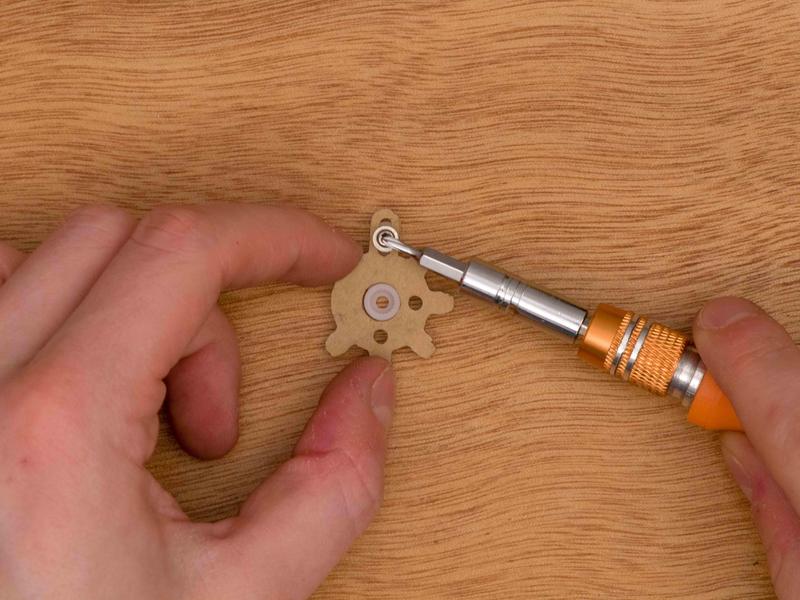

    Take horn
    Place in hole

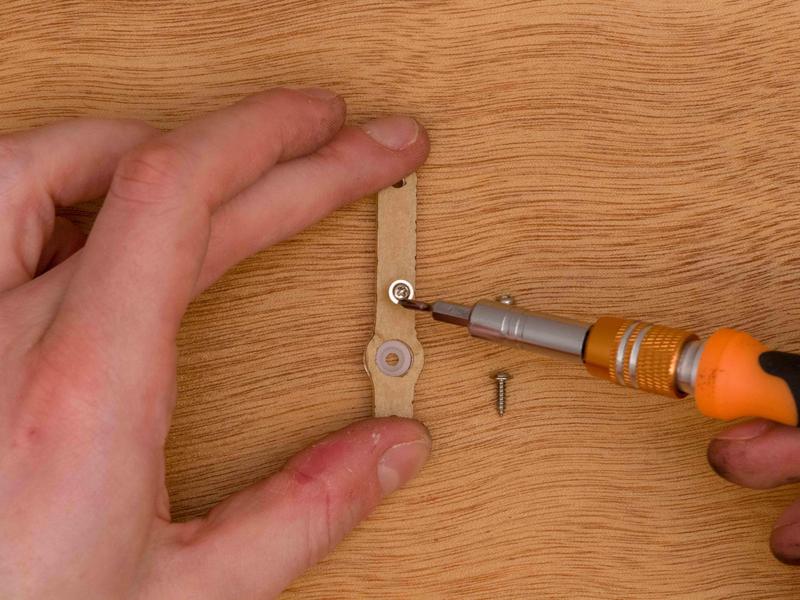

    Flip over

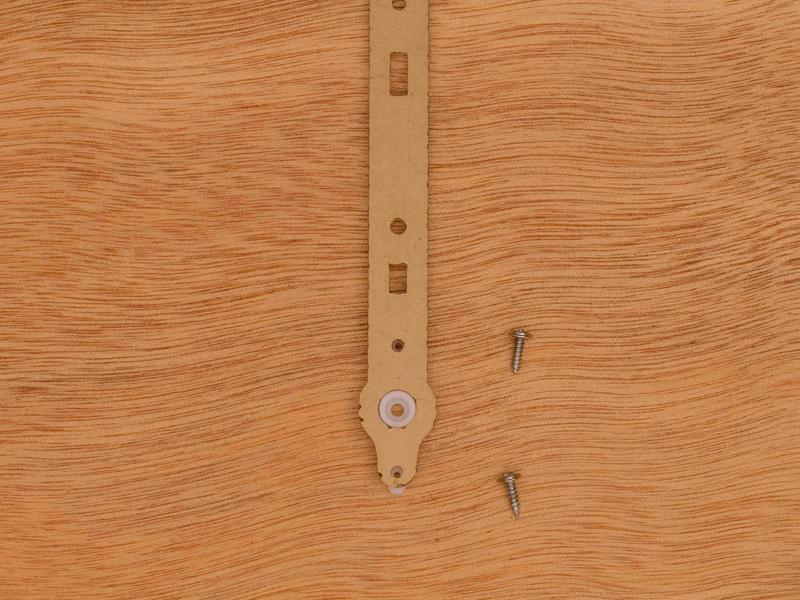

    Take a long screw
    Insert
    Screw into horn
    Repeat

    Attaching the Arm

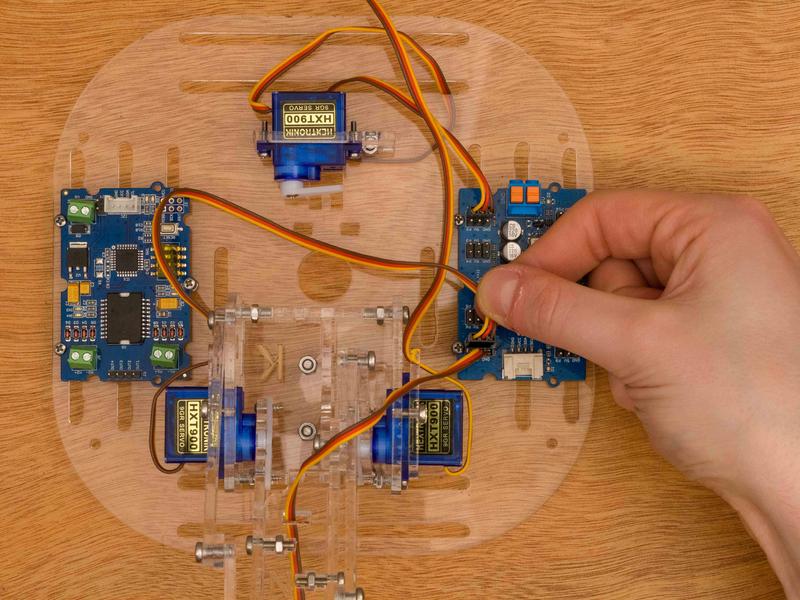

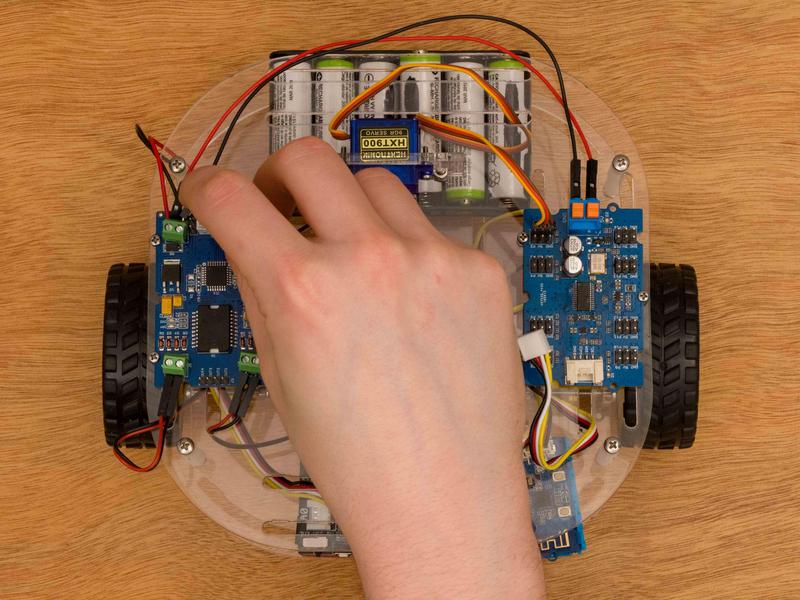

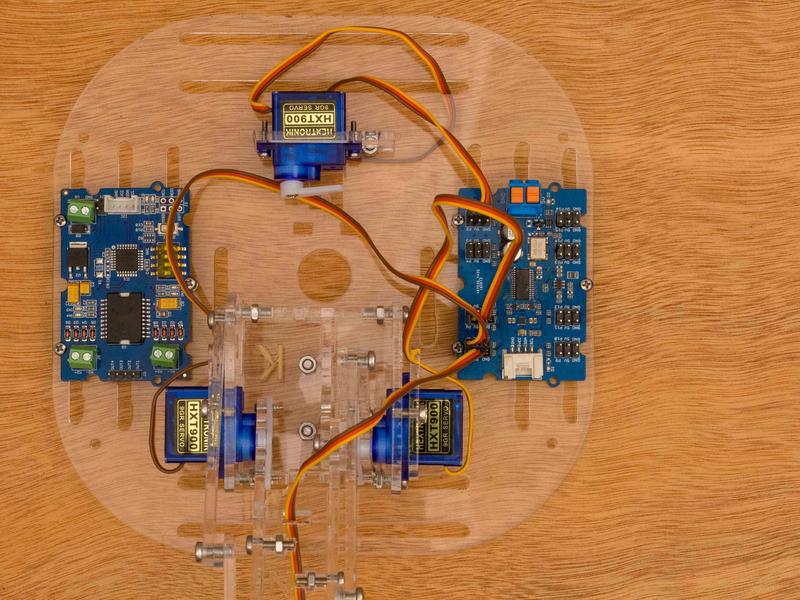

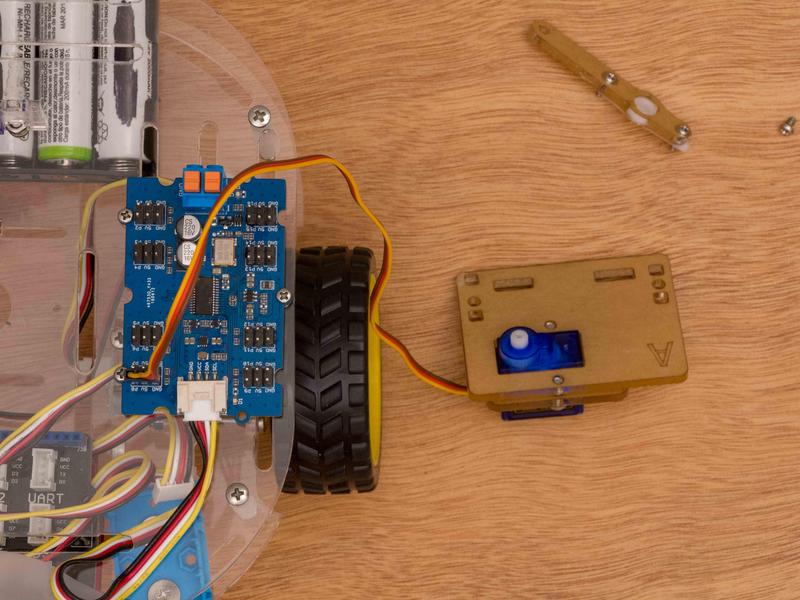

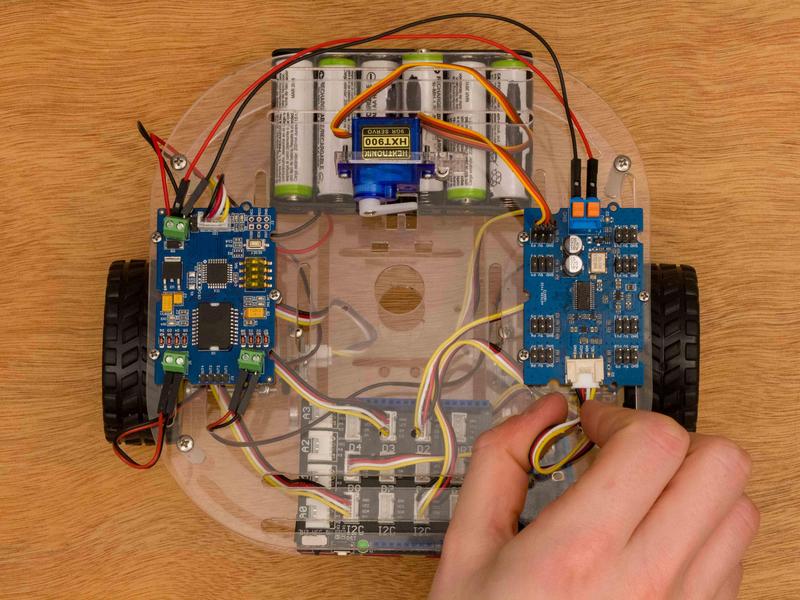

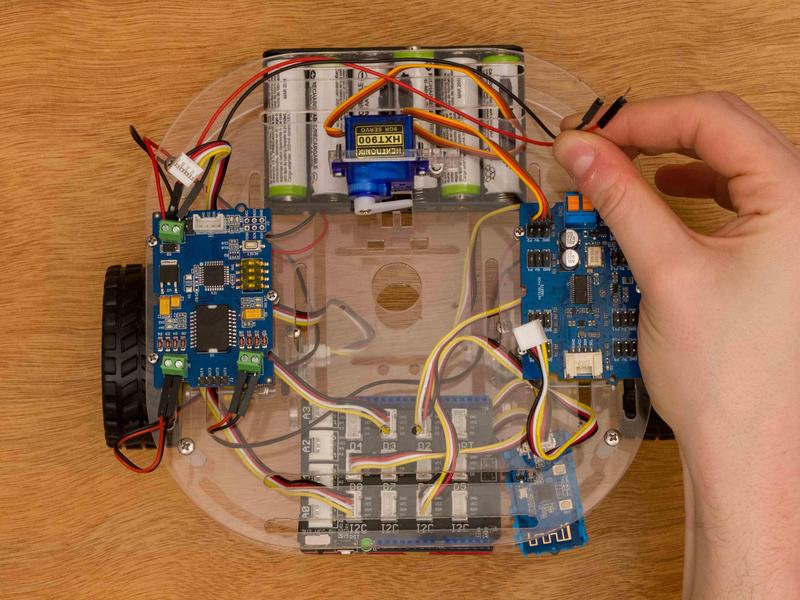

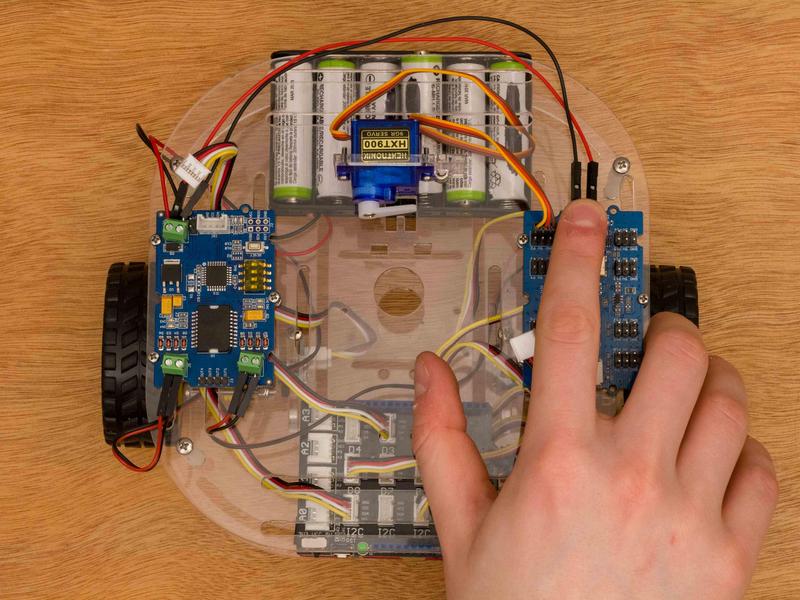

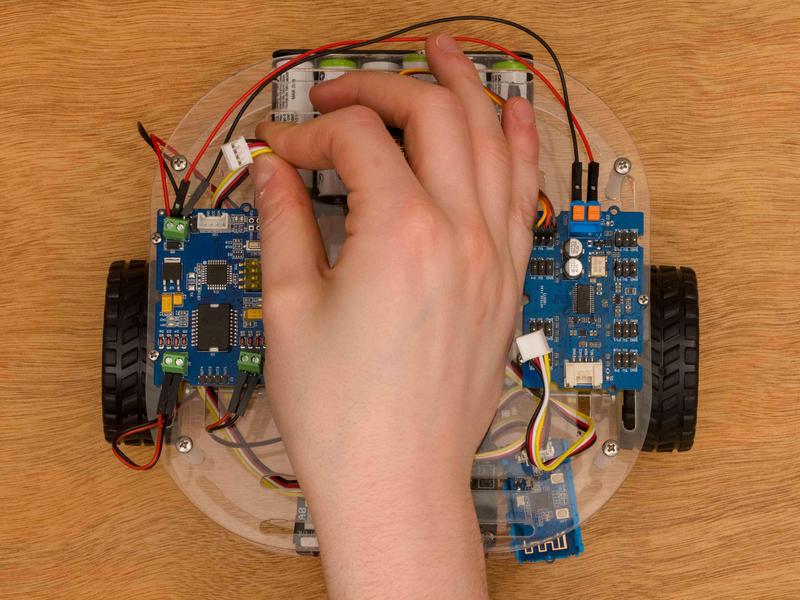

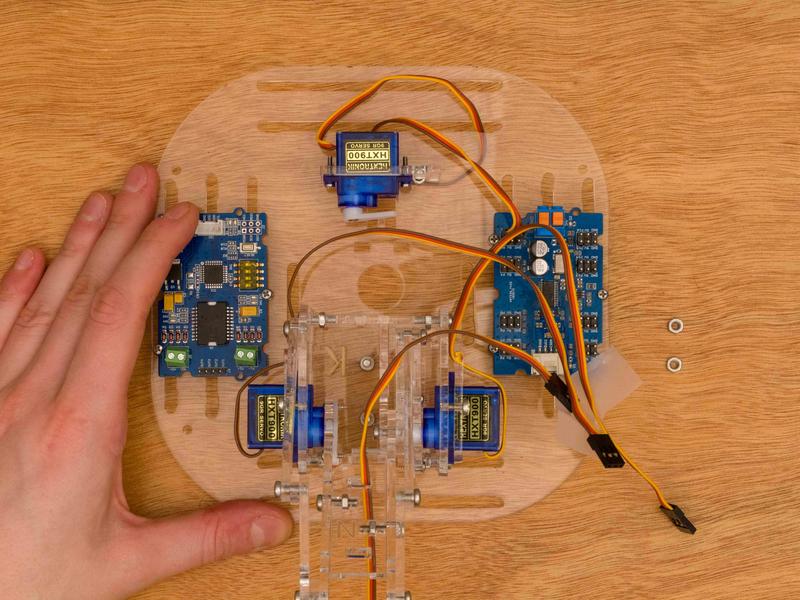

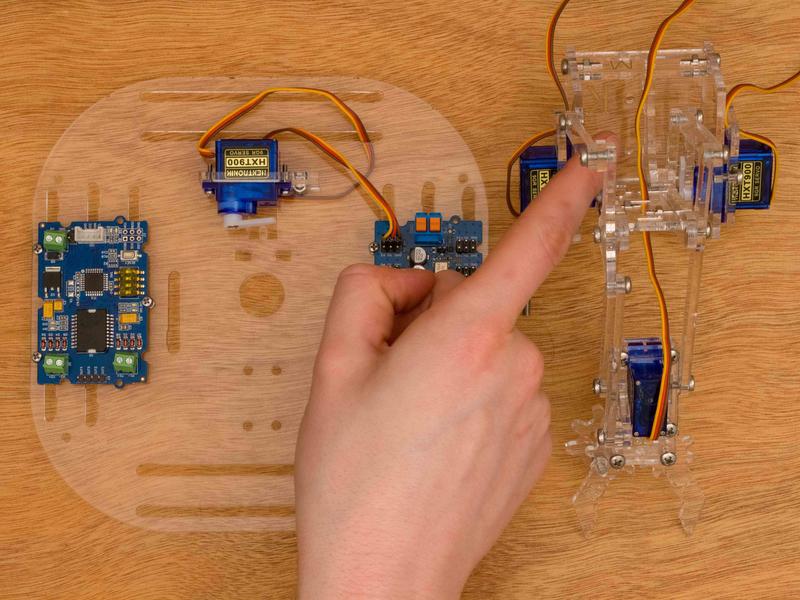

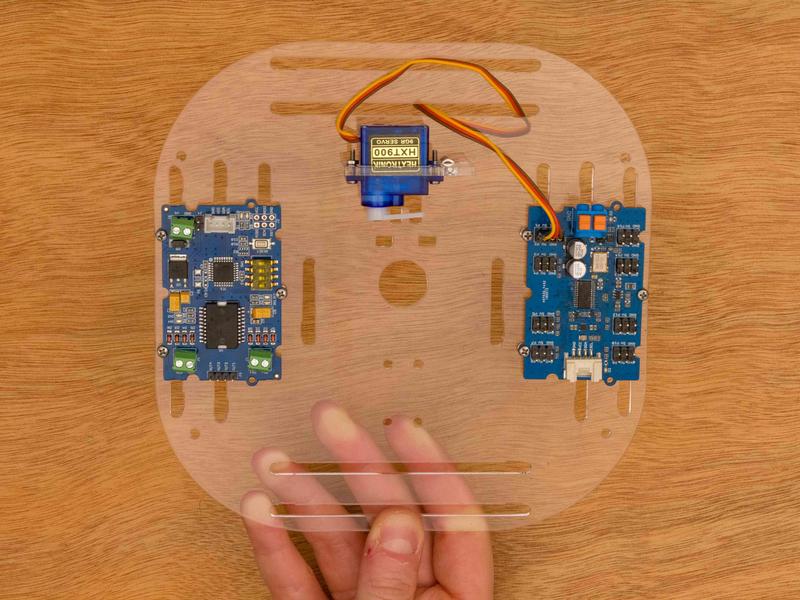

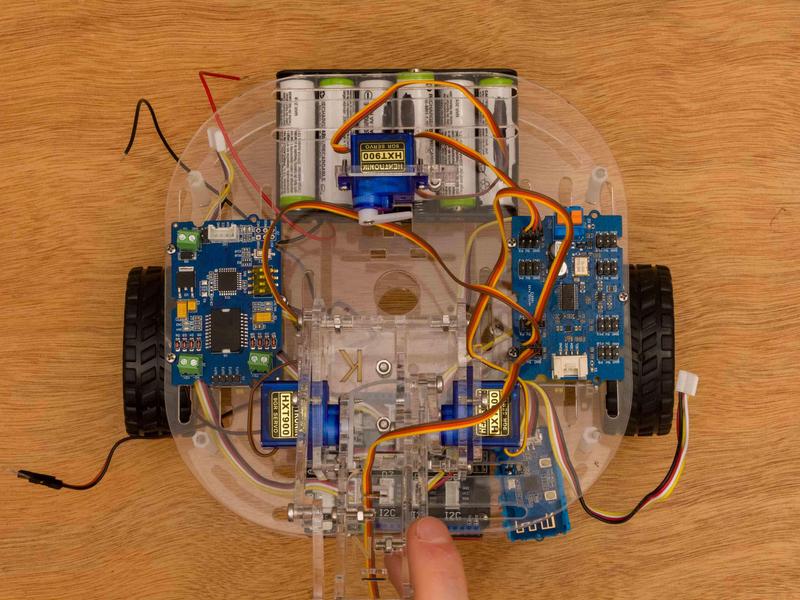

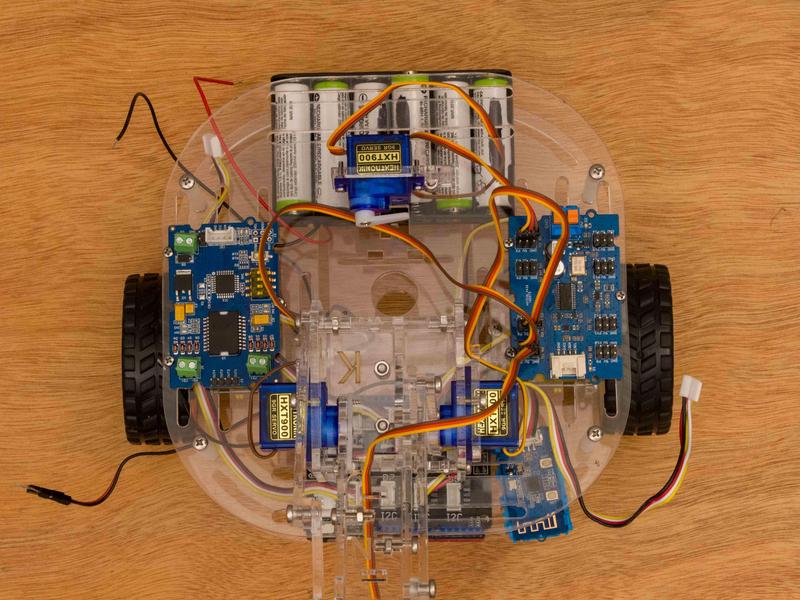

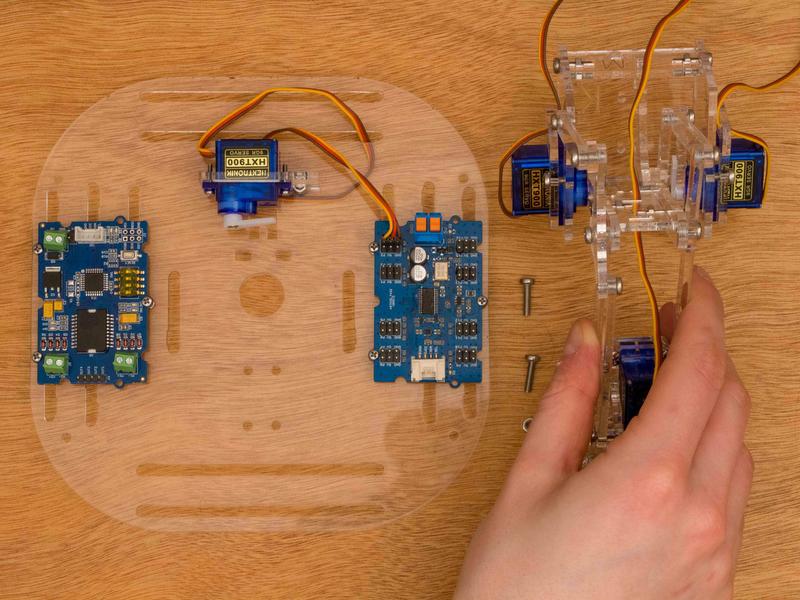

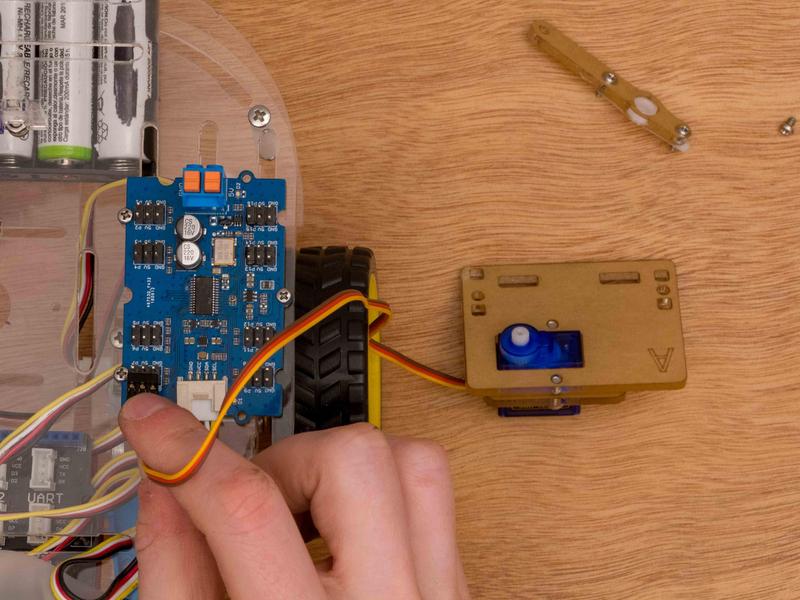

    For this step we need Robotics Series 3. Power up the Arduino and connect all batteries from the 6-AA battery holder. Place the servo cable from the Left Servo Mount into header P8 found at the front left of the I2C Servo Driver if the robot is facing forward. Make sure the brown wire is facing the inside. Once inserted, the servo will go to the 90 degree location. Unplug the servo cable.

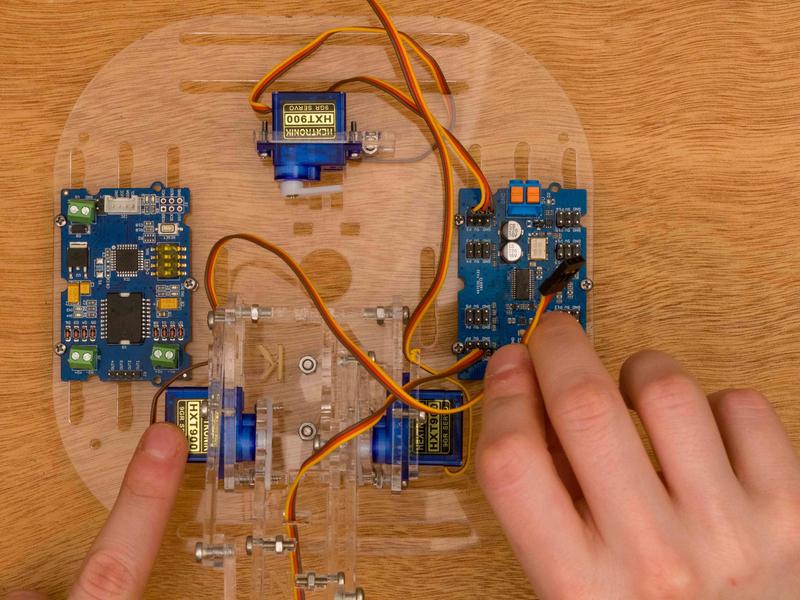

    Powered on RS3

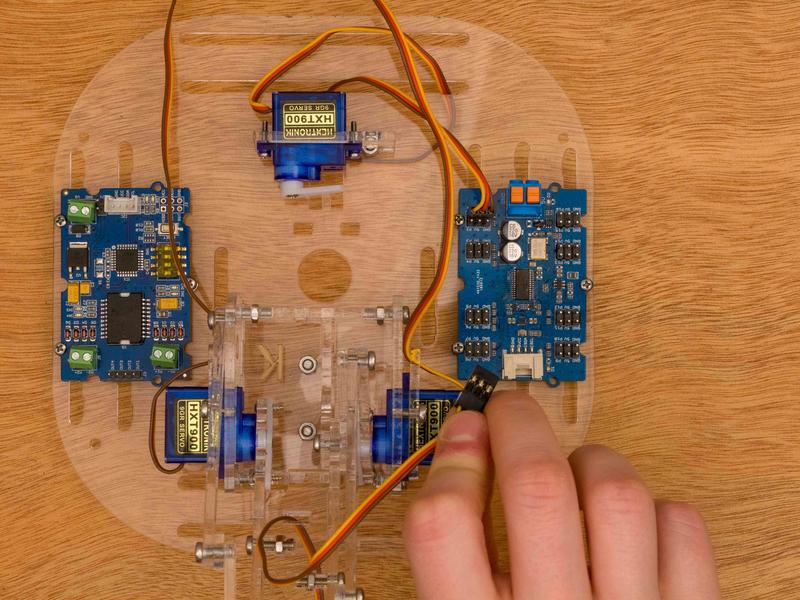

    Plug in to P8
    Wait for servo to move

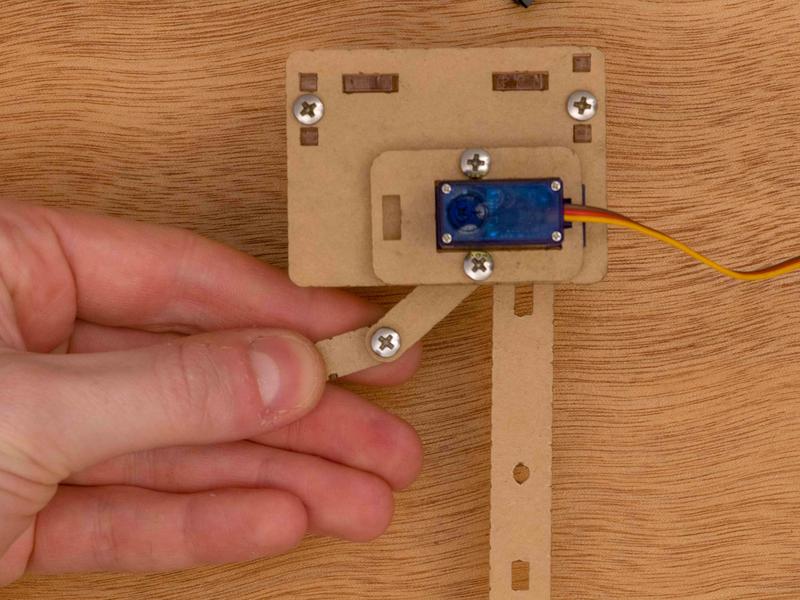

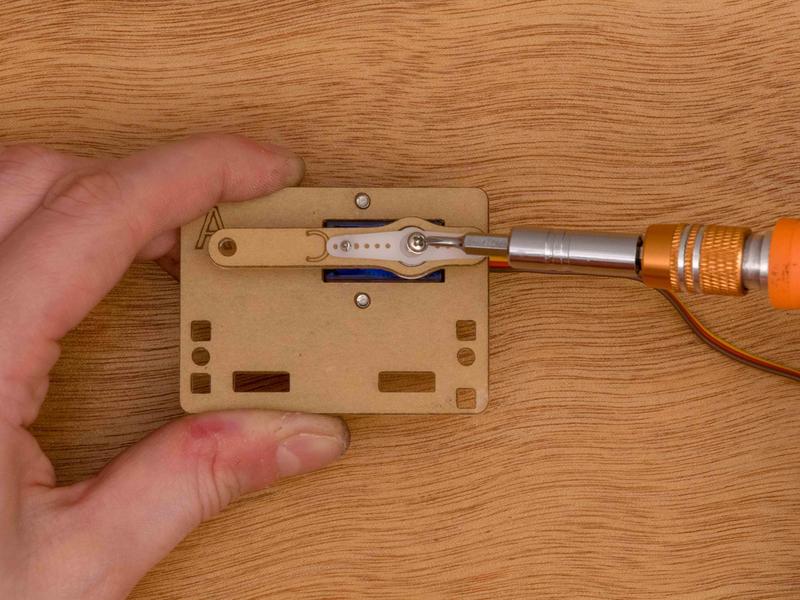

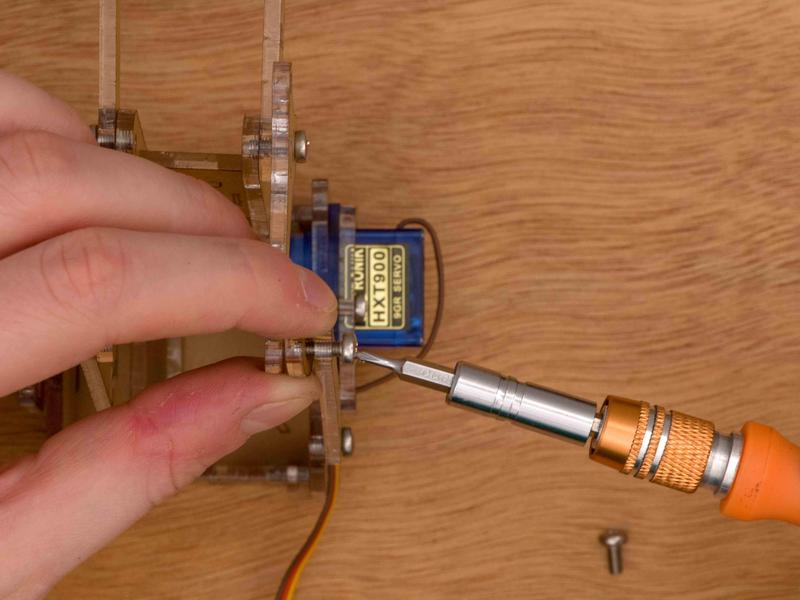

    Take your servo arm and place it on the servo so that the arm point to the 9 o' clock position. Plug in the servo cable again to make sure it still points to 9 o' clock. When confirmed, take the cable out and screw the smaller screw from the smaller servo bag into the center of the servo horn and into the servo. It's okay if you spin the arm while tightening, but if it is spinning then it's tight enough.

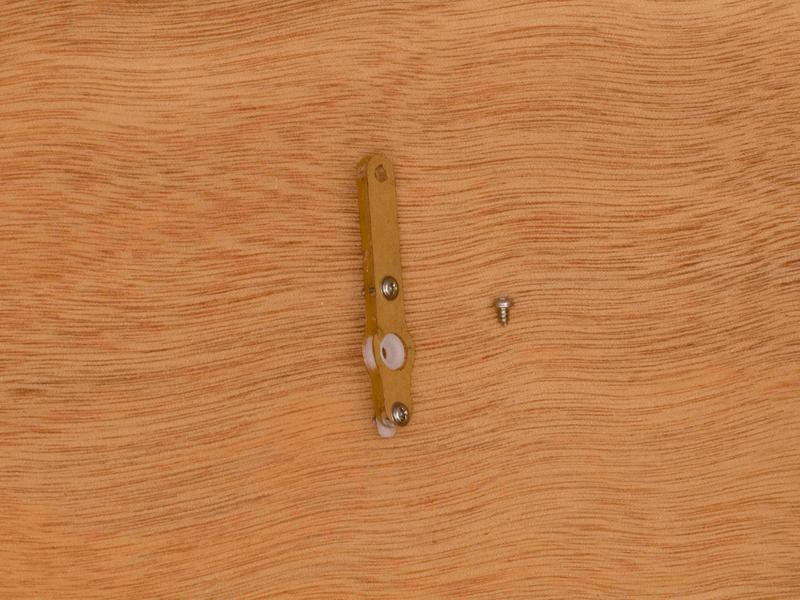

    Parts needed

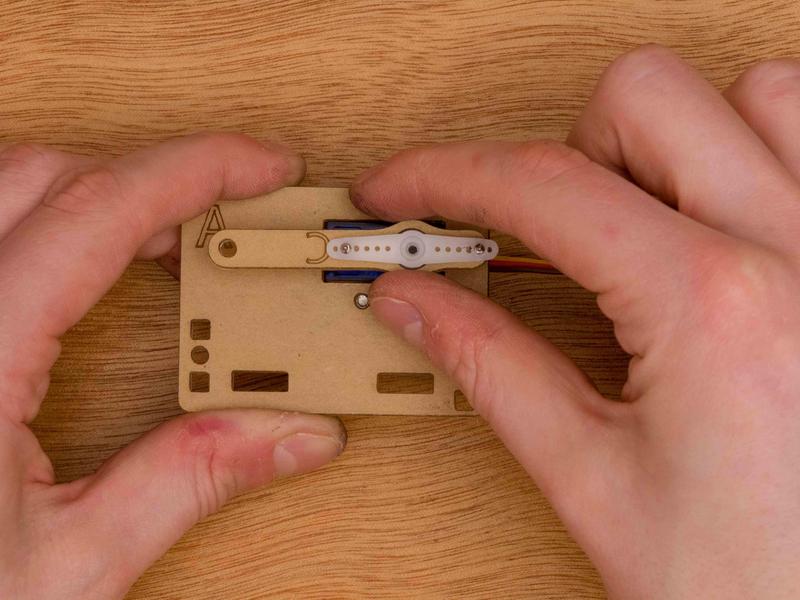

    Place on servo

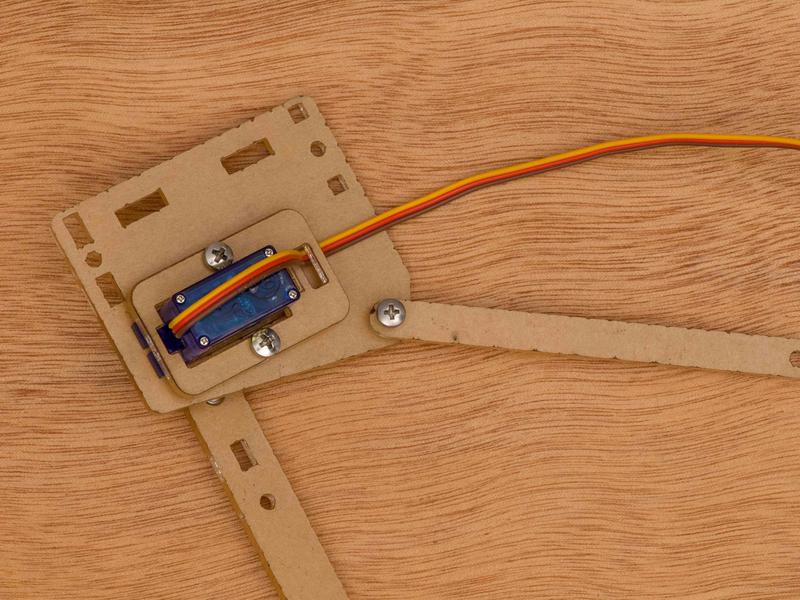

    Pointing to 9 o' clock

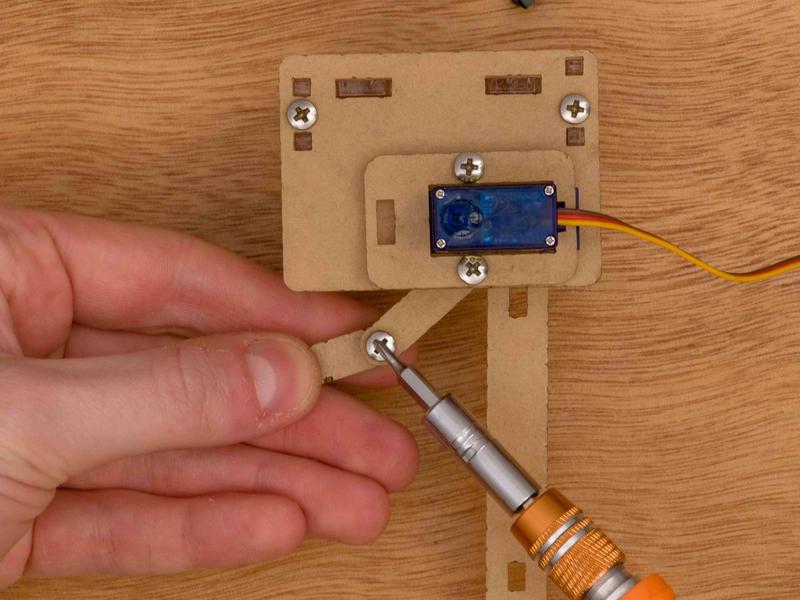

    Screw in small screw

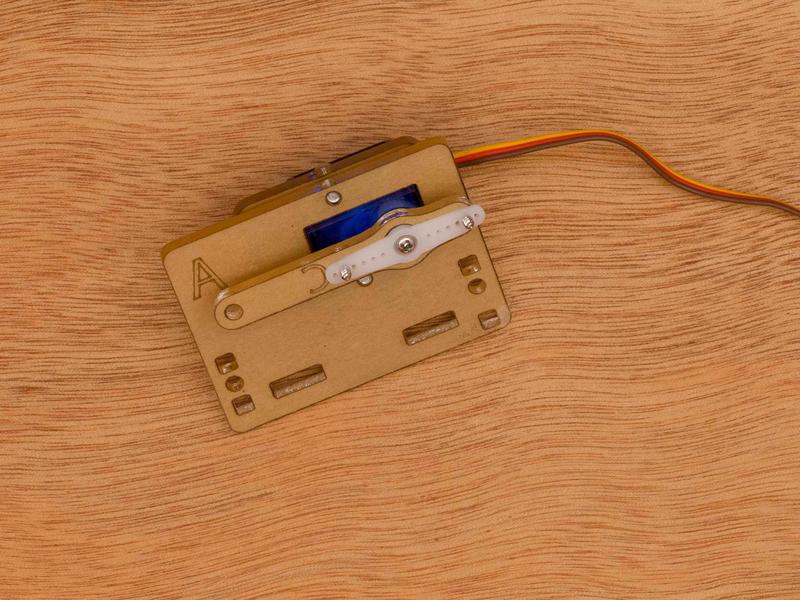

    Set this aside

    Set this aside as we proceed to the next step.

    Right Side

    Right Servo Mount

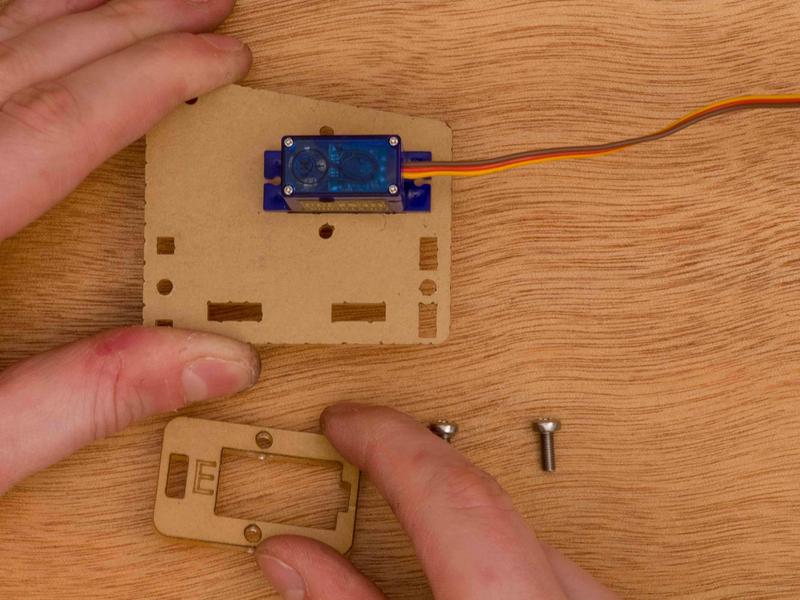

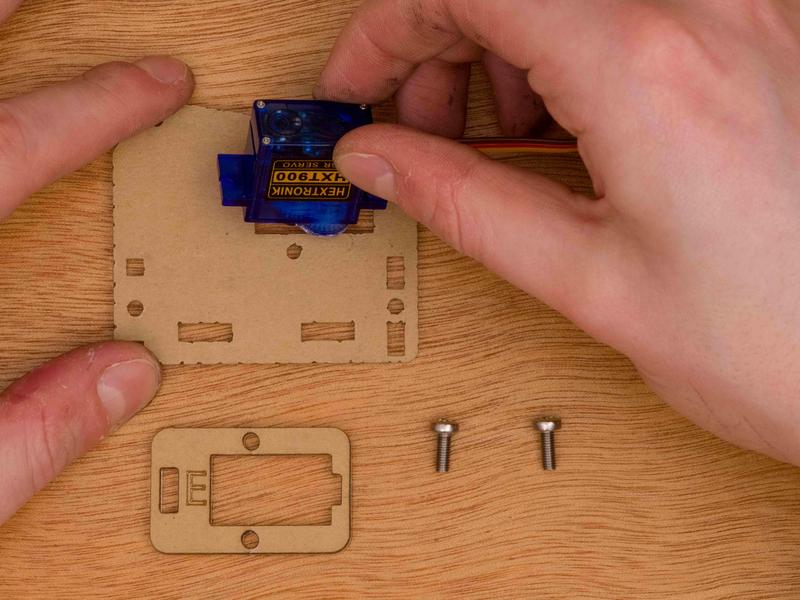

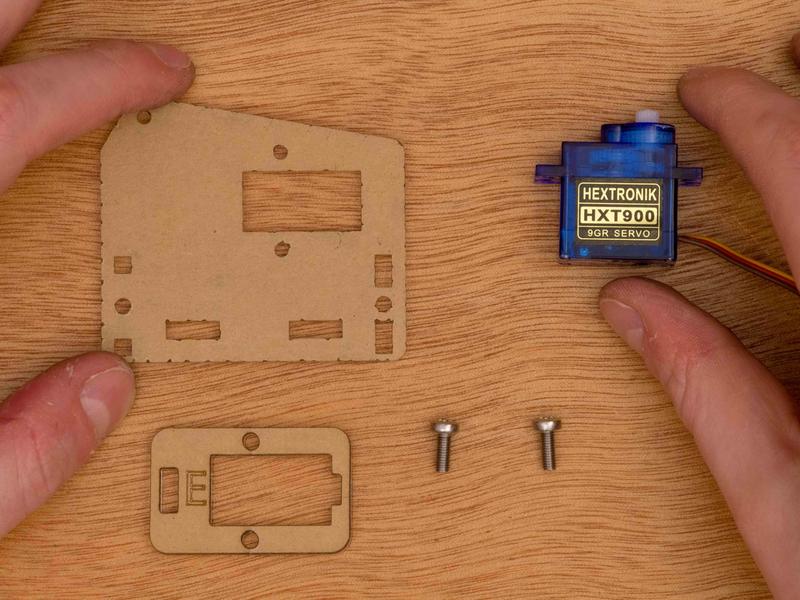

    You will need pieces D, E, one servo, and two M3 8mm screws. Place D with the largest rectangular cutout towards the top right. Take the blue servo out of its bag and place it down through that cutout. The cable coming out of the servo should be on the right. Thread the cable through the large cut out in E then place E over the servo. The smaller cutout should be towards the right. Before screwing this piece in place, take the servo cable and feed it through the small cut out in E. Push E flush against the servo. Place both screws in the holes in E then screw into D. Do not over tighten the screws. You will snap the acrylic.

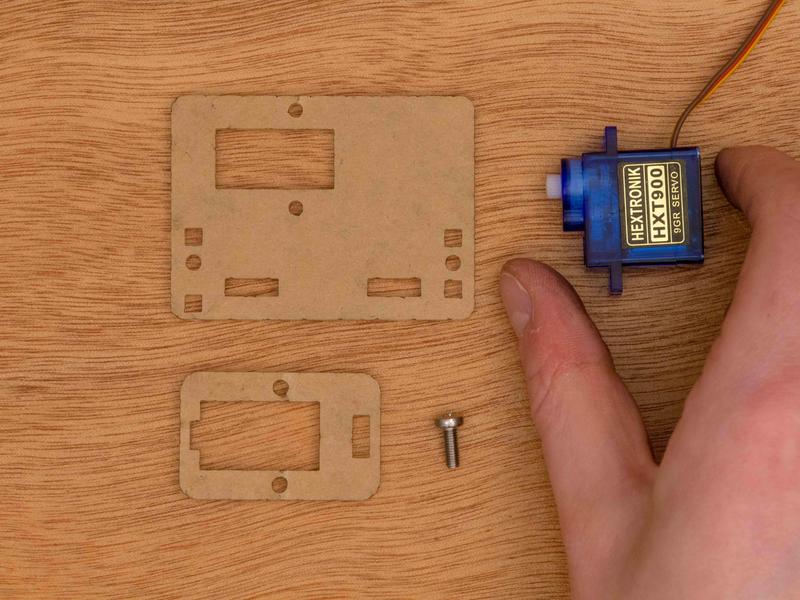

    Parts needed

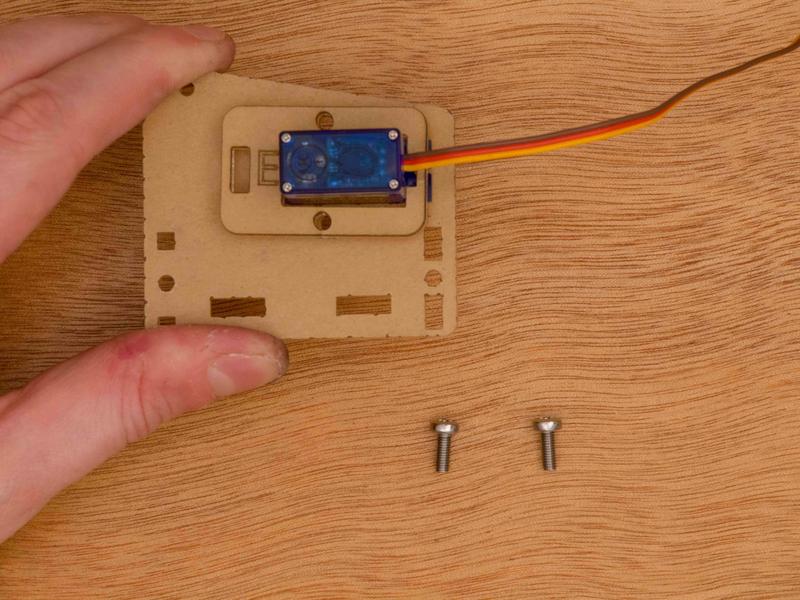

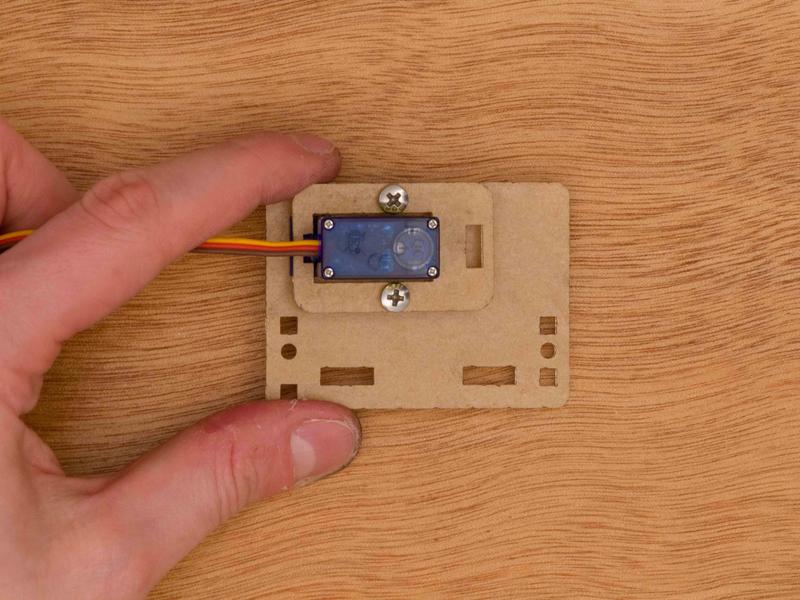

    Take the servo

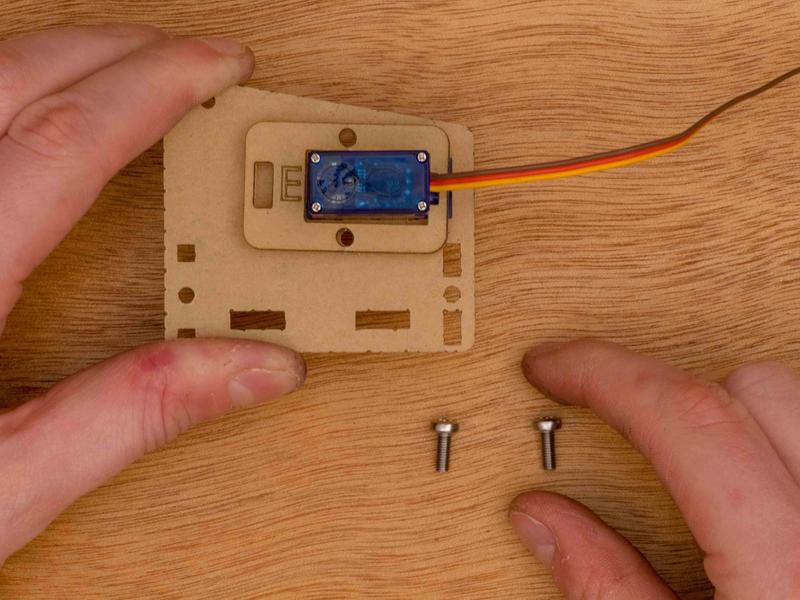

    Place down into D
    Cable to the right

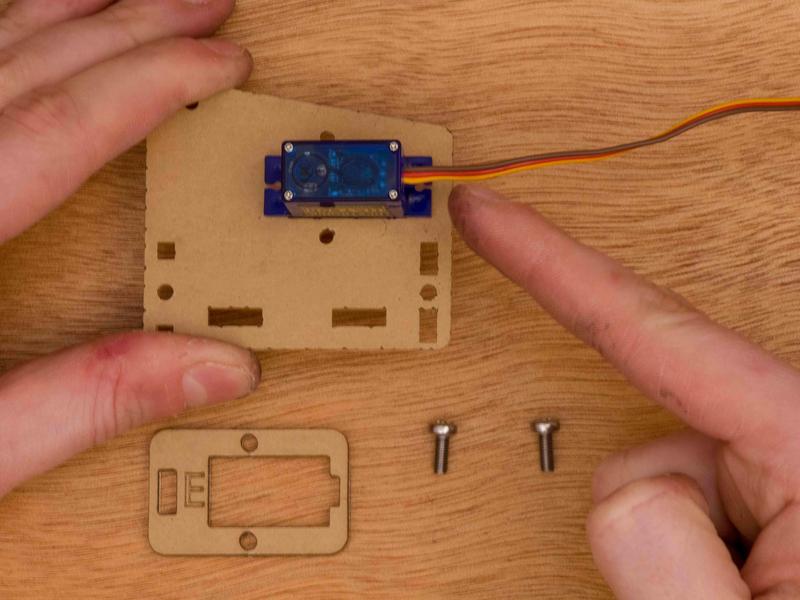

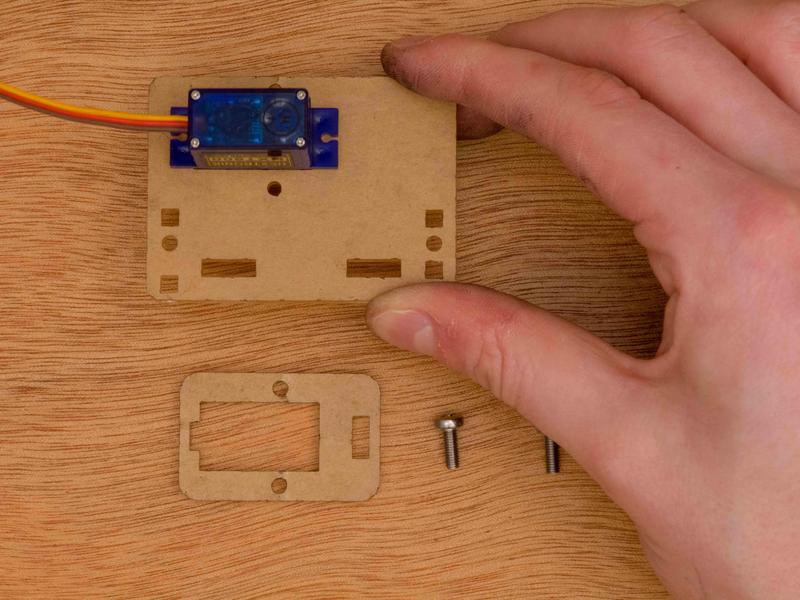

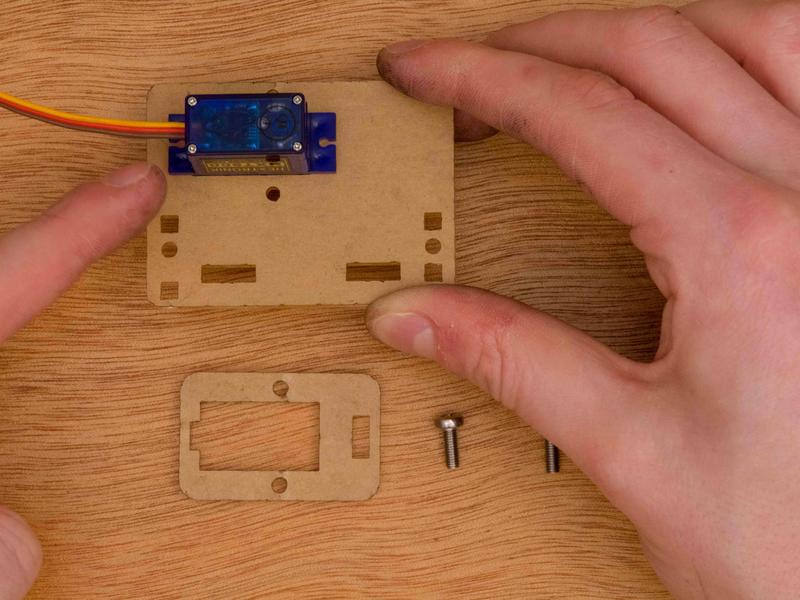

    Take E

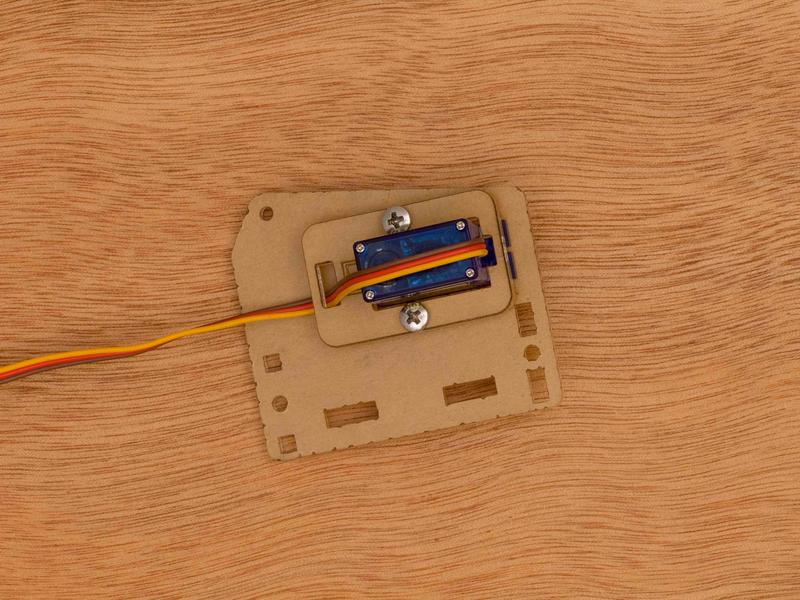

    Slip cable in cutout
    Place over servo
    Take a screw

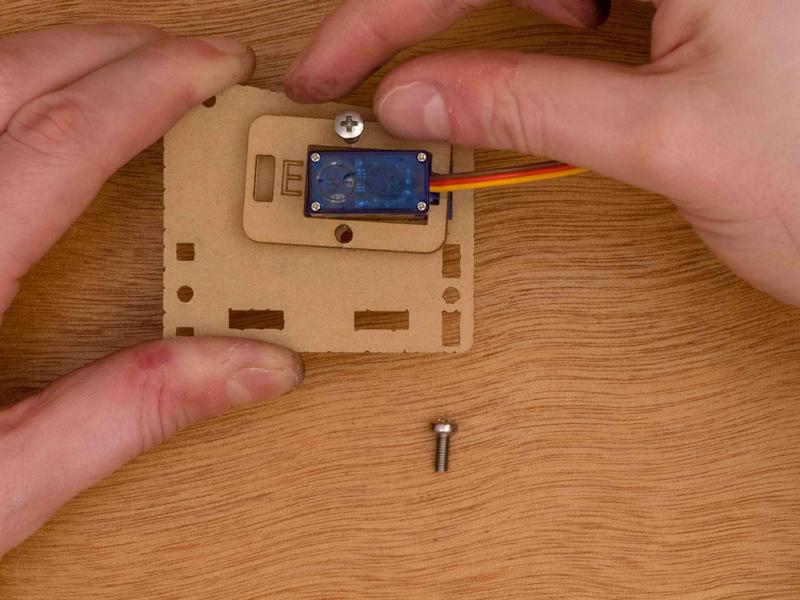

    Place into upper hole
    Feed cable through guide
    Pull tight
    Tighten screw
    Repeat

    Right Servo Arm

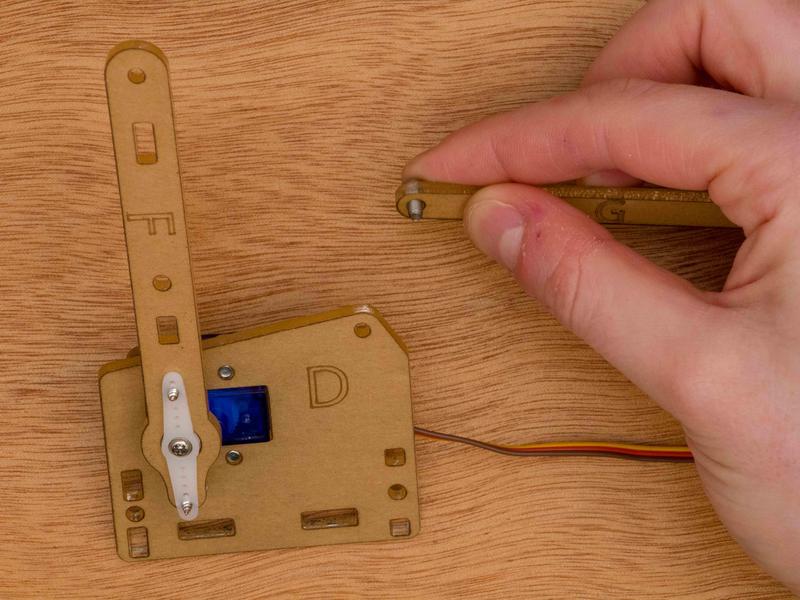

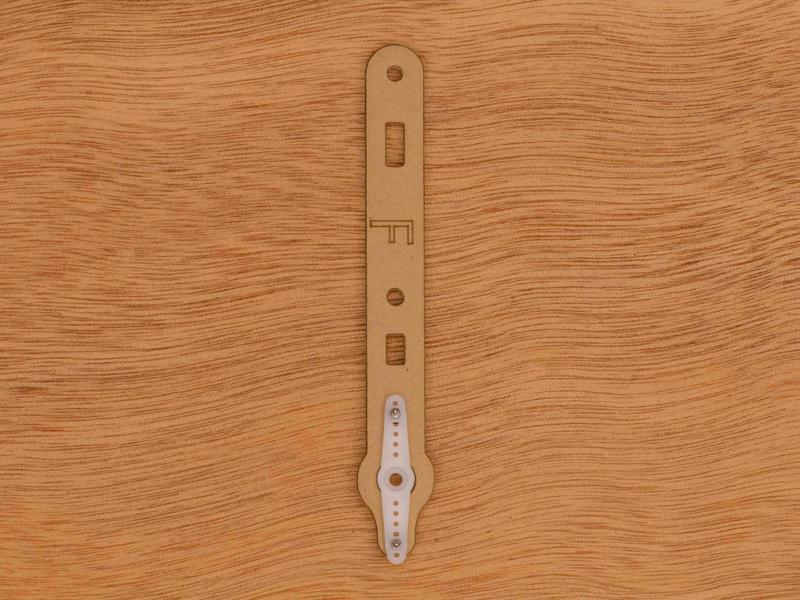

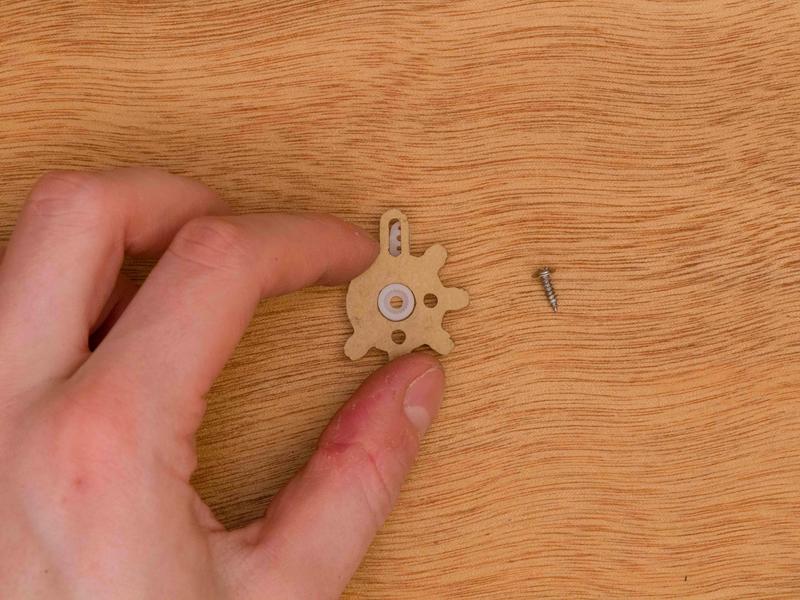

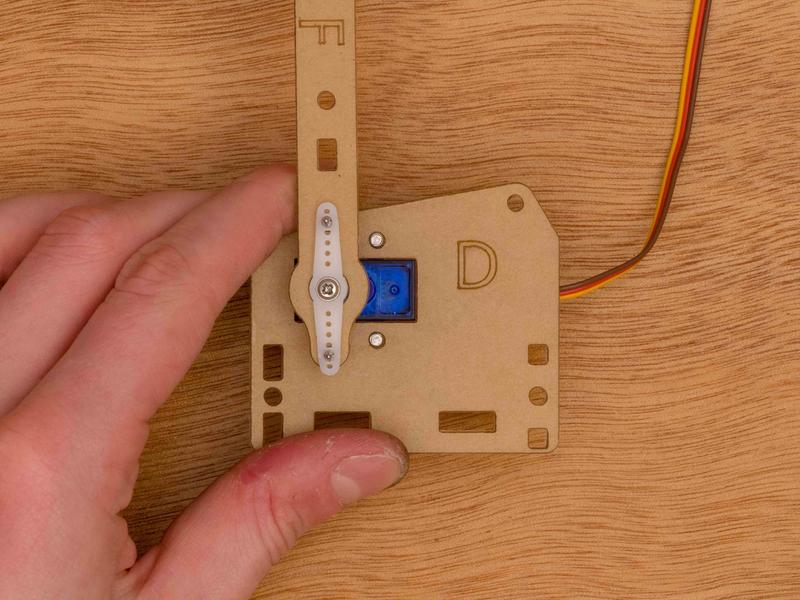

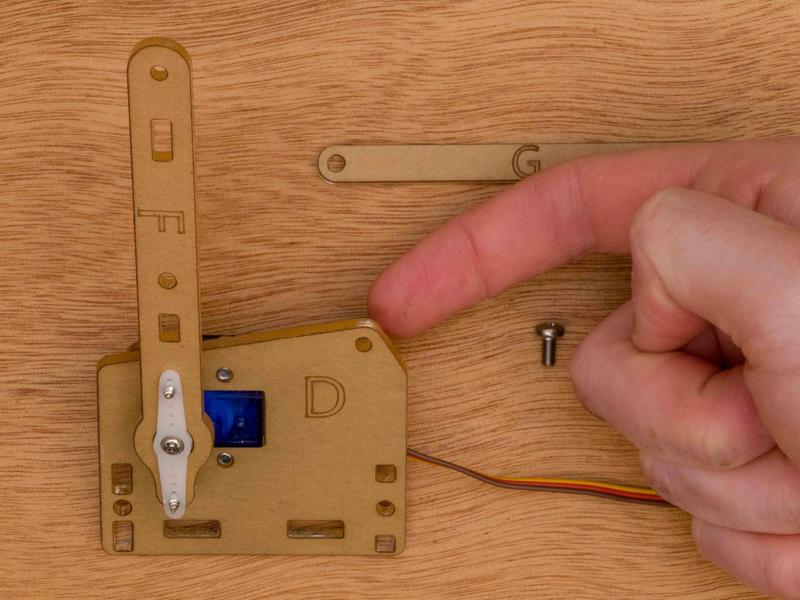

    You will need another smaller servo bag of parts and F. Insert a similar servo horn into the large hole in F. Screw two screws from the opposite side through F then the horn.

    Parts needed
    Take horn
    Place in hole
    Flip over
    Take one screw
    Insert
    Tighten
    Repeat

    Attaching the Arm

    Follow the same procedure from the left side except the arm should be at 12 o' clock not 9. When the arm is in the correct position, screw the smaller screw from the smaller servo bag into the center of the servo horn and into the servo.

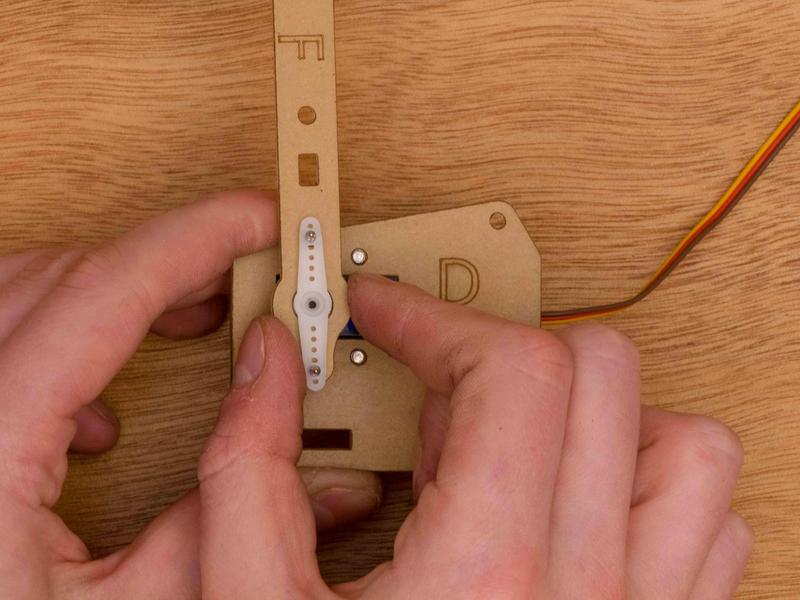

    Take arm

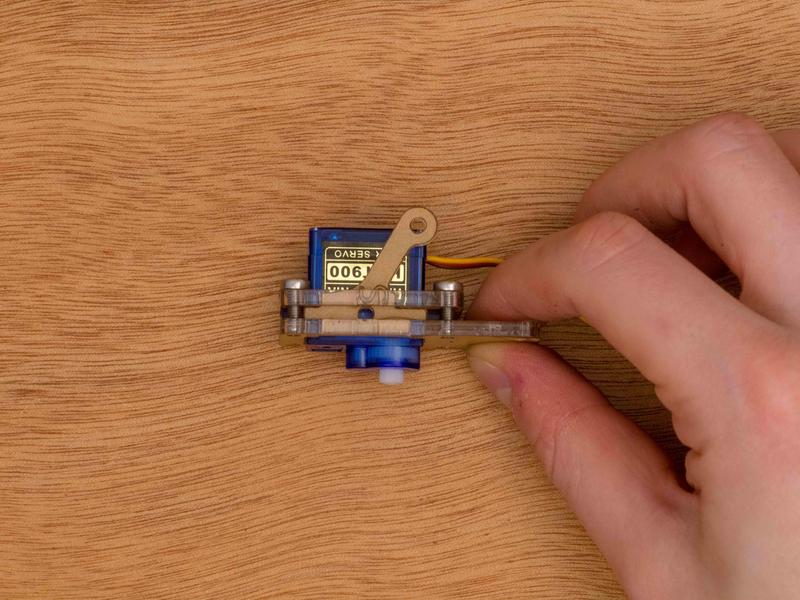

    Place on servo pointing up

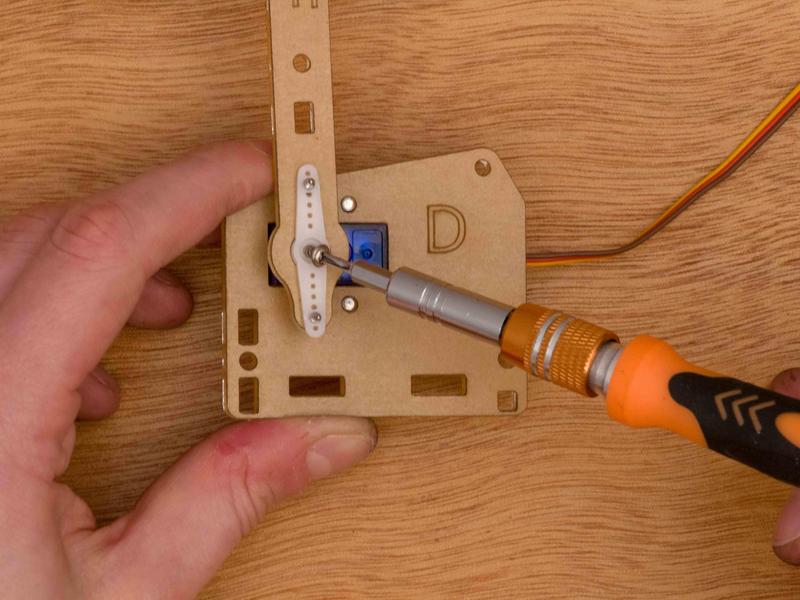

    Screw into servo
    Finished

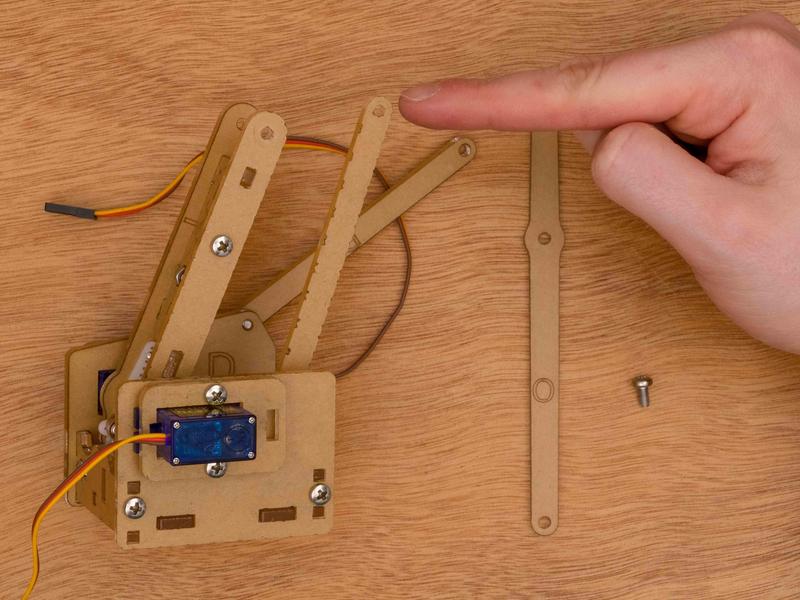

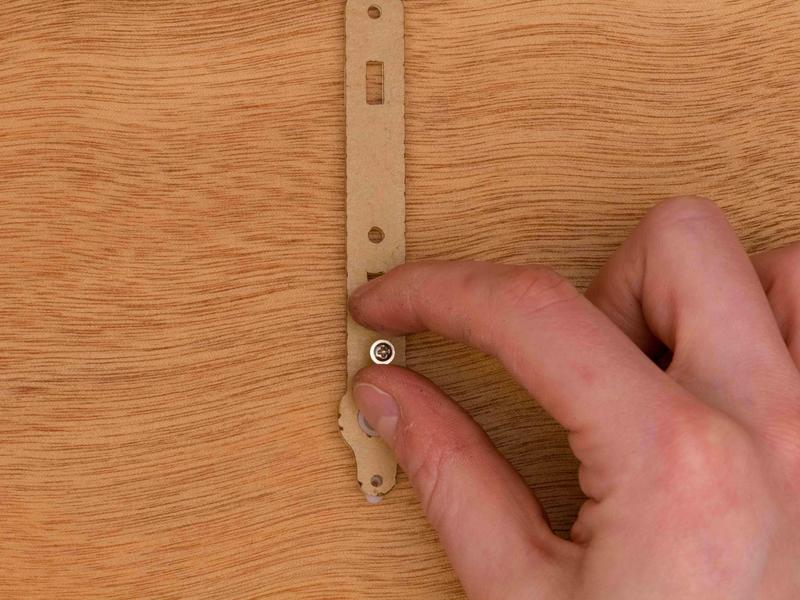

    Vertical Piece

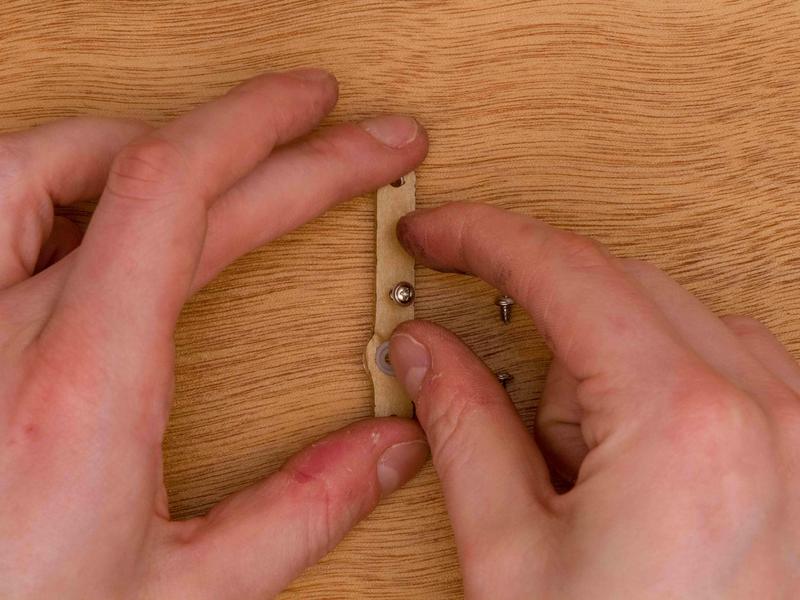

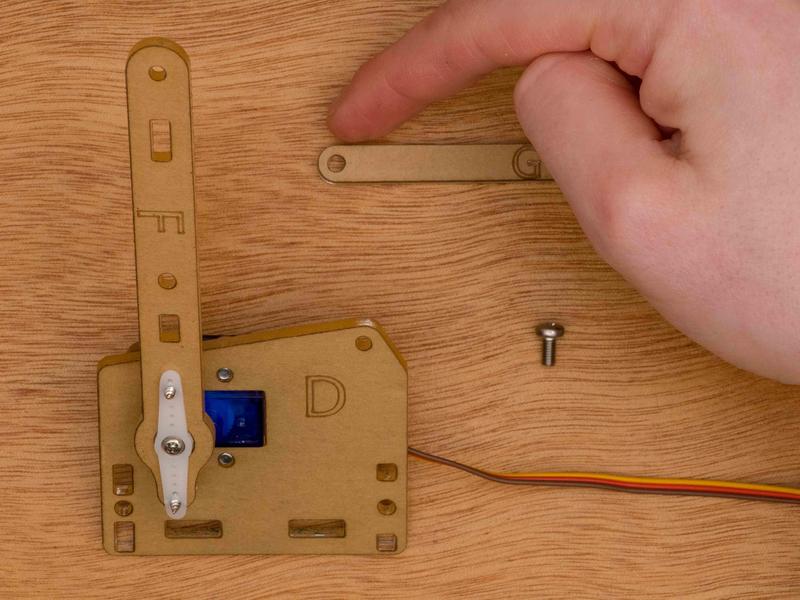

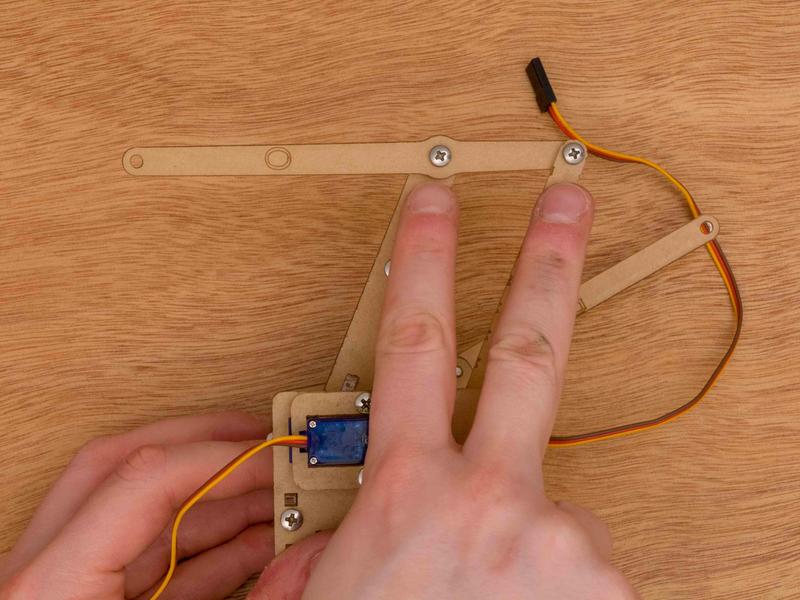

    Take a G piece and one 6mm screw. Line up one hole from the G piece with the hole on the top right of D. If the servo arm is on the outside of the piece then G should be on the inside. Screw the 6mm screw through G and into D.

    Parts needed
    A hole in G
    The hole in D

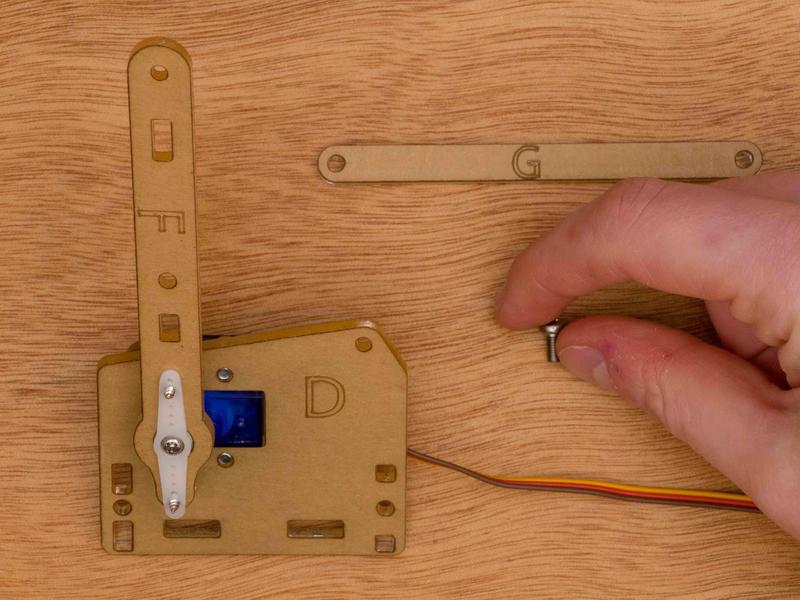

    Take the 6mm screw
    Insert into G
    Insert into D from behind
    Tighten

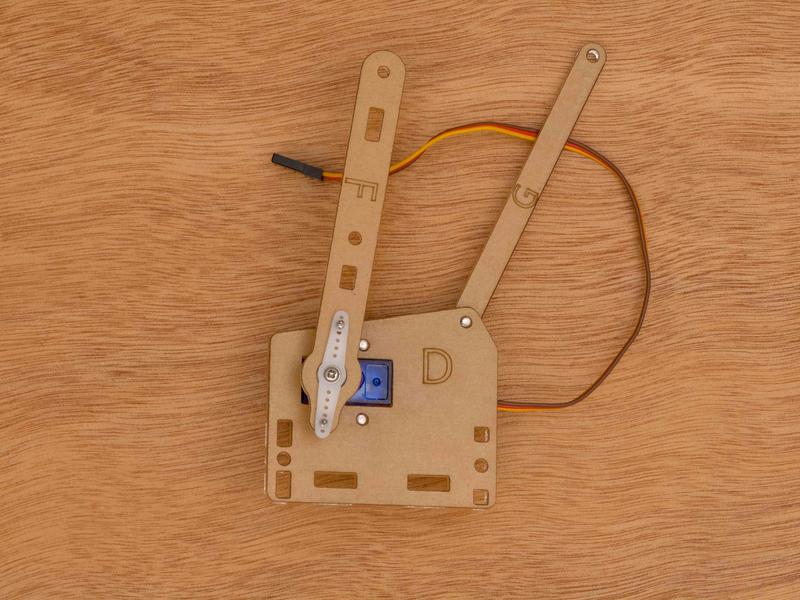

    Done

    Set this aside as we proceed to the next step.

    Middle Mount

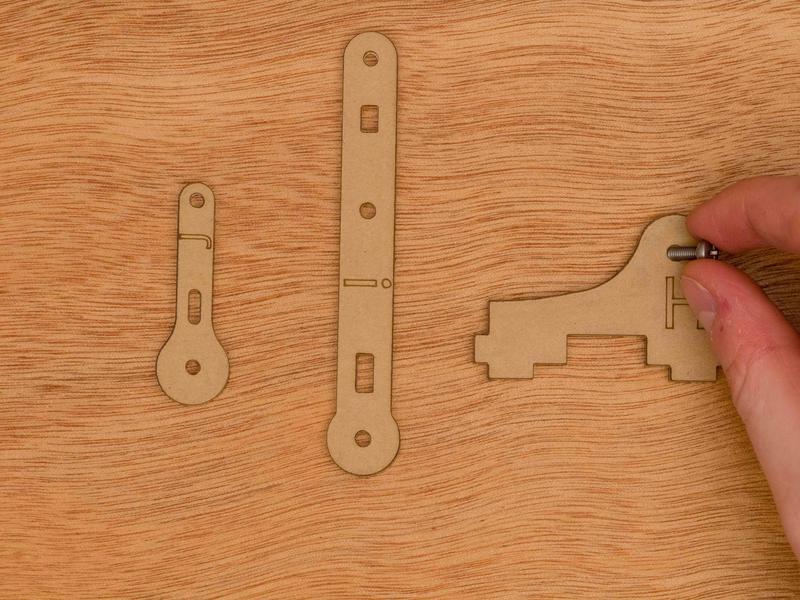

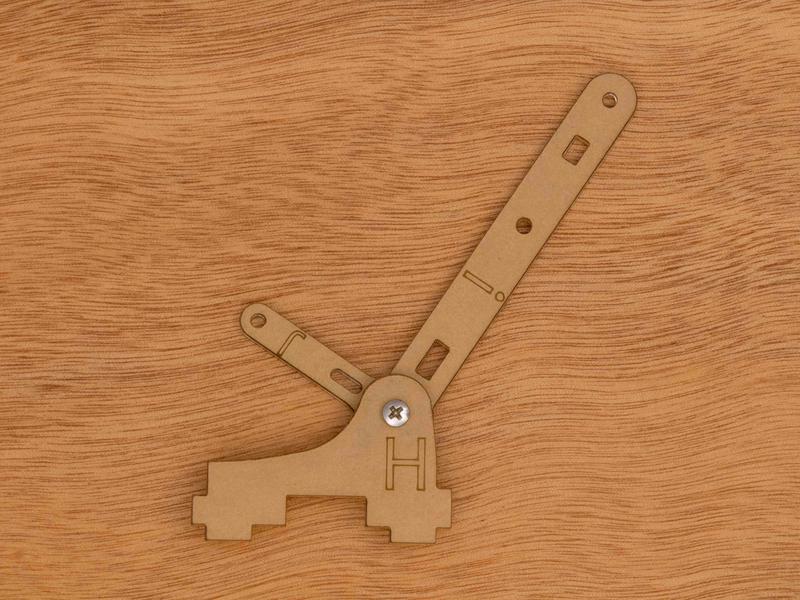

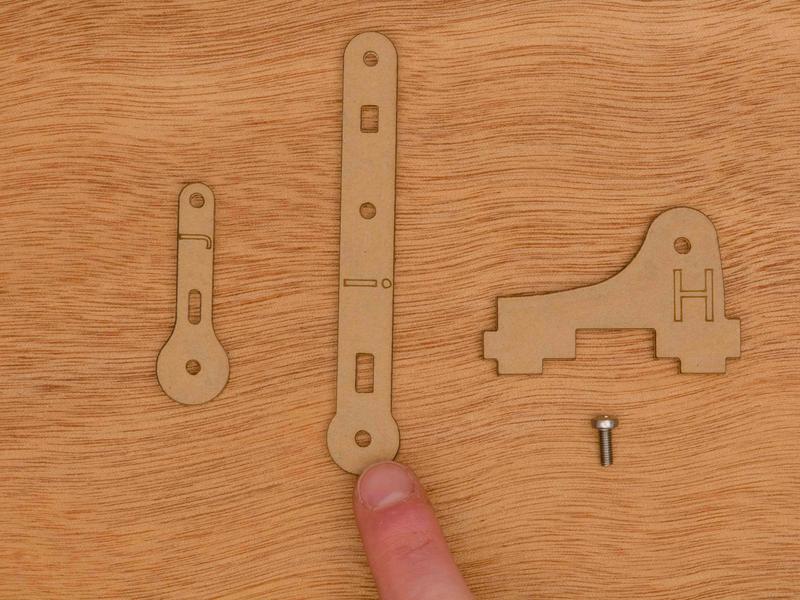

    You will need pieces H, i, J and one 8mm screw. Line up the hole in H with the hole in the rounded part of i then J. The H piece should be closest to you. Insert the screw through H into i then J. Not too tight as we want the parts to move freely.

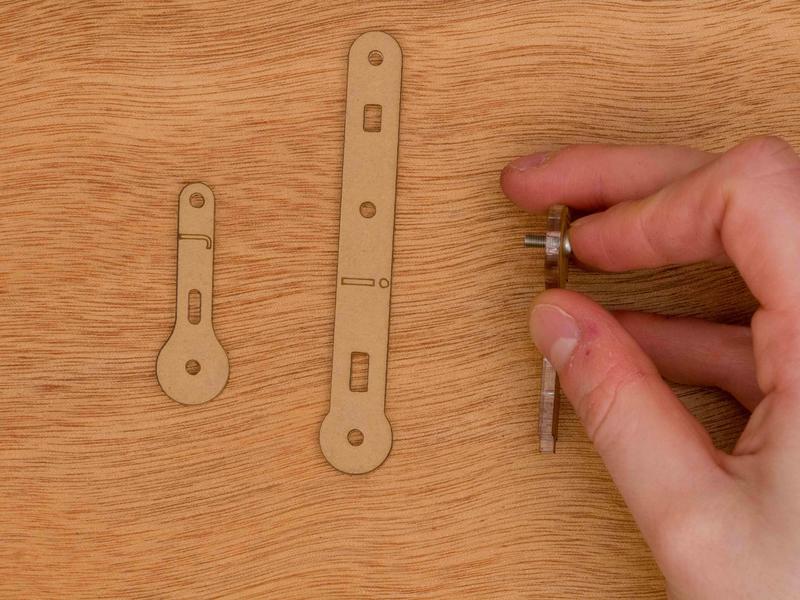

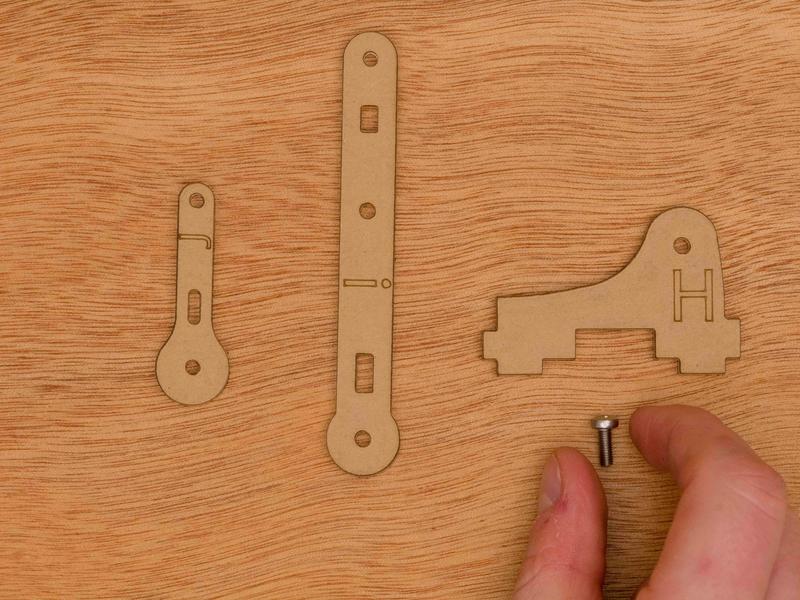

    Parts needed

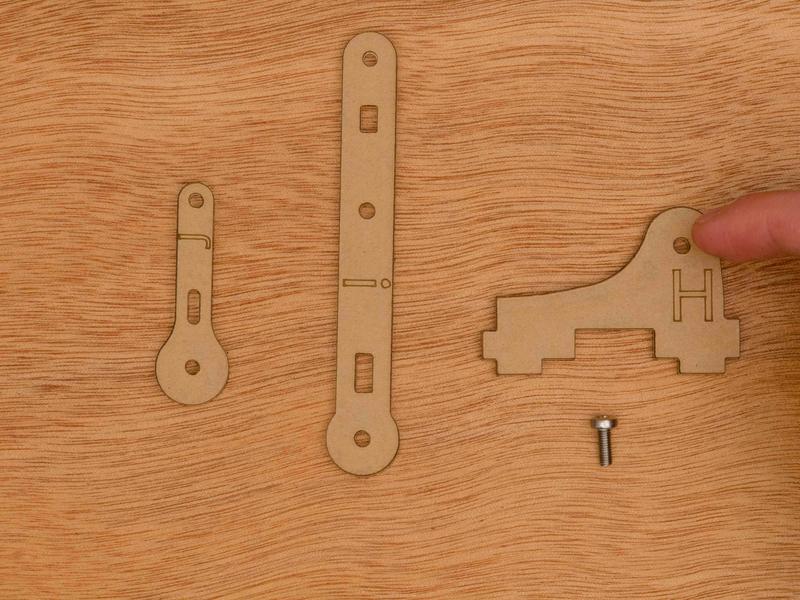

    Hole in H
    Hole in i

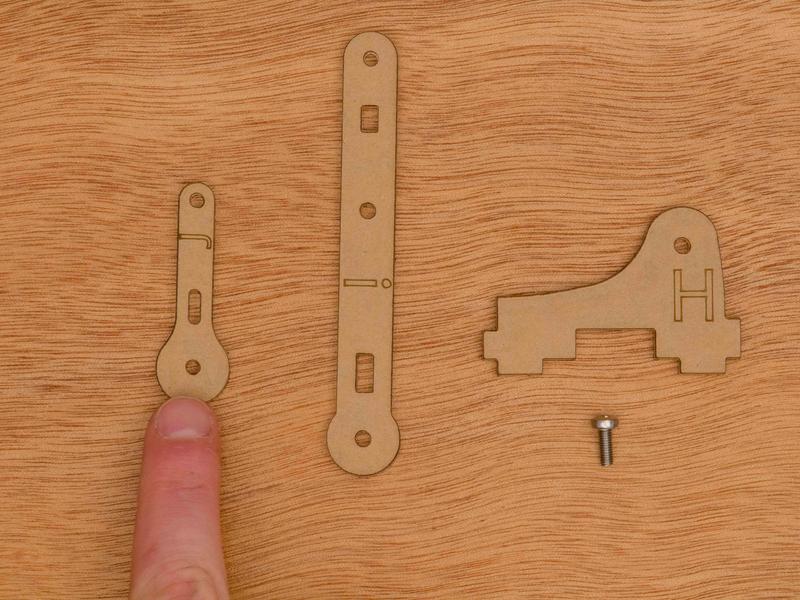

    Hole in J
    Take the screw
    Insert into H
    Seen from above
    Add i
    Add J
    Tighten
    Done

    Creating the Base

    3/4 Frame

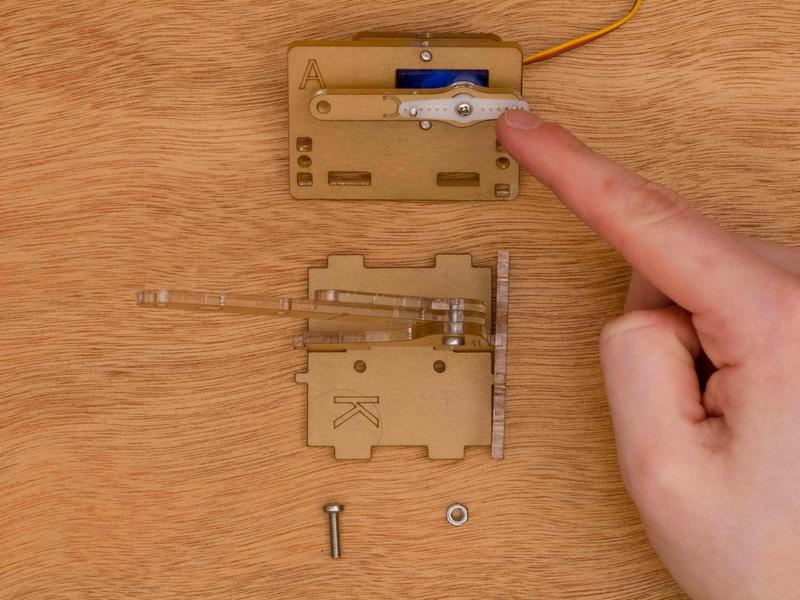

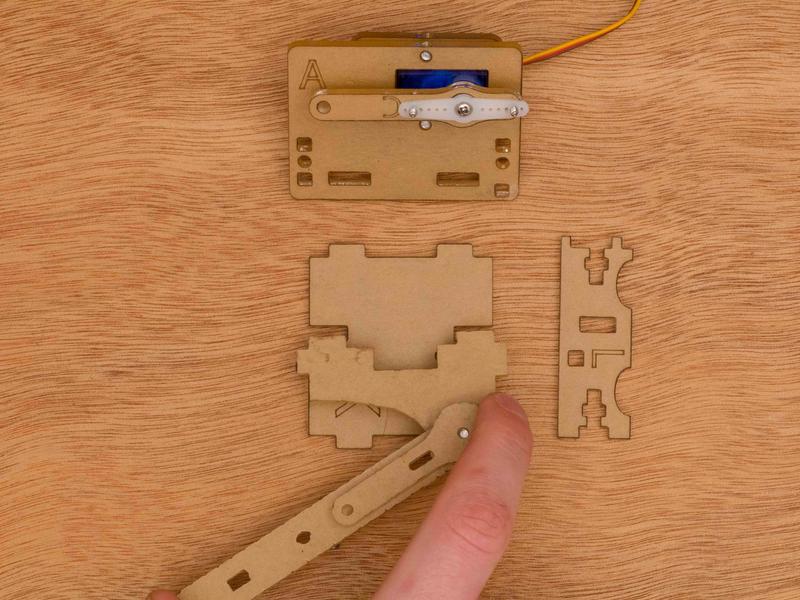

    To start the base of the arm you'll need the middle mount, left servo mount, K, L, a 12mm screw and nut. Place K with the large tabs facing up and down and the small tabs should be below the cutouts. Place the middle mount on top of the K piece. The side with the hole should be on the right. Line up the slots in L with the tab in K and the tab in the middle mount. Connect the left servo mount to K. The side of the left servo mount with the arm should be facing K. Slide the mount into the tabs in the top K as well as L. Place a nut in the T-slot in L then insert the 12mm screw through A and into the nut.

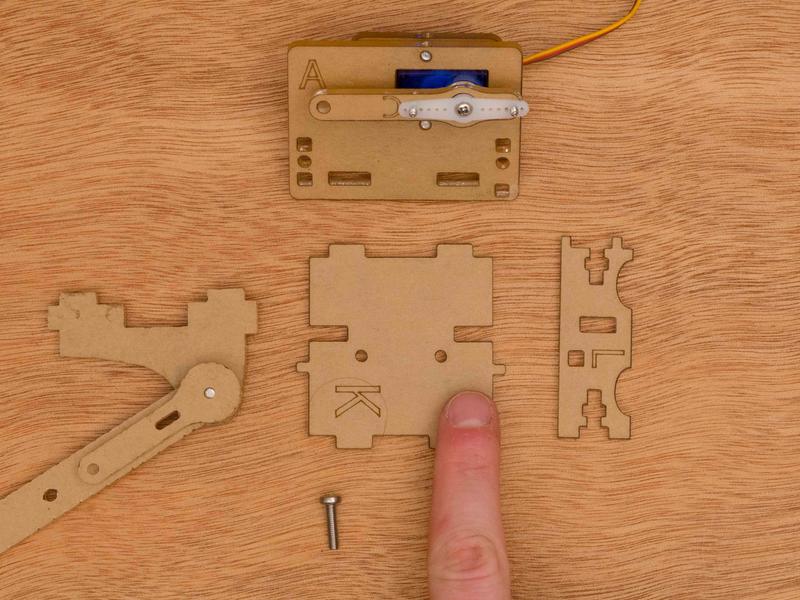

    Parts needed
    Starting with the middle mount
    It will go here
    In this orientation

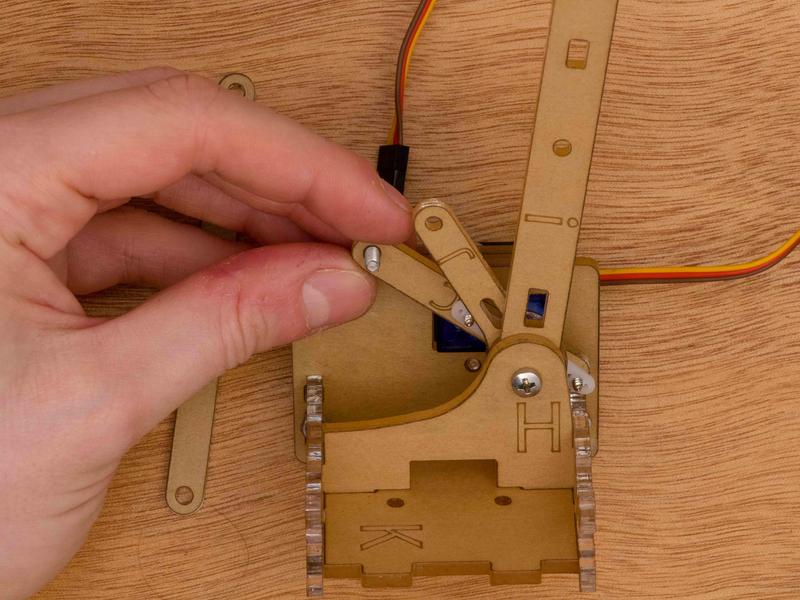

    Middle mount in place
    Match these cutouts
    To these

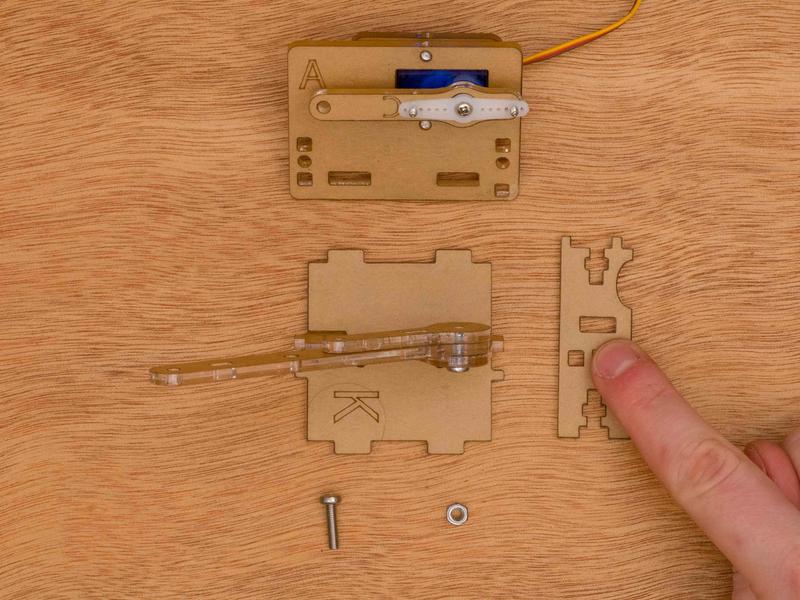

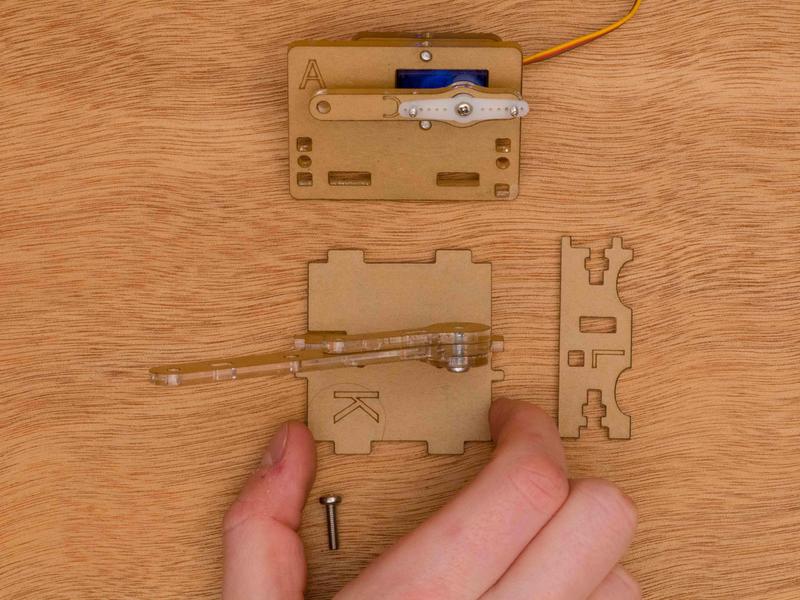

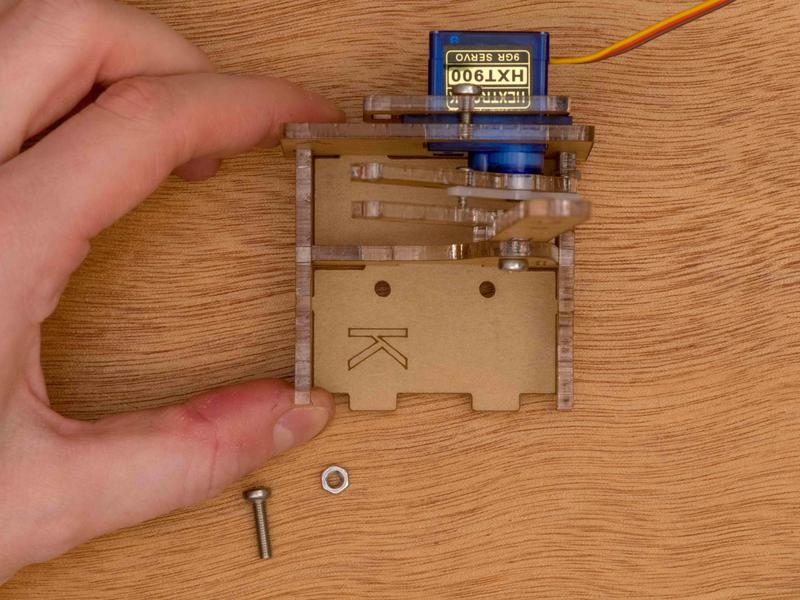

    Take L

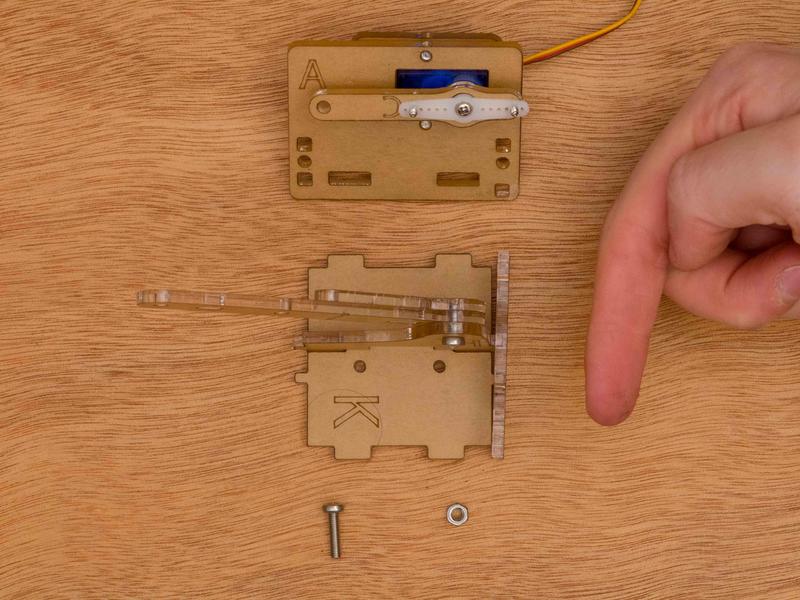

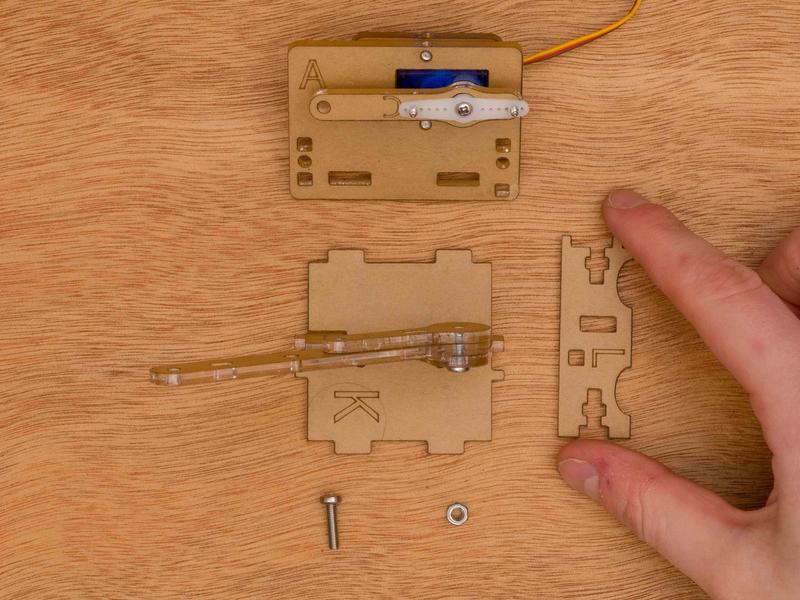

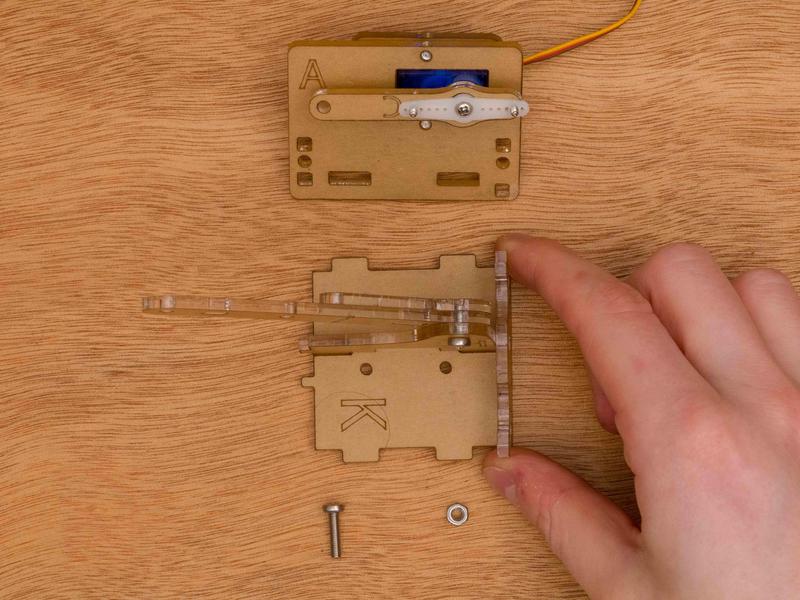

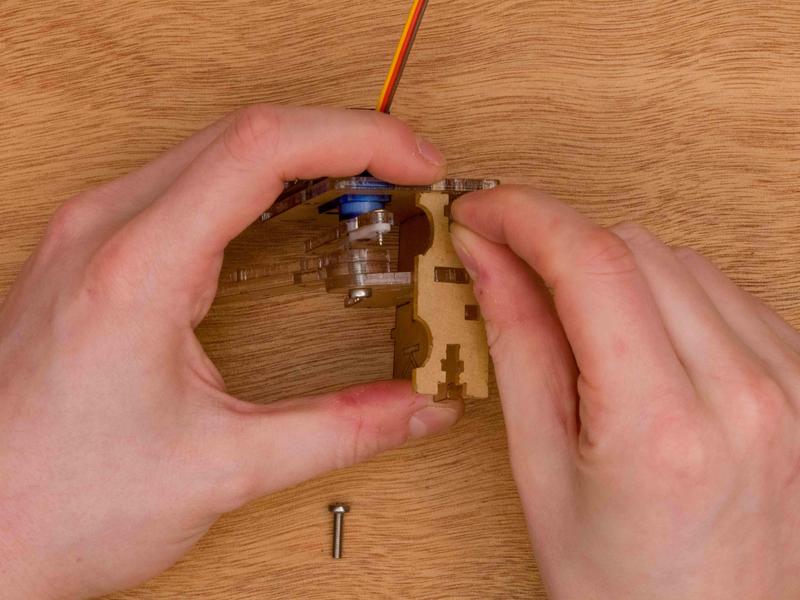

    Slide into K and middle mount
    Left servo arm
    Facing the inside

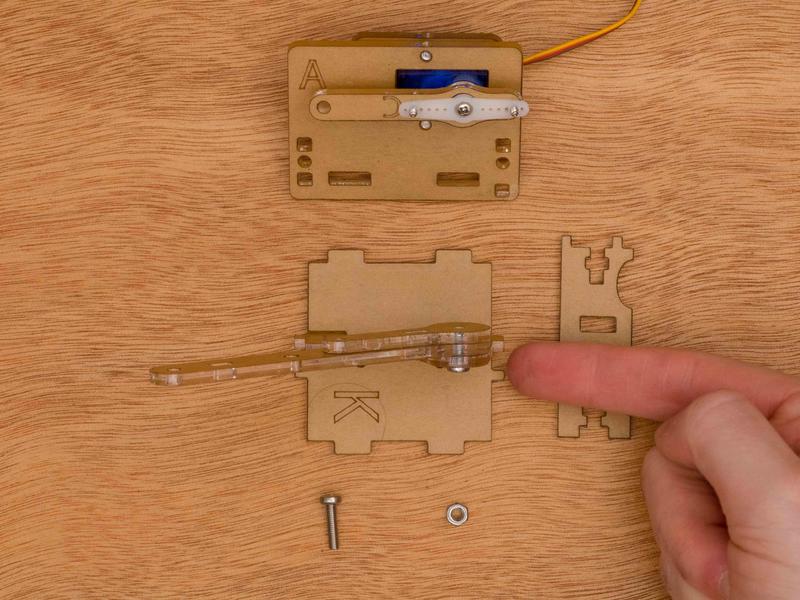

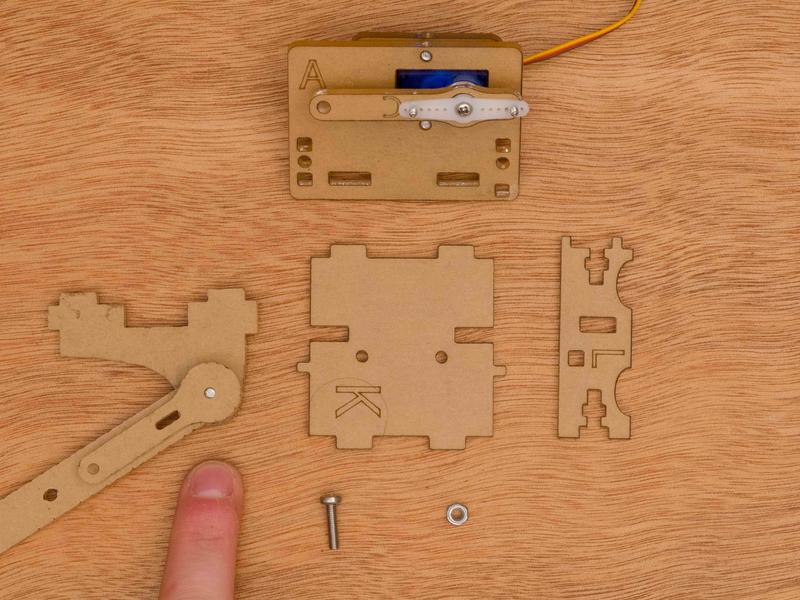

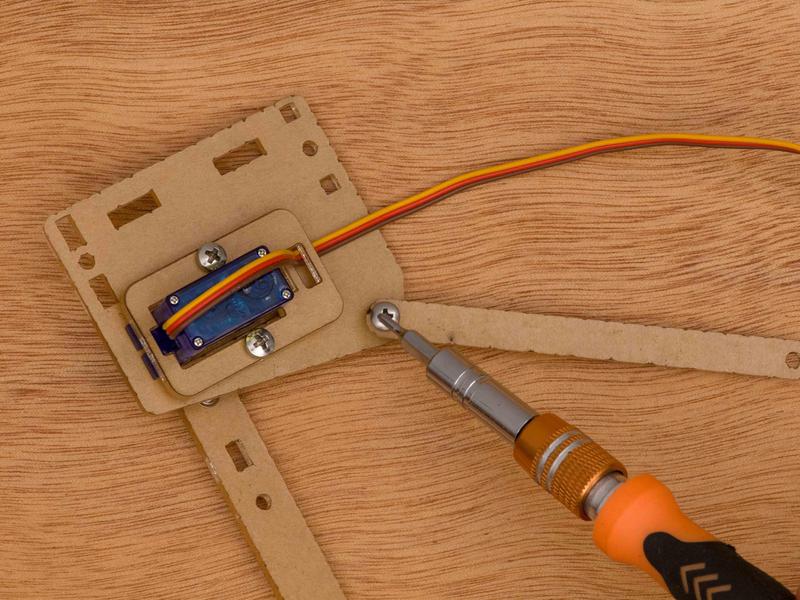

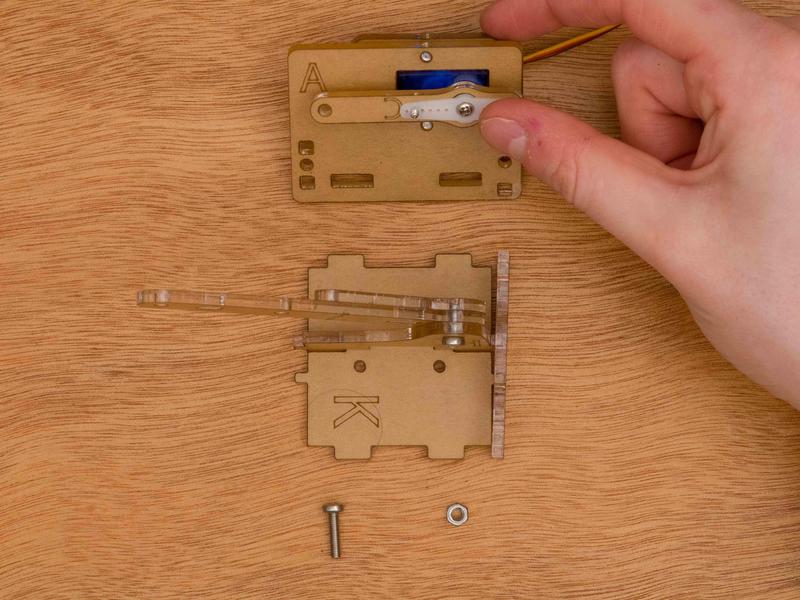

    Take the left servo mount

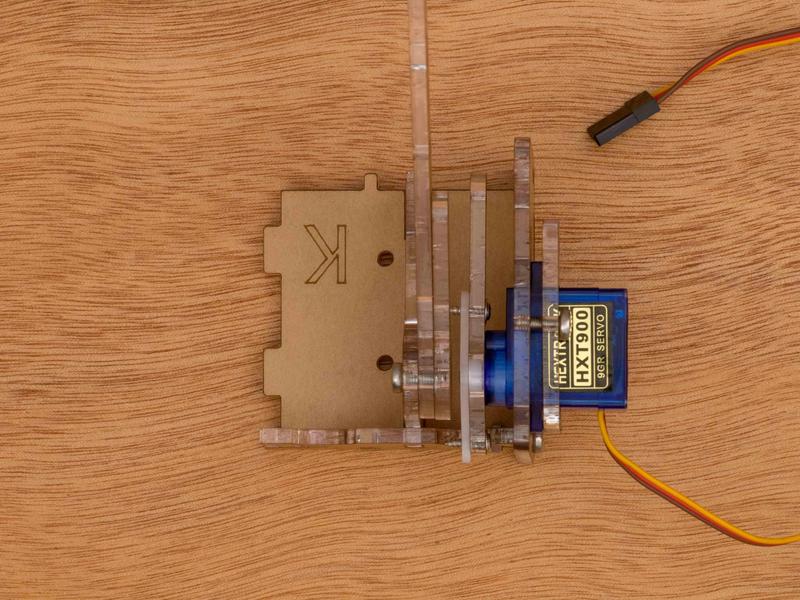

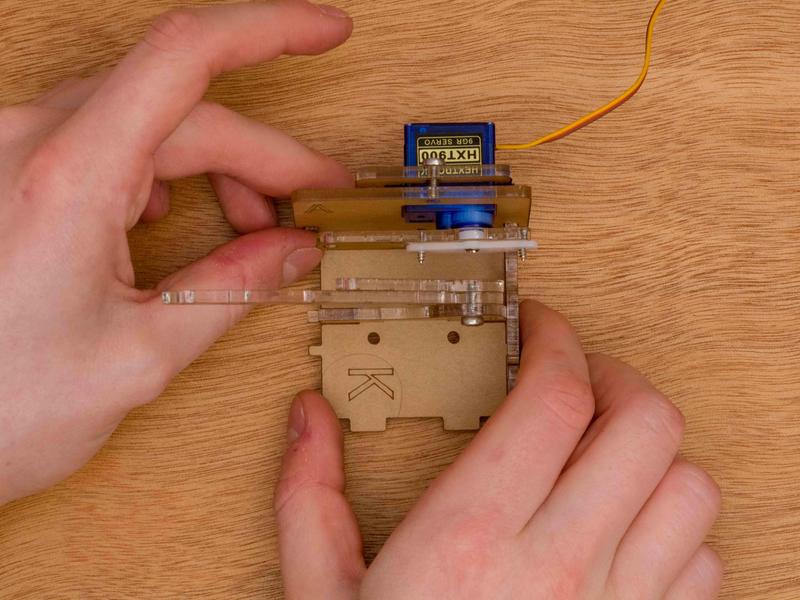

    Slide into tabs on K
    And in L

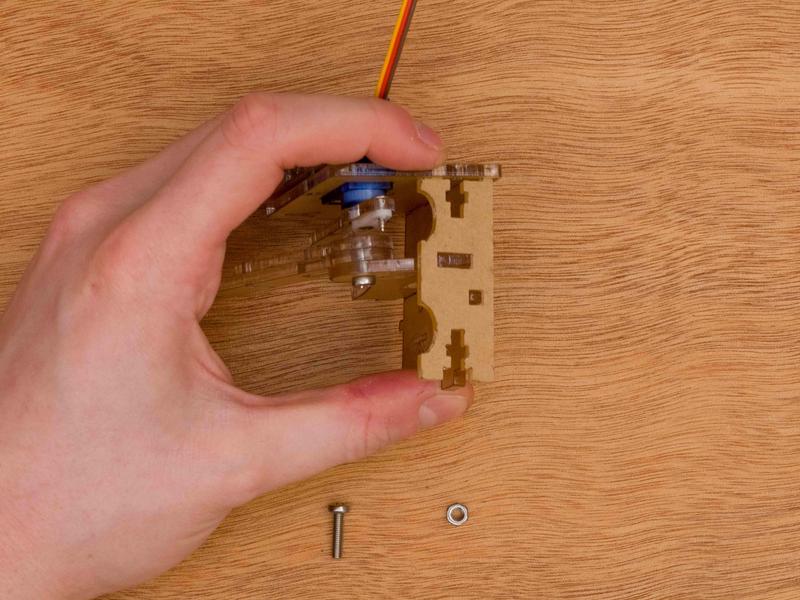

    Take nut
    Insert into T-slot

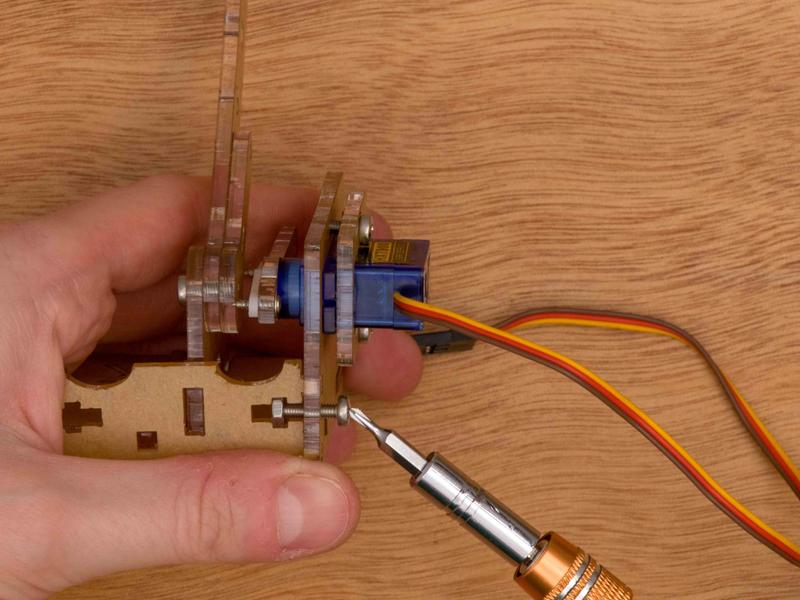

    Insert the screw
    Tighten

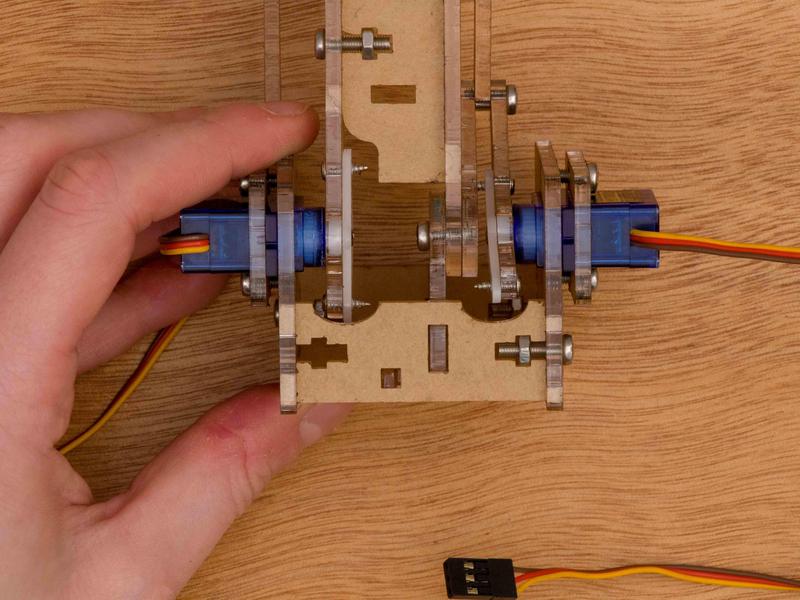

    Ready for next step

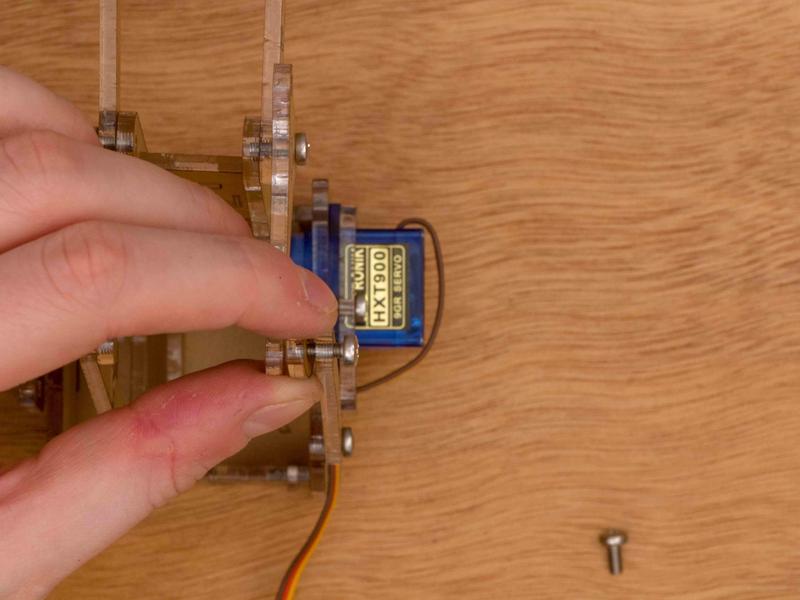

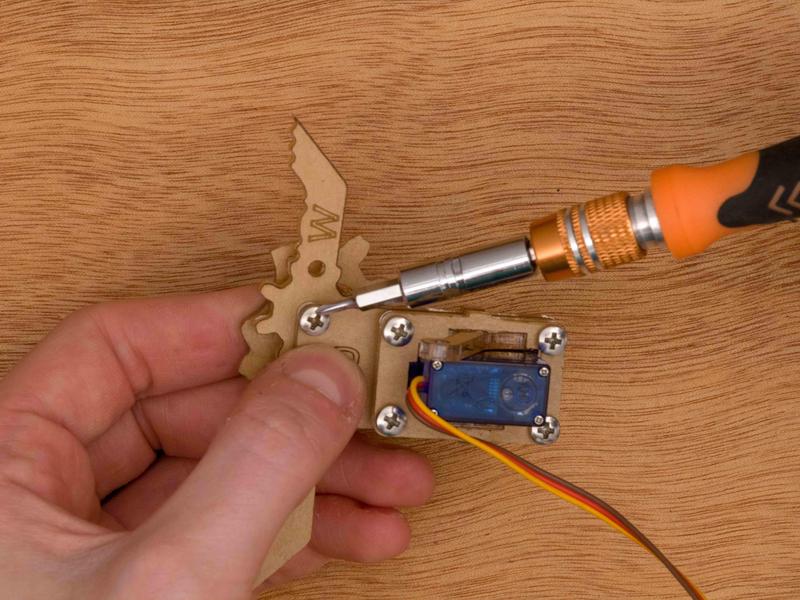

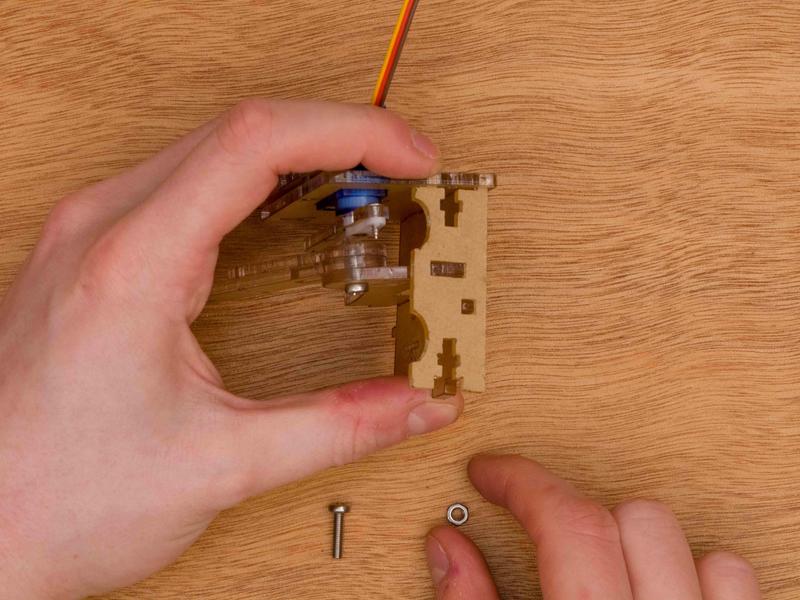

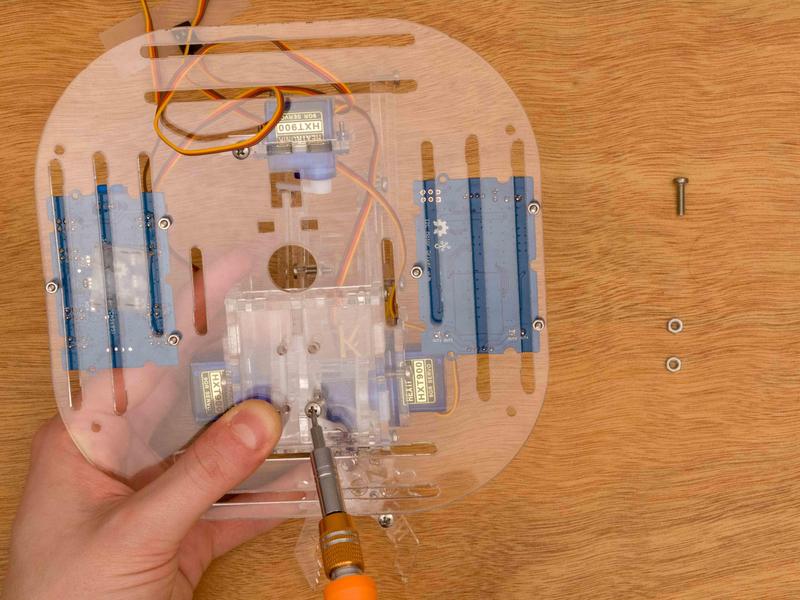

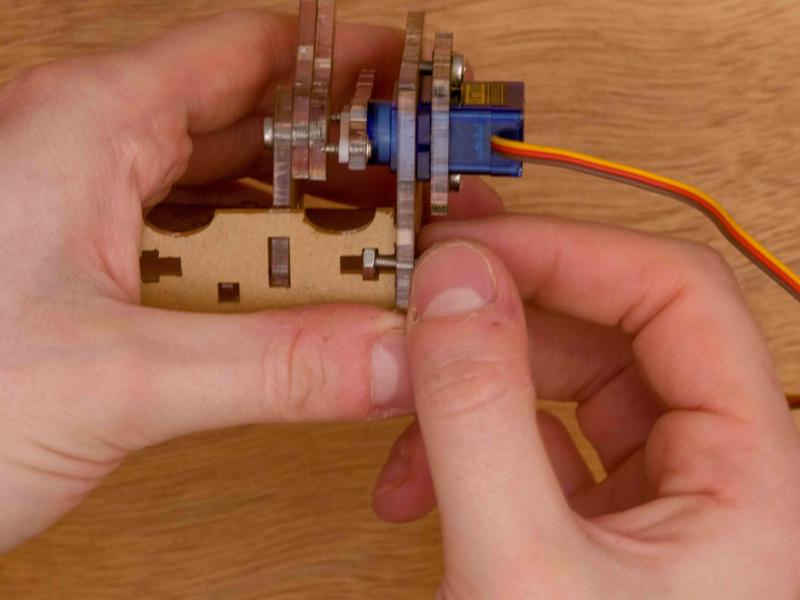

    Take the M piece, a 12mm screw, and nut. Slide the M piece into A. It should be similar to how L worked. If the already constructed base is too ridged, try loosening the t-sloted 12mm just a tad to allow for some flex. With the M piece in place, again put a nut in the T-slot and then insert a 12mm screw through A and into the nut.

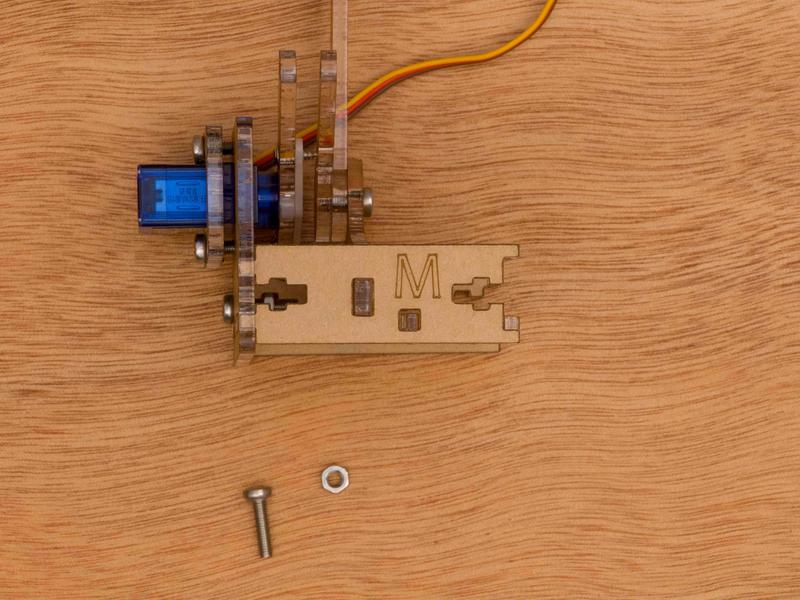

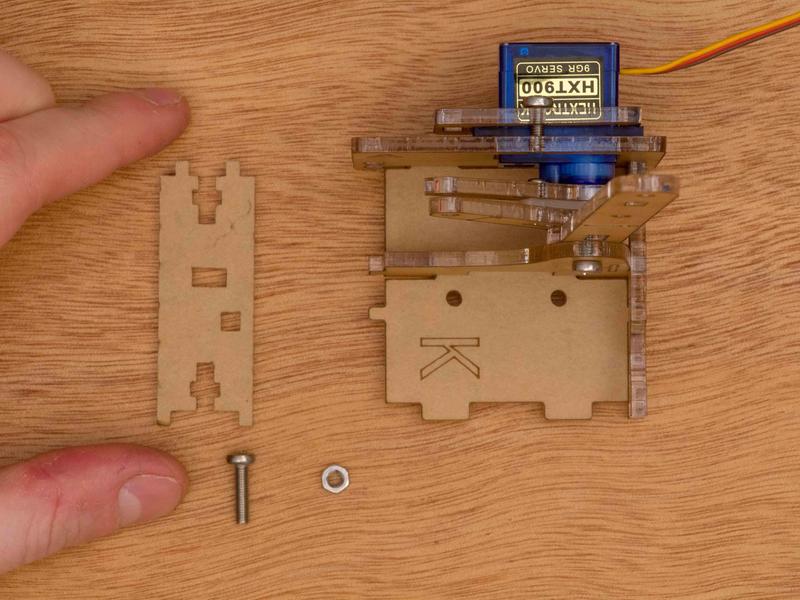

    Parts needed

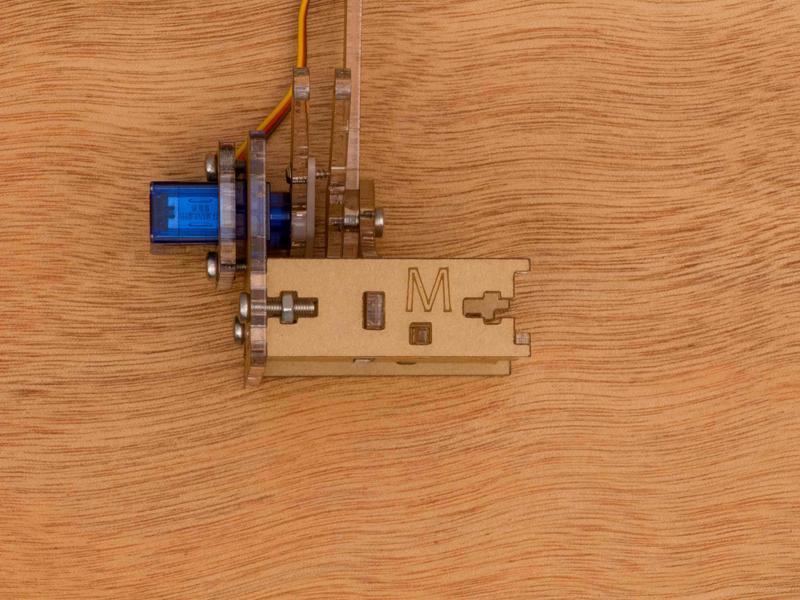

    Take M
    Slide onto base

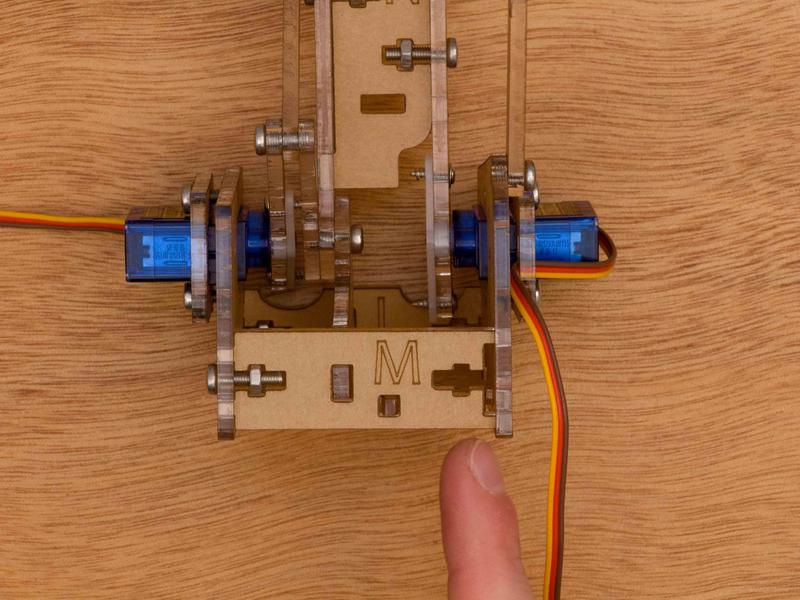

    Screw in T-slot
    Screw in T-slot

    J Extension

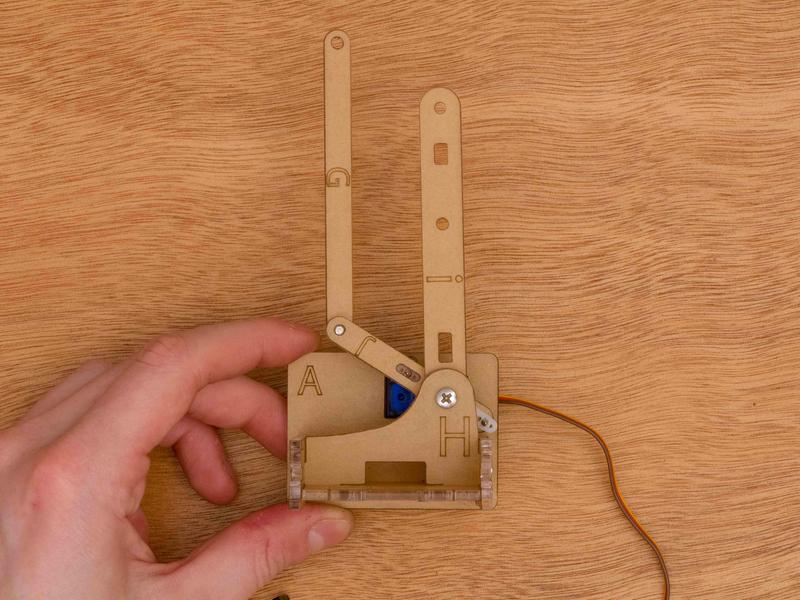

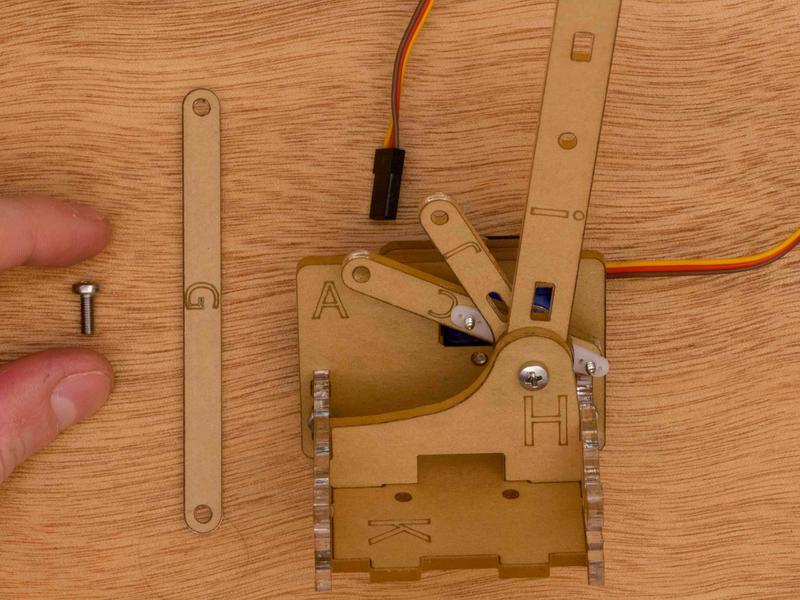

    Take a G piece and one 8mm screw. Place G between the holes found in C in the left servo mount and J in the middle mount. Insert a screw through C, then G, then tighten into J.

    Parts needed
    Take screw
    Place through C

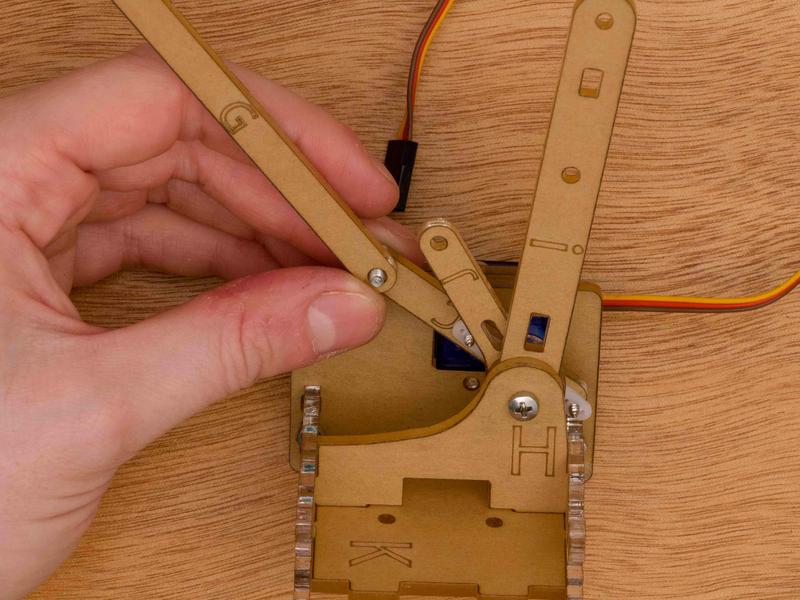

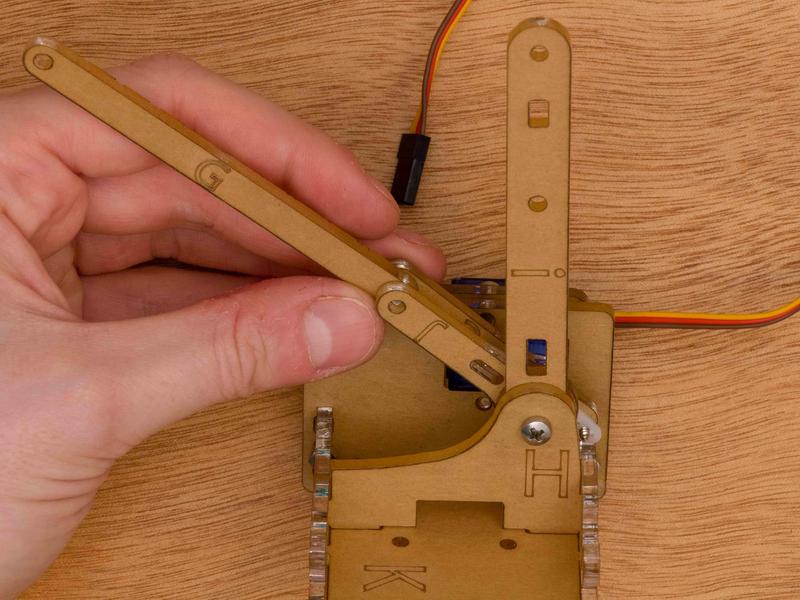

    Place G through screw
    Place J on screw
    Flip over
    Tighten
    Done

    Cross Brace

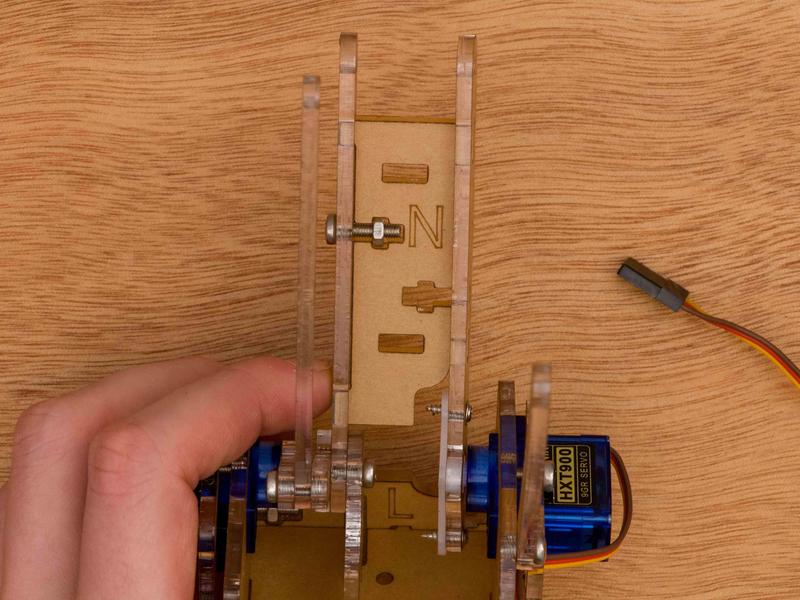

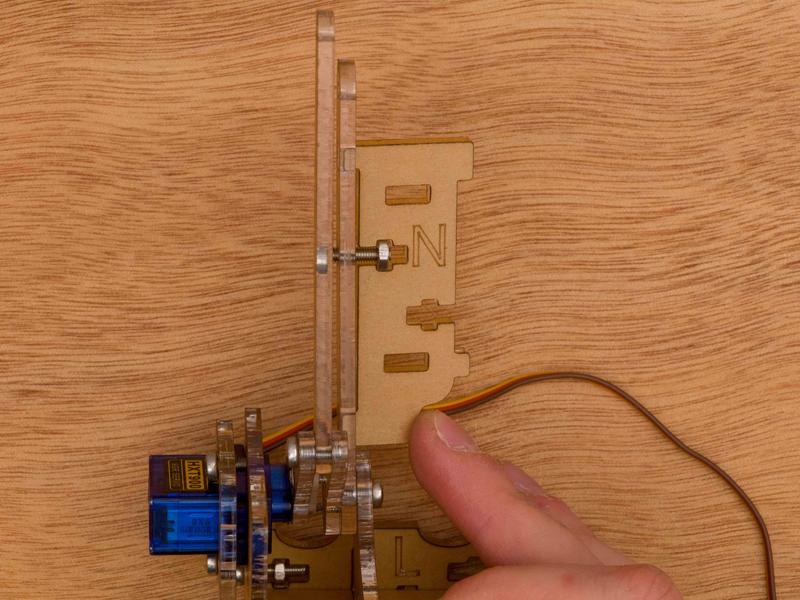

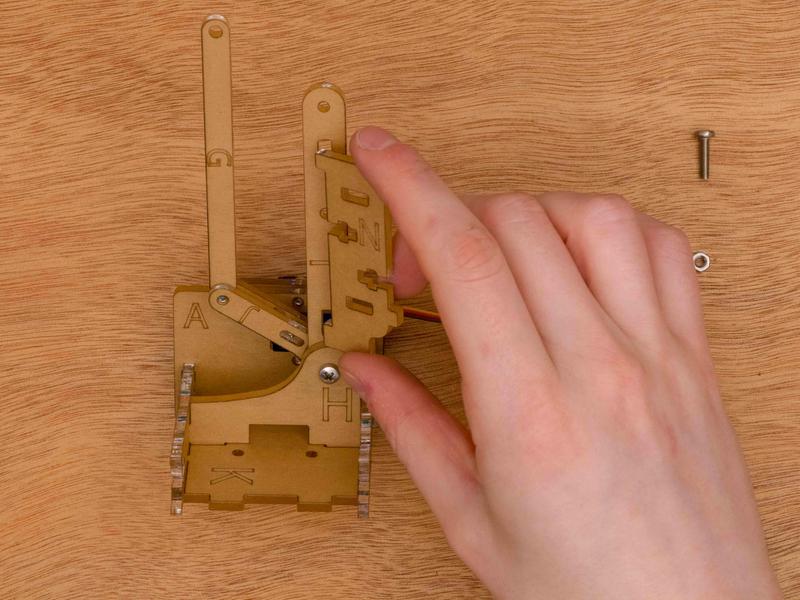

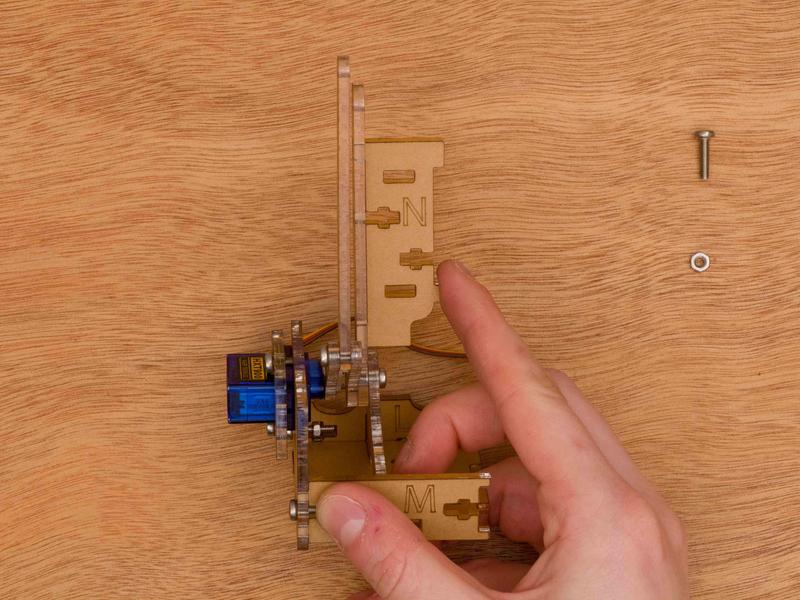

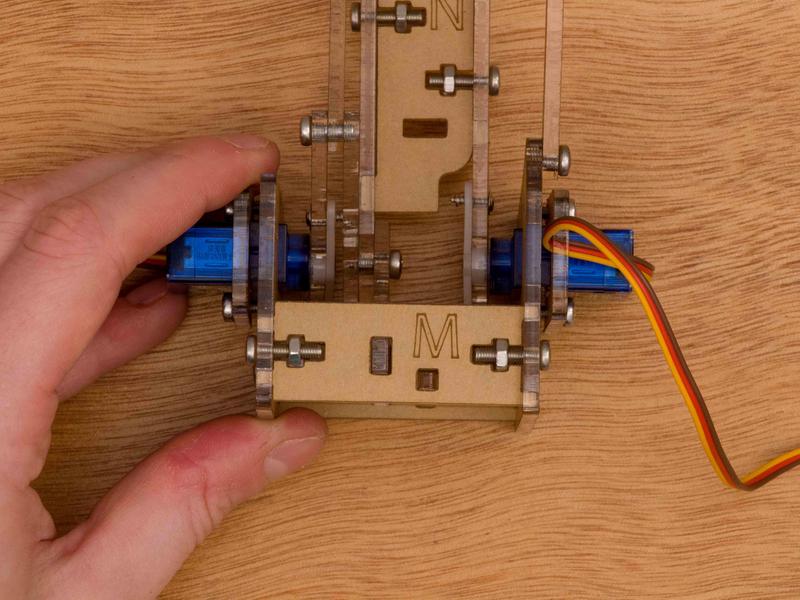

    Take the N piece, a 12mm screw, and a nut. Place N into i. There is a curved section in N which should be on the bottom right of the piece. Place the nut into the upper t-slot and insert the 12mm screw through i and into the nut.

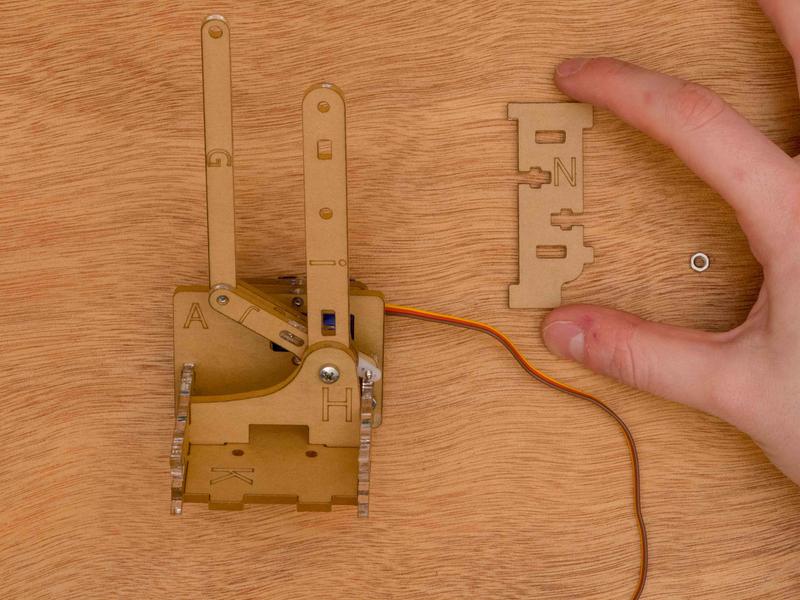

    Parts needed
    Take N
    Insert into i
    Another view
    Screw in T-slot

    Full Frame

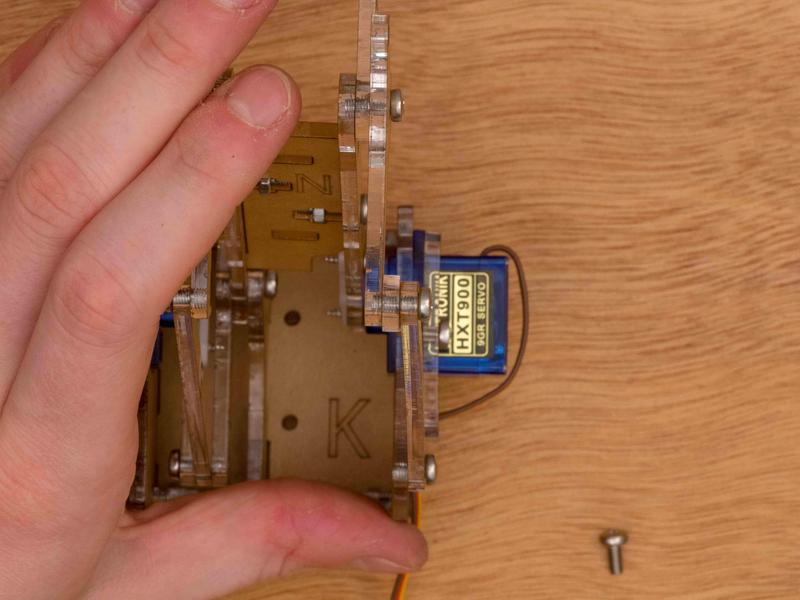

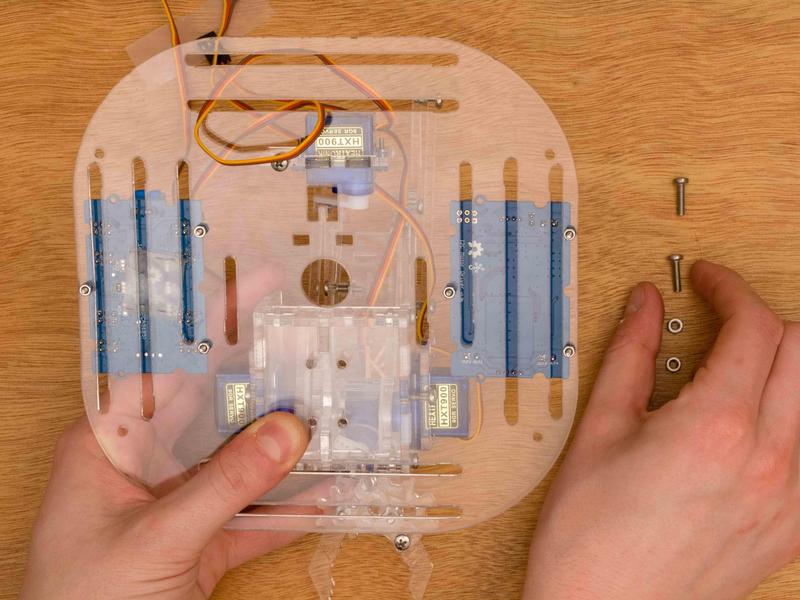

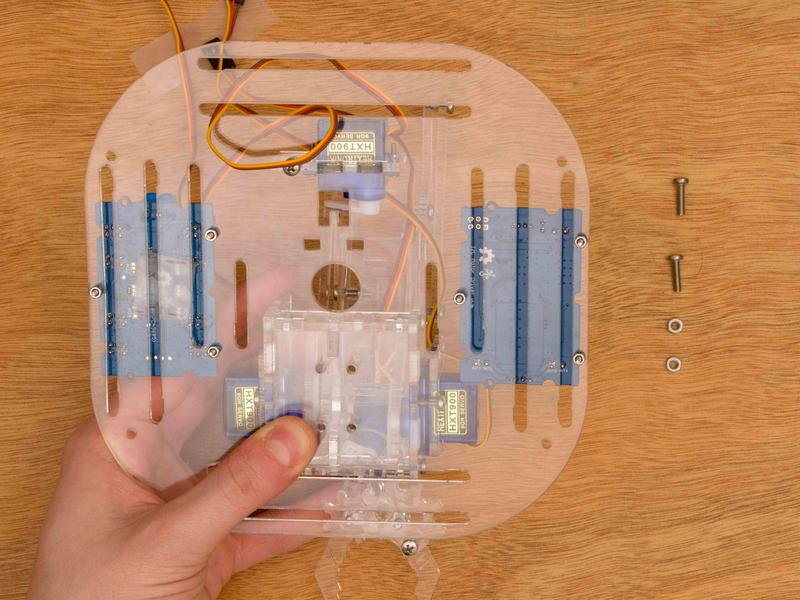

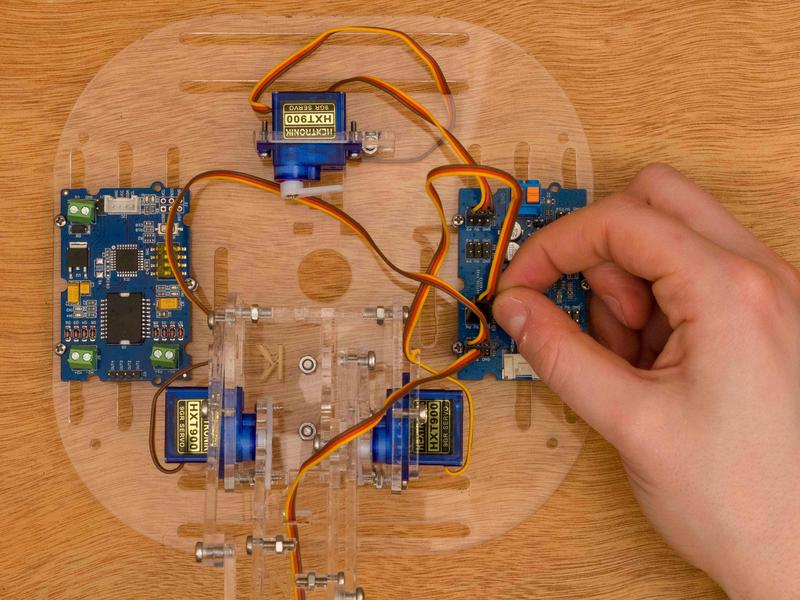

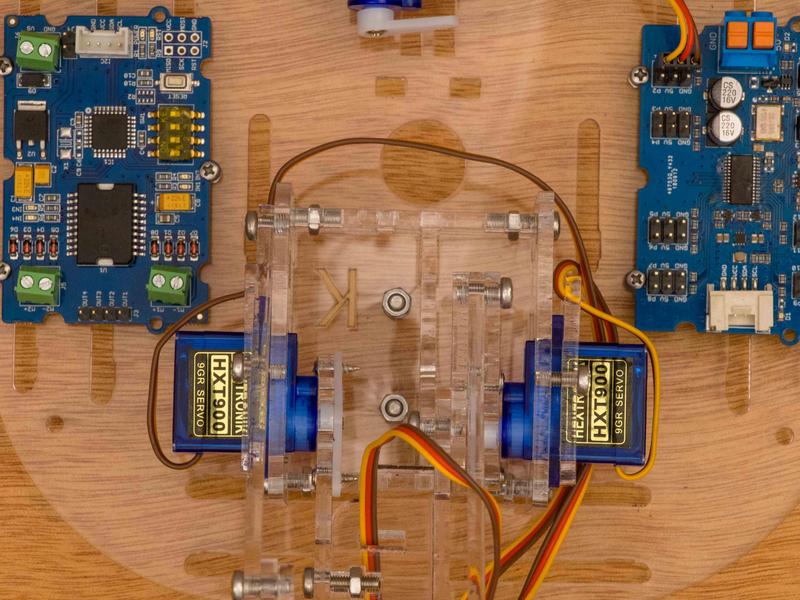

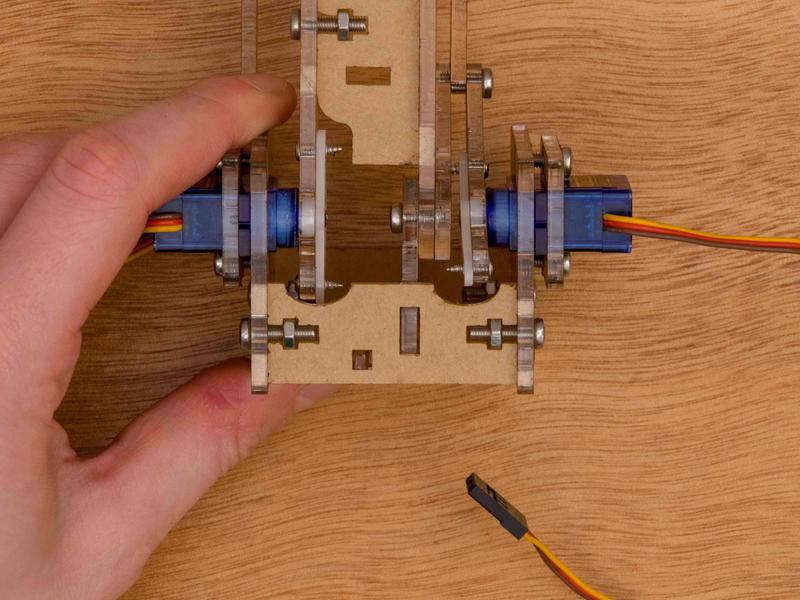

    Slide the right servo mount towards the base we have already constructed. First, insert F into N. Place a nut into the lower t-slot and insert the 12mm screw through F and into the nut. Fit tabs in K, L, and M into D before fully tightening. Place a nut each in t-slots found in L and M. Then insert a 12mm screw through D into each nut and tighten.

    Take right servo mount
    Slide together

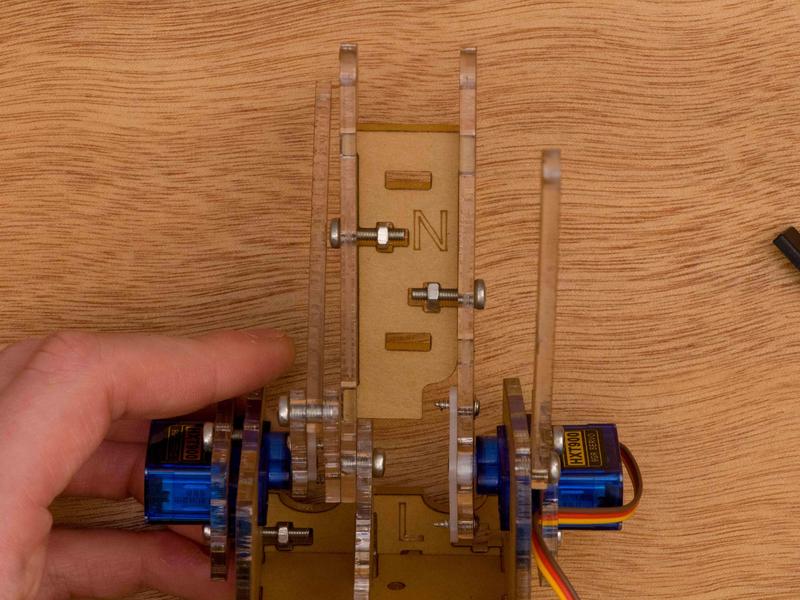

    Add T-slot to N
    Add T-slot to M
    Add T-slot to M
    Add T-slot to L
    Add T-slot to L

    Base to Claw

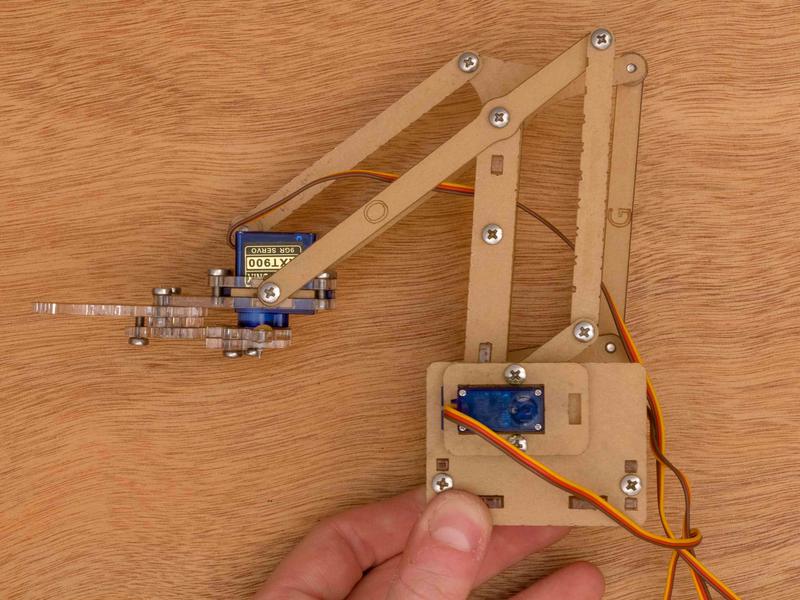

    O Arm

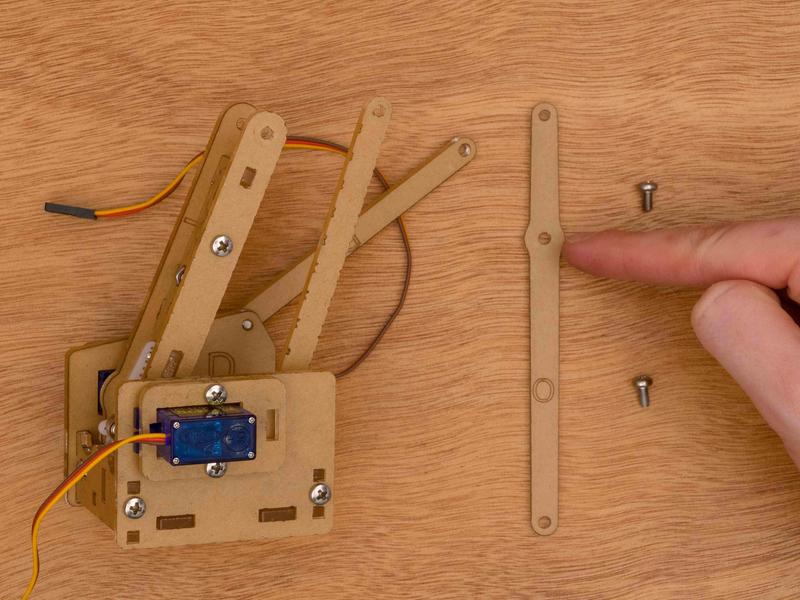

    Take the O piece and two 6mm screws. Place O between i and the G piece coming off of the left side. Insert one 6mm screw through G and tighten into O. Insert the remaining screw through O and tighten into i. Not to tight as we want free movement.

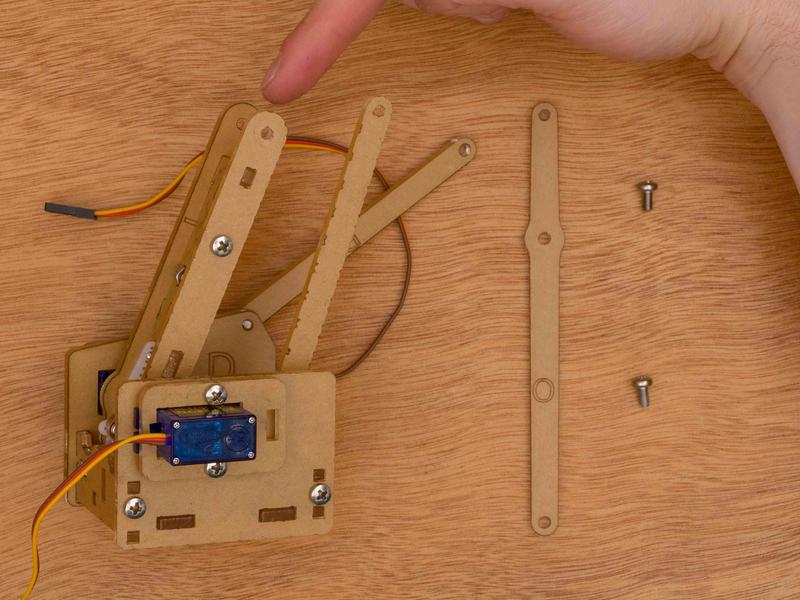

    Parts needefd
    This hole
    With attach here
    This more middle hole
    Goes into i
    Both screw from the outside in
    G is in front of O but O is in front of i

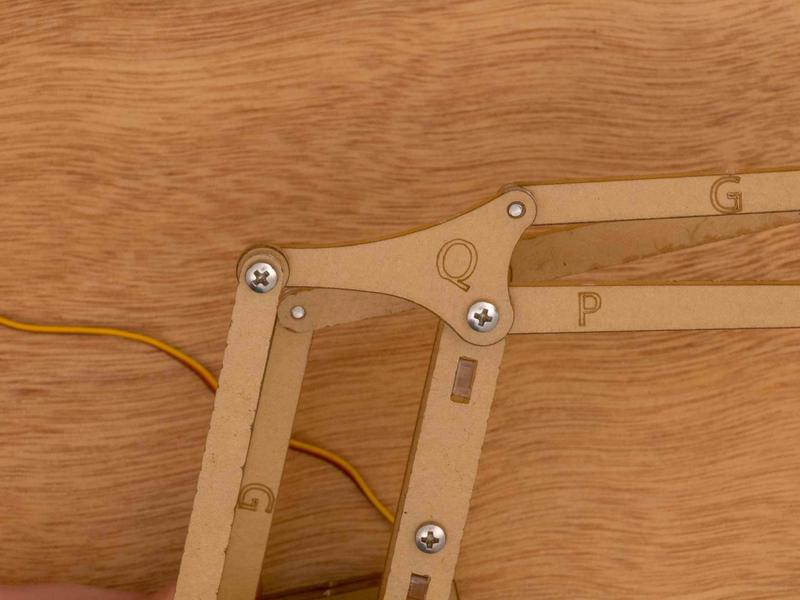

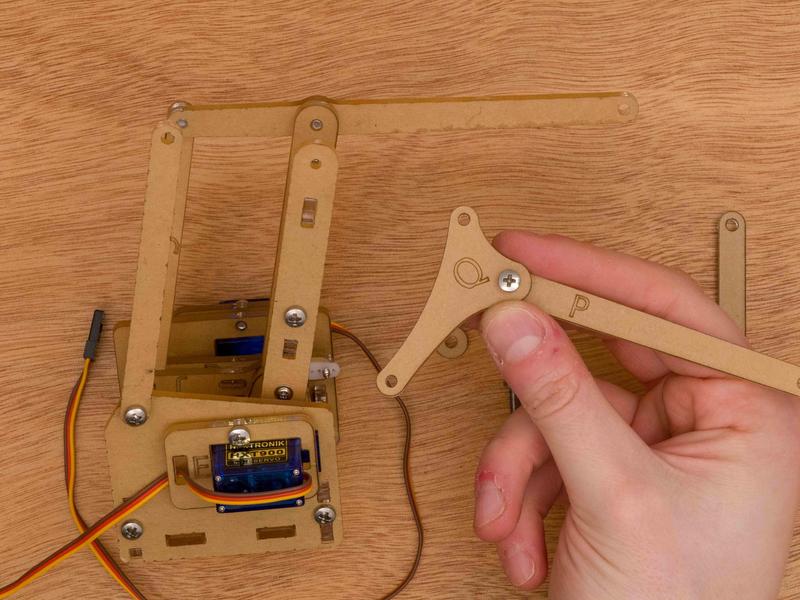

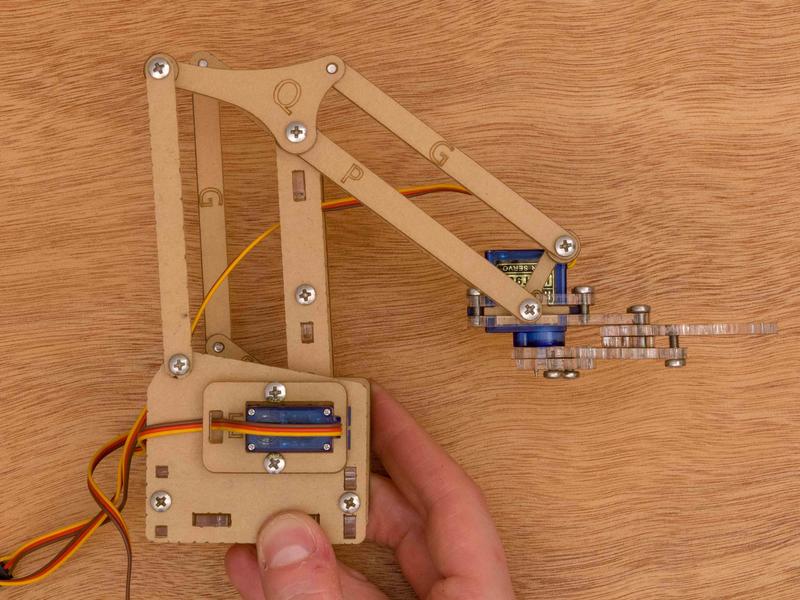

    Q Tri-linkage

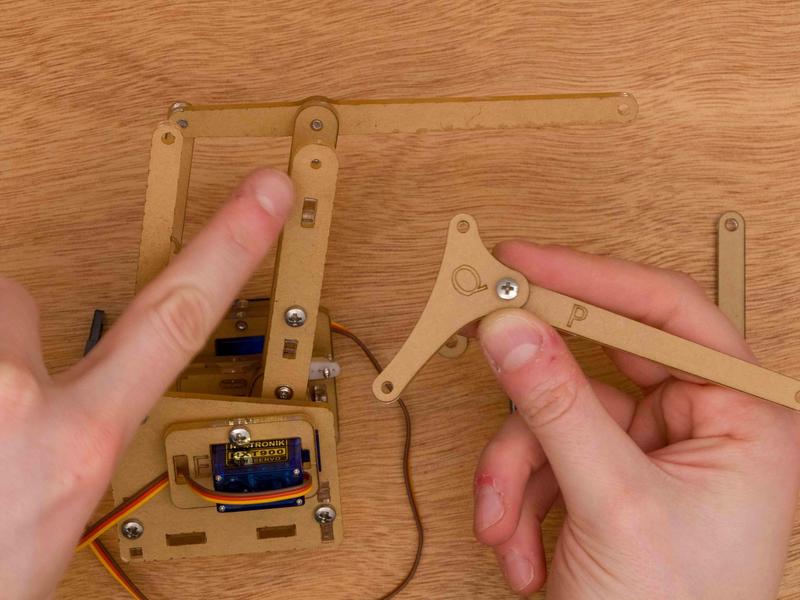

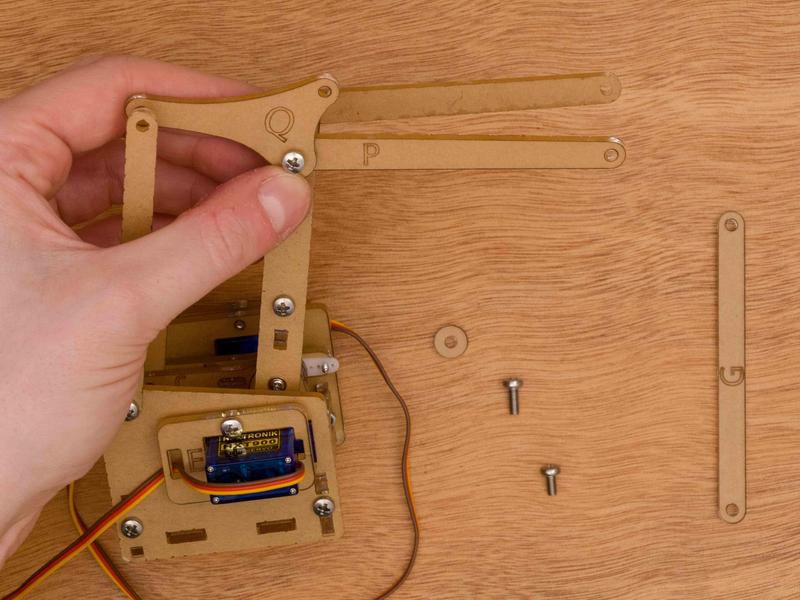

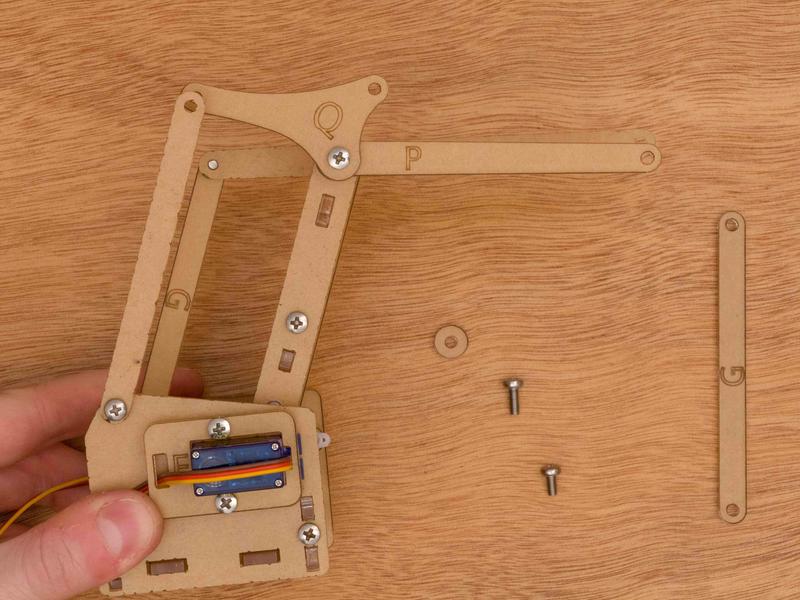

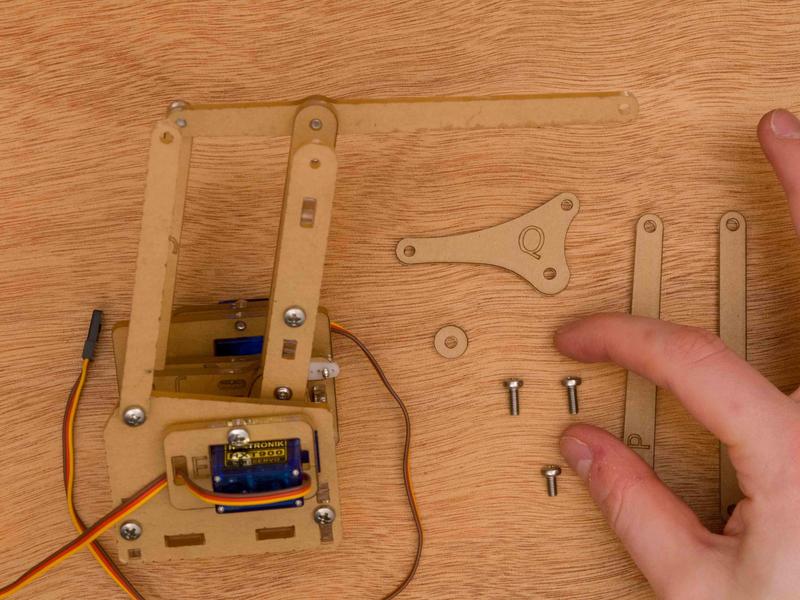

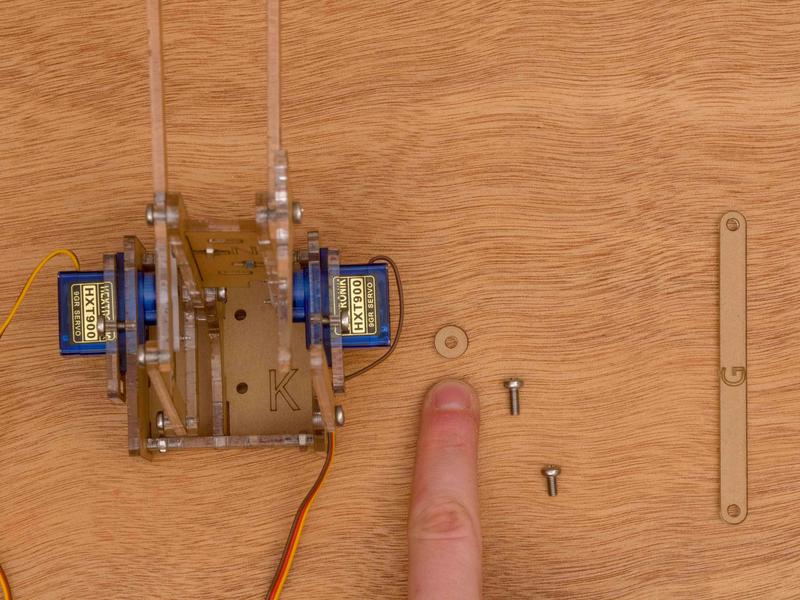

    Take pieces G, P, Q, a circle spacer, two 8mm screws, and one 6mm screw. The following directions assume that the letter Q on piece Q is facing so it's readable. Place a 8mm screw through the bottom hole in Q. Now place P through that screw as well. Now tighten the screw into the hole found on F.

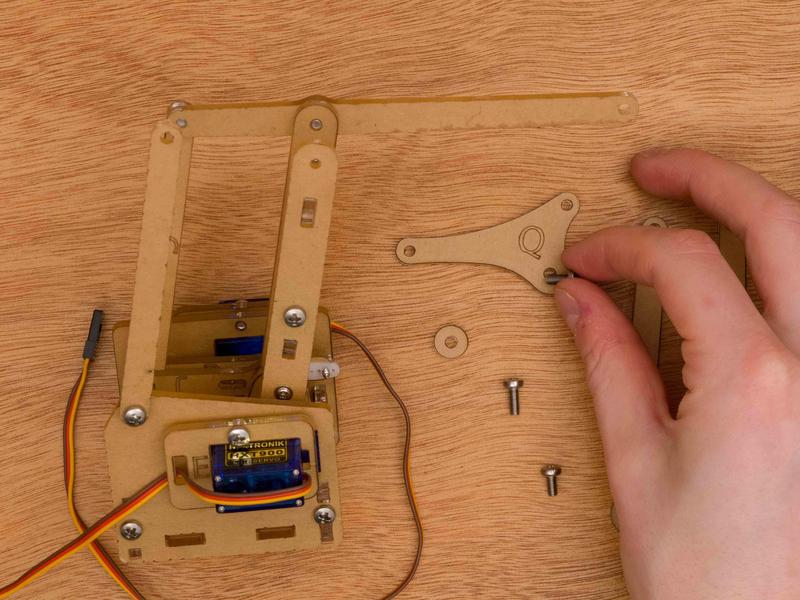

    Parts needed
    Q is readable
    Take an 8mm screw
    Insert into bottom hole
    All the way through
    Place P on same screw

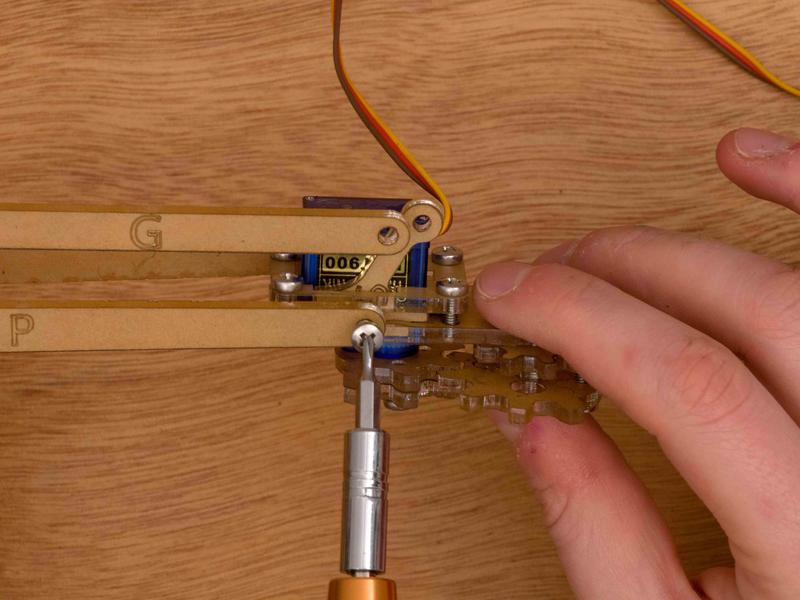

    Into F
    Like so
    Tighten

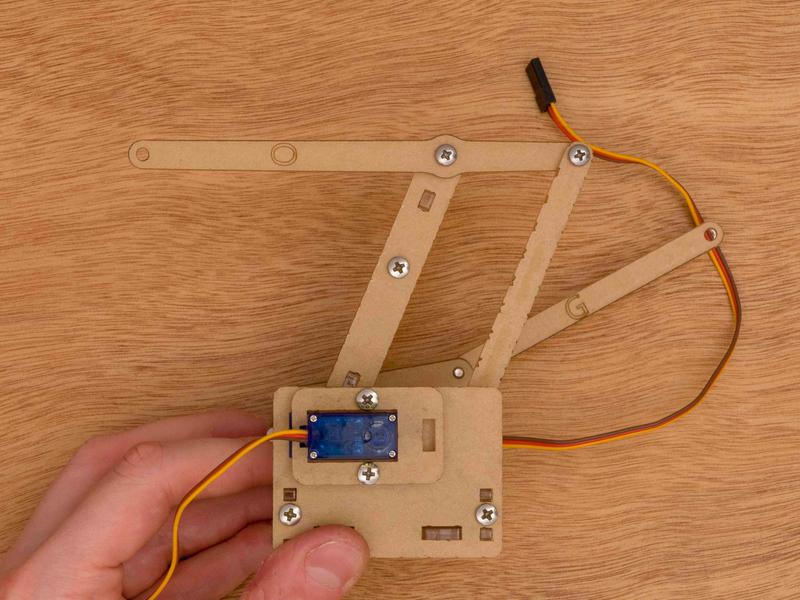

    Ready for next step

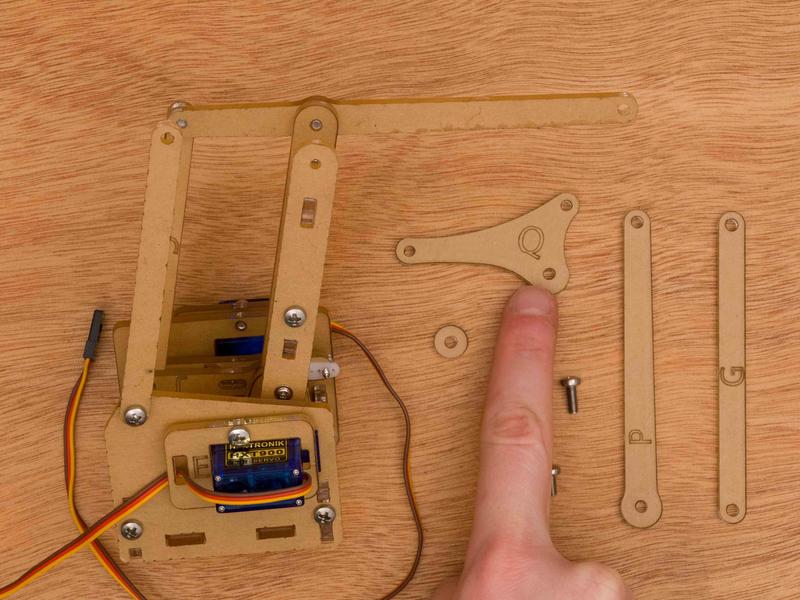

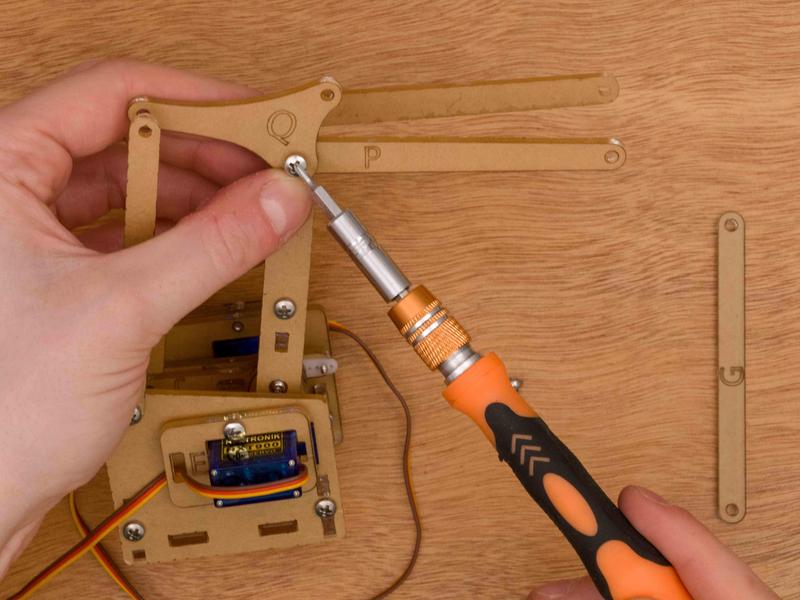

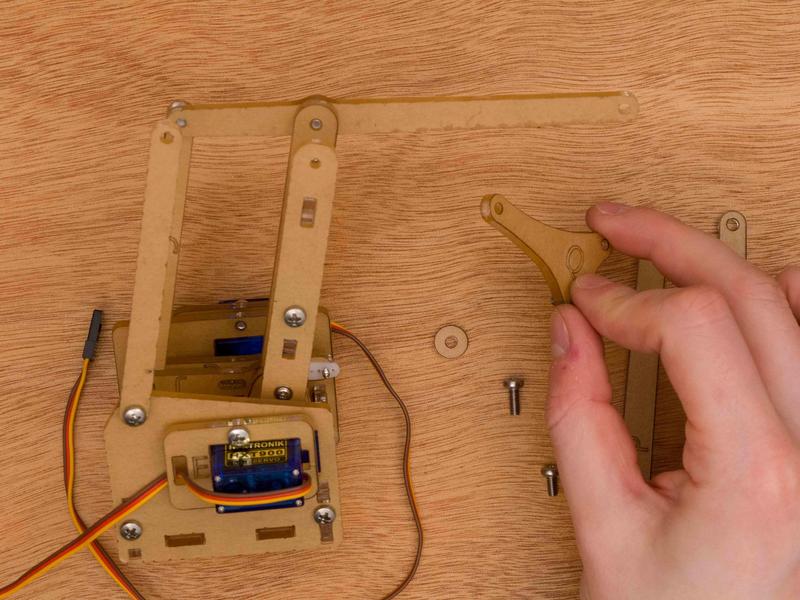

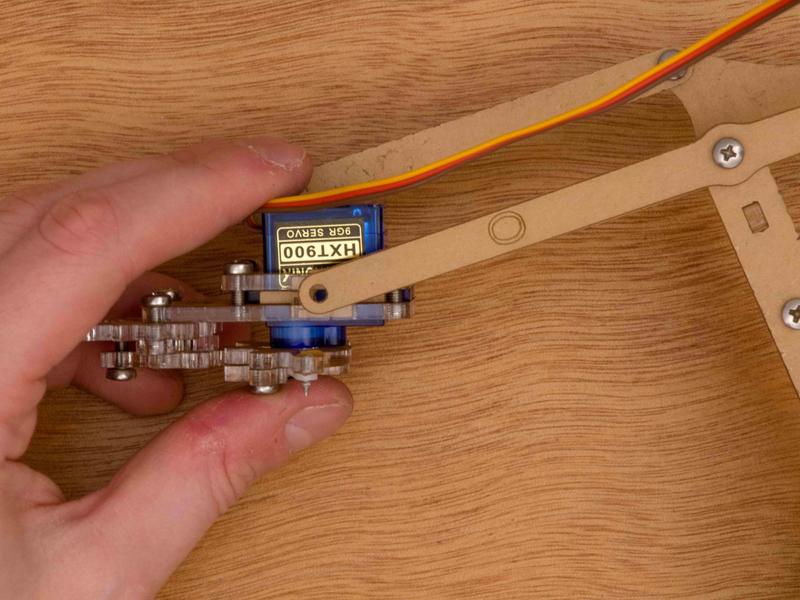

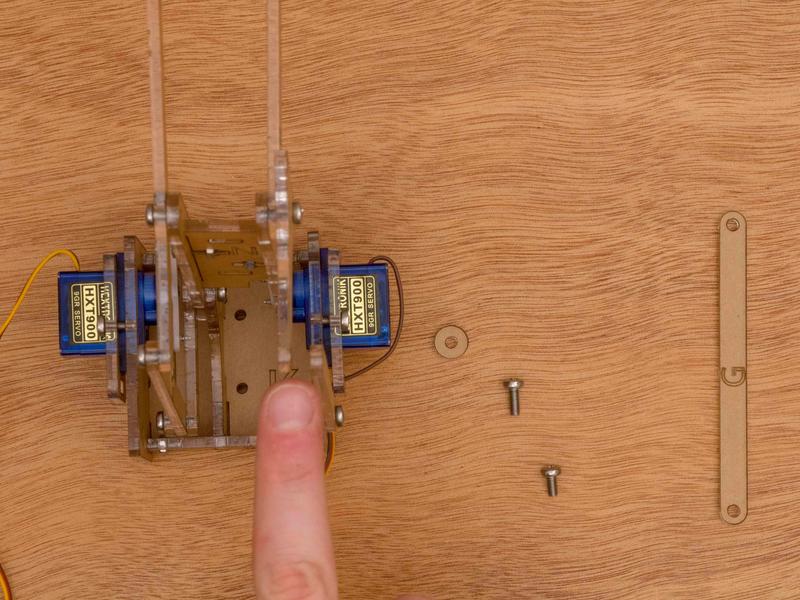

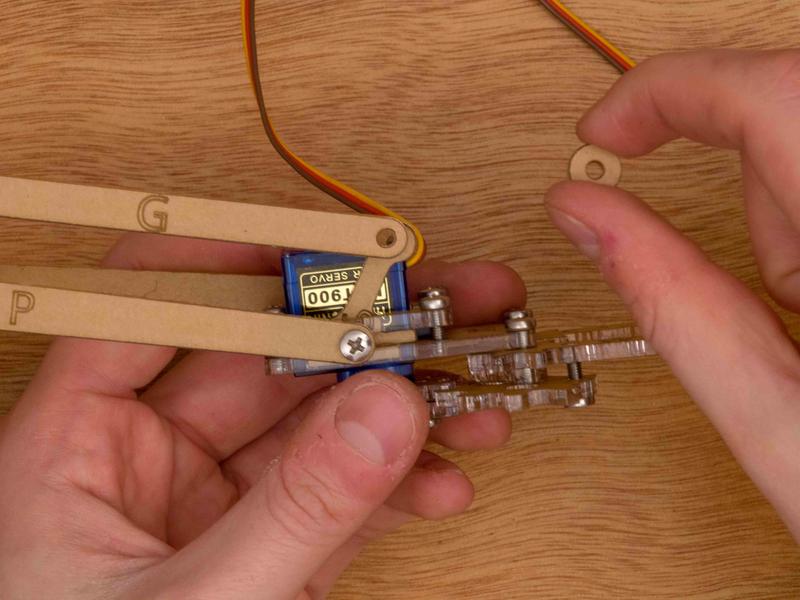

    Slide a circle spacer between the left hole in Q and the G piece already attached to D. Insert the remaining 8mm screw through G and the circle spacer before tightening into Q.

    From this angle
    Take a circle spacer
    Place between Q and G
    Insert screw through G and spacer
    Tighten into Q
    Ready for next step

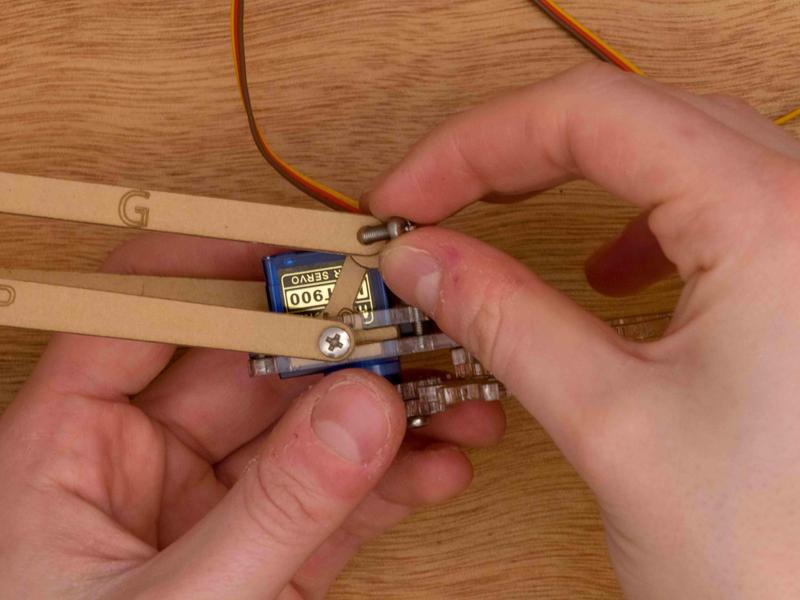

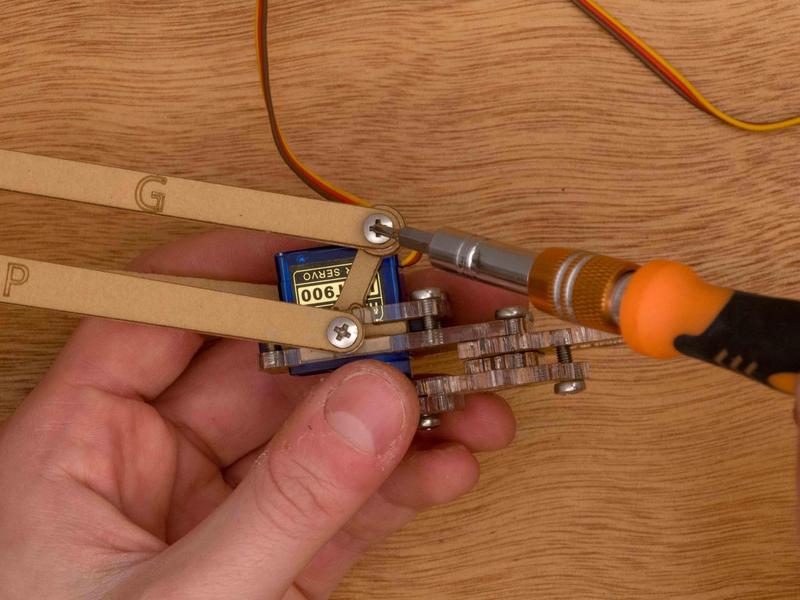

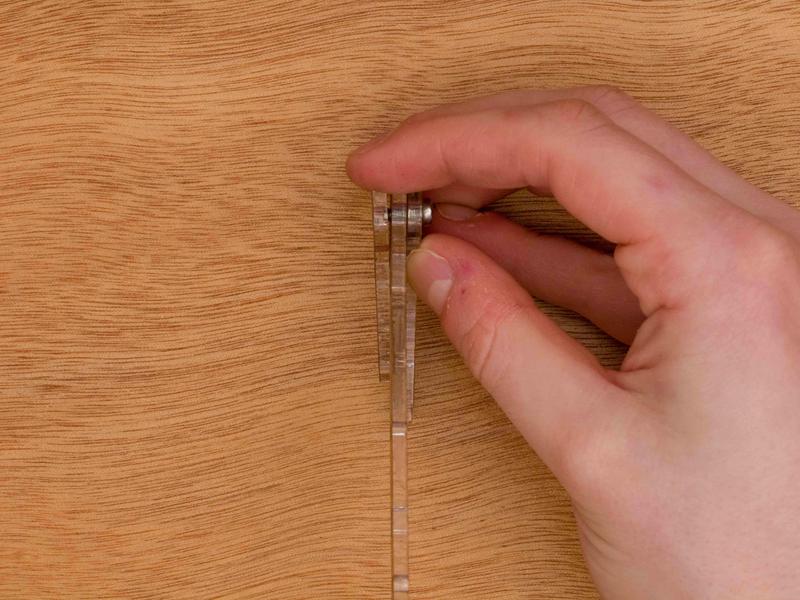

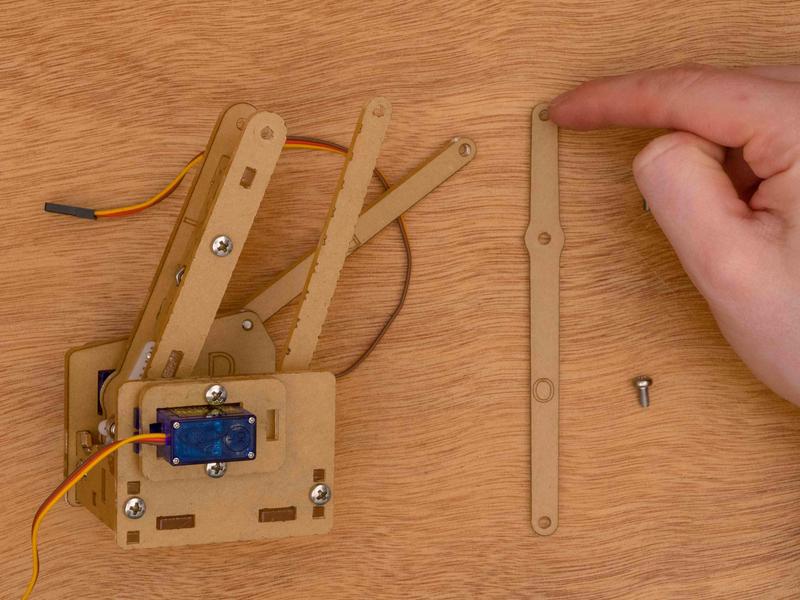

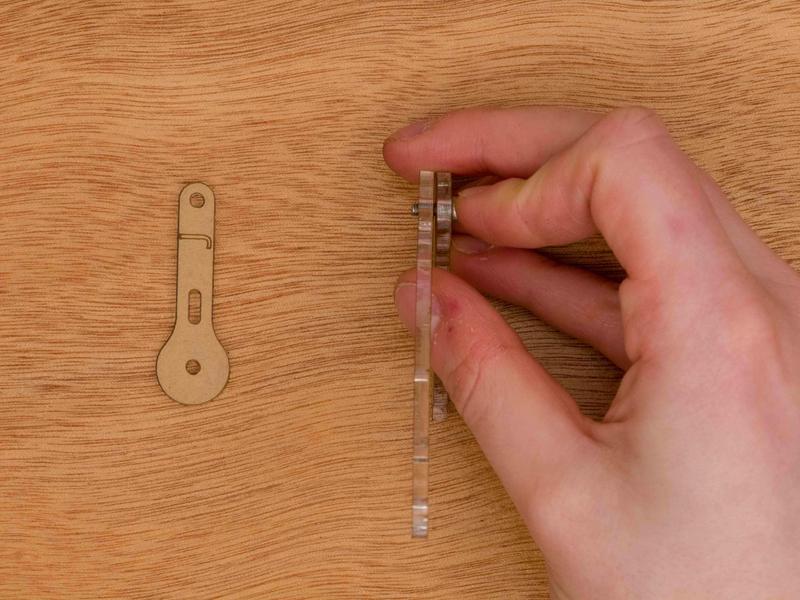

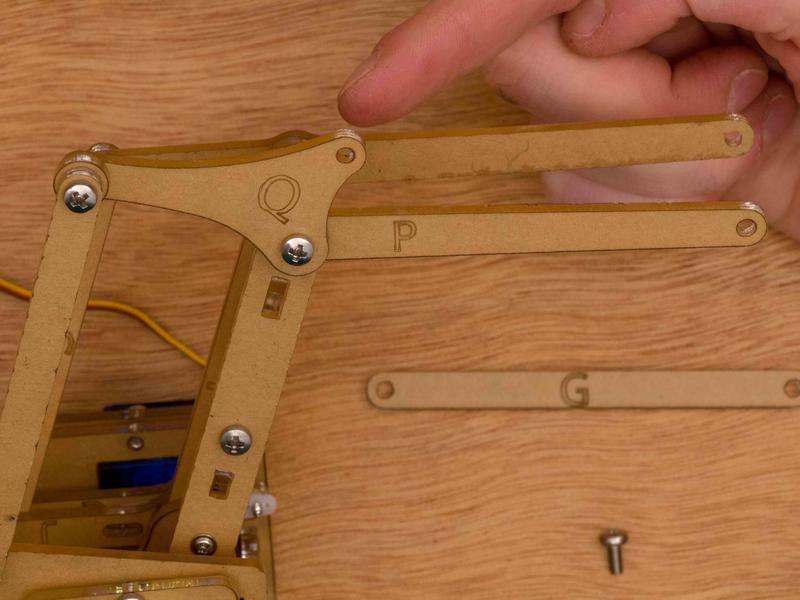

    Take the free G piece and insert a screw through either hole. Tighten this screw into the remaining hole in Q from the back. The opposite direction that you did the two previous 8mm screws.

    This hole in G
    Goes behing this hole in Q
    With a 6mm screw

    Claw

    Servo Mount

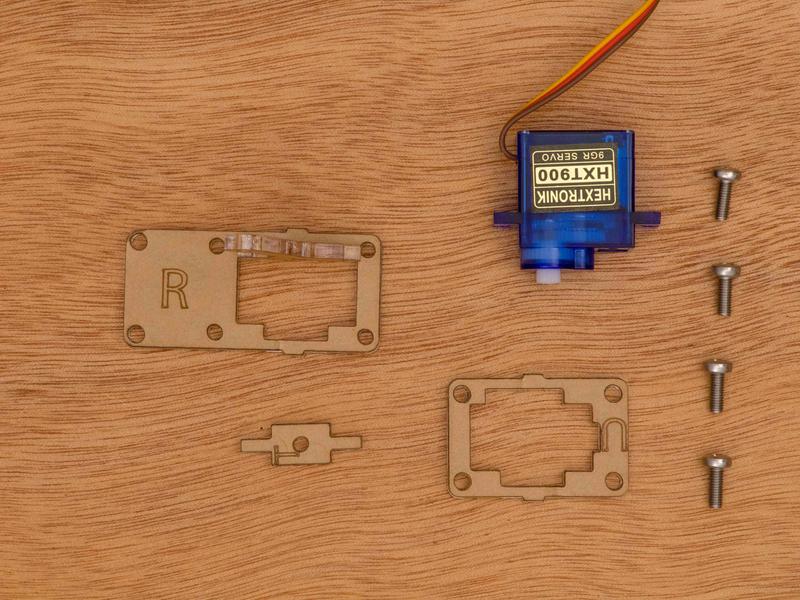

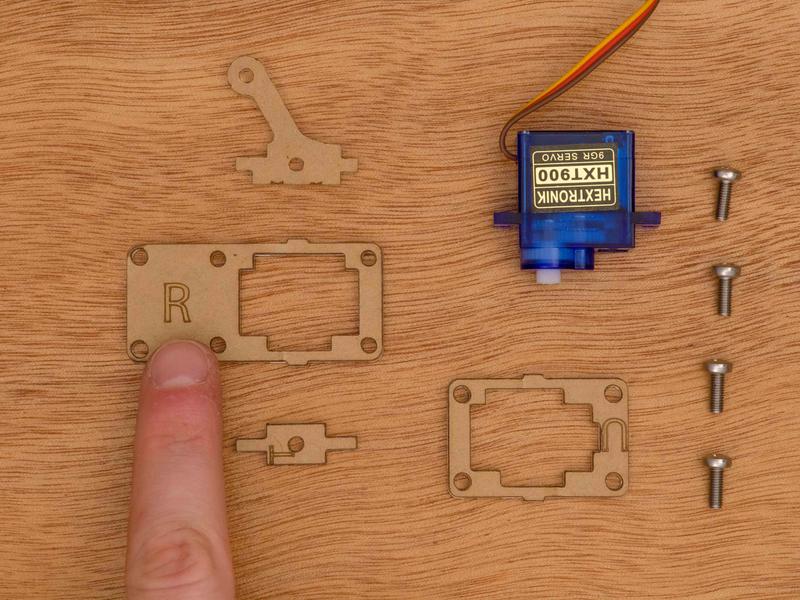

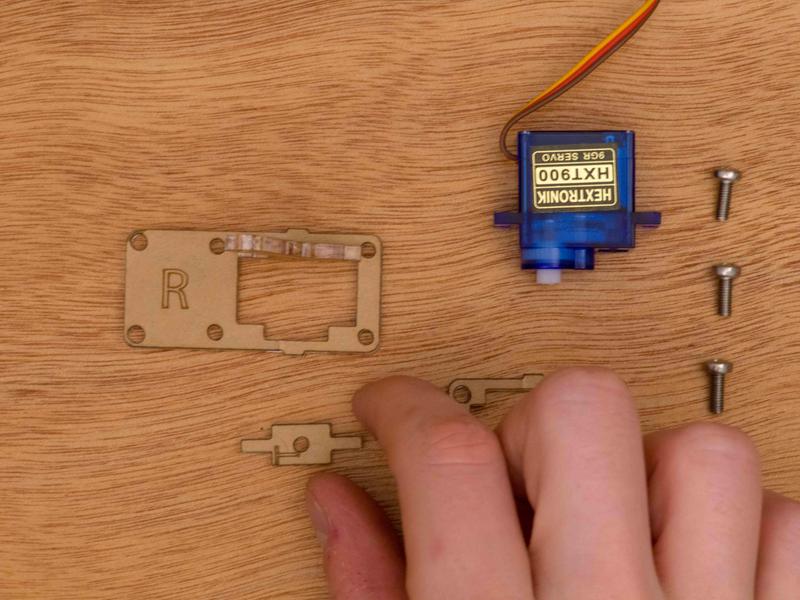

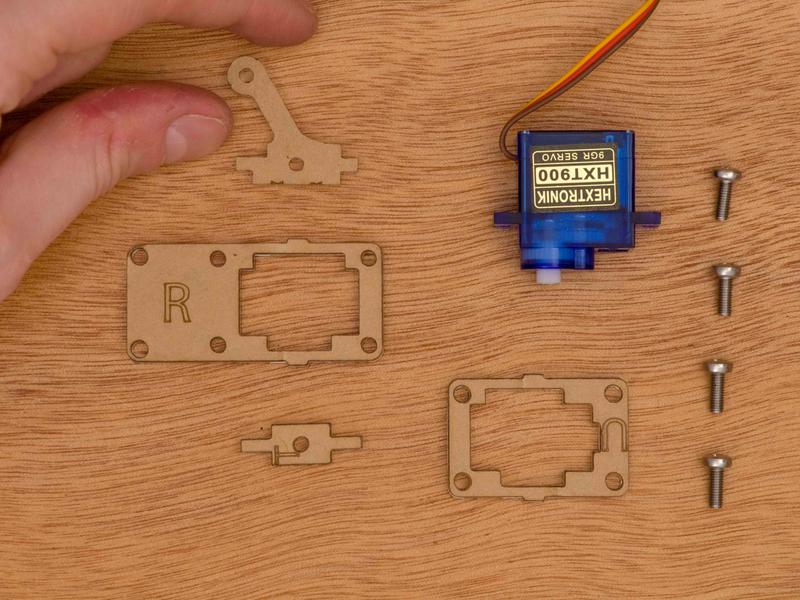

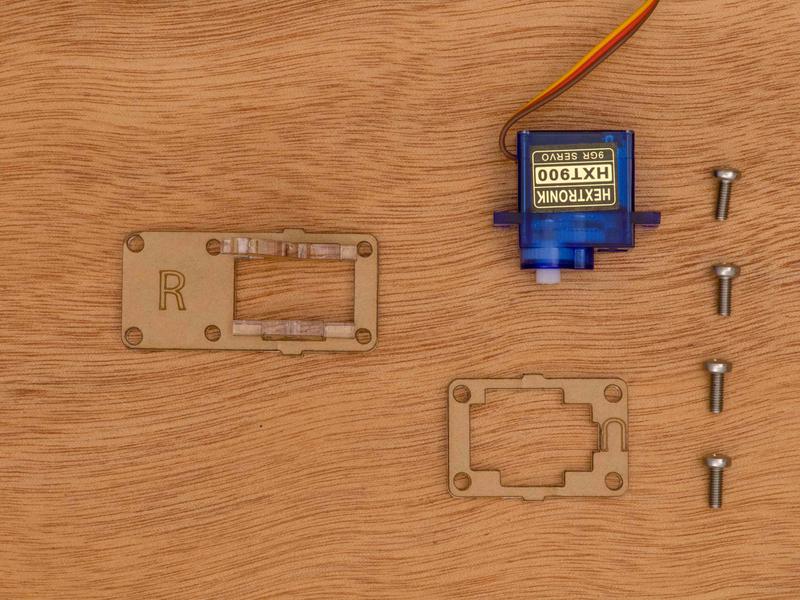

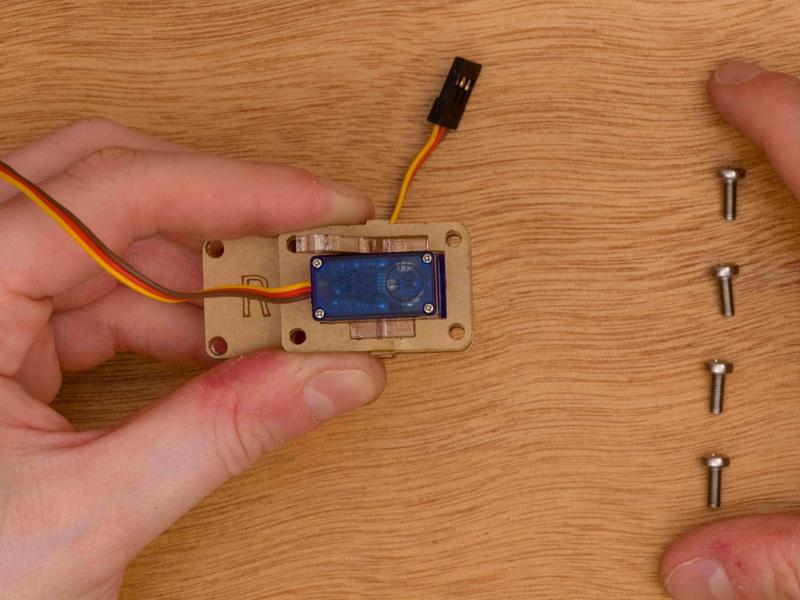

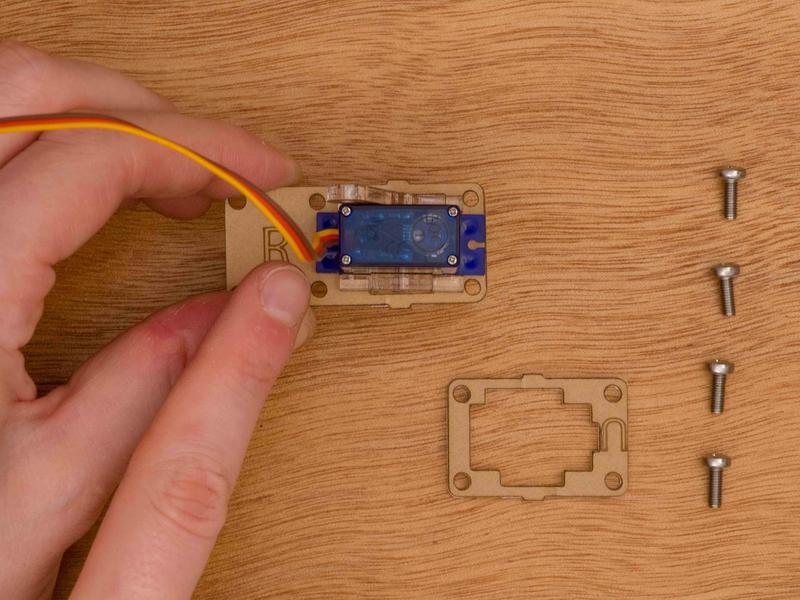

    Take pieces R, S, T, U, the remaining servo, and four 8mm screws. Place R so that the letter faces up and is to the left. Place S and T as they are seen in the pictures below. Place the servo face down and with the cable coming out the left. Once the servo is flush with R, place U on top. Make sure to line up the larger notch in U with S. Insert all four 8mm screw through U and into R.

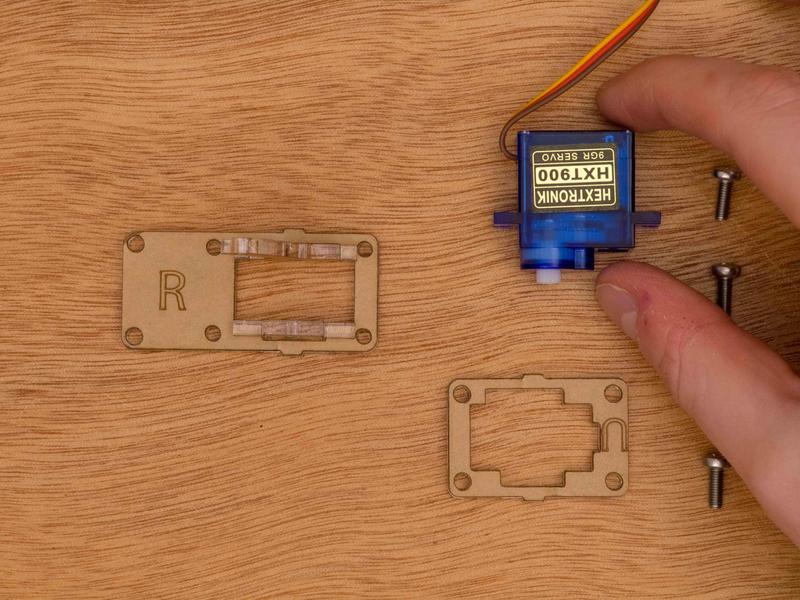

    Parts needed
    R is readable
    Take S
    Place in upper slot
    Take T
    Place in lower slot
    Take servo
    Place between S and T
    Take note of cable
    Coming out of left side

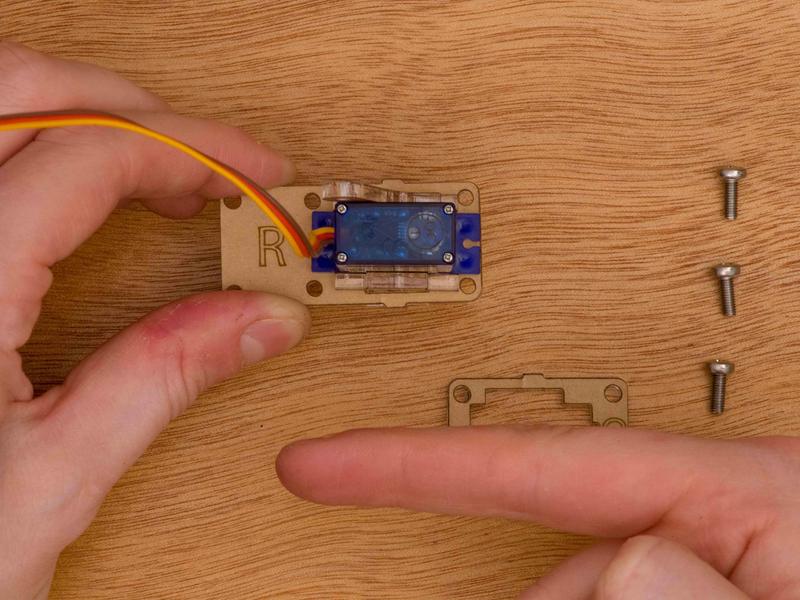

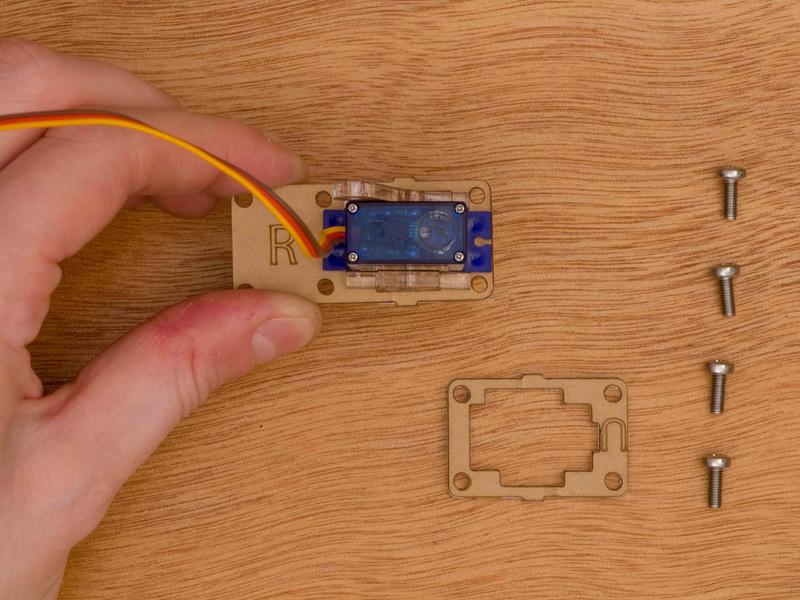

    Take U

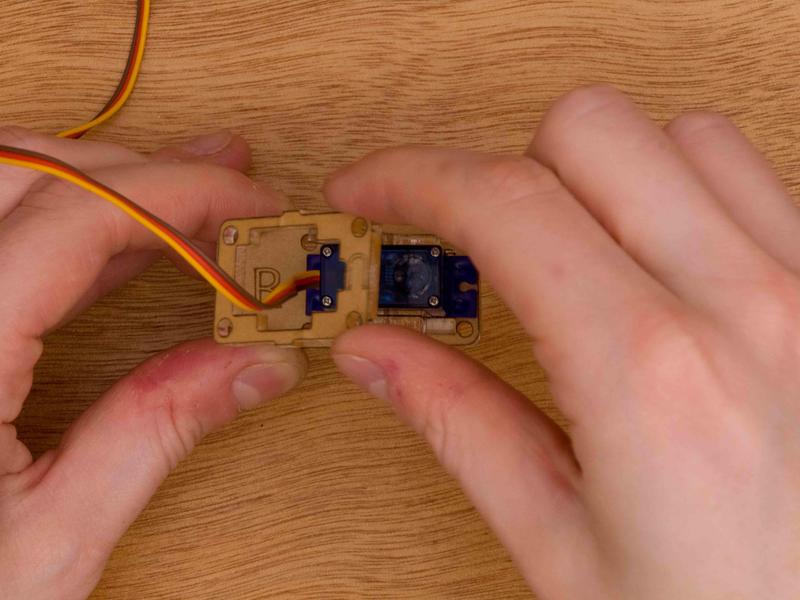

    Slip cable through
    And over servo

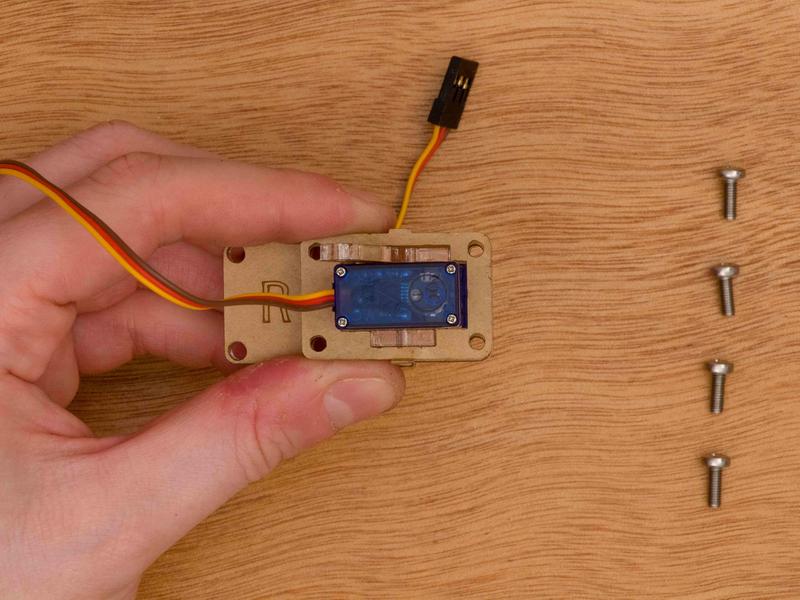

    Take all screws
    Place through holes in U
    Screw into R
    No bends

    Claw arms

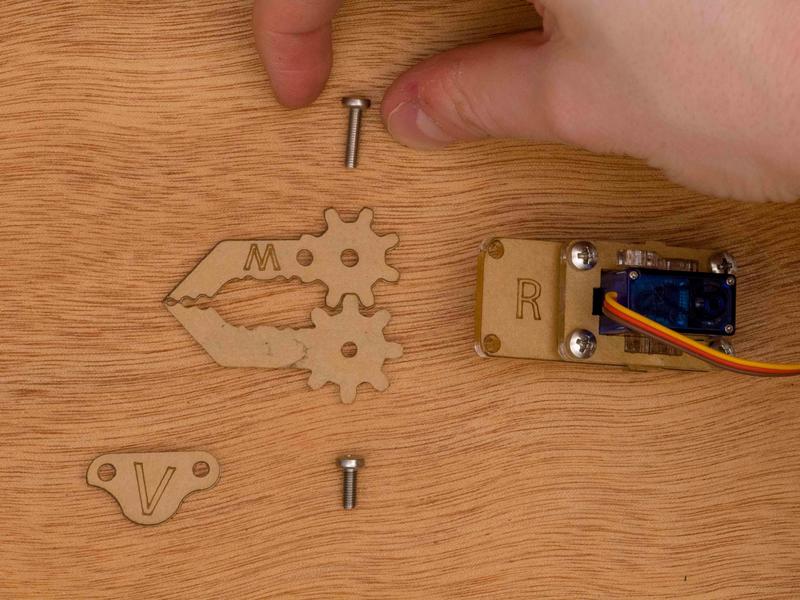

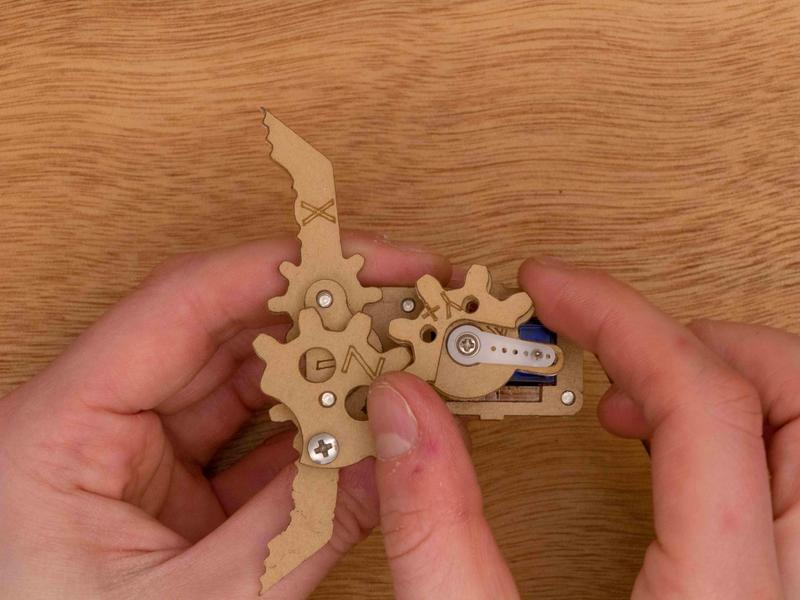

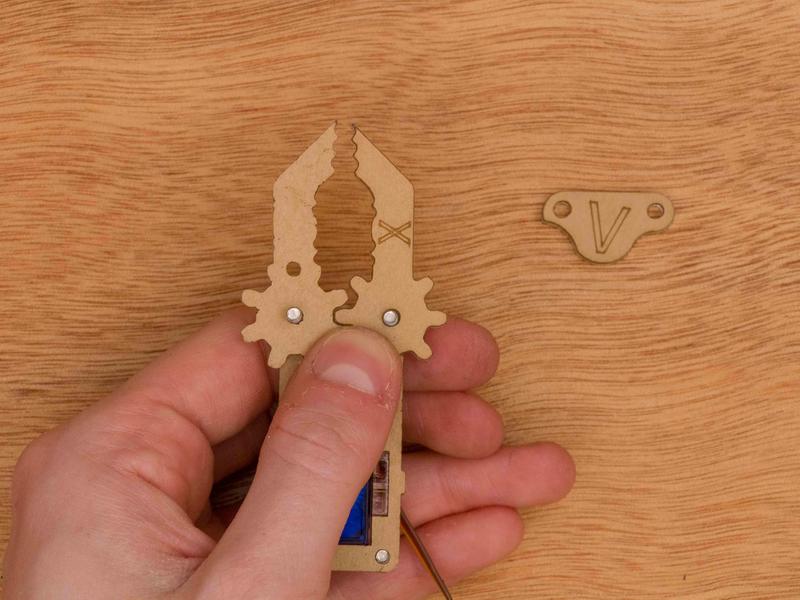

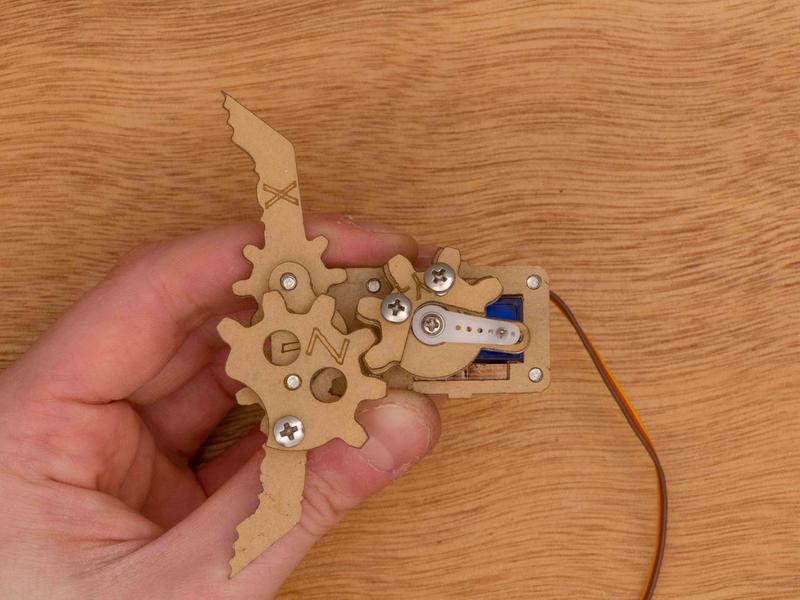

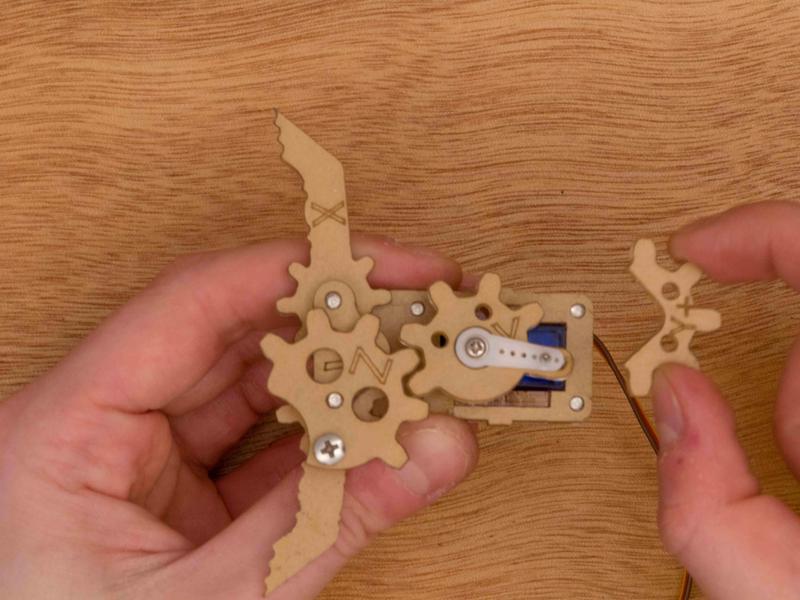

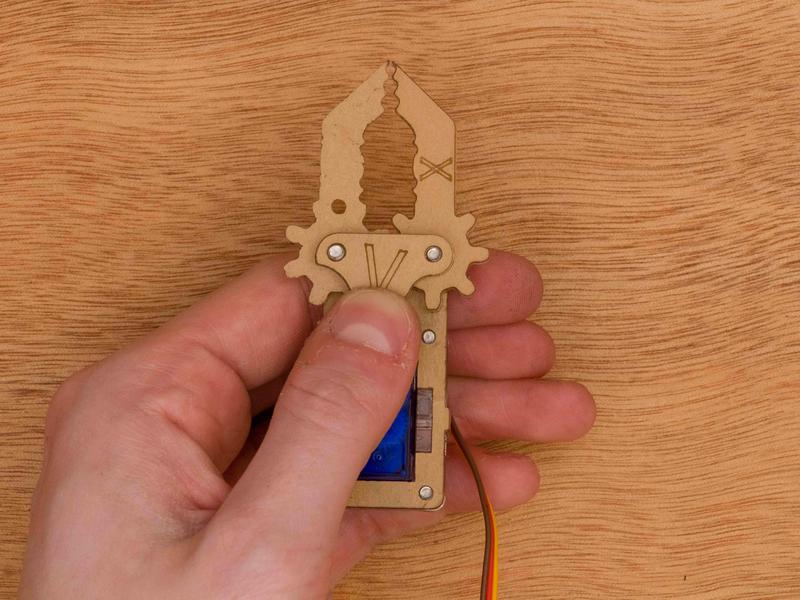

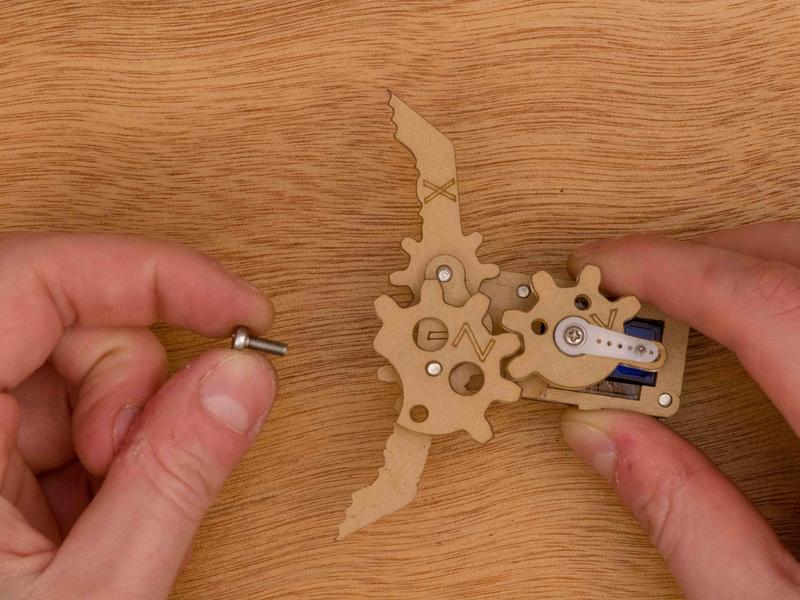

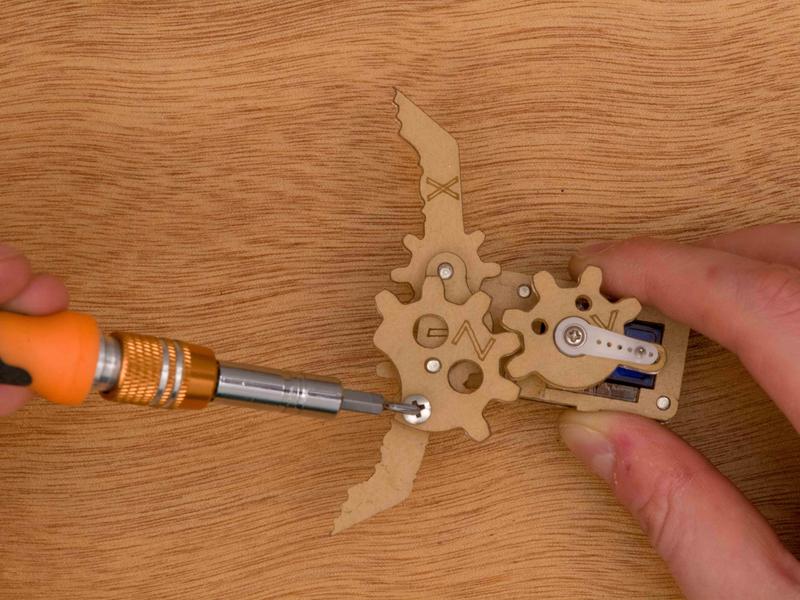

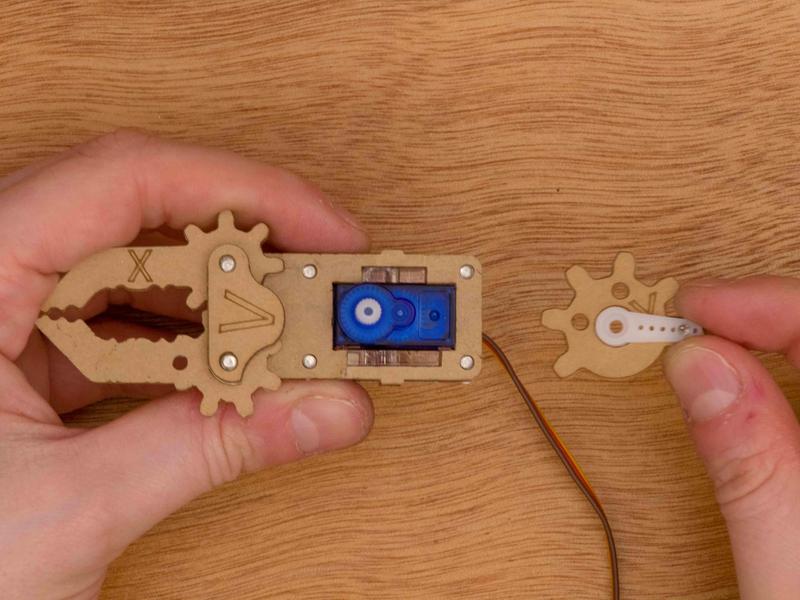

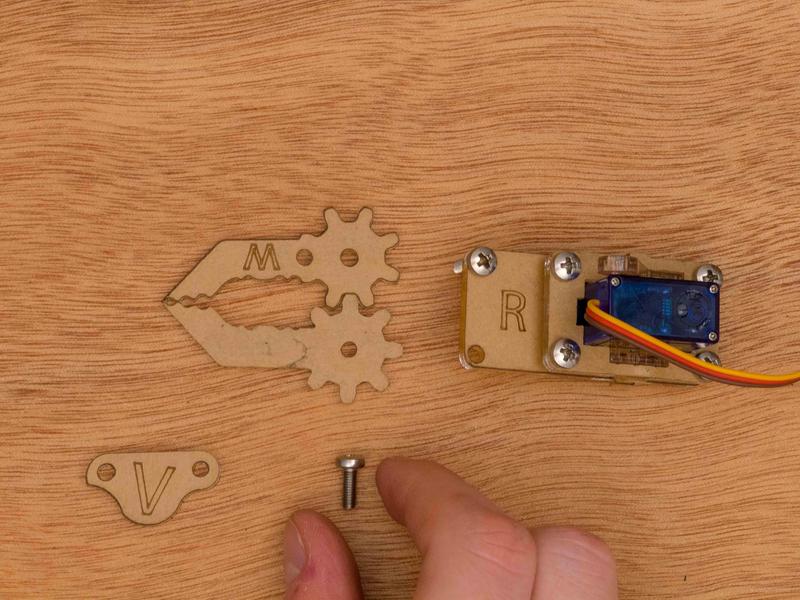

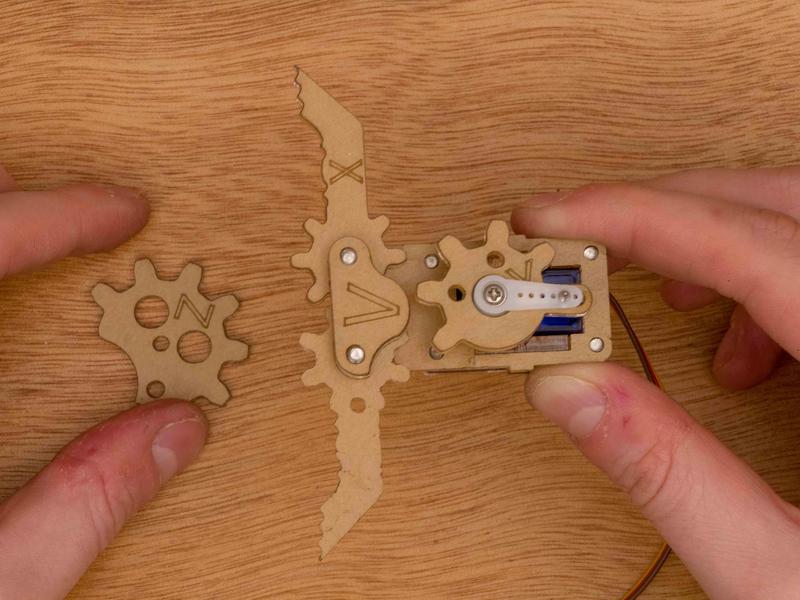

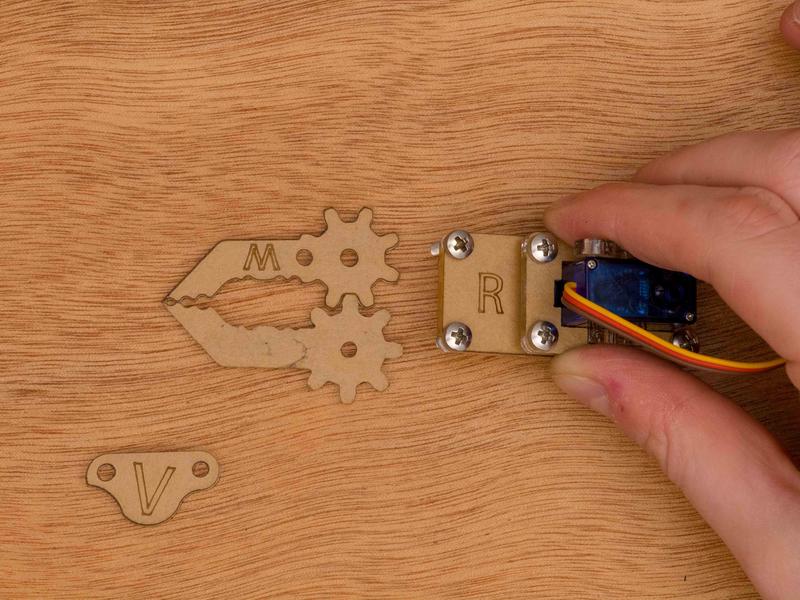

    Take pieces V, W, X, one 8mm screw, and one 12mm screw. Insert the 12mm screw into the upper hole in R and the 8mm screw into the lower hole. Flip over the servo mount. Place W on the 12mm screw and X on the 8mm screw. The two arms who should be geared together and in the close position seen below. Place V on the two screws such that the V is facing up and points away from the arms. The 8mm screw should be tightened into V at this time.

    Parts Needed
    Take 12mm screw
    Place in upper hole
    8mm goes in lower
    Place arms on
    Flip over

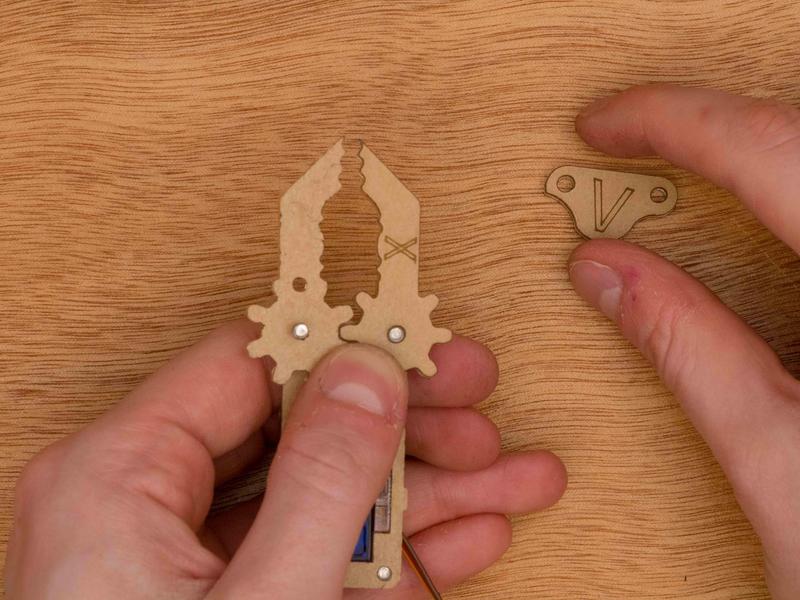

    Take V
    Place over screws

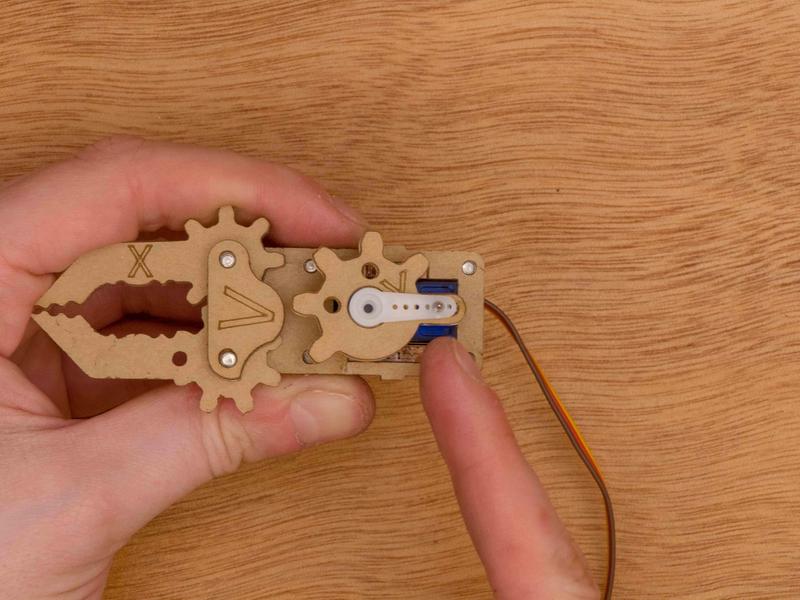

    Tighten 8mm

    Servo Horn

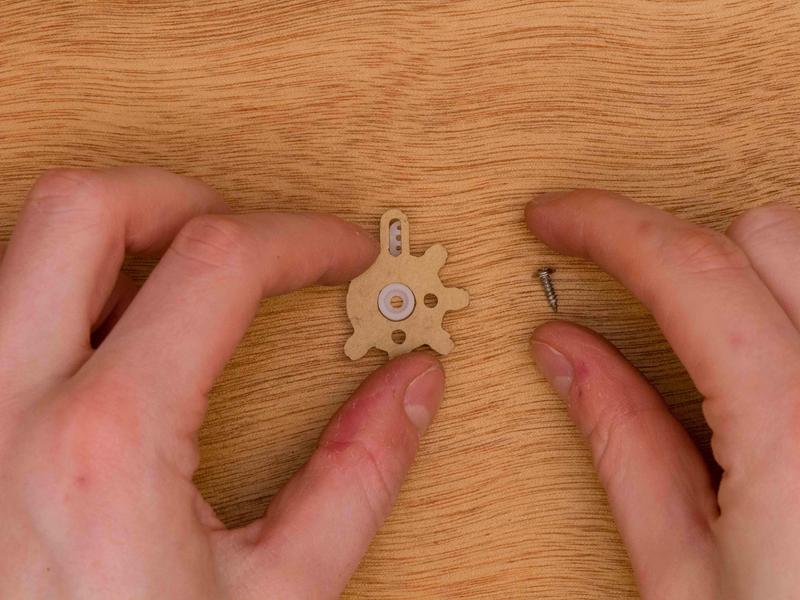

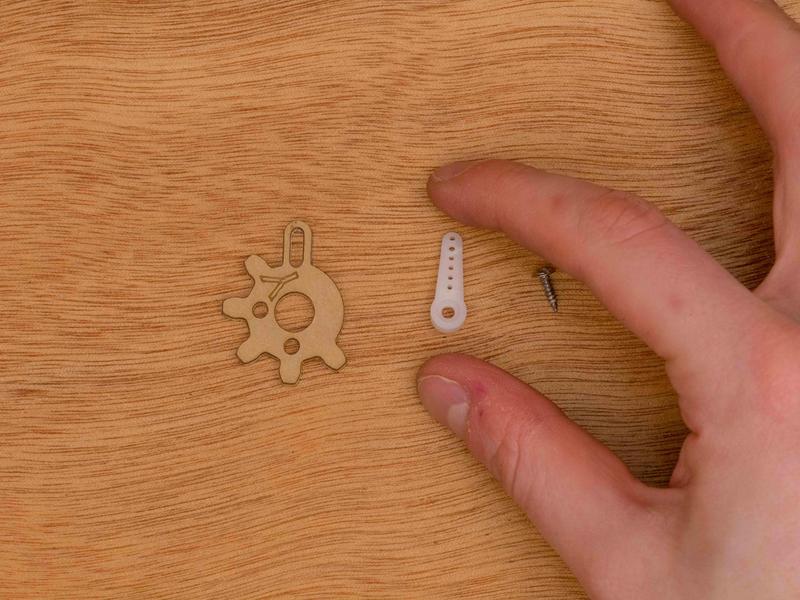

    Take the one sided servo horn out of the small servo bag. Place it in the center hole of Y with the horn above the slotted lug. Take a long screw and tighten it through the slot and into the horn.

    Parts needed
    Take horn
    Place in hole
    Flip over

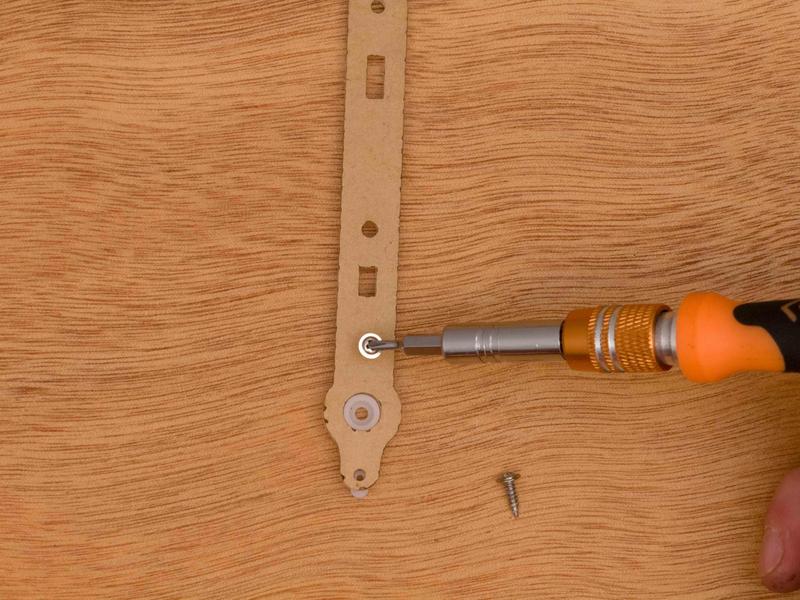

    Take screw
    Tighten
    Done

    Attaching Y

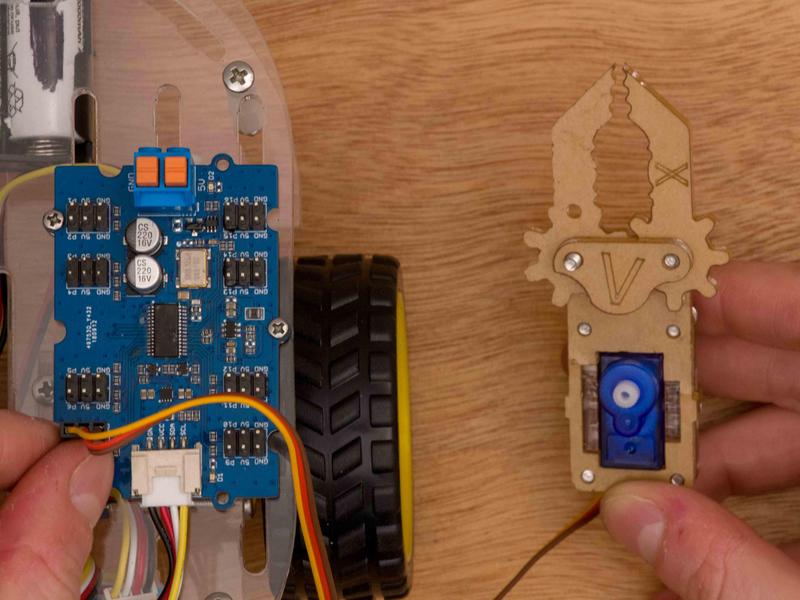

    For this step we will again need the fully powered drawing robot. Plug the servo in the servo mount into P7 in the I2C Servo Driver. It will move to the 25 degree position. Place the Y piece on the servo with the horn facing away from the claw arms. Affix Y in place with the small screw.

    RS3 and Claw
    Plug into P7
    Parts needed
    Y piece on servo
    Pointing right

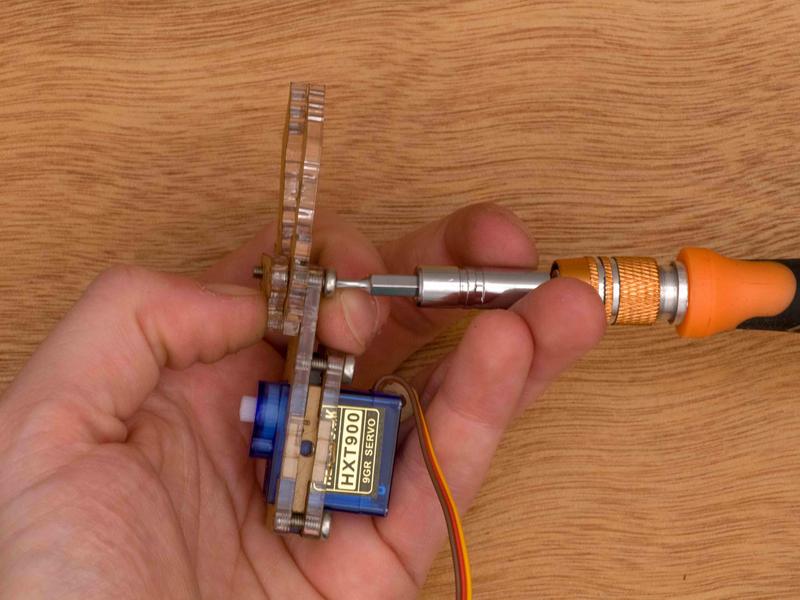

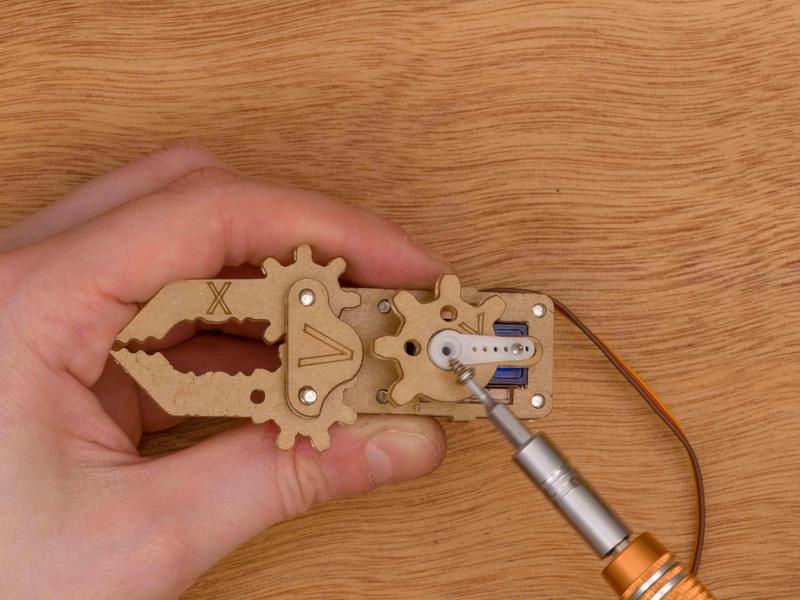

    Add servo screw

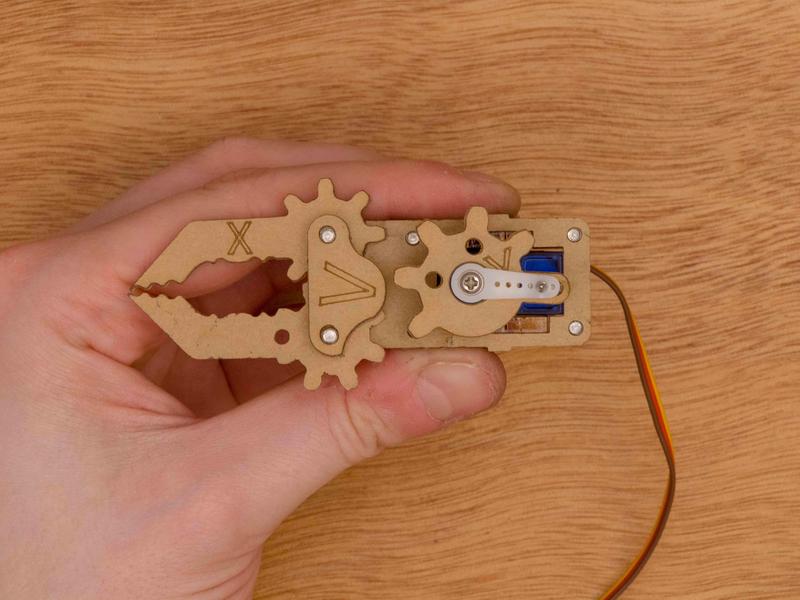

    Done

    Finishing the Claw

    Take pieces Z. Y+, one 8mm screw, and two 6mm screw. Open up the claw arm to 180 degrees. Place Z over V so the center hole lines up the 12mm screw from before. The other hole in Z should line up with the one in W. Insert the 8mm screw through Z and into W. Place Y+ on top of Y and insert a 6mm screw into both holes.

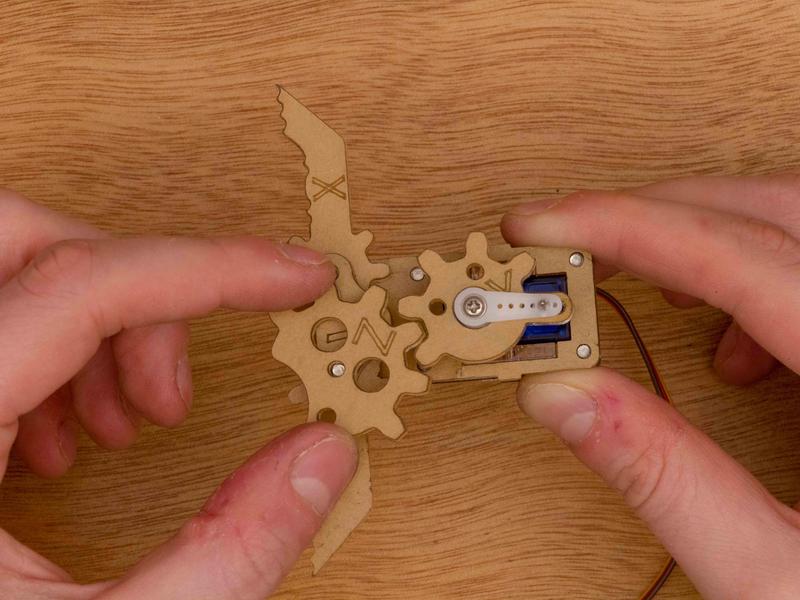

    Arms at 180 degrees
    Take Z
    Place like this
    Tighten 12mm from the other side

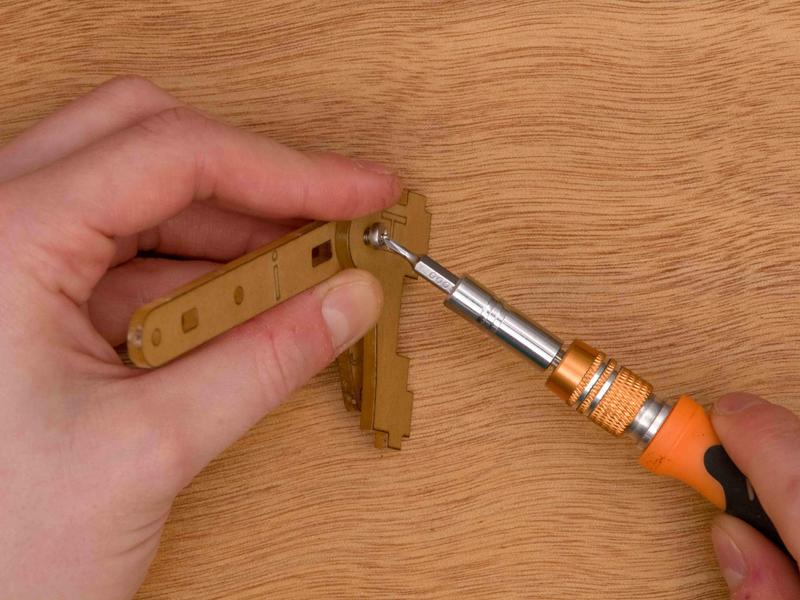

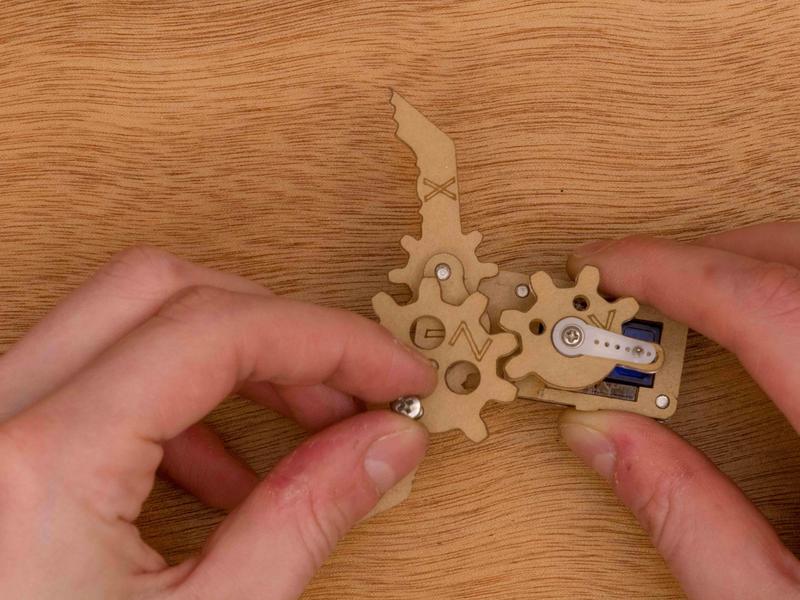

    Add an 8mm from the bottom
    Through Z and W
    Tighten
    Take Y++
    Place over Y
    Add two 6mm screws

    Attaching the Claw

    Gather the other circle space and three 8mm screws. Insert one 8mm screw through P and into the higher hole in S. Insert one 8mm screw through G and into the lower hole in S. Take the remaining 8mm screw and insert it through O and into T.

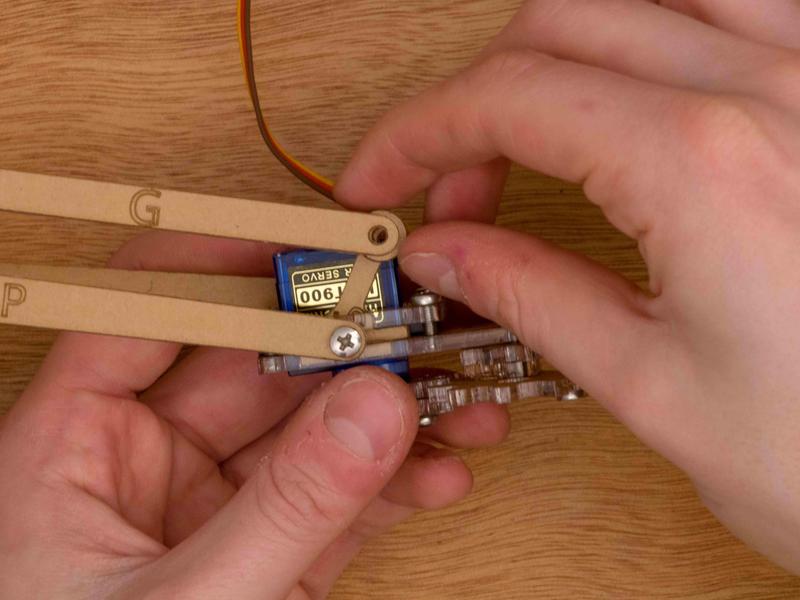

    Claw, G, and P

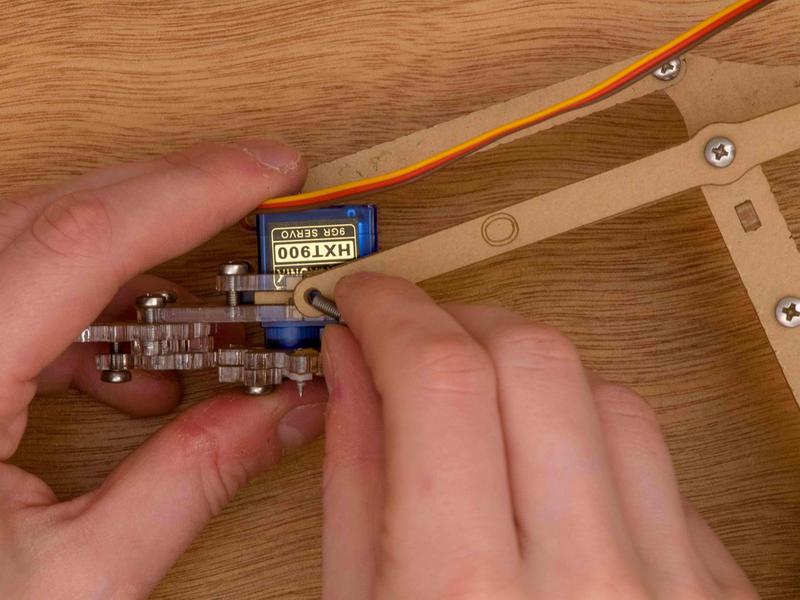

    8mm screw through P into lower S
    Take a circle spacer
    Place between G and upper S
    Add another 8mm screw
    Tighten in upper S
    Other side
    Add last 8mm screw
    Tighten into T
    Finished
    Finished

    Next Section

    You have completed building the arm. Head over to the next section to upload the control code.

    Attaching the Arm

    Start

    We'll need to take off the second level of Robotics Series 3 to attach the robot arm.

    Undo Robotics Series 3

    Undo the cables going to the I2C Servo Driver and the I2C Motor Driver. Press down on the orange buttons on the servo driver then remove the jumper. Unscrew all terminal blocks on the I2C motor driver and remove the wires.

    Completed RS3

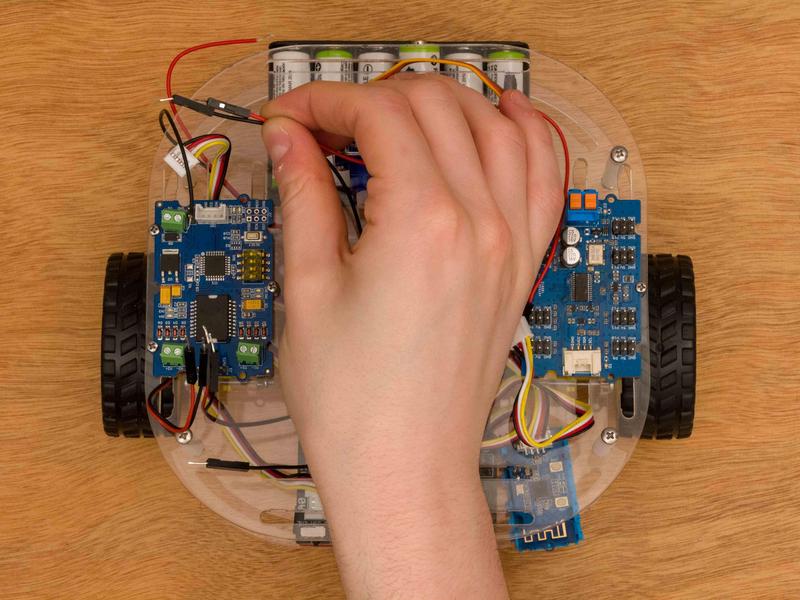

    Remove I2C Servo Driver cable
    Remove I2C Servo Driver cable
    Remove I2C Motor Driver cable
    Remove I2C Motor Driver cable
    Press down buttons
    Remove jumpers

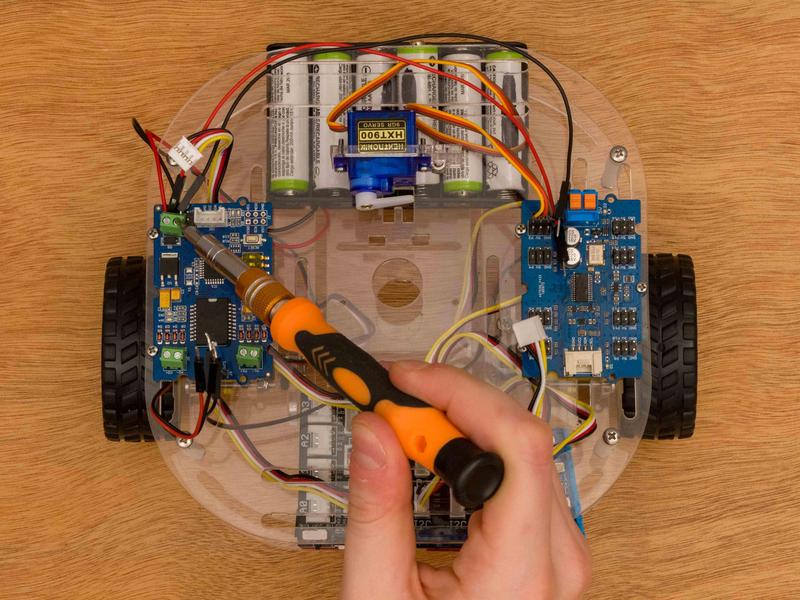

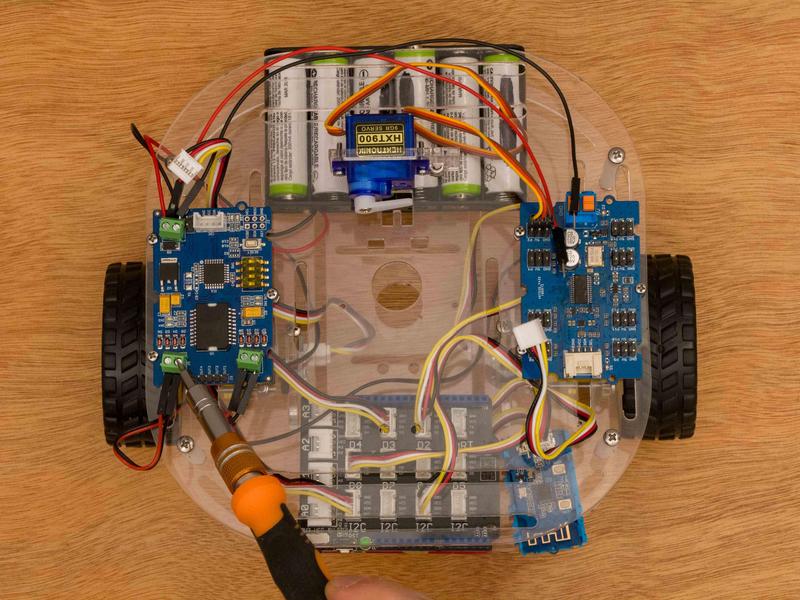

    Unscrew
    Unscrew
    Remove wires
    Unscrew
    Remove wires

    Undo the four screws at the corners of the level two chassis and remove it from the standoffs. Becareful to feed the wires and cables out first.

    Unscrew standoff screws

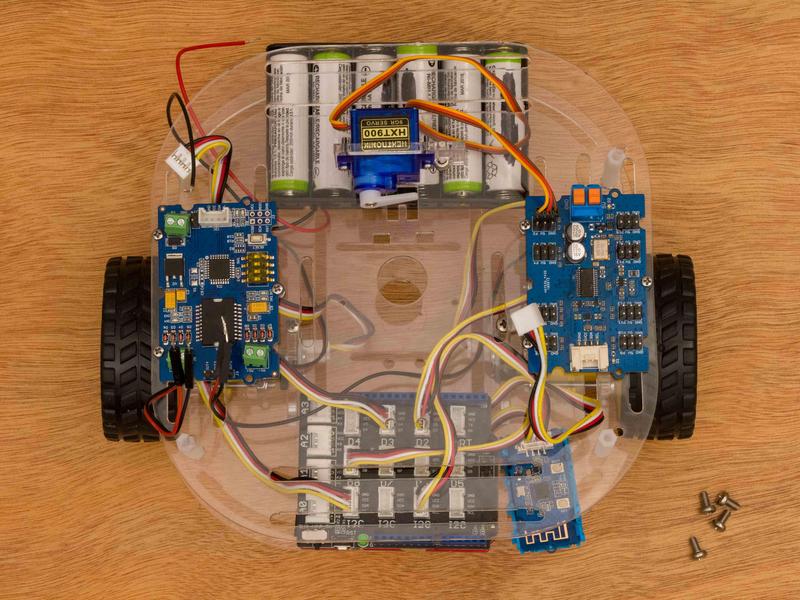

    Screws out

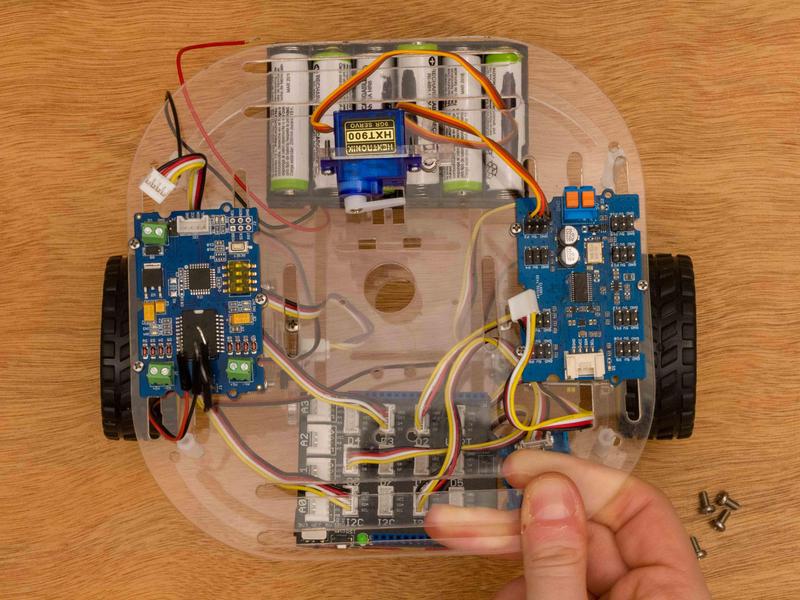

    Remove chassis
    Remove chassis

    Adding the Arm

    Take the robot arm, the freed level two chassis, two 12mm screws, and two hex nuts. Line up the holes in the base of the robot arm with the holes in the chassis. Flip over the arm and chassis. Take one 12mm screw and insert it through the chassis and into the base. Repeat with the remaining screw. Flip back over the to the top. the screws tap into the base but nuts can be added.

    Parts needed

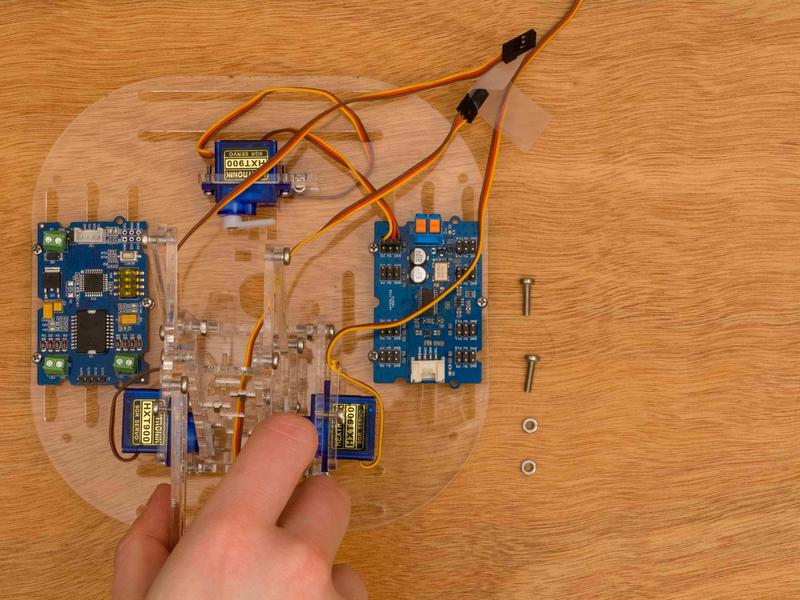

    Line up these holes
    With these
    Take the arm

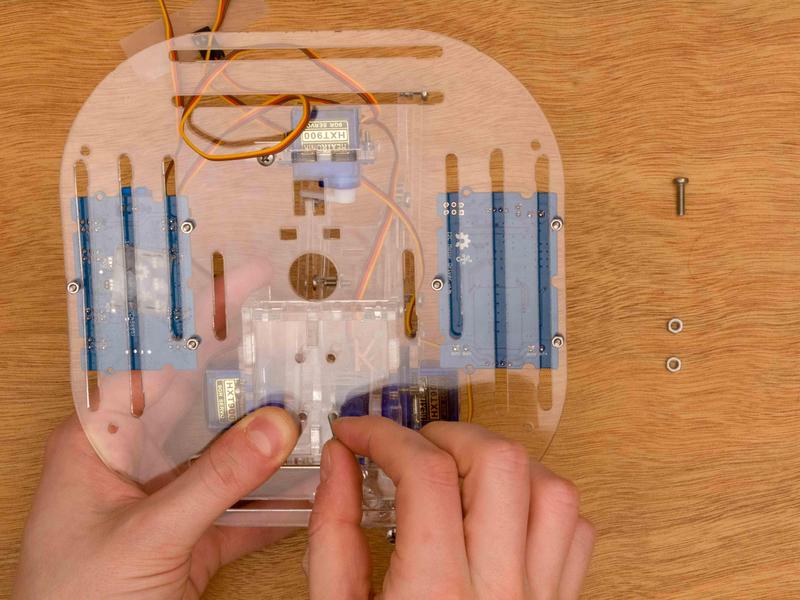

    Place over the chassis

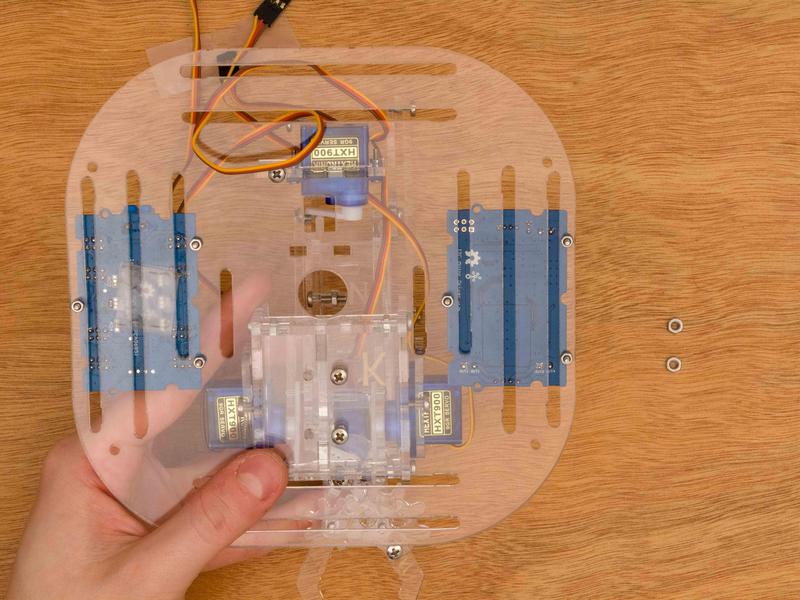

    Flip over
    Take one 12mm screw
    Insert through chassis
    Screw into base
    Repeat with remaining screw
    Flip over
    The base
    With nuts

    Robot Arm Servos

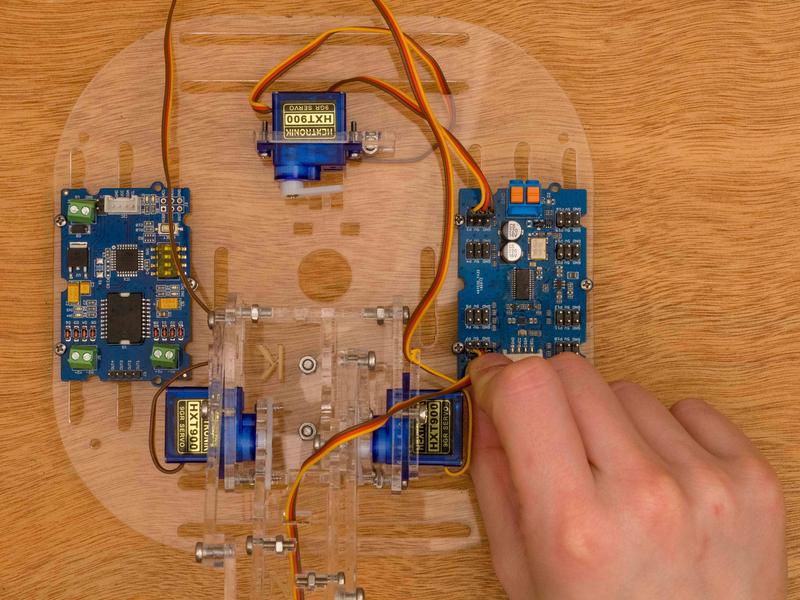

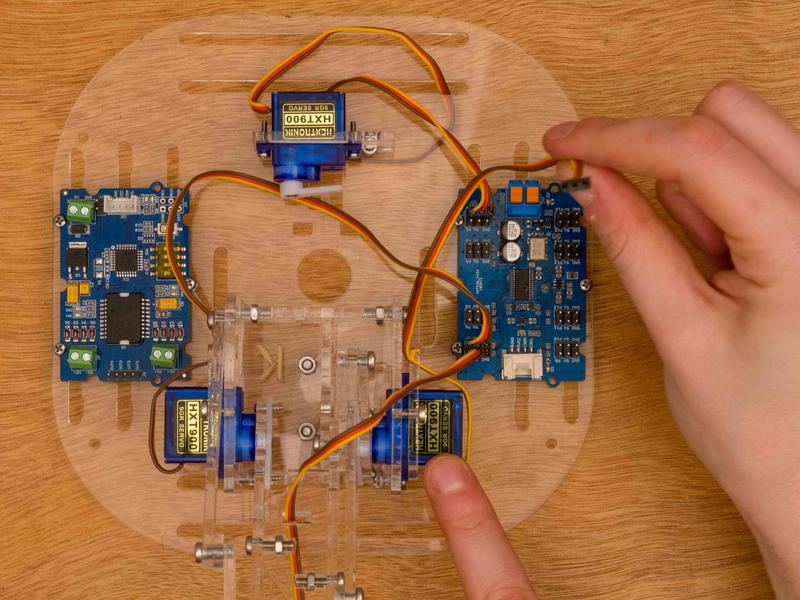

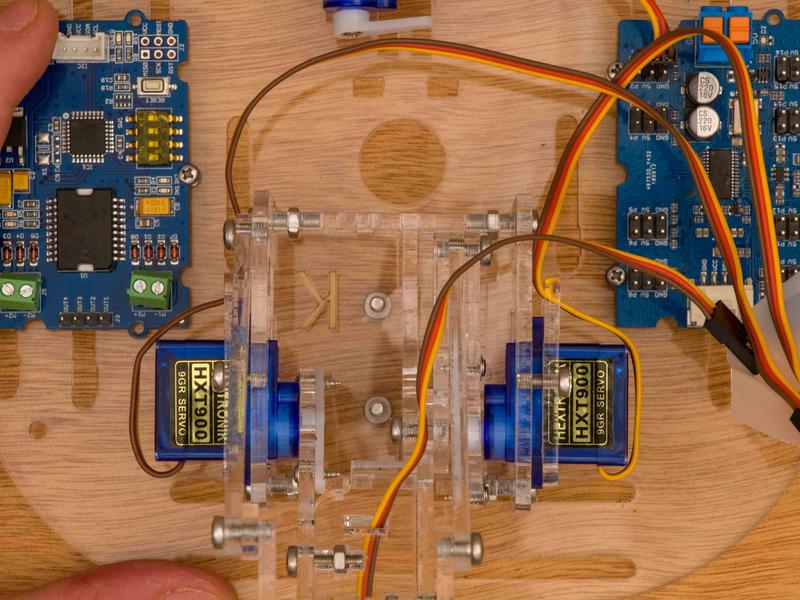

    Plug the claw servo into P8 in the I2C servo driver. Plug the farther base servo into P7. Plug the remaining close servo into P6.

    Take servo cable from claw
    Place into P8
    Take this servo cable
    Place into P7
    The this servo cable
    Place into P6
    Finished

    Reattached the Chassis

    Place the level two chassis on the standoffs so that the robot arm side is oppisite the battery holder. Screw in the four screw into the standoffs. Reverse the Undo Directions to reattached all wires and cables.

    Level one chassis
    Line up level two
    Screws in
    Wires and cables in

    Next Section

    With the robot arm attached you can head to the next section to program it.
