Thimble Starter Set

Introduction

The starter set provides an introduction to the world of digital electronics and microcontrollers. It includes a few components and a couple of projects to get you familiar with programming and working with electronics.

Objectives

  • Learn about LEDs, voltage, current, and polarity
  • Get the Arduino IDE setup and program it to blink an LED
  • Use a rotary potentiometer (knob) to control the brightness and blink speed of your LED
  • What's Inside the Kit?

    Contents

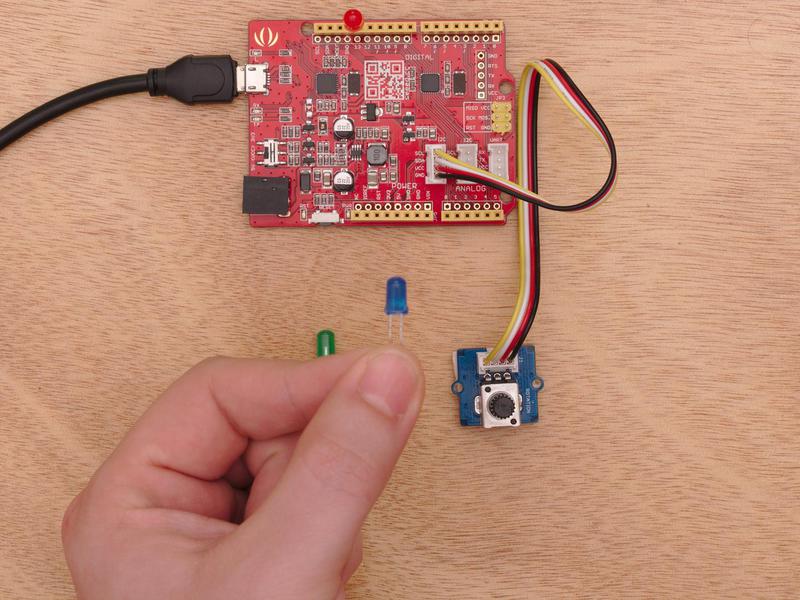

    Inside, you'll find a Seeeduino, a rotary potentiometer, and 3 LEDs - one red, one green, and one blue.

    Seeeduino

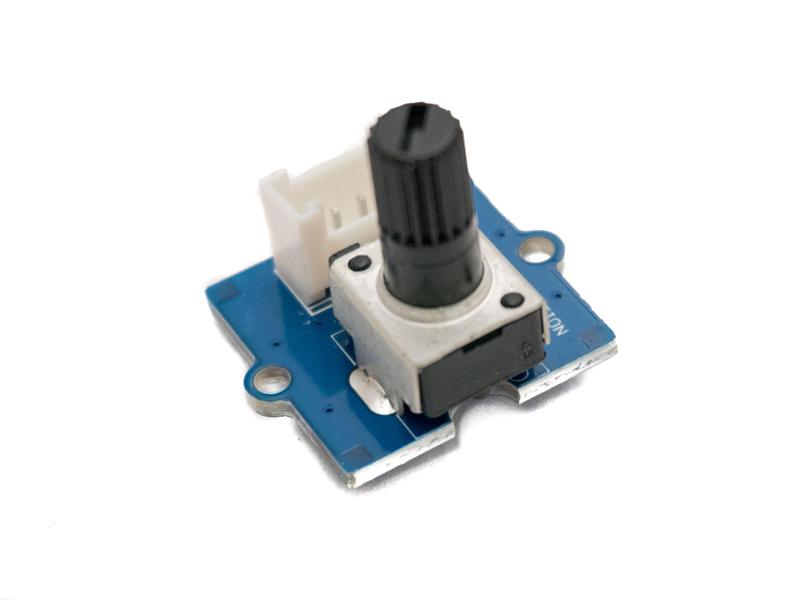

    Rotary Potentiometer
    LEDs

    About this set

    This set is meant to be an introduction to the Thimble Learning Platform, the Arduino IDE, microcontroller programming, LEDs, and electronics. The idea is to get your feet wet to help you decide if you enjoy this stuff so that you can decide if you want to build bigger and better projects. This guide will take you through three introductory projects: Blinking an LED, Reading a Potentiometer, and Dimming an LED. By completing these projects you will gain an understanding of: microcontrollers, the Arduino IDE, basic programming, electricity, potentiometers, and serial communication.

    If you enjoy completing these projects, we highly encourage you to take a look at all of the projects available in the Creator Set. If you really enjoy it, included with your kit is a small card that includes a discount code for new subscriptions!

    About the Seeeduino

    The Seeeduino is an Arduino-compatible microcontroller platform.

    Microcontrollers

    A microcontroller is a small computer that integrates the central processing unit (CPU), memory, and input/output peripherals. We write code on a computer, upload it to the microcontroller, and the microcontroller runs this code to perform calculations and interact with peripheral input and output devices. These devices can be sensors (ie: a temperature sensor), indicators (LEDs), or actuators (motors).

    Arduino

    Arduino is an open-source electronics platform based on easy-to-use hardware and software. Here is a read a very detailed history of the platform. Arduino boards are the physical circuit boards that contain the microcontroller. The Arduino brand is trademarked by Arduino AG, and the design itself is open source and free to use. Accordingly, there are many Arduino-compatible boards in existence. One of them, the Seeeduino, is the board that we use in this kit. This board improves on the original design through the addition of a 3.3V/5V selector switch, a side-mounted reset button, and the addition of Grove connectors.

    I've Never Used an Arduino

    Then this is a great place to start! If you're already familiar with setting up the Arduino and the IDE, you can skip to the next section.

    Terms

    So when we talk about Arduino, the Arduino IDE, and coding, there are a lot of words being thrown around. This section will clear all of those up and get you ready to start building!

    Code

    Code is how we communicate with a computer, or a microcontroller. Computers aren't yet smart enough to understand human language, so they speak their own language called machine code. This code tells the computer what to do. While machine code was created by humans, it is hard for humans to read. So, we created higher level programming languages that are still able to tell the computer what to do, but are also easier for humans to read and write. Just like spoken and written human languages, computer languages have rules. So, we have to follow things like syntax and grammar in order to get the computer to do what we want. We call these programming languages code.

    Arduino

    The Arduino is a electronics prototyping platform. That means it's a flexible platform for building, testing, and, of course, prototyping electronics. That could be simple LEDs that light up at night, or advanced robots. When we talk about the Arduino we are talking about the physical board itself. The one that comes in this kit is red, but they come in many different shapes and colors. The Arduino brand and original board were created by arduino.cc and you can read more about the details of its history here.

    Arduino IDE

    The Arduino IDE, or Integrated Development Environment, is not hardware, but a piece of software. If you wanted to write an essay, you might use Microsoft Word or Google Docs. If you wanted to edit pictures, you'd probably use Photoshop or Paint.net. If you want to program code for the Arduino, you'd use the Arduino IDE. Its a computer program (tool) that let's you develop and test out code. Once written, the code can be upload to the physical Arduino where it will stay until you upload new code.

    Download

    Since it is a program, you'll need to install it.

    For Windows computers use this link Windows Installer

    For Mac computers use this link Mac Installer

    After following each link, press the Just Download button to begin downloading the Arduino IDE. The Mac version has a few more steps and we have a video just for that.

    Mac Installation
    For Mac users

    Installation

    Open the exe you downloaded. You'll see a screen asking you to agree to their license. You can press I Agree.

    LicenseLicense

    Next up are the installation options. The Install USB Drivers lets the Arduino board communicate with the IDE. We definitely want this. The Associate .ino files makes any Arduino file on your computer open up to the Arduino IDE. Very helpful, so we'll keep that too. Press Next >.

    OptionsOptions

    Now you are being asked where you'd like the Arduino IDE program installed. I don't mind it in the standard Program Files so I just press Install. You can change where it will be installed, just remember what you chose. I recommend not changing it.

    FolderFolder

    Now the IDE is installing. Let it complete then move on to the next section.

    InstallingInstalling

    Arduino IDE 101

    Open up the Arduino IDE for the first time. So, let's figure out what's what.

    Arduino IDEArduino IDE

    There is a mostly empty space in the middle that has this text:

    Download file Copy to clipboard
    1
    2
    3
    4
    5
    6
    7
    8
    9
    void setup() {
      // put your setup code here, to run once:

    }

    void loop() {
      // put your main code here, to run repeatedly:

    }


    This is a simple Arduino Sketch. A Sketch is code you write that will later be uploaded to the Arduino board.

    There are few steps to go from code written in a sketch to code that runs on the Arduino board. Those are Verify > Compile > Upload.

    All of these you can get to by going under Sketch on the top bar of the program. Or but using the Checkmark and Arrow icons right below that. The Checkmark verifies your code will compile, and the arrow button uploads the code to the Arduino.

    Sketch
    Icons

    Verify - looks at your code and makes sure it can actually run. It checks that there are no errors or things out of place. If your code will work, it goes to the Compile stage.

    Compile - The code you've written is great for human. It is readable and hopefully understandable. But this isn't great for a machine ie the Arduino. The Compile stage takes your written code and translates into something that the Arduino can understand and run, called machine code. It saves that compiled file and tried to Upload it to the board.

    Upload - This takes the compiled files and tries to send it to a plugged in Arduino. The IDE doesn't know where you've plugged in your Arduino or what kind it is. You have to tell it. I'll show you how to set that up in the next section.

    Arduino Board Setup

    For this section make sure your Arduino Board that came with your kit is plugged in. Use the included micro USB cable to plug your Arduino into any free USB port on you computer.

    Navigate to the Tools section at the top of the Arduino IDE.

    ToolsTools

    You'll be greeted with a scary drop down. To setup your Arduino to accept uploads, do the following: Go to Board: and make sure Arduino/Genuino Uno is selected.

    Next is the Port. For Mac users refer to the video for these instructions. With your Arduino plugged in, you'll see some options. Mine says COM 15. This is the channel that the IDE will use to communicate with your Arduino. If you have a lot of COM # devices and don't know which is your Arduino, unplug your Arduino and take note of that numbers are there. Then plug it back in. Whichever is the new one in the list is your Arduino. Select that port.

    With the board and port selected and ready to go, let's upload our first sketch.

    Sketches

    We are going to upload a simple sketch to make an LED on the board blink. Head to File > Examples > Basics > Blink . You should see this sketch.

    Download file Copy to clipboard
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    /*
      Blink

      Turns an LED on for one second, then off for one second, repeatedly.

      Most Arduinos have an on-board LED you can control. On the UNO, MEGA and ZERO
      it is attached to digital pin 13, on MKR1000 on pin 6. LED_BUILTIN is set to
      the correct LED pin independent of which board is used.
      If you want to know what pin the on-board LED is connected to on your Arduino
      model, check the Technical Specs of your board at:
      https://www.arduino.cc/en/Main/Products

      modified 8 May 2014
      by Scott Fitzgerald
      modified 2 Sep 2016
      by Arturo Guadalupi
      modified 8 Sep 2016
      by Colby Newman

      This example code is in the public domain.

      http://www.arduino.cc/en/Tutorial/Blink
    */

    // the setup function runs once when you press reset or power the board
    void setup() {
      // initialize digital pin LED_BUILTIN as an output.
      pinMode(LED_BUILTIN, OUTPUT);
    }

    // the loop function runs over and over again forever
    void loop() {
      digitalWrite(LED_BUILTIN, HIGH);   // turn the LED on (HIGH is the voltage level)
      delay(1000);                       // wait for a second
      digitalWrite(LED_BUILTIN, LOW);    // turn the LED off by making the voltage LOW
      delay(1000);                       // wait for a second
    }


    Don't worry about the coding for now. Let's upload this sketch. You can press the Arrow icon, go to Sketch then Upload, or you can use the shortcut Ctrl+U in order to upload the code. Your sketch will auto-verify, compile, then upload to your Arduino board.

    You will see the message Done uploading and your board should now have a blinking light.

    Uploading Sketches and Code From Thimble

    We provide example code for all our projects. To use those you'll need to copy them from our website. Then, go into the Arduino IDE, File > New. It's best to then delete all the code already there in the sketch before you paste our code in, as that will avoid any errors from copying over the old code.

    Serial Plotter

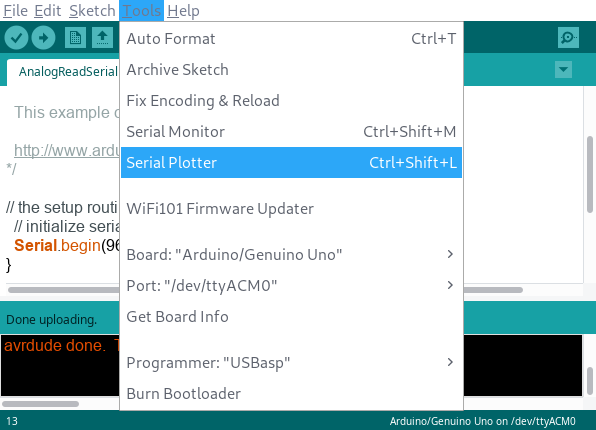

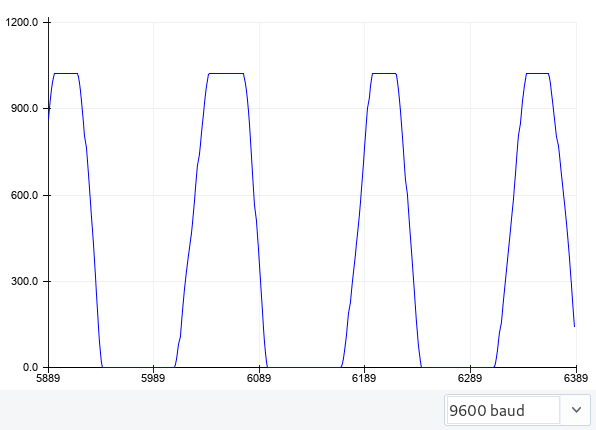

    You'll be asked to use the Serial Plotter on some projects. This reads any information coming from the Arduino and displays it on a graph. It can only be accessed after you've uploaded your code. It is in the Tools menu.

    Troubleshooting

    The most common issues are solved by double checking your Board and Port settings.

    Starter Set

    Start

    Now that you know some background about electronics, microcontrollers, and Arduino, let's get started!

    Modules

    Gather the following parts to complete this project.

    Parts

    All Parts x Qty
    Seeeduino x 1

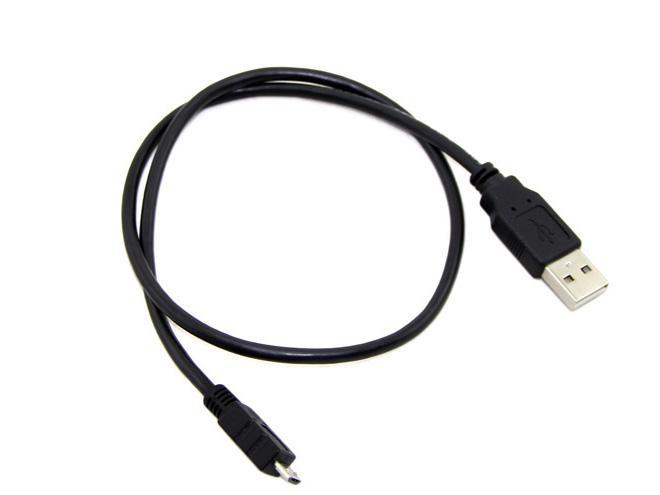

    USB Cable x 1
    Rotary Potentiometer x 1

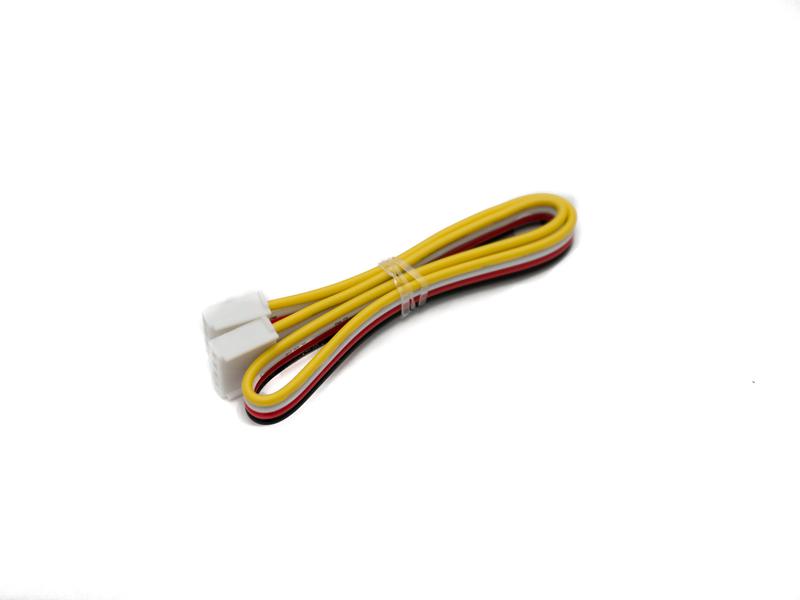

    Grove connector cable x 1
    LEDs x 1

    Blinking an LED

    To start with, we only need the USB cable, the Seeeduino, and a computer. Just as we did in the Arduino section, we're going to make the LED blink.

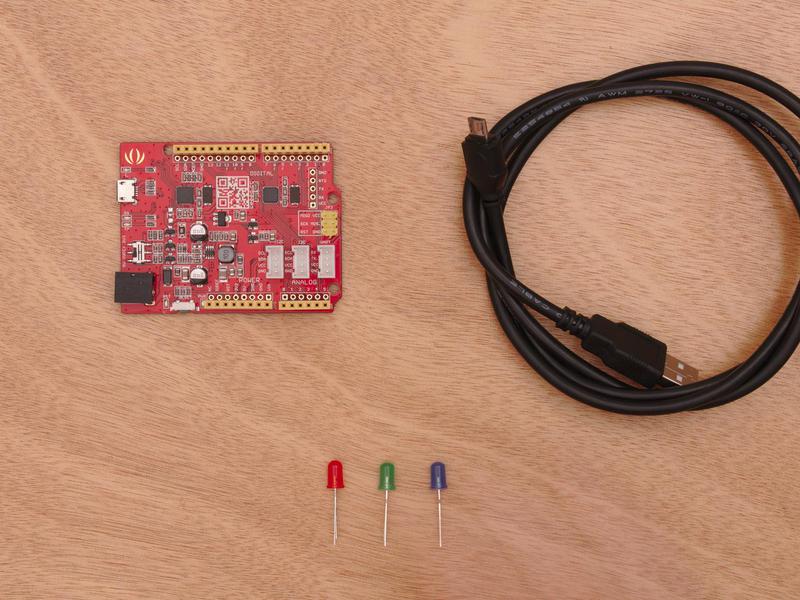

    All the parts you'll need

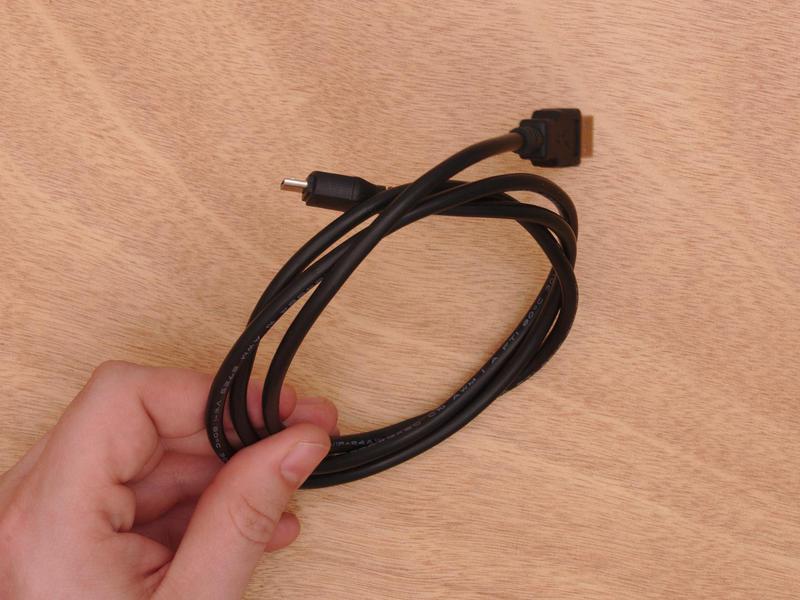

    Take the USB cable...

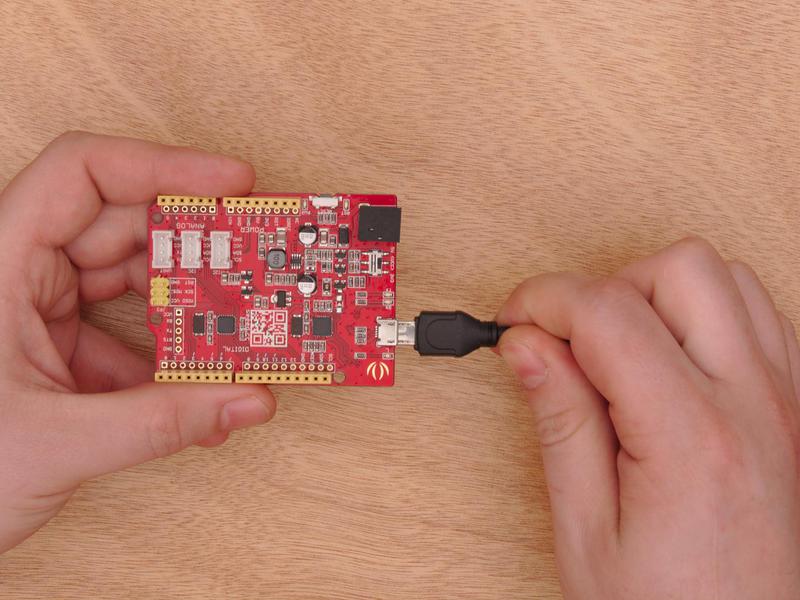

    Plug one side into the Seeeduino

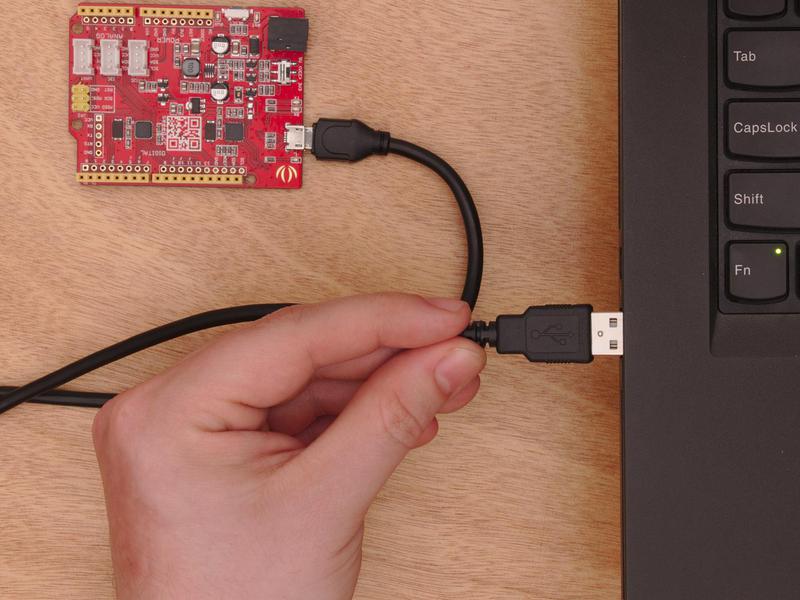

    ... and the other into the computer

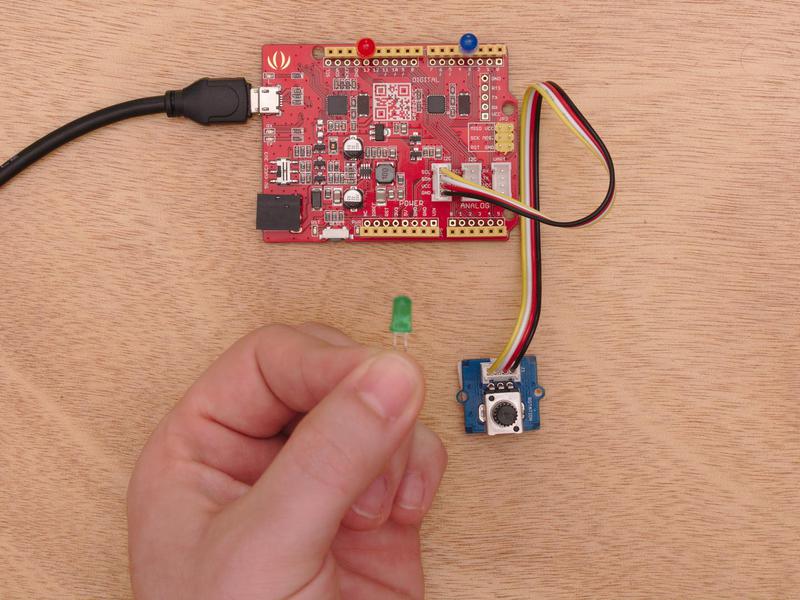

    Grab an LED...

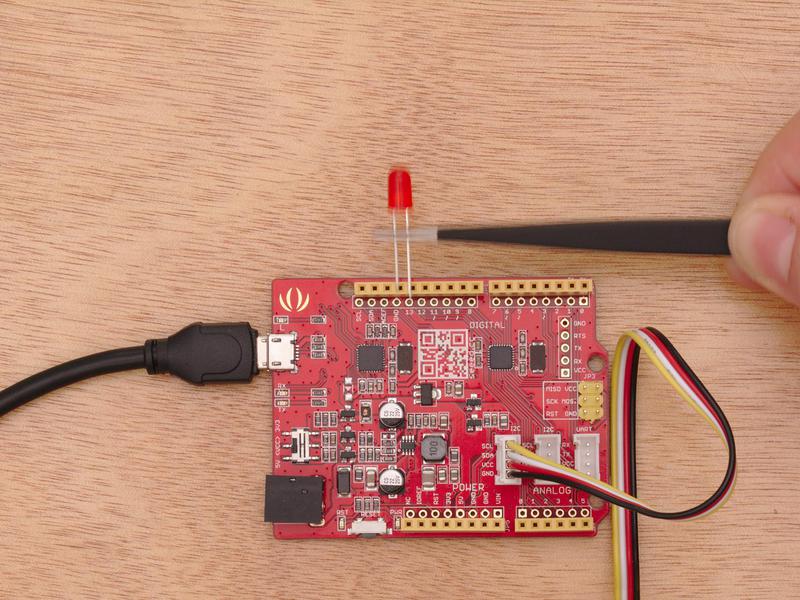

    ... and place the long side into pin 13 and the short side into the pin marked GND

    Upload

    Upload the following code.

    Download file Copy to clipboard
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    /*
      Blink

      Turns an LED on for one second, then off for one second, repeatedly.

      Most Arduinos have an on-board LED you can control. On the UNO, MEGA and ZERO
      it is attached to digital pin 13, on MKR1000 on pin 6. LED_BUILTIN is set to
      the correct LED pin independent of which board is used.
      If you want to know what pin the on-board LED is connected to on your Arduino
      model, check the Technical Specs of your board at:
      https://www.arduino.cc/en/Main/Products

      modified 8 May 2014
      by Scott Fitzgerald
      modified 2 Sep 2016
      by Arturo Guadalupi
      modified 8 Sep 2016
      by Colby Newman

      This example code is in the public domain.

      http://www.arduino.cc/en/Tutorial/Blink
    */

    // the setup function runs once when you press reset or power the board
    void setup() {
      // initialize digital pin LED_BUILTIN as an output.
      pinMode(LED_BUILTIN, OUTPUT);
    }

    // the loop function runs over and over again forever
    void loop() {
      digitalWrite(LED_BUILTIN, HIGH);   // turn the LED on (HIGH is the voltage level)
      delay(1000);                       // wait for a second (1000 milliseconds)
      digitalWrite(LED_BUILTIN, LOW);    // turn the LED off by making the voltage LOW
      delay(1000);                       // wait for a second (1000 milliseconds)
    }


    Observe

    Watch the LED on the Seeeduino blink. The code is explained in the comments, as well as in the paragraph below.

    The setup() function initializes the inputs and outputs we will use within our sketch. In this case, pinMode(LED_BUILTIN, OUTPUT) sets the built-in LED to be an output. LED_BUILTIN is a variable defined in the Arduino header file that is included automatically in every Arduino sketch.

    The loop() function runs forever (over and over and over again). It runs through each line of code and when it gets to the end of the loop, it starts again at the beginning.

    digitalWrite(LED_BUILTIN, HIGH) sets the LED_BUILTIN pin to HIGH , turning the LED on.

    delay(1000) tells the microcontroller to wait for 1000 milliseconds (or one second).

    digitalWrite(LED_BUILTIN, LOW) sets the LED_BUILTIN pin to LOW , turning the LED off.

    delay(1000) again tells the microcontroller to wait for 1000 milliseconds (or one second).

    And then the loop repeats, forever.

    Modify

    Let's change the speed of the blinking. If we change delay(1000) to delay(100) , what will happen? Take a guess, then upload the code below to test. Does it blink faster or slower?

    Download file Copy to clipboard
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    void setup() {
      // initialize digital pin LED_BUILTIN as an output.
      pinMode(LED_BUILTIN, OUTPUT);
    }

    // the loop function runs over and over again forever
    void loop() {
      digitalWrite(LED_BUILTIN, HIGH);   // turn the LED on (HIGH is the voltage level)
      delay(100);                        // wait for 100 milliseconds
      digitalWrite(LED_BUILTIN, LOW);    // turn the LED off by making the voltage LOW
      delay(100);                        // wait for 100 milliseconds
    }


    Experiment

    Continue modifying the code. Get rid of one of the delays completely. What happens to the LED? The microcontroller is operating at 16 MHz, meaning it executes 16 million instructions per second.

    How Does this all Work?

    An LED is either on or off, based on the voltage across it. By using digitalWrite(LED_BUILTIN, HIGH) , we set the voltage on the LED pin to high. When the other side of the LED is connected to ground (0V), the LED turns on. A simplified schematic for what is happening is shown below.

    We're going to get very technical real quick, then take a step back to explain this at a higher level. A microcontroller's general purpose Input/Output (I/O) pins can either source (push) or sink (pull) current (the flow of electricity). Internally, there is a tristate buffer on each pin that can either be connected to ground (0V) through an internal pull-down resistor, connected to VCC (5V) through an internal pull-up resistor, or left "floating" (disconnected). You can think of a tristate buffer as the same as a switch.

    Tristate buffers act like a switchTristate buffers act like a switch

    In this example, the tristate buffer output (C) is connected to the input (A) only when the enable (B) is on. So, if B is on, the switch is closed. If B is off, the switch is open. For a more in-depth understanding, you can read more here.

    For a higher level understanding of this, we're going to introduce the concept of digital voltage. The Seeeduino we uses runs on either 3.3V or 5V, based on the position of the switch.

    We're going to set the switch to 5V. In this setting, A LOW signal is 0V and a HIGH signal is roughly 5V.

    Fading LED

    Now that we've made the LED blink, let's make it fade in and fade out.

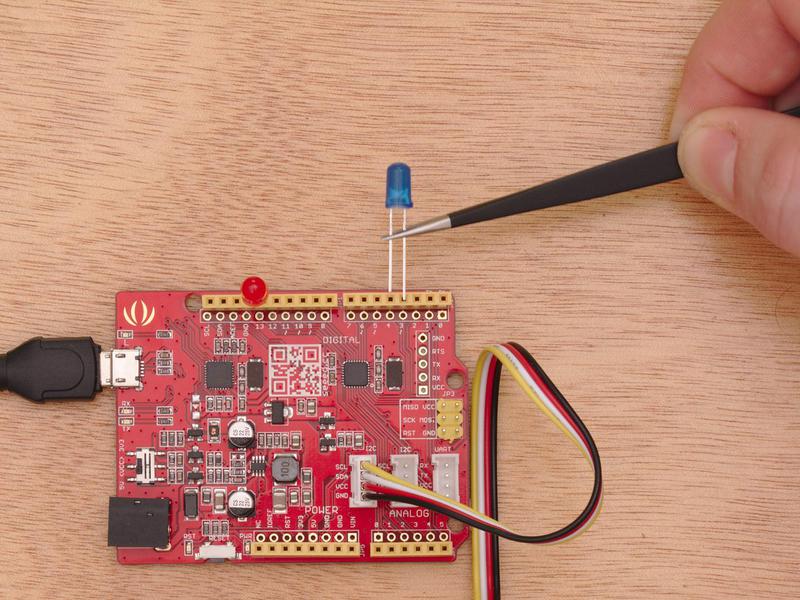

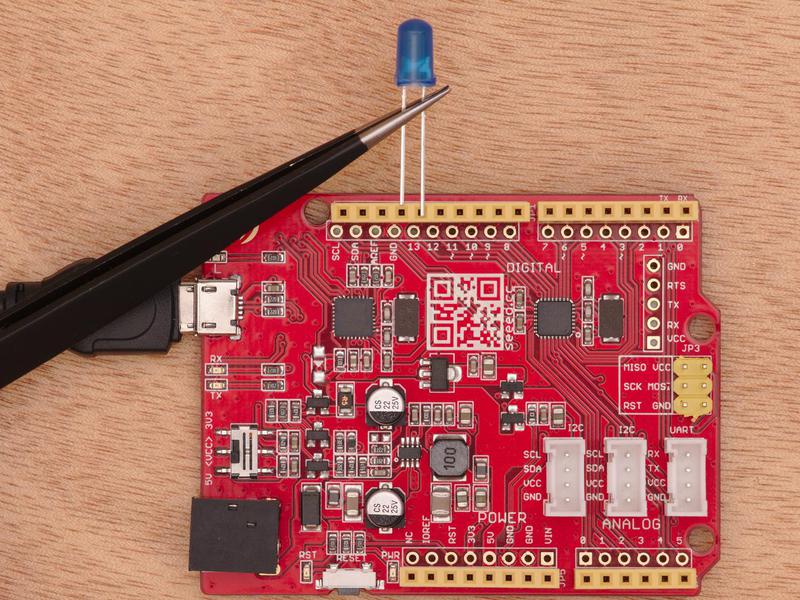

    Grab the Blue LED...
    ... and place the long side into pin 3 and the short side into pin 4

    Upload Fade Code

    Upload the following code.

    Download file Copy to clipboard
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    /*
      Fade

      This example shows how to fade an LED on pin 9 using the analogWrite()
      function.

      The analogWrite() function uses PWM, so if you want to change the pin you're
      using, be sure to use another PWM capable pin. On most Arduino, the PWM pins
      are identified with a "~" sign, like ~3, ~5, ~6, ~9, ~10 and ~11.

      This example code is in the public domain.

      http://www.arduino.cc/en/Tutorial/Fade
    */


    #define LED_BLUE 3
    #define LED_BLUE_GND 4

    int brightness = 0;    // how bright the LED is
    int fadeAmount = 5;    // how many points to fade the LED by

    // the setup routine runs once when you press reset:
    void setup() {
      pinMode(LED_BLUE, OUTPUT);
      digitalWrite(LED_BLUE_GND, LOW);
    }

    // the loop routine runs over and over again forever:
    void loop() {
      // set the brightness of the Green LED:
      analogWrite(LED_BLUE, brightness);

      // change the brightness for next time through the loop:
      brightness = brightness + fadeAmount;

      // reverse the direction of the fading at the ends of the fade:
      if (brightness <= 0 || brightness >= 255) {
        fadeAmount = -fadeAmount;
      }
      // wait for 30 milliseconds to see the dimming effect
      delay(30);
    }


    Observe

    This code makes the LED fade in and out using the analogWrite() function. This function uses the microcontroller's 8-bit PWM digital I/O pins. These pins allow the microcontroller to set the duty cycle of the output, meaning for a given amount of time, how long the output is on. You might have noticed during the previous activity if you make the delay shorter and shorter, it looks like the LED is flickering really fast and maybe even dimming (or even solidly on). This same idea is used in this sketch to get the LED to blink!

    Reading a Potentiometer

    Controlling the LED from code is an awesome thing, so congratulate yourself on that! Blinking LEDs is very often the first test code an engineer writes for a new microcontroller. It's useful as a quick visual inspection that your code is running as you intended it to. But, what if you wanted to control that LED based on some action taken in the real world, not just in code?

    You'd need some kind of an input. For this set, we have included a potentiometer, also known as a variable resitor. You've probably seen potentiometers used as volume knobs before. They are most commonly seen as one of two types: a knob or a slider.

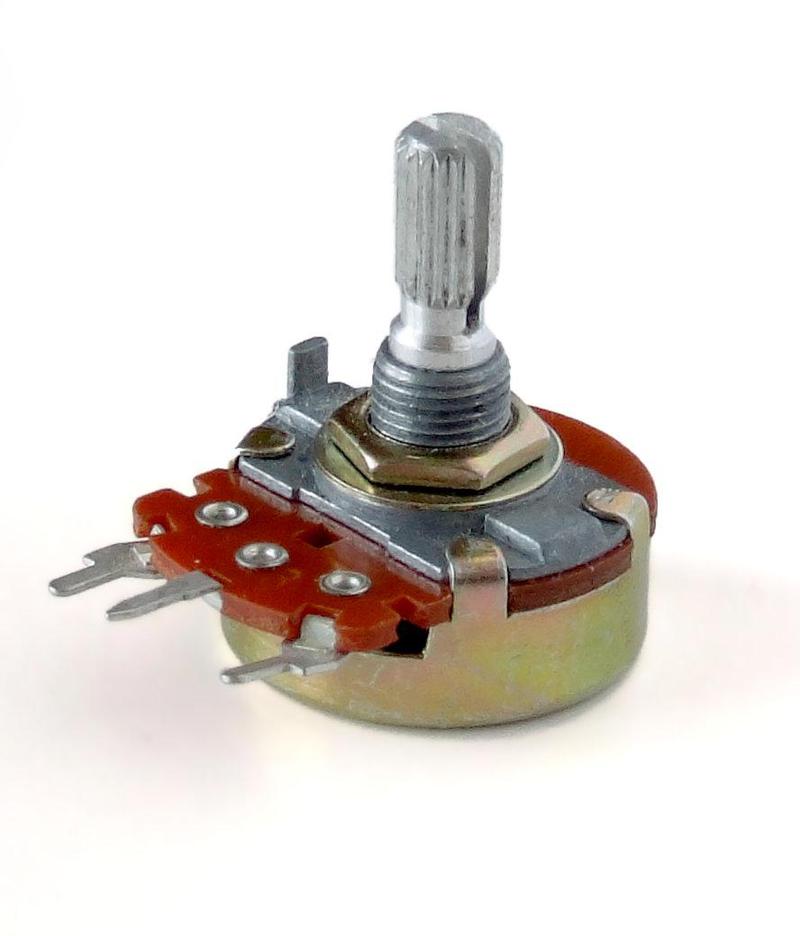

    Common knob potentiometer

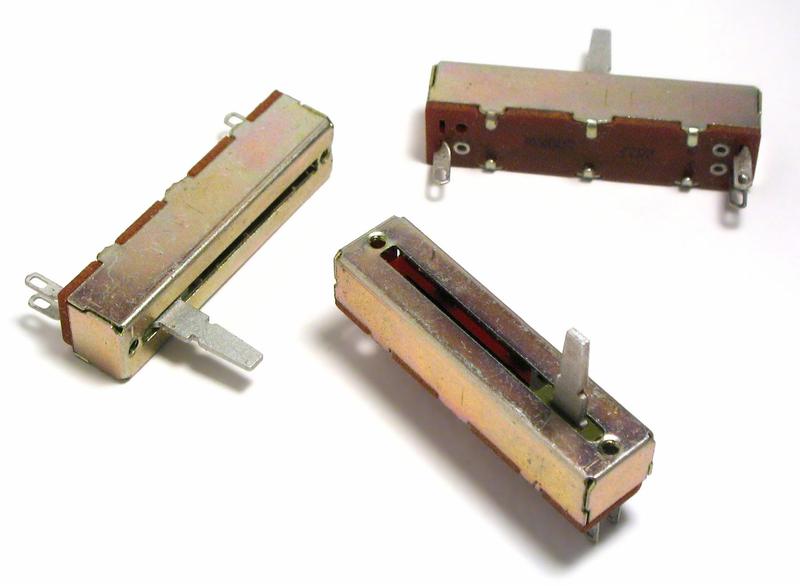

    Fader (linear) potentiometer

    In this set, we've included a knob potentiometer.

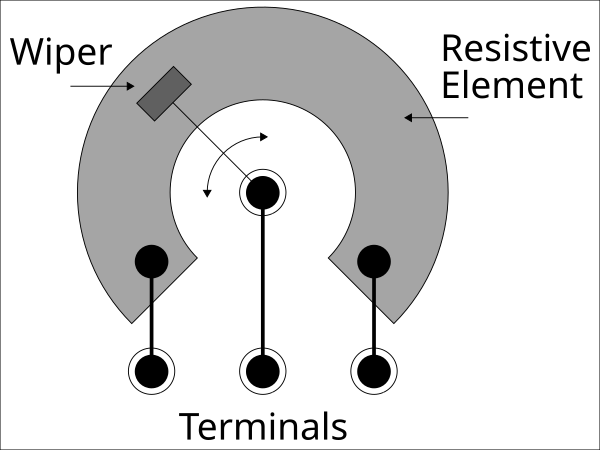

    Internally, a potentiometer consists of three primary components: a resistive element, a wiper, and terminals. The wiper varies the resistance between the terminals by sliding along the resistive element. Two terminals are connected to opposite ends of the resistive element and the third terminal is connected to the wiper. The position of the wiper determines the resistance between the outside terminals and the wiper terminal.

    How a potentiometer worksHow a potentiometer works

    Using a graphite pencil and some wire, you could make your own potentiometer.

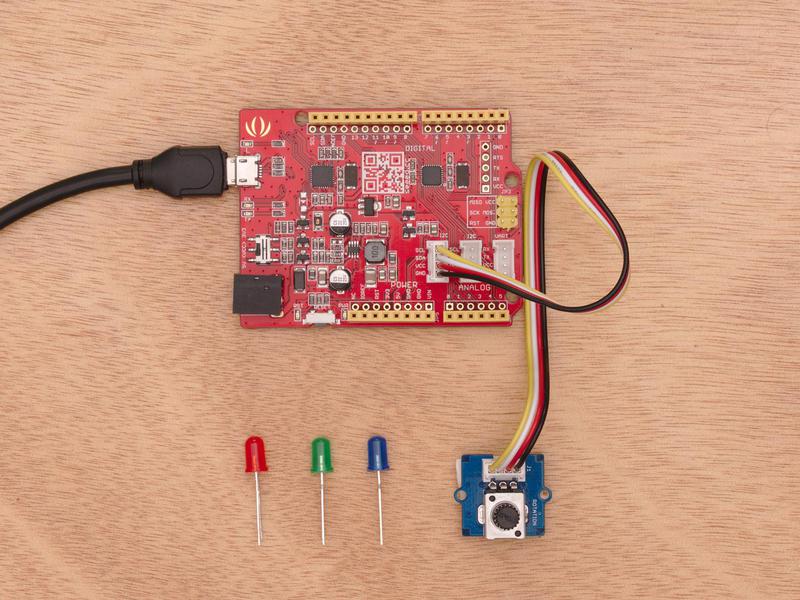

    All the parts you'll need

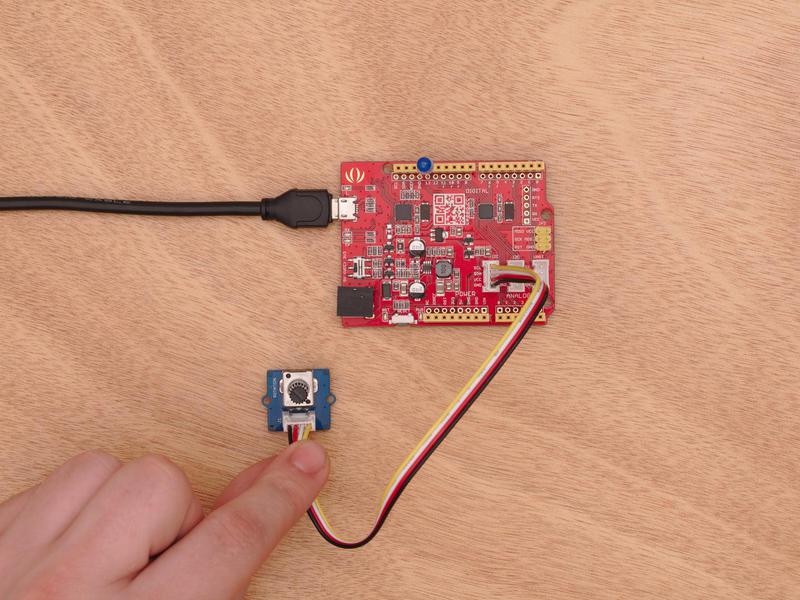

    Take the cable ...

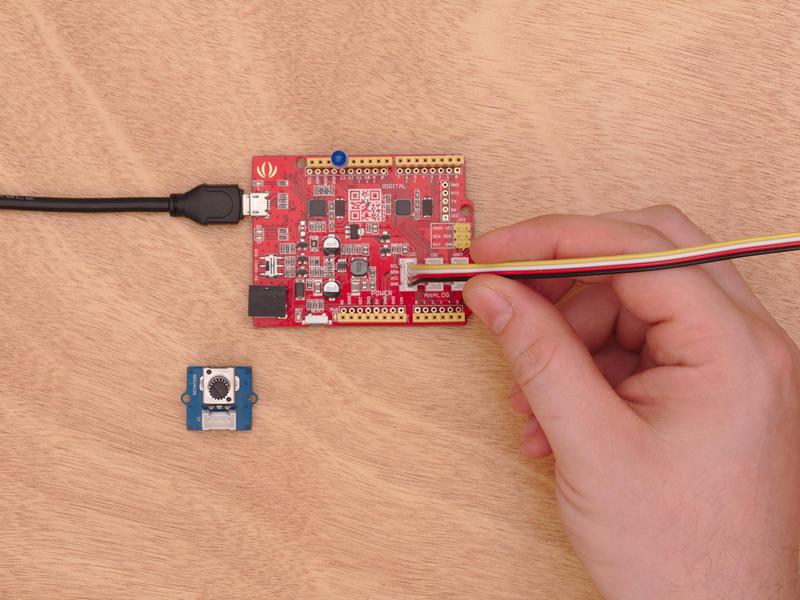

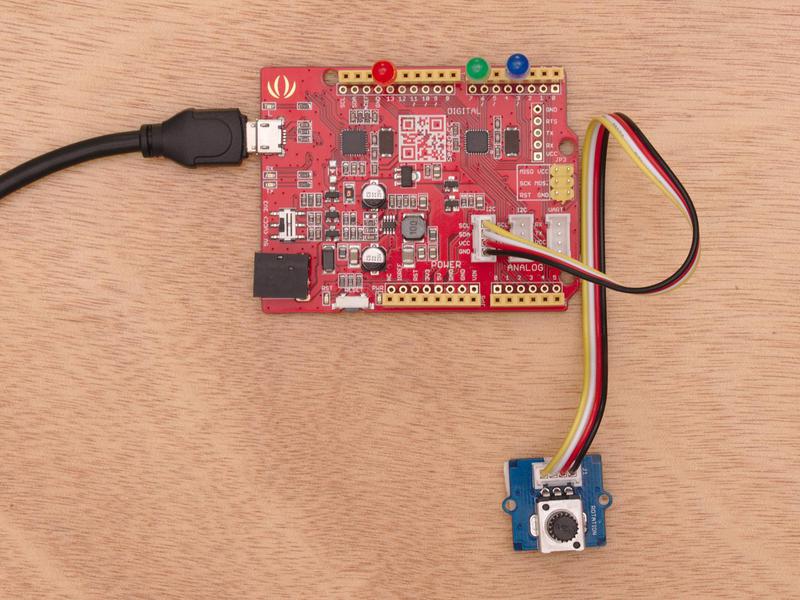

    Plug one side into the Seeeduino
    ... and the other into the potentiometer

    Upload

    Upload the following code.

    Download file Copy to clipboard
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    // the setup routine runs once when you press reset:
    void setup() {
      // initialize serial communication at 9600 bits per second:
      Serial.begin(9600);
    }

    // the loop routine runs over and over again forever:
    void loop() {
      // read the input on analog A5
      // (note: internally on the circuit board, SCL/SDA are attached to A4/A5):
      int sensorValue = analogRead(A5);
      // print out the value you read:
      Serial.println(sensorValue);
      delay(1);        // delay in between reads for stability
    }


    Observe

    First, let's open up the Serial Monitor.

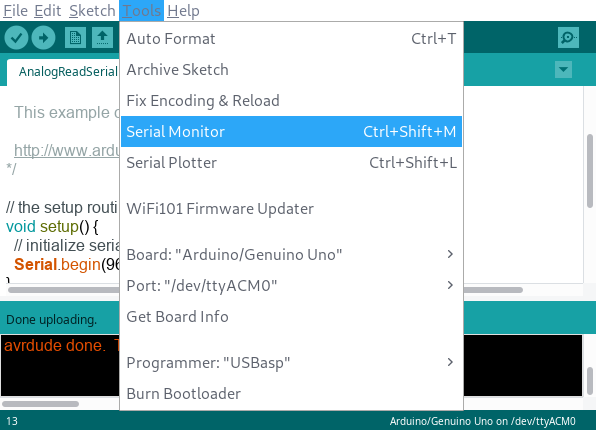

    Open the Serial monitor via Tools -> Serial Monitor

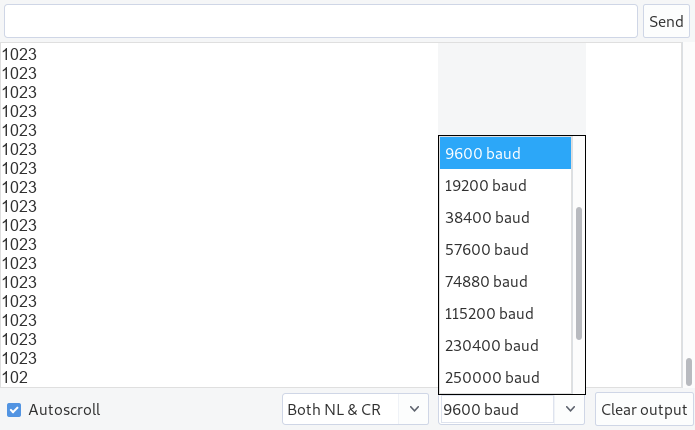

    Set the Baud rate to 9600

    The Serial Monitor shows us what is being printed to the Serial port by the Arduino. In the screenshot above, we can see that the value 1023 is being printed over and over again. If you change the position of the knob, the value changes. If you are not seeing data, double check to make sure you are connected to the correct port and that you have set the Baud Rate correctly.

    For numeric data like this, a graph can be much easier to read. The Arduino IDE provides a simple plotting tool called the Serial Plotter. Let's open it up.

    Open the Serial Plotter via Tools -> Serial Plotter
    The Serial Plotter shows the value changing as we rotate the knob back and forth

    In the screenshot above, we were rotating the knob back and forth from one extreme to the other.

    Modify

    Let's change this code so that the potentiometer controls the brightness of the LED.

    Download file Copy to clipboard
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    #define LED_BLUE 3
    #define LED_BLUE_GND 4
    // the setup routine runs once when you press reset:
    void setup() {
      // initialize serial communication at 9600 bits per second:
      Serial.begin(9600);
      pinMode(LED_BLUE_GND, OUTPUT);
      pinMode(LED_BLUE, OUTPUT);
      digitalWrite(LED_BLUE_GND, LOW);
    }

    // the loop routine runs over and over again forever:
    void loop() {
      // read the input on analog A5
      // (note: internally on the circuit board, SCL/SDA are attached to A4/A5):
      int sensorValue = analogRead(A5);
      // Control the brightness of the LED
      analogWrite(LED_BLUE, sensorValue / 4);
    }


    How Does the microcontroller read the potentiometer?

    Microcontrollers are digital computers, and can only process digital signals. As we discussed when talking about how a microcontroller is able to control an LED, for digital signals there are logic voltage levels (0V for LOW and 5V for HIGH) that the microcontroller is able to output.

    On the input side, the Arduino (and compatible) microcontrollers have both digital and analog inputs. Digital inputs are either HIGH (5V) or LOW (0V). Analog values, on the other hand, are quantized to be represented as digital numbers. Quantized is a math term for the process of mapping values from one set (ie: infinite) to a smaller (countable) set. For Arduino, this means that instead of having infinte possible values between 0V and 5V, there are 2^10 (1024) possible values. So, 0V is mapped to 0 and 5V is mapped to 1023. 1024 is not an arbitrary number. The microcontroller in the Arduino has a 10-bit analog-to-digital converter.

    To read analog signals in code, we utilize Arduino's analogRead() function, described in detail here. The line int sensorValue = analogRead(A5); tells the the microcontroller to read the value from the potentiometer and store it as an integer in the variable sensorValue . The potentiometer is connected to pin A5 through the cable and Arduino's circuit board. If you look closely at the connector, you will see SCL SDA VCC GND written on the board next to the wires. Internally, SDA is connected to pin A5, which is why we use this value. GND is 0V and VCC is 5V.

    In this example, the tristate buffer output (C) is connected to the input (A) only when the enable (B) is on. So, if B is on, the switch is closed. If B is off, the switch is open. For a more in-depth understanding, you can read more here.

    For a higher level understanding of this, we're going to introduce the concept of digital voltage. The Seeeduino we uses runs on either 3.3V or 5V, based on the position of the switch.

    We're going to set the switch to 5V. In this setting, A LOW signal is ~0V and a HIGH signal is roughly

    Make a game

    We've successfully controlled an LED to make it Blink and Fade. We've successfully read the value of a potentiometer. Let's put all of this together and make it into a game! We'll use 3 LEDs and the potentiometer to make a reaction game. The Blue and Green LEDs will light up and tell us which way to move the potentiometer. We'll score points each time we move it in the correct direction and we'll also measure the total time it takes us to react.

    First, we'll put it all together:

    All the parts you'll need
    Grab the RED LED...
    ... and place the long side into pin 13 and the short side into the pin marked GND
    Grab the Blue LED...
    ... and place the long side into pin 3 and the short side into pin 4
    Grab the Green LED...
    ... and place the long side into pin 6 and the short side into pin 7
    All together

    Code for the Reaction Game

    Upload the code below, open the Serial monitor, and play the game!

    Download file Copy to clipboard
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    133
    134
    135
    136
    137
    138
    139
    140
    141
    142
    143
    144
    145
    146
    147
    148
    149
    150
    151
    152
    153
    154
    155
    156
    157
    158
    159
    160
    161
    162
    163
    164
    165
    166
    167
    168
    169
    170
    171
    172
    173
    174
    175
    176
    177
    178
    179
    180
    181
    182
    183
    184
    185
    186
    187
    188
    189
    190
    191
    192
    193
    194
    195
    196
    197
    198
    199
    200
    201
    202
    203
    204
    205
    206
    207
    208
    209
    210
    211
    212
    213
    214
    215
    216
    217
    218
    219
    220
    221
    222
    223
    224
    225
    226
    227
    228
    229
    230
    231
    232
    233
    234
    235
    236
    237
    238
    239
    240
    241
    242
    243
    /*
      Reaction Game
    */

    // We use #define to declare macros.
    // ie: Wherever LED_BLUE appears, the Arduino IDE's preprocessor will automatically replace it with 3 when it is uploaded.
    // These are used to make our code easier to modify if we ever want to change values in the future
    #define LED_BLUE 3
    #define LED_BLUE_GND 4
    #define LED_GREEN 6
    #define LED_GREEN_GND 7

    #define LOW_THRESHOLD 256
    #define HIGH_THRESHOLD 768

    enum gameState {
      start,
      countdown,
      pickRandom,
      settle,
      userInput,
      correct,
      incorrect,
      checkDone,
      done,
      first
    };

    // Declare variables
    int randNumber;
    long counter;
    bool green = false;
    bool blue = false;
    int points = 0;
    int roundCount = 0;
    long reactionTime = 0;

    // State represents the current state of the game
    gameState state = start;
    // nextState is used to transition between states
    gameState nextState = start;

    // the setup routine runs once
    void setup() {
      // Tell the microcontroller which pins are used for outputs.
      pinMode(A4, OUTPUT);
      pinMode(LED_BLUE_GND, OUTPUT);
      pinMode(LED_BLUE, OUTPUT);
      pinMode(LED_GREEN_GND, OUTPUT);
      pinMode(LED_GREEN, OUTPUT);
      pinMode(LED_BUILTIN, OUTPUT);
      // initialize serial communication at 9600 bits per second
      Serial.begin(9600);
      // initialize the random number generator with a random seed taken from the ADC
      randomSeed(analogRead(0));
    }

    // the loop routine runs over and over again forever:
    void loop() {
      // Read our potentiometer
      int sensorValue = analogRead(A5);
      // A switch statement looks at the variable (state) and matches the case based on the current value
      switch (state) {
        case first:
          // Print instructions to the serial console
          Serial.println("Both LEDs will flash 3 times, then one LED will illuminate.");
          Serial.println("If only the Green LED is on, rotate the potentiometer CCW (to the left).");
          Serial.println("If only the Blue LED is on, rotate the potentiometer CW (to the right).");
          Serial.println("This game measures your reaction time, so be quick.");
          Serial.println("And always move the potentiometer to center position to begin.");
          // Wait 2 seconds so players can read the instructions
          delay(2000);
          // Wait 3 seconds and then start the game
          Serial.print("Starting a new game in 3 Seconds");
          delay(3000);
          // Print instructions on how to start the game
          Serial.println("Move the potentiometer to center position to begin.");
          // set nextState to "start" so the game will be in the start state the next time through the loop
          nextState = start;
          // break out of the switch statement
          break;
        case start:
          // Start represents the start of a new game
          // Turn off all of the LEDs
          digitalWrite(A4, LOW);
          digitalWrite(LED_BLUE_GND, LOW);
          digitalWrite(LED_BLUE, LOW);
          digitalWrite(LED_GREEN, LOW);
          digitalWrite(LED_GREEN_GND, LOW);
          digitalWrite(LED_BUILTIN, LOW);
          // Since it is a new game, 0 all of the variables
          roundCount = 0;
          points = 0;
          reactionTime = 0;
          // Do not transition to the next state unless the potentiometer is in the middle position
          if (sensorValue >=  LOW_THRESHOLD && sensorValue <= HIGH_THRESHOLD) {
            // If it is, the next state is the countdown
            nextState = countdown;
          }
          // Otherwise, stay in the start state until the potentiometer is in the middle and break out of the switch
          break;
        case countdown:
          // Countdown flashes the LEDs 3 times
          // Increment the round counter
          roundCount++;
          // Print the current round to the serial console
          Serial.print("Round ");
          Serial.print(roundCount);
          Serial.println(" starting..");
          // Flash the blue and green LEDs 3 times
          // First flash
          // Turn on and wait 500ms
          digitalWrite(LED_BLUE, HIGH);
          digitalWrite(LED_GREEN, HIGH);
          delay(500);
          // Turn off and wait 500ms
          digitalWrite(LED_BLUE, LOW);
          digitalWrite(LED_GREEN, LOW);
          delay(500);
          //Second flash
          // Turn on and wait 500ms
          digitalWrite(LED_BLUE, HIGH);
          digitalWrite(LED_GREEN, HIGH);
          delay(500);
          // Turn off and wait 500ms
          digitalWrite(LED_BLUE, LOW);
          digitalWrite(LED_GREEN, LOW);
          delay(500);
          // Third flash
          // Turn on and wait 500ms
          digitalWrite(LED_BLUE, HIGH);
          digitalWrite(LED_GREEN, HIGH);
          delay(500);
          // Turn off and wait 500ms
          digitalWrite(LED_BLUE, LOW);
          digitalWrite(LED_GREEN, LOW);
          delay(500);
          // Turn on the LEDs for 1 second
          digitalWrite(LED_BLUE, HIGH);
          digitalWrite(LED_GREEN, HIGH);
          delay(1000);
          // Turn off the LEDs
          digitalWrite(LED_BLUE, LOW);
          digitalWrite(LED_GREEN, LOW);
          // Go to the random number state
          nextState = pickRandom;
          break;
        case pickRandom:
          // Grab the current "timestamp" from millis()
          // We will use this to determine reaction time
          counter = millis();
          // Generate a random number (0-9)
          randNumber = random(10);
          // If the number is less than 5
          if (randNumber < 5) {
            // Turn on the green LED and set the flag to true
            green = true;
            digitalWrite(LED_GREEN, HIGH);
            // Print to the serial console
            Serial.println("Green LED");
          }
          // otherwise,
          else if (randNumber >= 5) {
            // Turn on the blue LED and set the flag to true
            blue = true;
            digitalWrite(LED_BLUE, HIGH);
            // Print to the serial console
            Serial.println("Blue LED");
          }
          // Go to the settle state
          nextState = settle;
          break;
        case settle:
          //Serial.println("settle");
          if (millis() - counter >= 100) {
            nextState = userInput;
            Serial.println("Move to the correct position");
          }
          break;
        case userInput:
          //Serial.println("userinput");
          if (green) {
            if (sensorValue <= LOW_THRESHOLD) {
              nextState = incorrect;
            } else if (sensorValue >= HIGH_THRESHOLD) {
              nextState = correct;
            }
          } else if (blue) {
            if (sensorValue >= HIGH_THRESHOLD) {
              nextState = incorrect;
            } else if (sensorValue <= LOW_THRESHOLD) {
              nextState = correct;
            }
          }
          break;
        case correct:
          Serial.println("correct...");
          counter = millis() - counter;
          points++;
          Serial.println("Correct! You score 1 point!");
          Serial.print("Your reaction time was ");
          Serial.print(counter);
          Serial.println("ms.");
          reactionTime += counter;
          nextState = checkDone;
          break;
        case incorrect:
          Serial.println("incorrect");
          Serial.println("You moved in the wrong direction :(");
          nextState = checkDone;
          break;
        case checkDone:
          Serial.println("Move back to center position and get ready!");
          digitalWrite(LED_BLUE, LOW);
          digitalWrite(LED_GREEN, LOW);
          blue = false;
          green = false;
          if (roundCount >= 5) {
            nextState = done;
          } else {
            nextState = countdown;
            //Serial.println("going to countdown");
          }
          break;
        case done:
          Serial.print("You scored a total of ");
          Serial.print(points);
          Serial.println(" points.");
          Serial.print("Your total reaction time was: ");
          Serial.print(reactionTime);
          Serial.println("ms.");
          digitalWrite(LED_BUILTIN, HIGH);
          nextState = first;
          break;

        default:
          Serial.println("in default state..");
          break;
      }
      // Transition to the nextState on the next iteration of the main loop.
      state = nextState;
      delay(1);        // delay in between reads for stability
    }


    End

    You have finished the Main Project for this kit. You can continue to explore on your own. You may also want to check out the Creator Set.
