Assemble the Sensor Mount

Start

Below you can see the finished mount installed in the enclosure we just made. This sensor mount allows for air flow as well as some cable management as to not interfere with the sunlight sensor.

The Sensor MountThe Sensor Mount

Modules

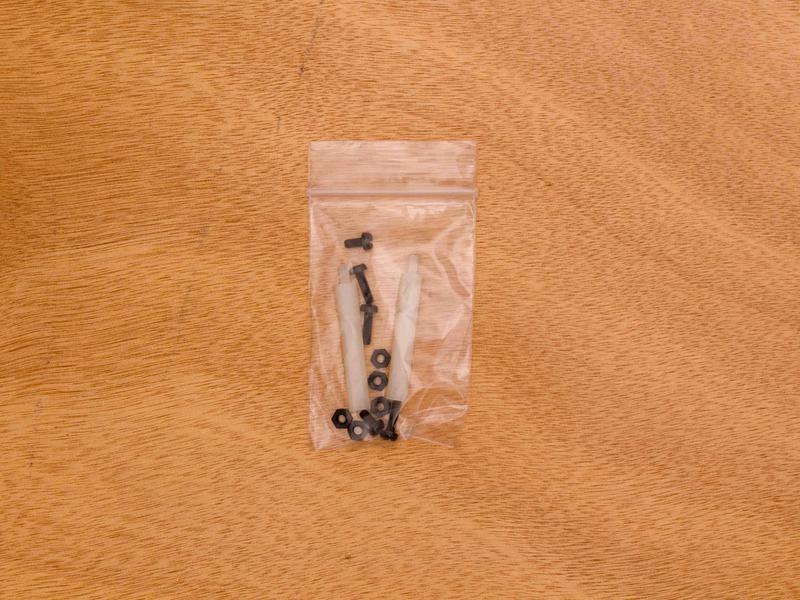

These are the parts inside the bag of hardware and what we'll need for this section.

Parts

All Parts
All Parts
38mm Nylon Standoffs
6mm Nylon Screws
10mm Nylon Screws
Nylon Nuts
Sensor Acrylic Part
Arduino Acrylic Part
BME280
Sunlight Sensor
WiFi Module
1x1 Wrapper
2x1 Wrapper
PartQuantity
38mm Nylon Standoffs 2
6mm Nylon Screws 2
10mm Nylon Screws 3
Nylon Nuts 5
Sensor Acrylic Part 1
Arduino Acrylic Part 1
BME280 1
Sunlight Sensor 1
WiFi Module 1
1x1 Wrapper 1
2x1 Wrapper 2

Attaching the Arduino

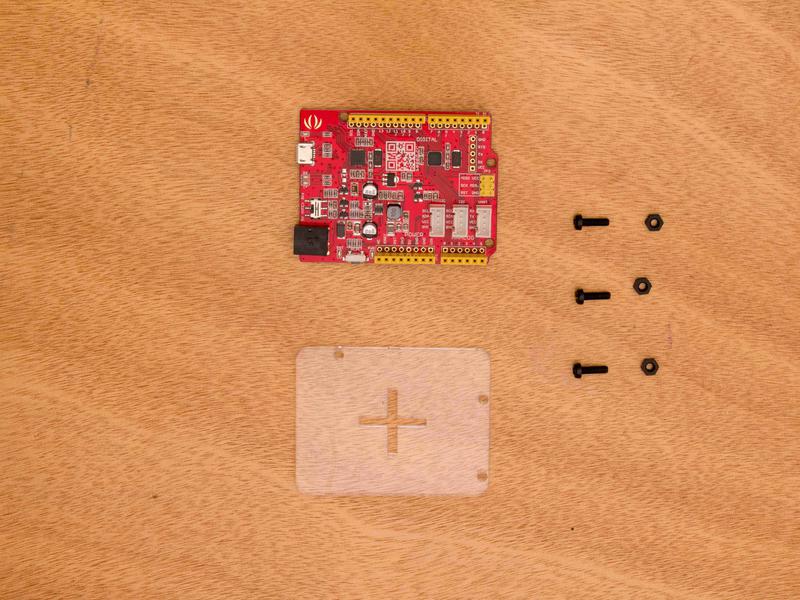

Grab an Arduino without the base shield, Arduino part, all 3 10mm screws, and 3 nuts. The three holes in the Arduino will match up to the holes on the Arduino piece. Place the Arduino on top then add a screw to any hole. Push it through before flipping it over and attaching a nut. Don't fully tighten the nut at this time. Repeat with the other 2 holes and screw. The screw near the Arduino headers will go in diagonal and not fully down. This is okay. With all three screws and nuts attached, you can now tighten all of them.

All the parts
All the parts
The holes in the piece
The holes in the Arduino
Take the Arduino
And line up the holes
Take one screw
Place into the hole
Flip over and get a nut
Lightly tighten the nut
Repeat for the other holes
Repeat for the other holes
Repeat for the other holes
Repeat for the other holes
Repeat for the other holes
Repeat for the other holes
Repeat for the other holes
Repeat for the other holes
Fully tighten the remaining nuts
Fully tighten the remaining nuts

Attaching the Base Shield

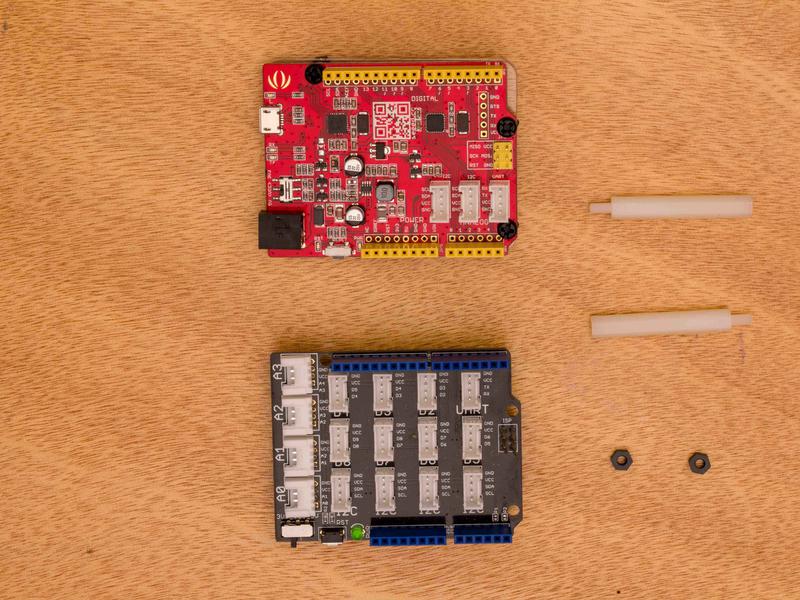

Grab the base shield, both standoffs, and the remaining nuts. Take a standoff and place the threaded side through one of the mounting holes in the base shield. The standoff should be pointing up like the sockets do. Flip it over the shield and tighten down a nut. Repeat this for the other standoff and nut. Then place the shield onto the Arduino.

All the parts
All the parts
The mounting holes
Take a standoff
Place into mounting hole
Standoff pointing up
Flip over
Take a nut
Tighten to threads
Flip over
Add the other standoff
Flip over
Grab remaining nut
Tighten to threads
Shield and Arduino
Connected
Ready

Sensor Mount

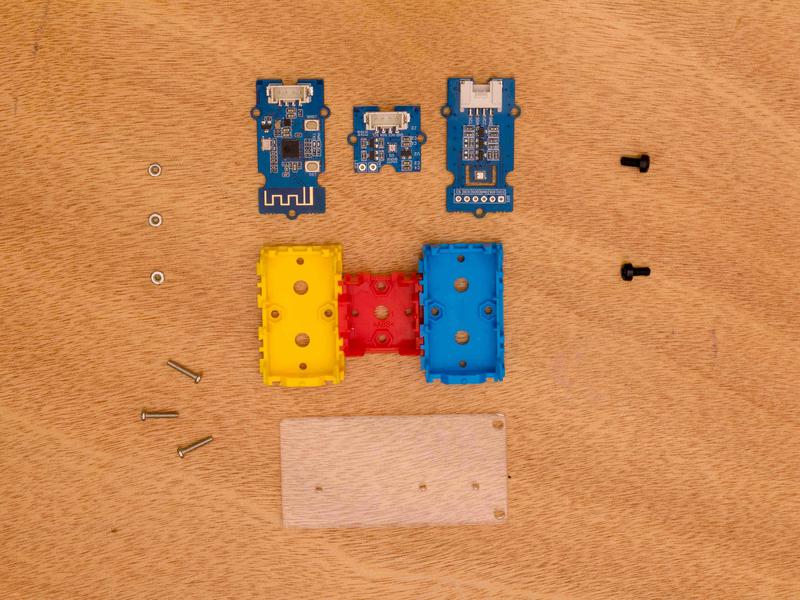

Grab the Sensor piece, all the sensors, all the wrappers, both 6mm screws, as well as 3 long screws and 3 metal hex nuts that come with your wrappers. Click your wrappers together like seen in the picture. Place the 3 part wrapper on top of the Sensor piece. Line up the smaller holes on the short sides of the wrappers with the holes in the Sensor piece. Drop in a hex nut where there are cutouts in the wrapper. We only need the ones that have holes in the Sensor piece. Flip over and screw in a screw to each of the holes. With all three tightened we can snap in the sensors.

All the parts
All the parts
Wrappers and hex nuts
Holes and screws
Other two screws
Grab wrapper
Place on sensor plate
Line up with these holes
Line up with these holes
Line up with these holes
Add nuts
Add screw
Hand tighten
So it threads
Add another screw
Hand tighten or
Use a screwdriver
Till it treads all the way
Repeat for last one
Repeat for last one
Repeat for last one
Repeat for last one
All screws in
Click sensors in
Click sensors in
Click sensors in
Click sensors in
Click sensors in
Click sensors in

Mount to Shield

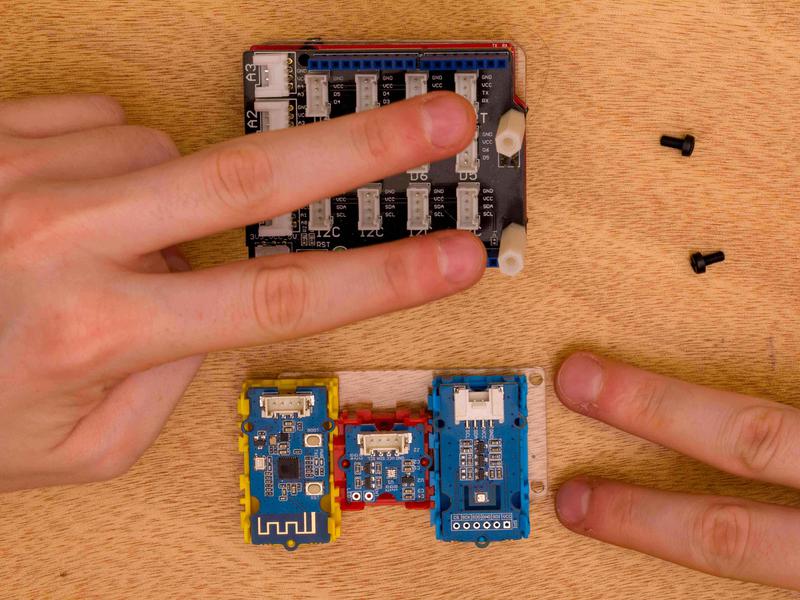

The two bigger holes in the Sensor mount are for the shield. Line it up and screw in the 2 remaining nylon screws. The mount in complete.

Where the screws go
Where the screws go
Line up mount
Take a screw
Tread in
Finish with screwdriver
Take the other screw
Thread in
Finish with screwdriver
Finished mount
Finished mount
With sensors

Wire it Up

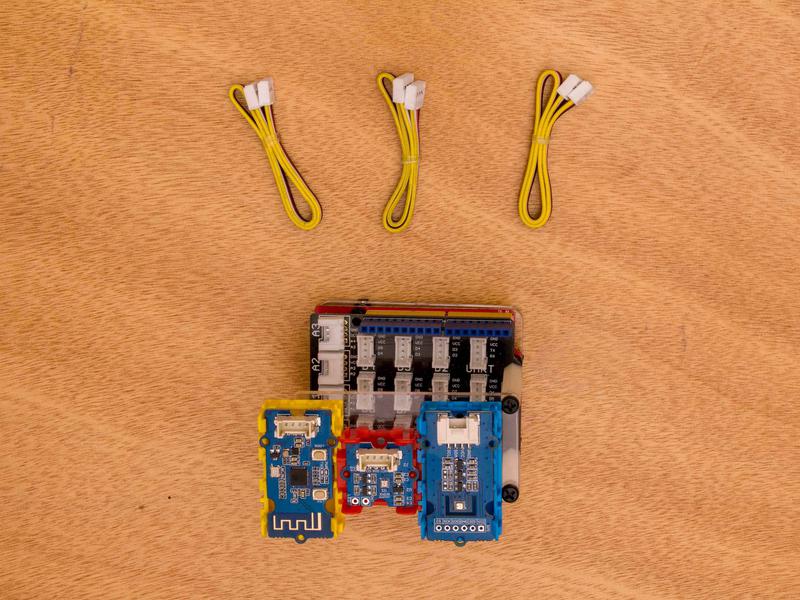

Now we'll need our cables. Take a cable. Unwrap it and attach one side to the BME280 socket. The other goes to any I2C socket. Take a cable. Unwrap it and attach one side to the sunlight socket. The other goes to any I2C socket. Take a cable. Unwrap it and attach one side to the WiFi Module. The other goes to the D8 socket.

All the parts
All the parts
Take a cable
Unwrap it
Attach one side to the BME280 socket
The other goes to any I2C socket
The other goes to any I2C socket
Take a cable
Unwrap it
Attach one side to the sunlight socket
The other goes to any I2C socket
The other goes to any I2C socket
Take a cable
Unwrap it
Attach one side to the WiFi Module
The other goes to the D8 socket
The other goes to the D8 socket
Ready to go!

Next Section

In the last section of assembly, we will install the two components we've built.
